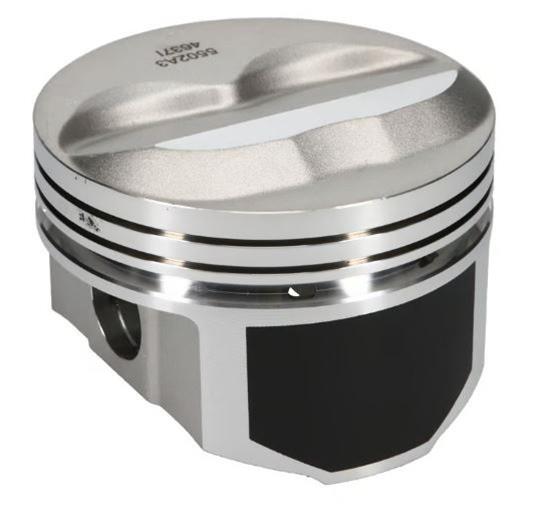

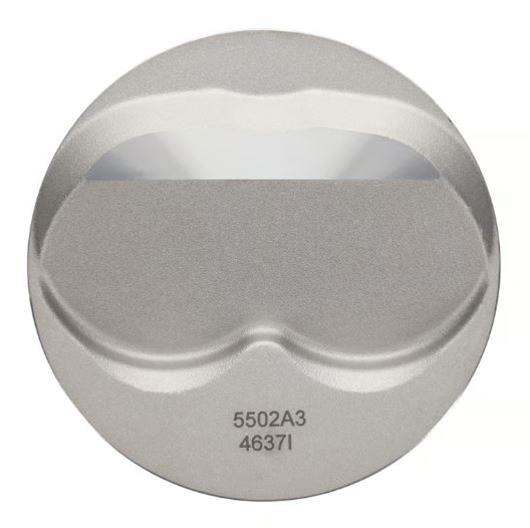

Wiseco Pro Tru Street Pistons 5502A3 Piston, Street, Forged Aluminum, Dome, 4.030 in. Bore, Rings, Chevrolet, 5.7L, 5.7L LT, Single Piston, Each
Wiseco Pro Tru Street Pistons 5502A3 Piston, Street, Forged Aluminum, Dome, 4.030 in. Bore, Rings, Chevrolet, 5.7L, 5.7L LT, Single Piston, Each
A$297.37
IN STOCK! Est Ship 3-7 Days days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Are you looking for affordable high performance for your street machine? Wiseco Pro Tru Street pistons are right up your alley! These forged 4032 aluminum pistons are complete with chromium alloy steel piston pins and Spirolox. Oversized, symmetrical, radiused valve pockets allow for maximum flow around the valves during overlap—and accommodate oversized valves and high-lift cams. Wiseco's proprietary ArmorGlide skirt coating extends piston life, increases horsepower, reduces noise, and offers much tighter dimensional tolerances than typical spray-on coatings. Choose the set designed for your vehicle and engine application. World-class, precision-machined high performance pistons—that's Wiseco value!
Part Type
Pistons
Specifications
- Product Attributes - Brand
- Wiseco
- Product Attributes - Manufacturer's Part Number
- 5502A3
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- Wiseco Pro Tru Street Pistons
- Product Attributes - UPC
- 00193564094155
- Product Attributes - Piston Rings Included
- Yes
- Product Attributes - Bore (in.)
- 4.030 in.
- Product Attributes - Bore (mm)
- 102.362mm
- Product Attributes - Stroke
- 3.480 in.
- Product Attributes - Actual Engine Displacement
- 5.8L/355
- Product Attributes - Rod Length
- 5.700 in.
- Product Attributes - Piston Style
- Dome, with two valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.560 in.
- Product Attributes - Piston Head Volume (cc)
- -8.00cc
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.927 in.
- Product Attributes - Piston Ring Thickness
- 1/16 in. x 1/16 in. x 3/16 in.
- Product Attributes - File Fit
- Yes
- Product Attributes - Gapless
- No
- Product Attributes - Top Ring Thickness
- 1/16 in.
- Product Attributes - Top Ring Material
- Ductile iron
- Product Attributes - Top Ring Facing Material
- Plasma-moly
- Product Attributes - Second Ring Thickness
- 1/16 in.
- Product Attributes - Second Ring Material
- Cast iron
- Product Attributes - Second Ring Facing Material
- Phosphate coated
- Product Attributes - Oil Ring Thickness
- 3/16 in.
- Product Attributes - Oil Ring Material
- Carbon steel
- Product Attributes - Oil Ring Facing Material
- Chrome
- Product Attributes - Oil Ring Tension
- Standard
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Wiseco |
|---|---|
| StreetFX SKU | wis5502A3 |
| SFX Item ID | 4764811 |
| Supplier Item Code | 4764811 |
| Manufacturer SKU | 5502A3 |
| Manufacturer UPC | 193564094155 |
| Alternative References | 5.7L |
