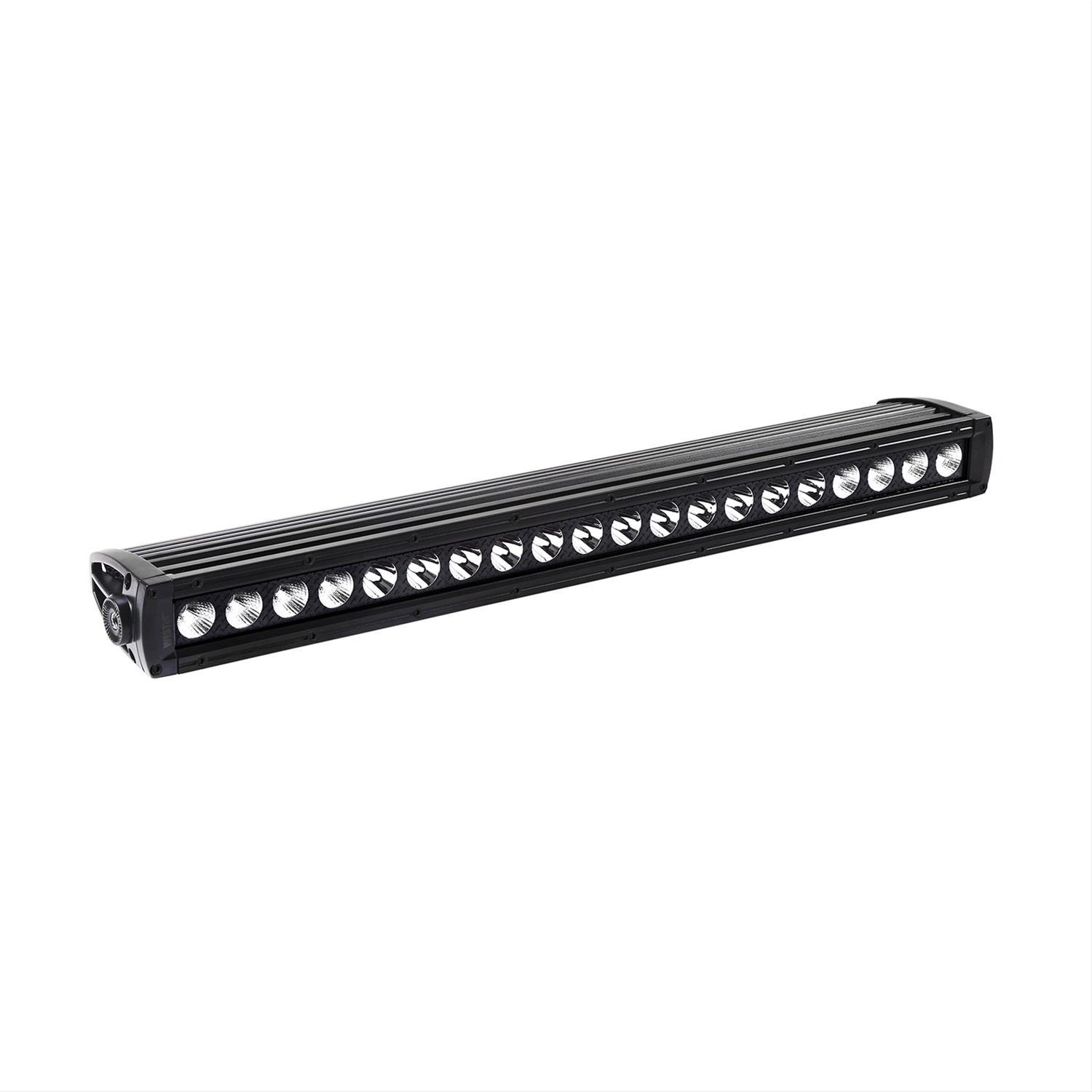

Westin B-FORCE LED Light Bar Single Row 20 inch Combo w/5W Cree - Black

SKU: WES09-12211-20C

Light Bars, Light Pods and Fog Lights

WES LED Light Bars - B-Force...

Westin

Westin B-FORCE LED Light Bar Single Row 20 inch Combo w/5W Cree - Black

SKU: WES09-12211-20C

Light Bars, Light Pods and Fog Lights

WES LED Light Bars - B-Force...

Available Est Ship 7-14 Days days. This item is in stock at one of our partner warehouses. The ETA is the estimated time it should take for us to receive it. In some cases it may ship directly from the distribution centre depending on the product.

We accept

Description

Westins B-FORCE Single Row LED Light Bars are feature a black face with diamond plate pattern and are supplied with black hardware for a total blackout look. Available in high quality powder coat finish with a rubber sealed GORE pressure equalizing vent. B-Force Single Row LED Light Bars are available in 6, 10, 20, 30, 40, and 50 inch lengths. Includes mounting hardware and pigtail connector.

Application Summary

Universal Fitment

Part Type

Light Bar

Data: v4.2 - Upd: 2026-10-13 17:26:32

Features

5W LED chips
6063 Extruded Aluminum Housing w/Die-Cast Ends
6063 extruded aluminum housing with die-cast ends
Available in 6", 10", 20", 30", 40" and 50" lengths
Available In Flood Or Combo Beam
Dust And Moisture Resistant
Dust and moisture resistant lens
GORE pressure equalizing vent
Incl. Side Mount Brackets And hardware
Incl. Wiring Harness w/Connector/Switch/Relay And In-Line Fuse
Includes mounting hardware and pigtail connector
Limited Lifetime Warranty
Power Output 30-250 Watts
Raw Lumens 2980-29900
Raw Lumens: 2,980 - 24,900

Specifications

Product Attributes - Brand: Westin Automotive
Product Attributes - Manufacturer's Part Number: 09-12211-20C
Product Attributes - Part Type: Light Bars, Light Pods and Fog Lights
Product Attributes - Product Line: Westin B-Force LED Light Bars
Product Attributes - UPC: 707742079591
Product Attributes - Light Type: Light bar
Product Attributes - Bulb Type: LED
Product Attributes - Light Bar Type: Straight single row
Product Attributes - Optics Style: Flood/Spot
Product Attributes - Light Bar Size (in.): 20 in.
Product Attributes - Watts: 100.0 watts
Product Attributes - Amp Draw: 6.50 amps
Product Attributes - Maximum Voltage: 30 V
Product Attributes - Lumens: 9,960
Product Attributes - Beam Distance: 525.00 m
Product Attributes - Number of LEDs: 20
Product Attributes - Bulb Color: White
Product Attributes - Lens Color: Clear
Product Attributes - Housing Color: Black
Product Attributes - Housing Material: Aluminum
Product Attributes - Light Cover Included: No
Product Attributes - Hardware Included: Yes
Product Attributes - Relay Included: No
Product Attributes - Wiring Harness Included: Yes
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Westin
StreetFX SKU	wes09-12211-20C
SFX Item ID	4150948
Supplier Item Code	4150948
Manufacturer SKU	09-12211-20C
Manufacturer UPC	707742079591
Alternative References	wsa-09-12211-20c, w/5W
