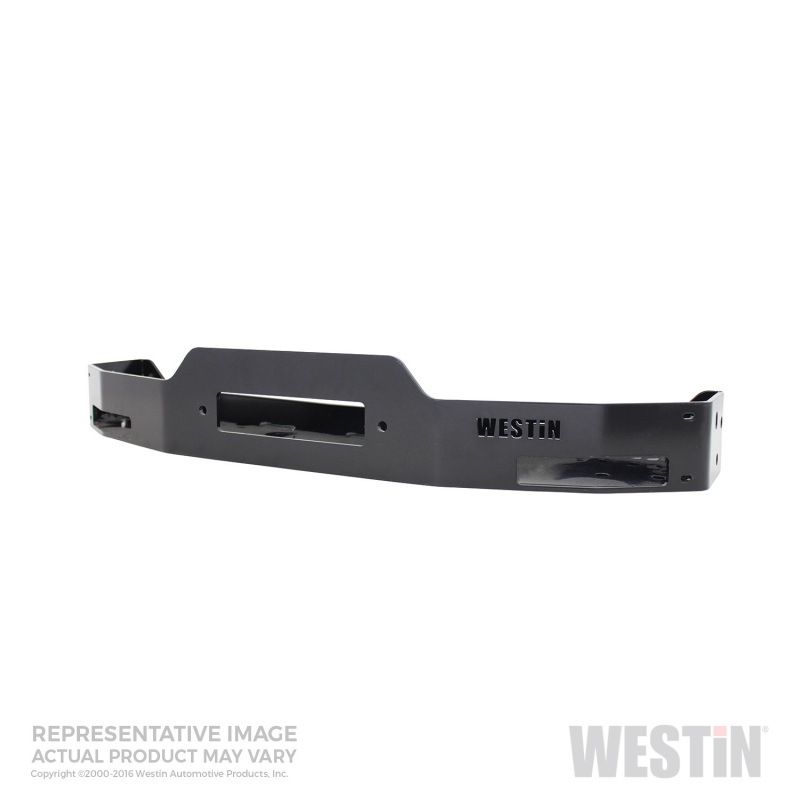

Westin 2009-2014 Ford F-150 MAX Winch Tray - Black

SKU: WES46-23745

Winch Mounts

WES MAX Winch System...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

Mounts directly to frame. Max grill guards bolt directly to the tray. Accommodates up to 12000 pound winches. No drill installation.

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title

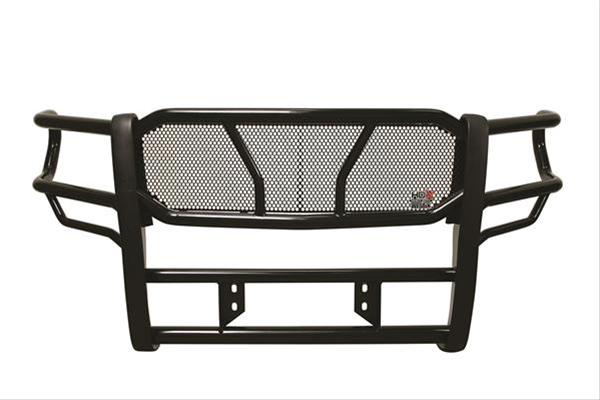

	wes57-92505	Westin Ford F-150/F-150 XL SSV 09-14 HDX Winch Mount Grille Guard (1x wes46-23745, 1x wes57-92505A)

Application Summary

2009-2014 Ford F-150

Part Type

Winch Mount Plate

Data: v4.2 - Upd: 2026-10-13 17:25:04

Features

Accommodates Up To 12000 lb. Winches
Fits most medium frame 8,000-12,000 lbs winches up to 10.25" tall
HD brackets mount directly to vehicle frame
MAX Grill Guards Bolt Directly To Tray
Mounts Directly To Frame
No Drill Installation
Optional MAX Bull Bar/Light Bar
Optional MAX Faceplate
Optional MAX Tow Hooks (Part No. 46-3005 - 2 needed)
Pre-drilled for quick mounting of hawse or roller fairlead
Winch tray tested to a maximum straight line pull of 16,500 lbs

Specifications

Product Attributes - Brand: Westin Automotive
Product Attributes - Manufacturer's Part Number: 46-23745
Product Attributes - Part Type: Winch Mounts
Product Attributes - Product Line: Westin T-Max Winch Trays
Product Attributes - UPC: 707742045619
Product Attributes - Winch Mount Style: Channel
Product Attributes - Winch Mount Material: Steel
Product Attributes - Winch Mount Finish: Black powdercoated
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Westin
StreetFX SKU	wes46-23745
SFX Item ID	4151638
Supplier Item Code	4151638
Manufacturer SKU	46-23745
Manufacturer UPC	707742045619
Alternative References	WSA-46-23745, F-150
