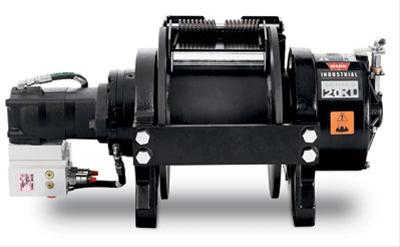

20,000 lbs. Warn Series 20XL Hydraulic Winch 74750 Winch, 20XL, Hydraulic, lb. Capacity, Brake, Standard Drum, Air Clutch, Each
20,000 lbs. Warn Series 20XL Hydraulic Winch 74750 Winch, 20XL, Hydraulic, lb. Capacity, Brake, Standard Drum, Air Clutch, Each
A$14,354.18
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Warn Series 20XL winches are designed for use with severe-duty applications, wreckers, and trailers. Their 8.0 cu. in. high performance motor features a hefty 20,000 lb. pulling capacity. A spring-applied disc brake is designed to hold the full-rated load. Their hardened aircraft-grade, nickel chromoly, 2-stage planetary geartrains ensure speed and reliability. Warn Series 20XL winches are offered with air and manual clutch options in standard and long-drum versions. These winches meet both SAE J706 and CE specifications. For optimum performance, durability, and safety, you can depend on Warn Series 20XL hydraulic winches.
Part Type
Winches
Specifications
- Product Attributes - Brand
- Warn
- Product Attributes - Manufacturer's Part Number
- 74750
- Product Attributes - Part Type
- Winches
- Product Attributes - Product Line
- Warn Series 20XL Hydraulic Winches
- Product Attributes - UPC
- 0012748747505
- Product Attributes - Winch Style
- Hydraulic
- Product Attributes - Pull Rating (lbs.)
- 20,000 lbs.
- Product Attributes - Winch Fairlead Type
- None
- Product Attributes - Remote Included
- No
- Product Attributes - Free-Spooling
- Yes
- Product Attributes - Brake
- Yes
- Product Attributes - Power Out
- No
- Product Attributes - Drive Gear
- 2-stage planetary
- Product Attributes - Winch Line Included
- No
- Product Attributes - Conforms to J706 Standards
- Yes
- Product Attributes - Mounting Hole Quantity
- 8 holes
- Product Attributes - Mounting Pattern Length (in.)
- 12.00
- Product Attributes - Mounting Pattern Width (in.)
- 7.50
- Product Attributes - Weight
- 306.000 lbs.
- Product Attributes - Gear Reduction Ratio
- 28.5:1
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Standard drum air clutch. Also has 12.000 in. x 10.500 in. mounting pattern. Recommended cable diameter of 9/16 in.
Reference Information
| Brand Name/s | Warn Industries |
|---|---|
| StreetFX SKU | war74750 |
| SFX Item ID | 5167452 |
| Supplier Item Code | 5167452 |
| Manufacturer SKU | 74750 |
| Manufacturer UPC | 12748747505 |
| Alternative References | WRN74750, 20XL |
