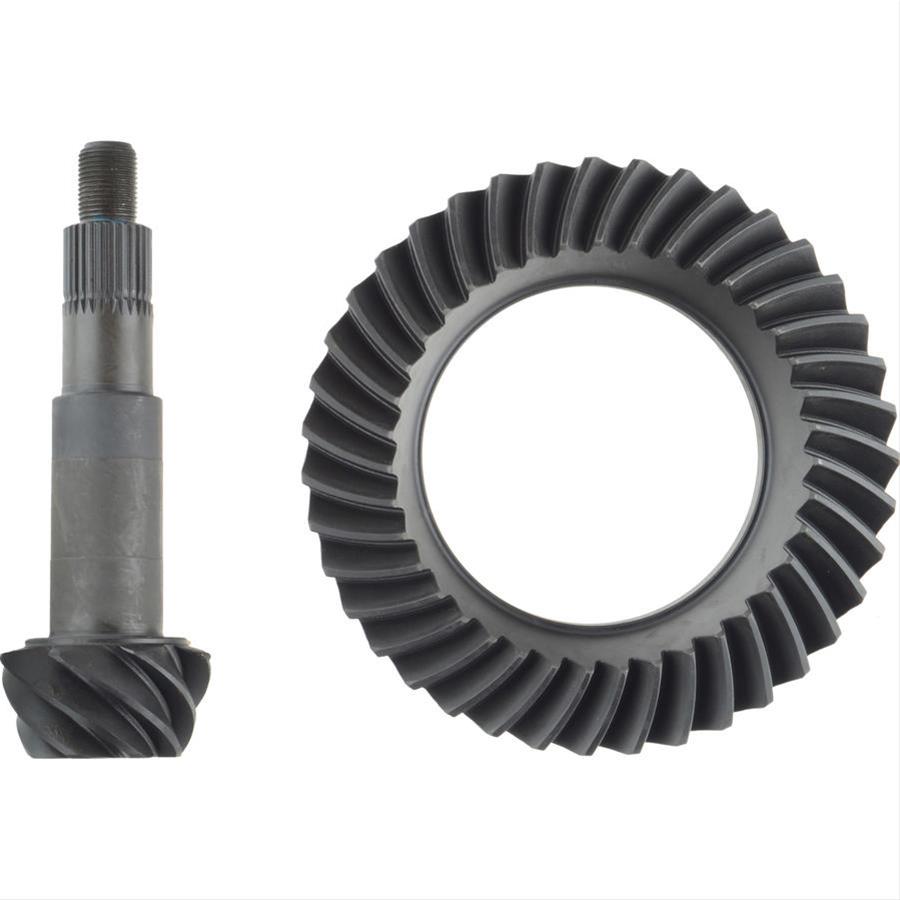

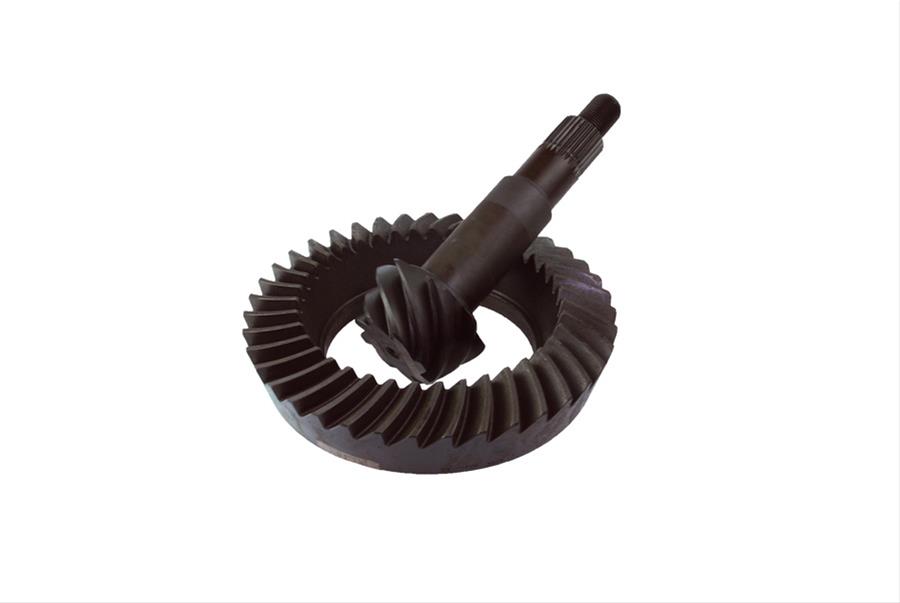

SVL Drivetrain Ring and Pinion Gear Sets 2023704 GM 8.5/8.6 in. 4.88 Gears Gears, in., 4.88:1 Ratio, 30-spline, Standard, Must Use 2.73:1 or Numerically Higher Ratio Carrier, in., Set
SVL Drivetrain Ring and Pinion Gear Sets 2023704 GM 8.5/8.6 in. 4.88 Gears Gears, in., 4.88:1 Ratio, 30-spline, Standard, Must Use 2.73:1 or Numerically Higher Ratio Carrier, in., Set
Sale ends in Calculating...
A$887.67
A$911.03
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
IMPORTANT NOTICE: Must use 2.73:1 or numerically higher ratio carrier.
SVL Drivetrain ring and pinion gear sets make it easy to find the right ratio for your application. Engineered and manufactured for all makes and ratios, they deliver the ideal blend of coverage, performance, and value. SVL starts their ring and pinion sets with a computer-generated gear summary.
From there, the gearing is forged from alloy steel for optimal hardness; then the gears are cut with the utmost accuracy to ensure the smoothest possible ride—and computer-controlled heat-treating results in extra wear resistance. In the final stage of the process, the ring gear is mated to the pinion through gear lapping, which provides ideal meshing of the gearing. You can count on SVL Drivetrain ring and pinion gear sets to fit and function as expected in your automotive application.
Part Type
Ring and Pinion Gears
Specifications
- Product Attributes - Brand
- SVL Drivetrain Products
- Product Attributes - Manufacturer's Part Number
- 2023704
- Product Attributes - Part Type
- Ring and Pinion Gears
- Product Attributes - Product Line
- SVL Drivetrain Ring and Pinion Gear Sets
- Product Attributes - UPC
- 023913244576
- Product Attributes - Differential Case Design Type
- GM 8.5/8.6 in.
- Product Attributes - Ring and Pinion Ratio
- 4.88:1
- Product Attributes - Cover Bolts
- 10
- Product Attributes - Ring Gear Bolts
- 10
- Product Attributes - Pinion Spline Count
- 30
- Product Attributes - Ring Gear Rotation
- Standard
- Product Attributes - Ring Gear Teeth
- 39
- Product Attributes - Pinion Gear Teeth
- 8
- Product Attributes - Ring Gear Diameter (in.)
- 8.500 in.
- Product Attributes - Pinion Shaft Diameter (in.)
- 1.625 in.
- Product Attributes - Installation Kit Included
- No
- Product Attributes - Cover Gasket Included
- No
- Product Attributes - Pinion Shims Included
- No
- Product Attributes - Carrier Shims Included
- No
- Product Attributes - Crush Sleeve Included
- No
- Product Attributes - Pinion Seal Included
- No
- Product Attributes - Pinion Nut Included
- No
- Product Attributes - Ring Gear Bolts Included
- No
- Product Attributes - Head Bearing Included
- No
- Product Attributes - Tail Bearing Included
- No
- Product Attributes - Carrier Bearings Included
- No
- Product Attributes - Axle Seals Included
- No
- Product Attributes - Axle Bearings Included
- No
- Product Attributes - Differential Cover Included
- No
- Product Attributes - Differential Oil Included
- No
- Product Attributes - Friction Modifier Included
- No
- Product Attributes - Installation DVD Included
- No
- Product Attributes - Quantity
- Sold as a set.
- Product Attributes - Notes
- Must use 2.73:1 or numerically higher ratio carrier.
Reference Information
| Brand Name/s | Svl Drivetrain Products |
|---|---|
| StreetFX SKU | svl2023704 |
| SFX Item ID | 6477053 |
| Supplier Item Code | 6477053 |
| Manufacturer SKU | 2023704 |
| Manufacturer UPC | 23913244576 |
| Alternative References | 30-spline |
