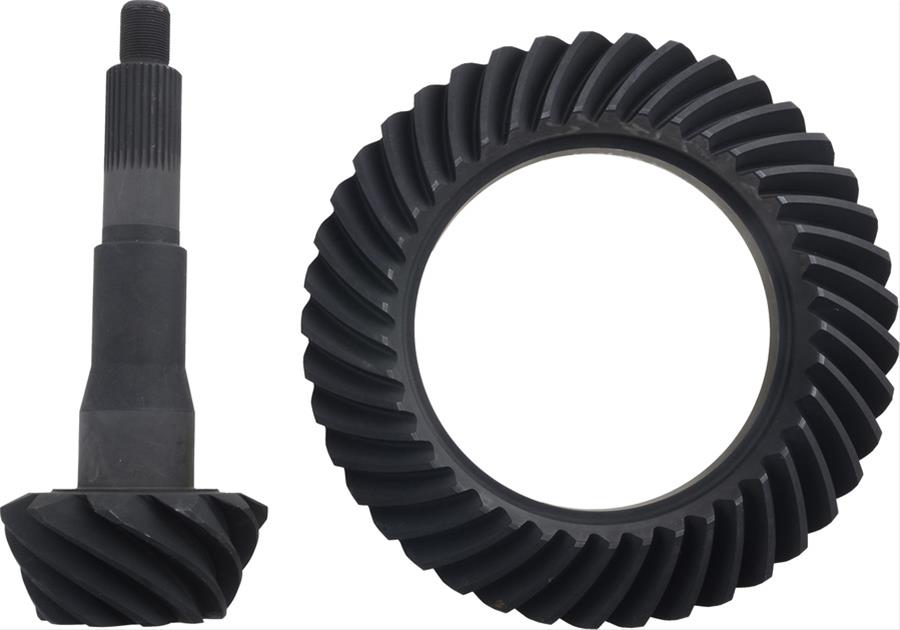

SVL Drivetrain Ring and Pinion Gear Sets 10004683 GM 8.875 in. (12-bolt) truck 4.56 Gears Differential Pinion; 12 Bolt - Thick Gear, Ratio
SVL Drivetrain Ring and Pinion Gear Sets 10004683 GM 8.875 in. (12-bolt) truck 4.56 Gears Differential Pinion; 12 Bolt - Thick Gear, Ratio
A$1,085.39
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
IMPORTANT NOTICE: Thick ring gear. Must use with 3.42:1 or lower carrier.
SVL Drivetrain ring and pinion gear sets make it easy to find the right ratio for your application. Engineered and manufactured for all makes and ratios, they deliver the ideal blend of coverage, performance, and value. SVL starts their ring and pinion sets with a computer-generated gear summary.
From there, the gearing is forged from alloy steel for optimal hardness; then the gears are cut with the utmost accuracy to ensure the smoothest possible ride—and computer-controlled heat-treating results in extra wear resistance. In the final stage of the process, the ring gear is mated to the pinion through gear lapping, which provides ideal meshing of the gearing. You can count on SVL Drivetrain ring and pinion gear sets to fit and function as expected in your automotive application.
Part Type
Ring and Pinion Gears
Specifications
- Product Attributes - Brand
- SVL Drivetrain Products
- Product Attributes - Manufacturer's Part Number
- 10004683
- Product Attributes - Part Type
- Ring and Pinion Gears
- Product Attributes - Product Line
- SVL Drivetrain Ring and Pinion Gear Sets
- Product Attributes - UPC
- 023913249526
- Product Attributes - Differential Case Design Type
- GM 8.875 in. (12-bolt), truck
- Product Attributes - Ring and Pinion Ratio
- 4.56:1
- Product Attributes - Cover Bolts
- 12
- Product Attributes - Ring Gear Bolts
- 12
- Product Attributes - Pinion Spline Count
- 30
- Product Attributes - Carrier Series
- 3
- Product Attributes - Ring Gear Rotation
- Standard
- Product Attributes - Ring Gear Diameter (in.)
- 8.875 in.
- Product Attributes - Pinion Shaft Diameter (in.)
- 1.438 in.
- Product Attributes - Installation Kit Included
- No
- Product Attributes - Cover Gasket Included
- No
- Product Attributes - Pinion Shims Included
- No
- Product Attributes - Carrier Shims Included
- No
- Product Attributes - Crush Sleeve Included
- No
- Product Attributes - Pinion Seal Included
- No
- Product Attributes - Pinion Nut Included
- No
- Product Attributes - Ring Gear Bolts Included
- No
- Product Attributes - Head Bearing Included
- No
- Product Attributes - Tail Bearing Included
- No
- Product Attributes - Carrier Bearings Included
- No
- Product Attributes - Axle Seals Included
- No
- Product Attributes - Axle Bearings Included
- No
- Product Attributes - Differential Cover Included
- No
- Product Attributes - Differential Oil Included
- No
- Product Attributes - Friction Modifier Included
- No
- Product Attributes - Installation DVD Included
- No
- Product Attributes - Quantity
- Sold as a set.
- Product Attributes - Notes
- Thick ring gear. Must use with 3.42:1 or lower carrier.
Reference Information
| Brand Name/s | Svl Drivetrain Products |
|---|---|
| StreetFX SKU | svl10004683 |
| SFX Item ID | 6476897 |
| Supplier Item Code | 6476897 |
| Manufacturer SKU | 10004683 |
| Manufacturer UPC | 23913249526 |
| Alternative References | (12-bolt) |
