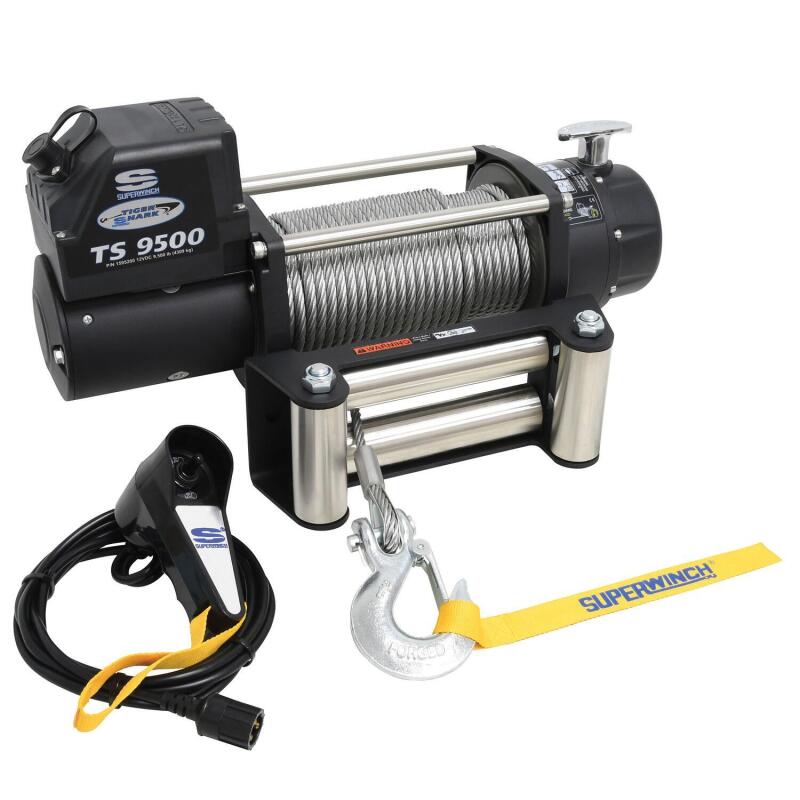

Superwinch 9500 LBS 12V DC 11/32in x 95ft Steel Rope Tiger Shark 9500 Winch
Superwinch 9500 LBS 12V DC 11/32in x 95ft Steel Rope Tiger Shark 9500 Winch
A$1,539.11
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
One of Superwinch's most popular winches, the Tiger Shark 9500 is the benchmark for performance winching while not breaking the bank. From powerful motors, to strong gears, to long-life stainless steel parts, the Tiger Shark 9500 stands out from the competition.
Application Summary
9;500 lbs; 12 VDC; 11/32 in x 95 ft steel rope; weather sealed solenoid; handheld remote control; 5.2 Hp; 3-stage planetary; 218:1 gear ratio and 4-way roller fairlead
Part Type
9500# Winch w/Roller Fairlead & 12ft Remote
Features
- 3-Stage Planetary Gearing With 218:1 Ratio
- 5.2 Hp Motor

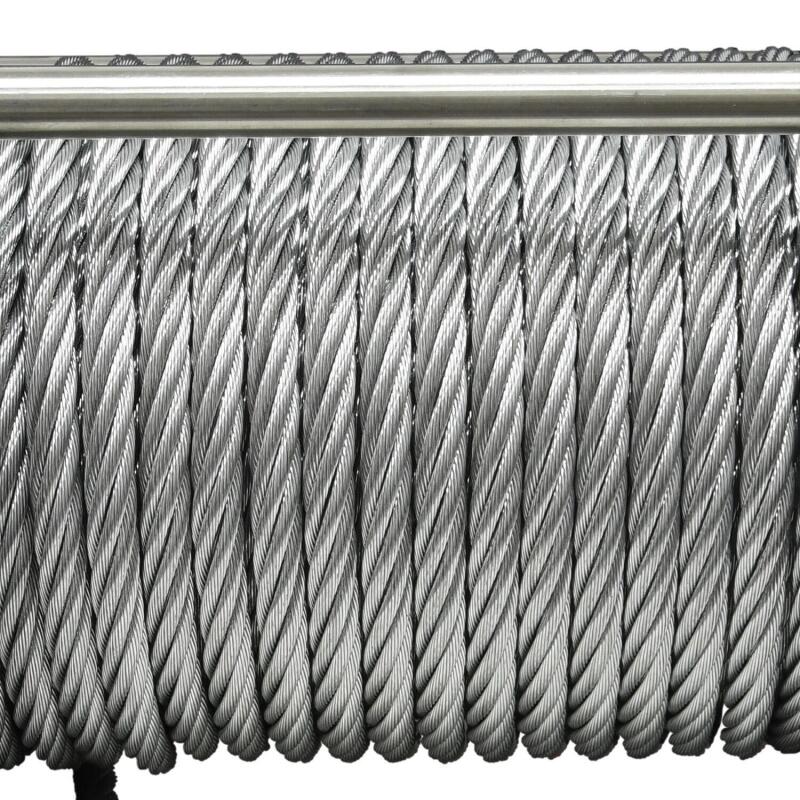

- 95 ft. x 21/64 in. wire rope
- Ergonomic Pull And Turn Freespool
- Ergonomic pull and turn freespool (wire rope)
- Heat insulated first layer

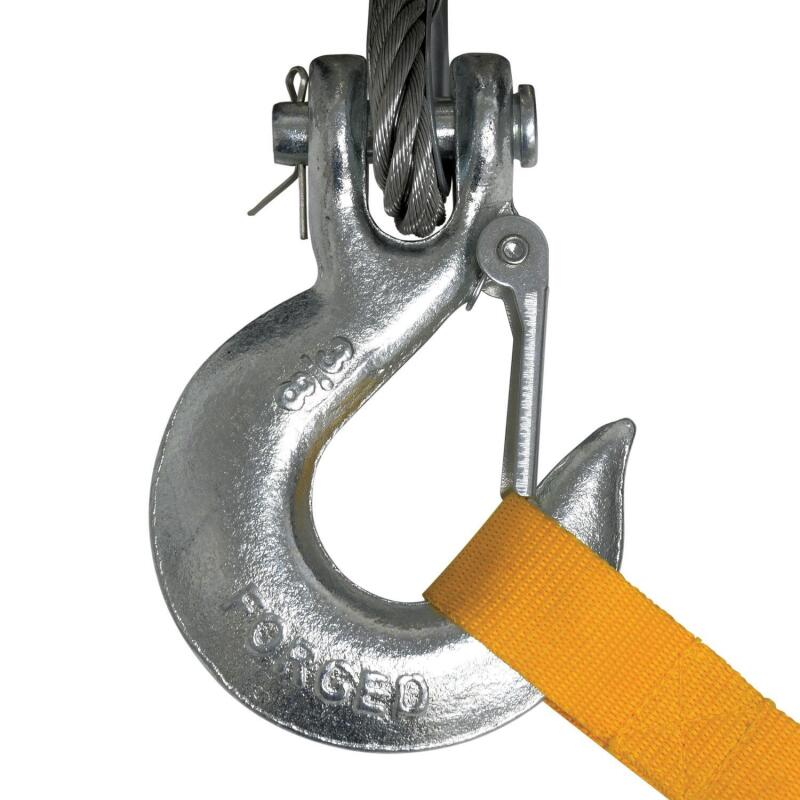

- Heavy-Duty Clevis Pinned Latched Hook
- Heavy-duty, clevis pinned, latched hook
- Rated line pull of 9,500 lbs
- Rated Line Pull Of 9500 Lbs
- Rugged handheld remote control
- Stainless Steel 4-Way Roller Fairlead
- Stainless steel 4-way roller fairlead (wire rope)
- Stainless steel tiebars
- Weather Sealed Solenoid
- Wire Rope Measures 21/64 In. X 95 ft.
Specifications
- Product Attributes - UPC
- 22705003605
- Product Attributes - Brake
- Yes
- Product Attributes - Brand
- Superwinch
- Product Attributes - Volts
- 12 V
- Product Attributes - Weight
- 90.000 lbs.
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Part Type
- Winches
- Product Attributes - Power Out
- Yes
- Product Attributes - Drive Gear
- 3-stage planetary
- Product Attributes - Remote Type
- Wired
- Product Attributes - Winch Style
- Electric
- Product Attributes - Product Line
- Superwinch Tiger Shark 9500 Winches
- Product Attributes - Remote Style
- Hand-held
- Product Attributes - Free-Spooling
- Yes
- Product Attributes - Remote Included
- Yes
- Product Attributes - Winch Line Type
- Cable
- Product Attributes - Motor Horsepower
- 5.20 hp
- Product Attributes - No Load Line Speed
- 19.00 fpm
- Product Attributes - Pull Rating (lbs.)
- 9,500 lbs.
- Product Attributes - Winch Fairlead Type
- Roller
- Product Attributes - Winch Line Included
- Yes
- Product Attributes - Winch Line Material
- Steel
- Product Attributes - Gear Reduction Ratio
- 218:1
- Product Attributes - Mounting Hole Quantity
- 4 holes
- Product Attributes - Winch Line Length (ft.)
- 95.00 ft.
- Product Attributes - Remote Cord Length (ft.)
- 12.00 ft.
- Product Attributes - Winch Line Diameter (in.)
- 21/64 in.
- Product Attributes - Conforms to J706 Standards
- Yes
- Product Attributes - Manufacturer's Part Number
- 1595200
- Product Attributes - Mounting Pattern Width (in.)
- 4.500 in.
- Product Attributes - Mounting Pattern Length (in.)
- 10.000 in.
Reference Information
| Brand Name/s | Superwinch |
|---|---|
| StreetFX SKU | suw1595200 |
| SFX Item ID | 4298263 |
| Supplier Item Code | 4298263 |
| Manufacturer SKU | 1595200 |
| Manufacturer UPC | 22705003605 |
| Alternative References | spw-1595200, SUP1595200, 12V, 11/32in, 95ft |
Brochures
Compatibility
9;500 lbs; 12 VDC; 11/32 in x 95 ft steel rope; weather sealed solenoid; handheld remote control; 5.2 Hp; 3-stage planetary; 218:1 gear ratio and 4-way roller fairlead
