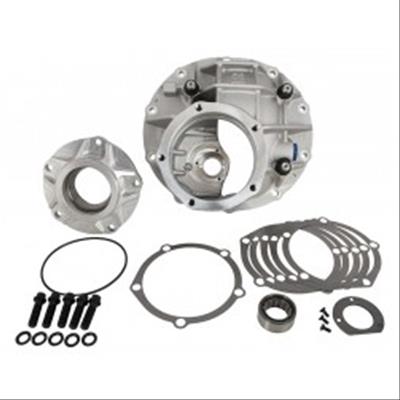

Strange HD Pro Aluminum Case Kits P3203 Third Member Only, Kit, Ford 9 in., Aluminum, Natural, 3.250 in. Carrier Bearing Diameter, 31/33/35/40 Axle Spline, Kit
Strange HD Pro Aluminum Case Kits P3203 Third Member Only, Kit, Ford 9 in., Aluminum, Natural, 3.250 in. Carrier Bearing Diameter, 31/33/35/40 Axle Spline, Kit
A$2,395.16
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Strange HD Pro aluminum case kits offer large bore sizes for the highest splined axles. They use superior 206-T4 heat-treated aluminum, which has 12 percent more yield strength and 32 percent higher tensile strength than the commonly used 356-T6; it's also substantially lighter than an iron case. HD Pro kits are designed for drag racing or abusive street/strip applications with high horsepower and torque. They feature a billet pinion support with 360 degree channel to maximize oil flow to the pinion bearing, as well as two contact points with the bore of the case--which holds the pinion shaft more securely for improved bearing and gear life. Their oversized tail bearing handles more load and greater rpm; billet main caps with chromoly studs support the carrier bearings, while significantly reducing ring gear deflection.
Part Type
HD Alum Pro 3.250in Case Kit- w/Tapered Support
Specifications
- Product Attributes - Brand
- Strange Engineering
- Product Attributes - Manufacturer's Part Number
- P3203
- Product Attributes - Part Type
- Third Member Case Only
- Product Attributes - Product Line
- Strange HD Pro Aluminum Case Kits
- Product Attributes - UPC
- 679460117261
- Product Attributes - Case Style
- Ford 9 in.
- Product Attributes - Case Material
- Aluminum
- Product Attributes - Case Color
- Natural
- Product Attributes - Main Caps Included
- Yes
- Product Attributes - Main Cap Material
- Cast aluminum
- Product Attributes - Main Cap Retention Style
- Bolt
- Product Attributes - Carrier Bearing Diameter (in.)
- 3.250 in.
- Product Attributes - Pinion Support Bolt Quantity
- 5
- Product Attributes - Standard Pinion Location
- Yes
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Ring Gear Load Bolt
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Includes tapered pinion support, shims, tail bearing, and tail bearing retainer plate.
Reference Information
| Brand Name/s | Strange Engineering |
|---|---|
| StreetFX SKU | strP3203 |
| SFX Item ID | 5075311 |
| Supplier Item Code | 5075311 |
| Manufacturer SKU | P3203 |
| Manufacturer UPC | 679460117261 |
| Alternative References | STGP3203 |
