Description

Centric premium rotors utilize an Electrocoating finish that provides long lasting corrosion protection. E-coating is a superior electro-statically applied finish designed to withstand 400 hours of salt water exposure without rusting. Phosphate finishes utilized by other manufacturers provide only minimal protection from the elements; these finishes are generally only effective for the shipping and storage portion of a rotor's life. The addition of heat and moisture eliminates the effectiveness of phosphate finishes resulting in immediate corrosion once installed in the vehicle.

Product Overview

Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.

Features and Benefits

• Painted Hat and Outer Edge
• Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
• Precision Balance
• Precision balance for vibration free performance
• Optimal Surface Finish
• Optimal surface finish for consistent stopping feel from the first stop
• Advanced Metallurgy
• Advanced metallurgy for optimal heat transfer and structural strength
• OE Vane Design and Plate Thickness
• OE vane design and plate thickness for heat capacity and strength
• Low Initial Lateral Run-Out

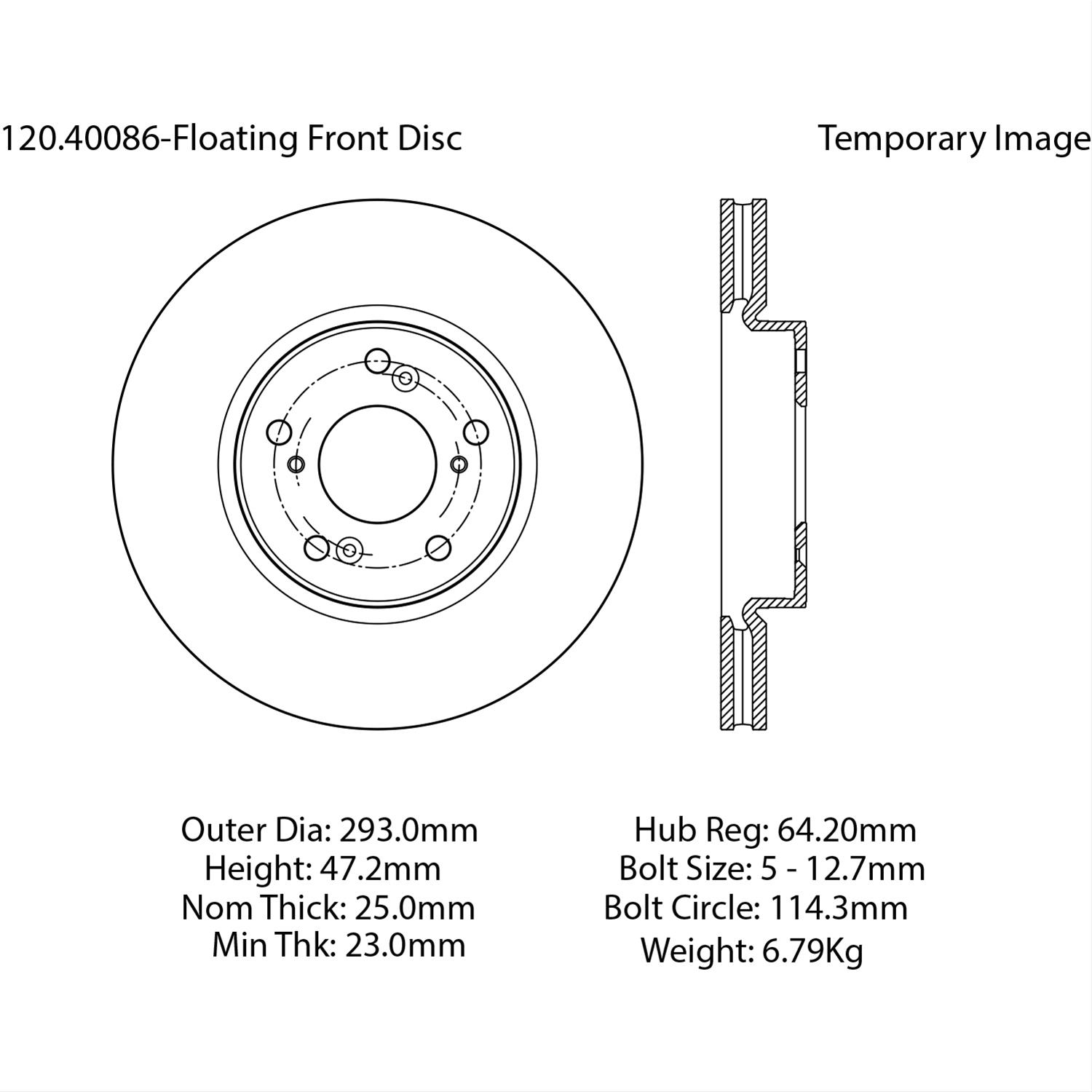

Product Details

ABS Tone Ring Included:	No
Bearings Included:	No
California Proposition 65 Site [basic]:	https://www.p65warnings.ca.gov/
California Proposition 65 Text [cntrc]:	WARNING: Cancer and Reproductive Harm
Center Hole Diameter:	2.528
Description:	Centric Premium Brake Rotor
Disc Mounting [cntrc]:	Floating
Discard Thickness:	23.0
Hat Finish:	Coated
Hat ID [cntrc] in:	5.811
Hat ID [cntrc] mm:	147.600
Misc Holes [cntrc]:	4
Mounting Bolt Hole Circle Diameter:	4.500
Nominal Thickness:	25.0
Outside Diameter:	293.0
Overall Height:	1.866
Part Number:	sto120.40086
Product Grade [cntrc]:	Premium
Solid Or Vented Type Rotor:	Vented
Stud/Lug Hole Diameter:	12.700
Stud/Lug Hole Quantity:	5
Surface Type:	Smooth
Weight [cntrc] kgs:	7.080
Weight [cntrc] lbs:	15.600

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	sto909.40065	Centric OE Coated Front Brake Kit (2 Wheel) (2x sto120.40086, 1x sto105.16540)
	sto906.40088	Centric OE Coated Front & Rear Brake Kit (4 Wheel) (2x sto120.40068, 2x sto120.40086, 1x sto105.16540, 1x sto105.14510)

Data: v4.2 - Upd: 2026-10-14 16:13:33

Specifications

Product Attributes - Brand

Centric Parts

Product Attributes - Manufacturer's Part Number

120.40086

Product Attributes - Part Type

Brake Rotors

Product Attributes - Product Line

Centric Premium Brake Rotors

Product Attributes - UPC

805890924104

Product Attributes - Intended for Street Use

Yes

Product Attributes - For Use with Stock Calipers

Yes

Product Attributes - Rotor Construction

Vented

Product Attributes - Rotor Style

Solid surface

Product Attributes - Rotor Outside Diameter (in.)

11.53 in.

Product Attributes - Brake Rotor Bolt Pattern (in.)

5 x 4.50 in.

Product Attributes - Brake Rotor Bolt Pattern (mm)

5 x 114.30mm

Product Attributes - Nominal Thickness (in.)

0.984

Product Attributes - Nominal Thickness (mm)

25.00

Product Attributes - Discard Thickness (mm)

23.00

Product Attributes - Rotor Material

Iron

Product Attributes - Rotor Finish

Black E-Coat

Product Attributes - Quantity

Sold individually.
