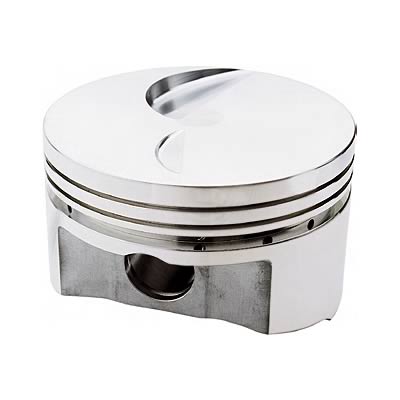

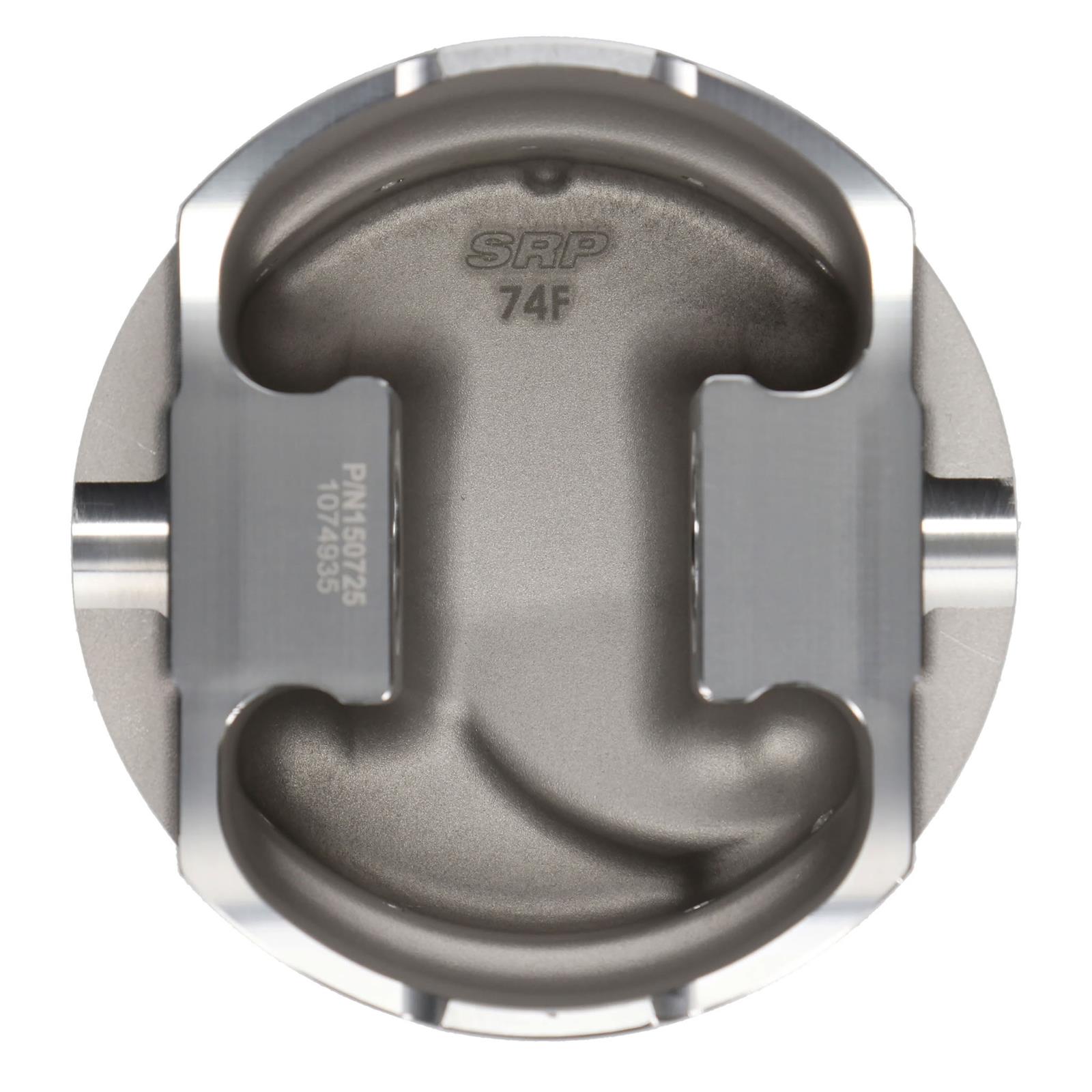

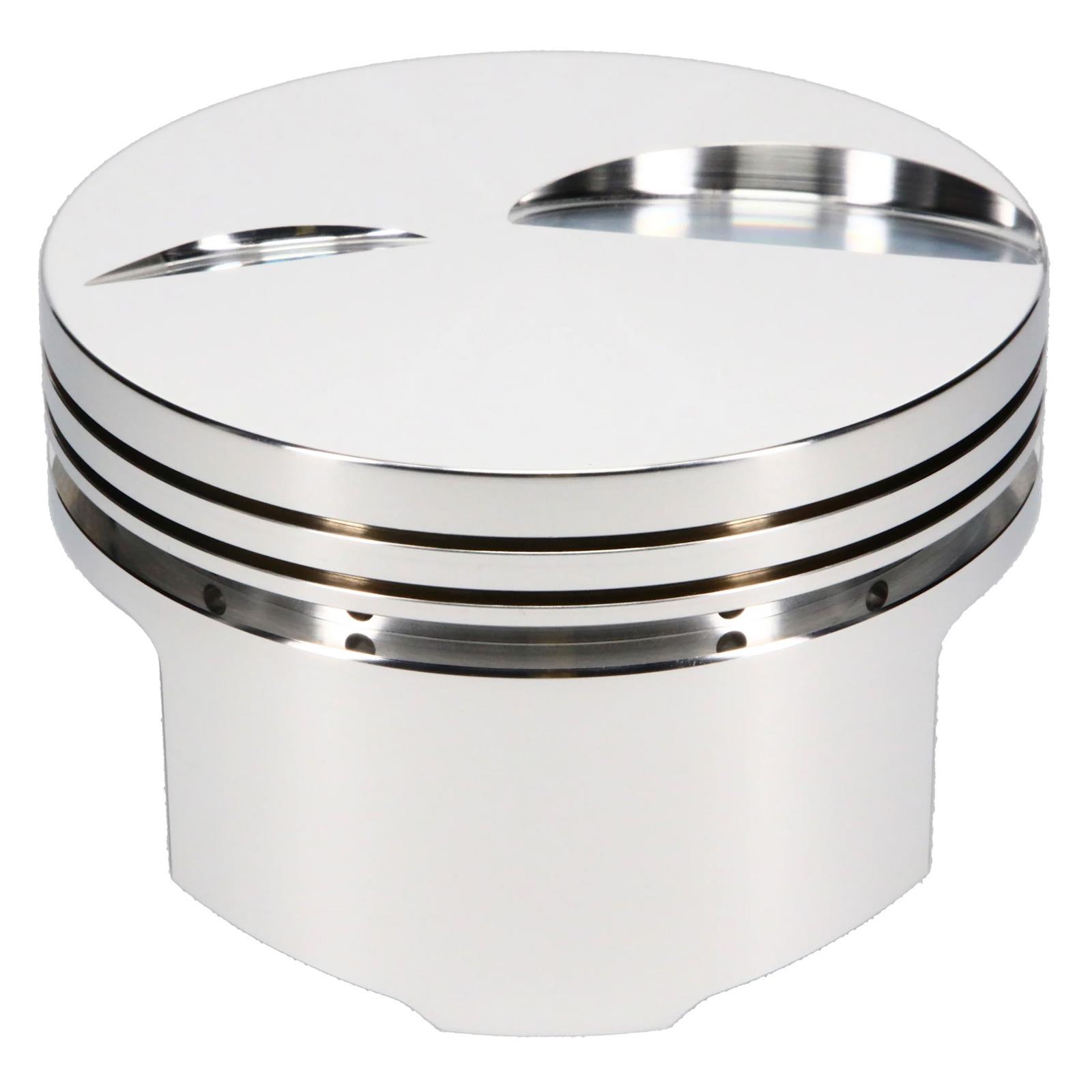

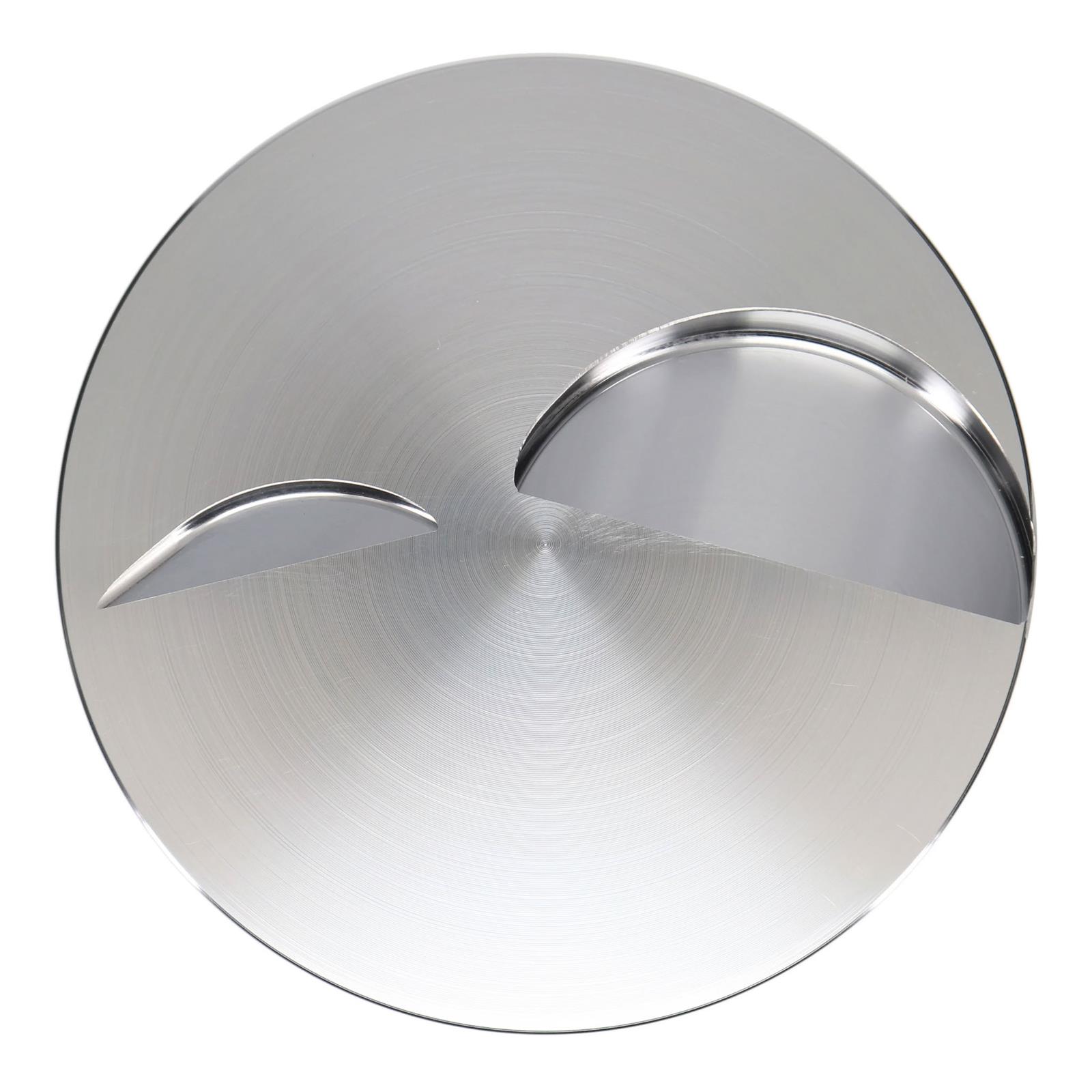

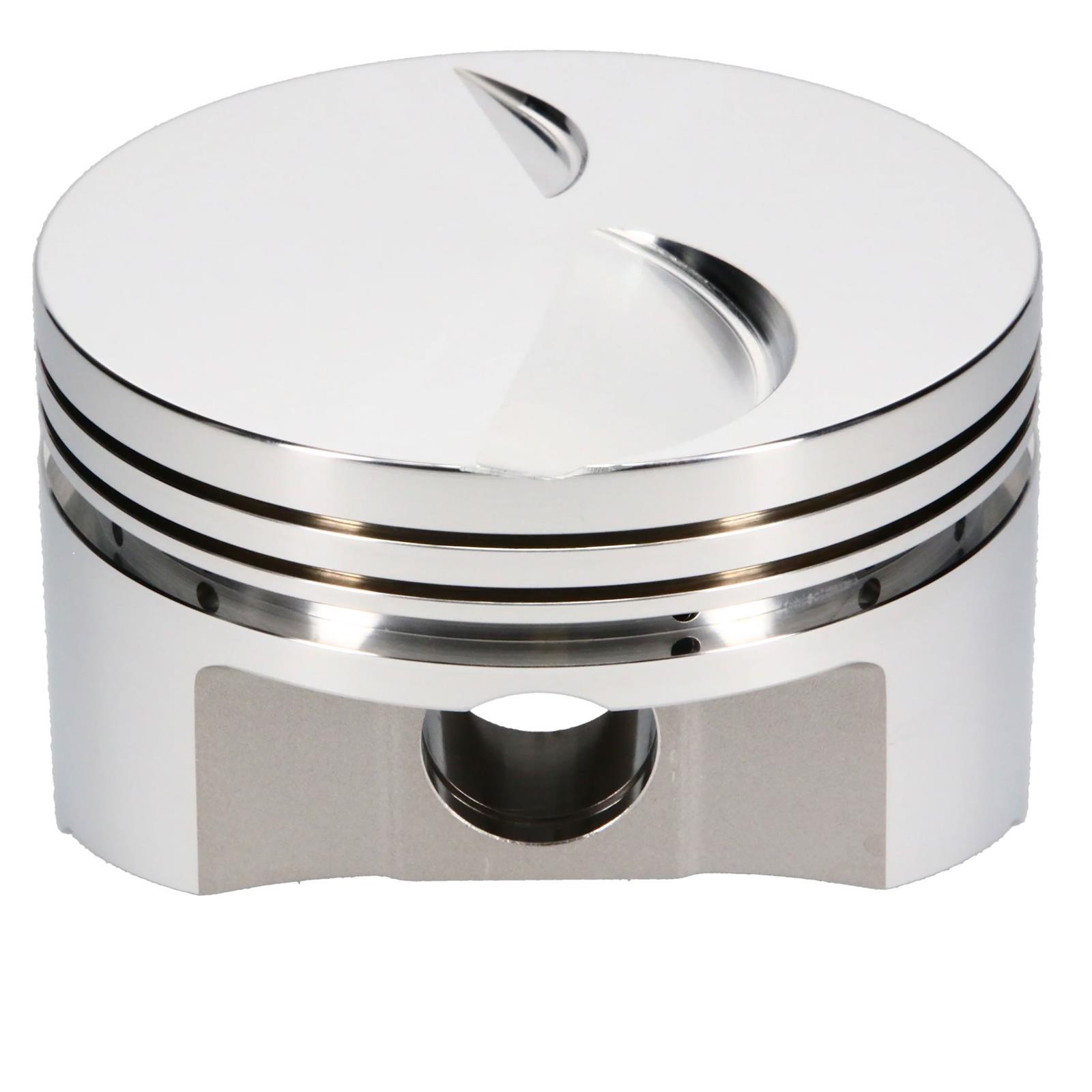

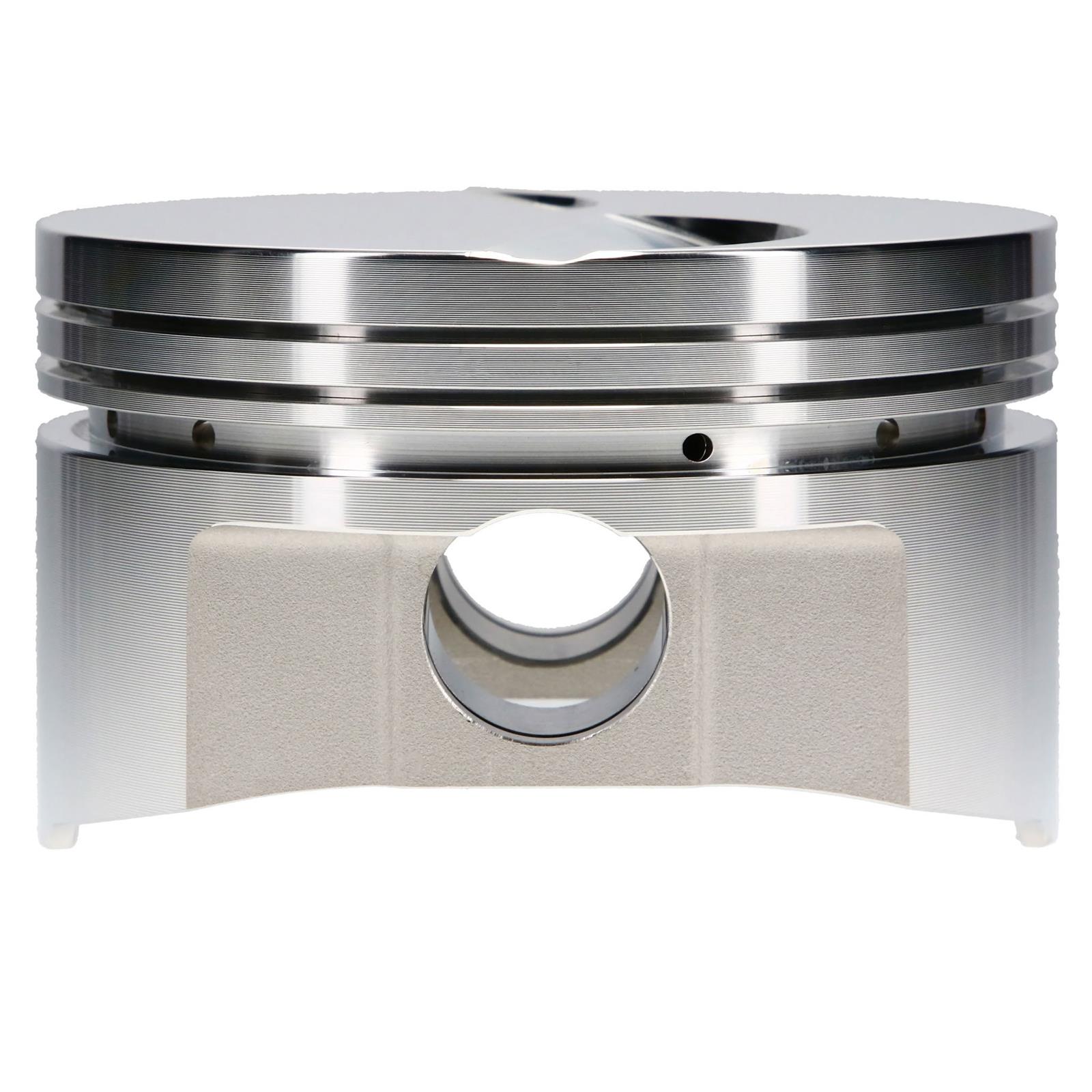

SRP Big Block Ford 460 Flat/Inverted Top Pistons 150723 Pistons, Forged, Flat, 4.390 in. Bore, 1/16 in., 1/16 in., 3/16 in. Ring Grooves, Ford, Block, Set of 8
SRP Big Block Ford 460 Flat/Inverted Top Pistons 150723 Pistons, Forged, Flat, 4.390 in. Bore, 1/16 in., 1/16 in., 3/16 in. Ring Grooves, Ford, Block, Set of 8
A$1,553.69
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
SRP big block Ford 460 flat/inverted top pistons are constructed from 4032 low-expansion, high-silicon aluminum alloy that's heat-treated to SRP specifications. Their CNC-machined ring grooves accept 1/16, 1/16, 3/16 rings, which are sold separately. A wrist pin is included and pin upgrades are available.
Part Type
BBF Flat Top Piston Set 4.390 Bore -3cc
Specifications
- Product Attributes - Brand
- Sportsman Racing Products
- Product Attributes - Manufacturer's Part Number
- 150723
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- SRP Big Block Ford 460 Flat/Inverted Top Pistons
- Product Attributes - UPC
- 193564252999
- Product Attributes - Piston Rings Included
- No
- Product Attributes - Bore (in.)
- 4.390 in.
- Product Attributes - Bore (mm)
- 111.506mm
- Product Attributes - Stroke
- 3.850 in.
- Product Attributes - Rod Length
- 6.605 in.
- Product Attributes - Piston Style
- Flat top, with two valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.770 in.
- Product Attributes - Piston Head Volume (cc)
- +3.00cc
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 1.040 in.
- Product Attributes - Piston Ring Thickness
- 1/16 in. x 1/16 in. x 3/16 in.
- Product Attributes - File Fit
- No
- Product Attributes - Gapless
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a set of 8.
Reference Information
| Brand Name/s | Sportsman Racing Products |
|---|---|
| StreetFX SKU | srp150723 |
| SFX Item ID | 5157051 |
| Supplier Item Code | 5157051 |
| Manufacturer SKU | 150723 |
| Manufacturer UPC | 193564252999 |
