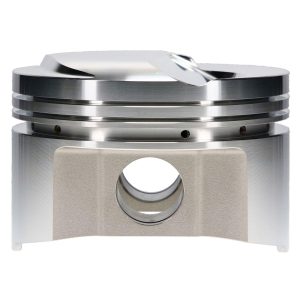

SRP Big Block Chevy Small Dome Profile Pistons 212134 Pistons, Forged, Dome, 4.310 in. Bore, 1/16 in., 1/16 in., 3/16 in. Ring, Chevy, Block, Set of 8
srp212134
A$1,638.41

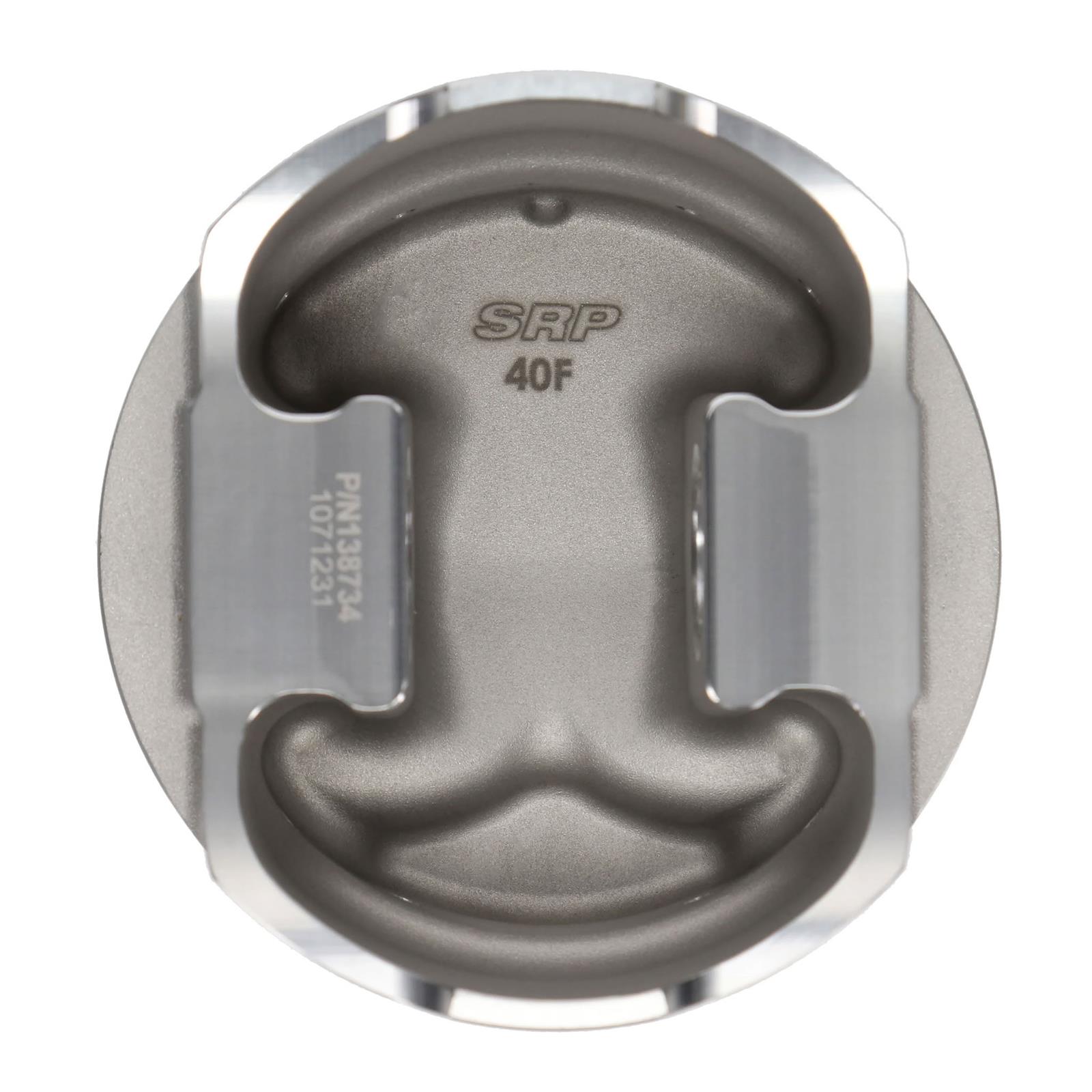

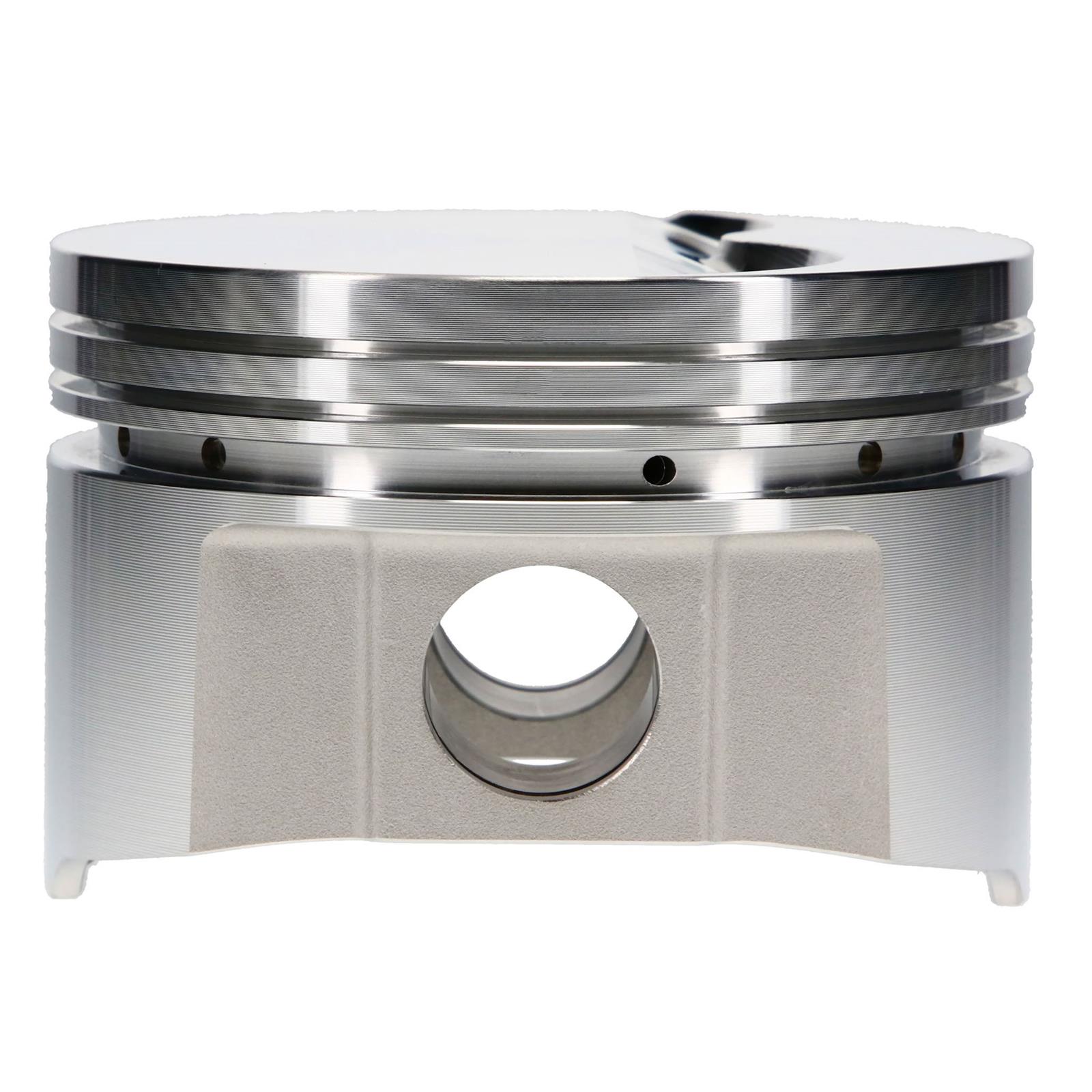

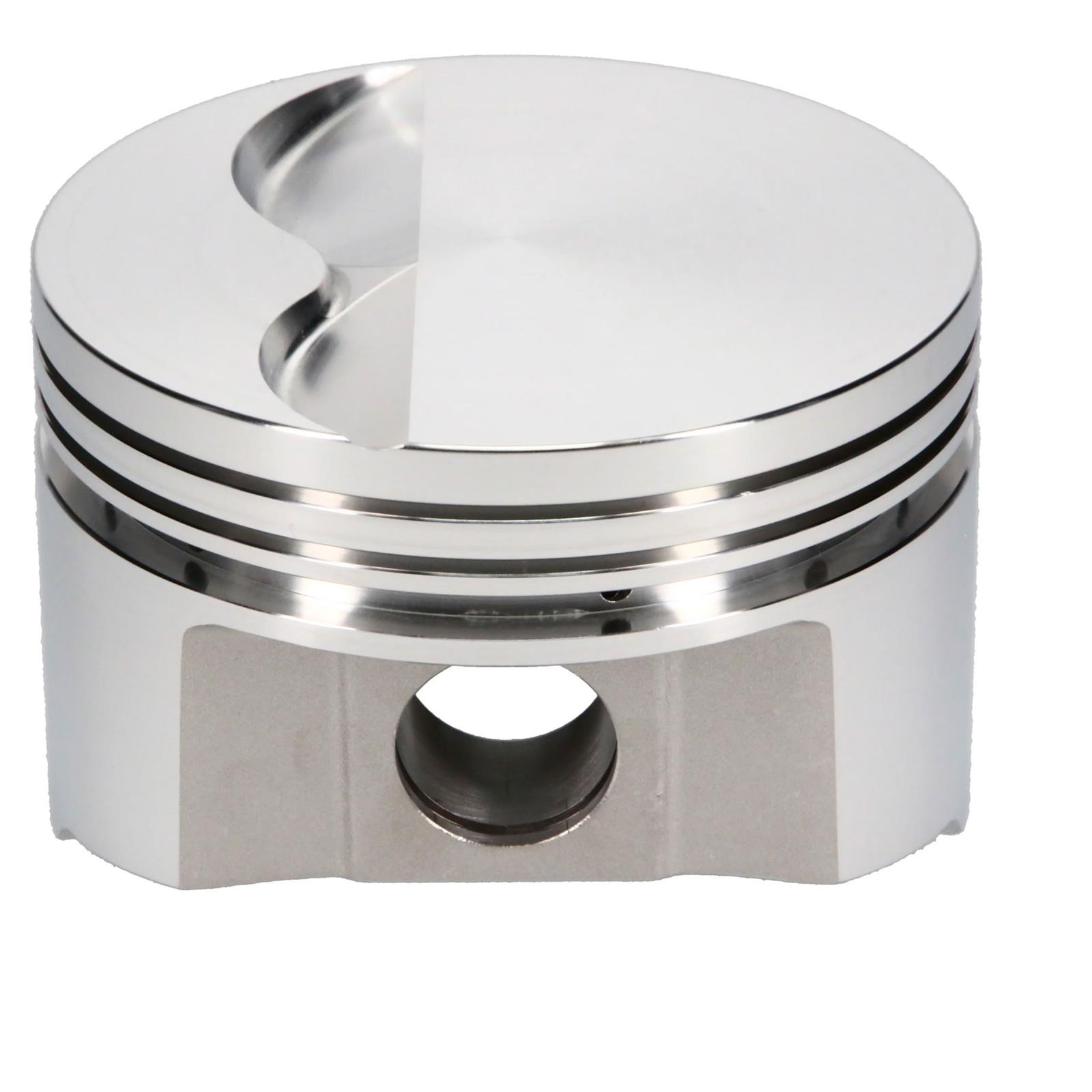

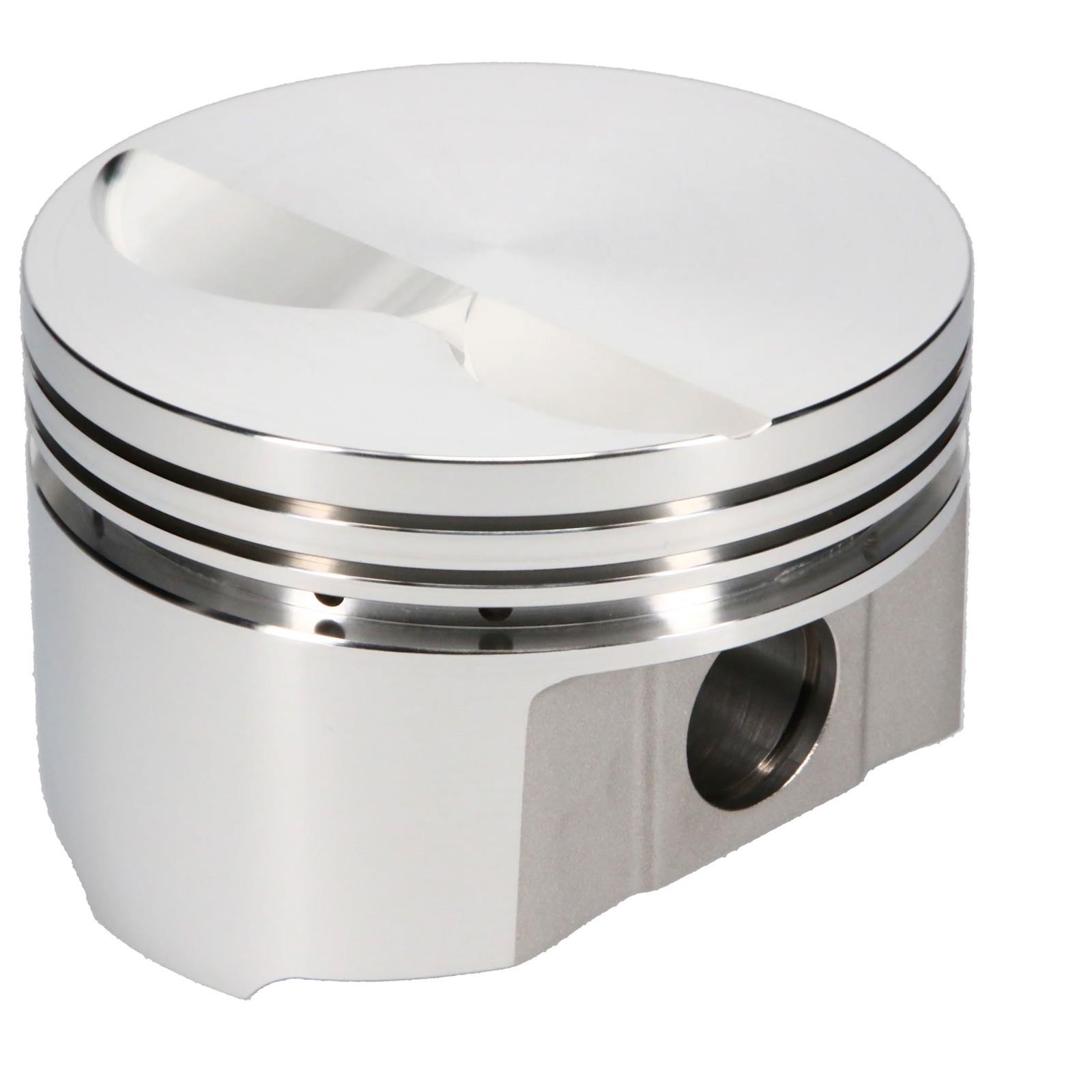

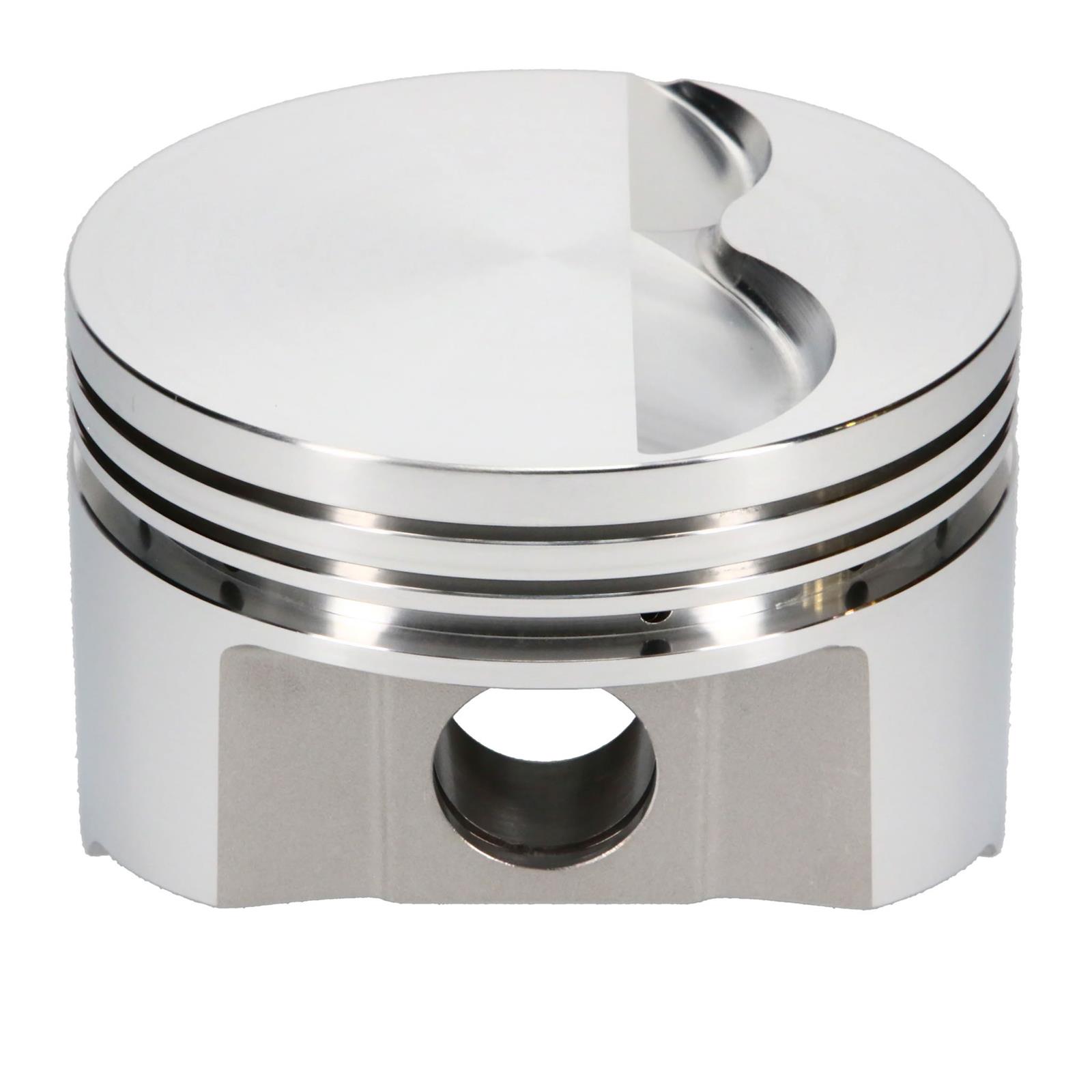

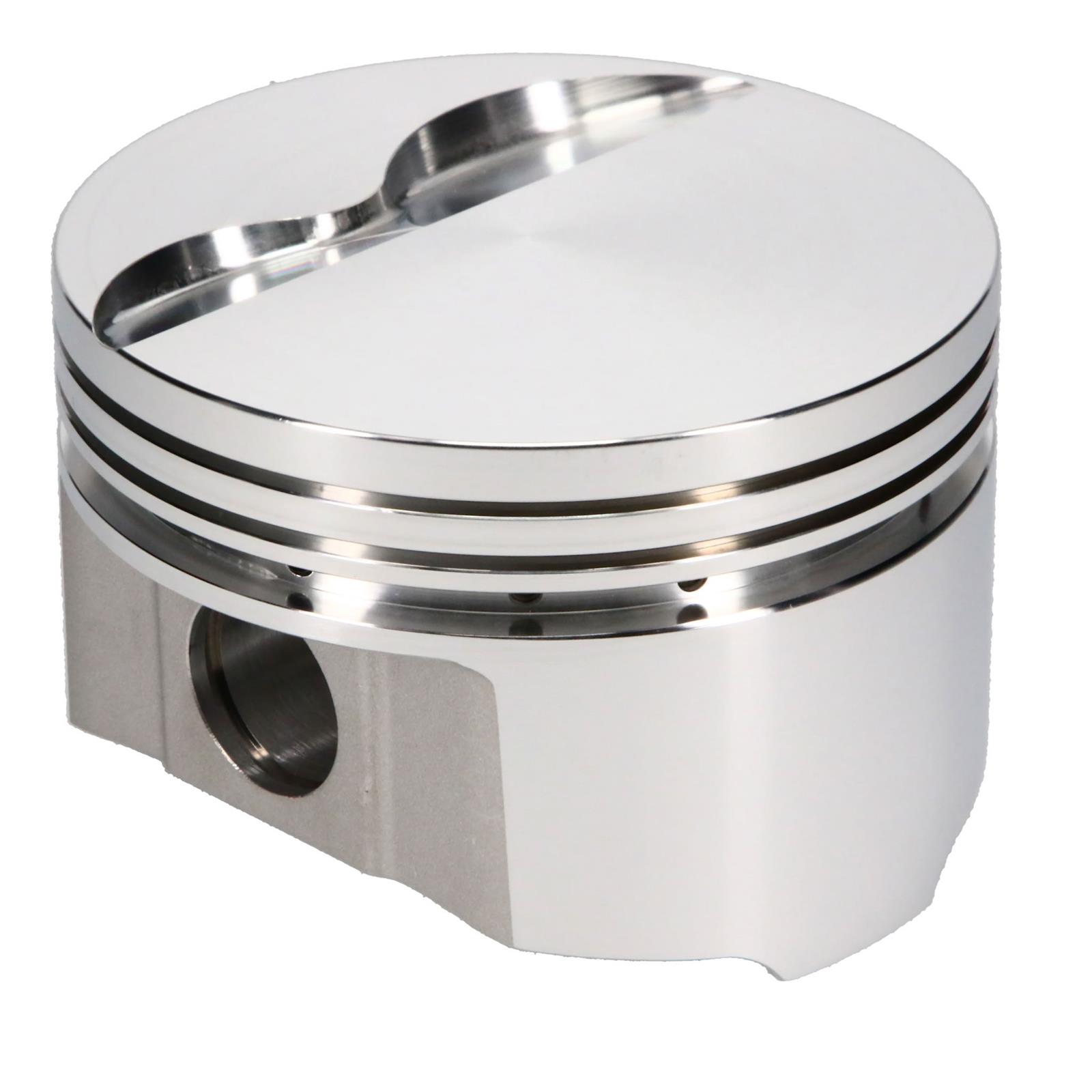

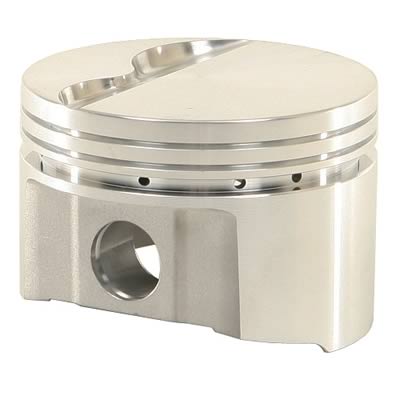

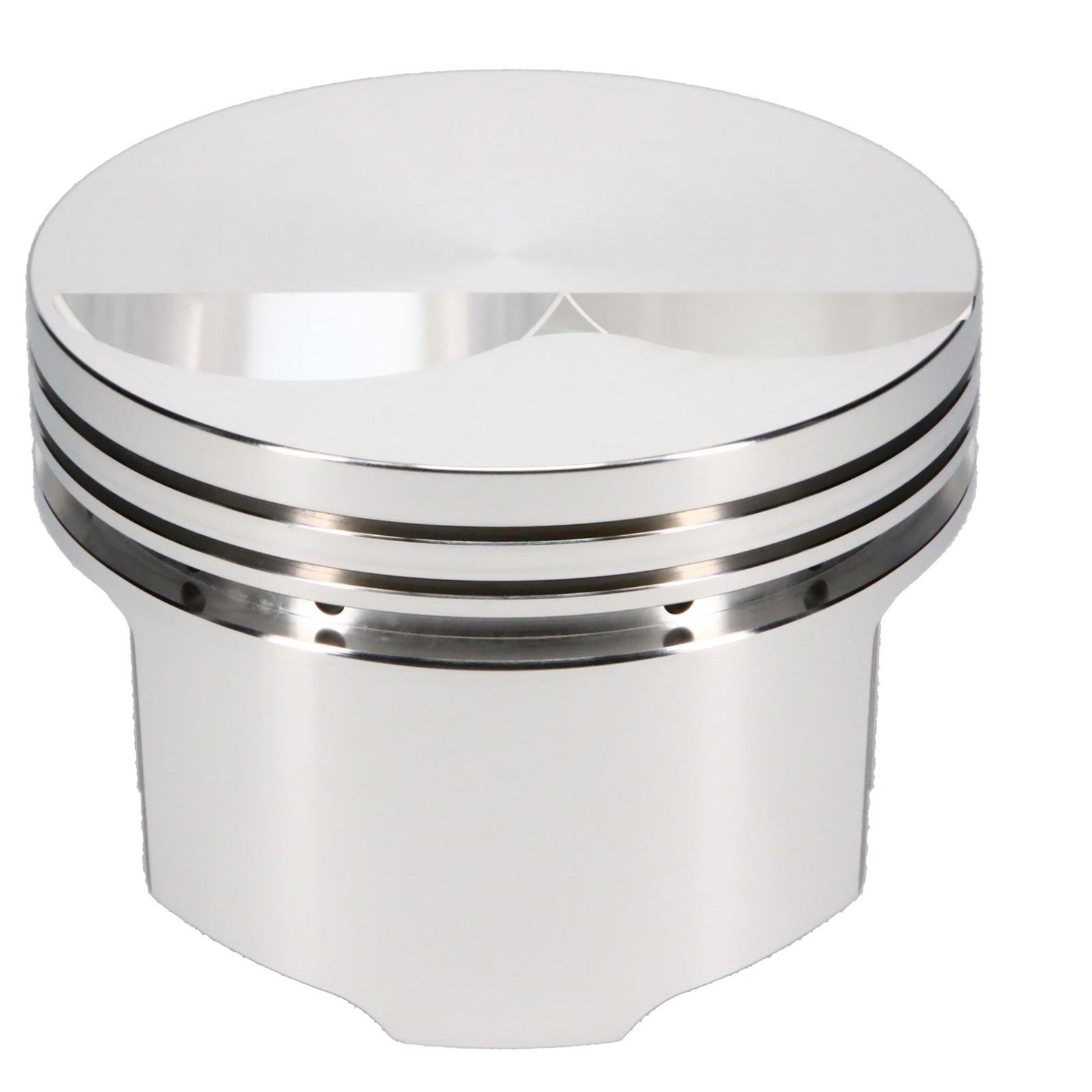

SRP Ford Small Block Flat Top Pistons 138734 Pistons, Forged, Flat, 4.030 in. Bore, Ford, Lincoln, Mercury, Set of 8
SRP Ford Small Block Flat Top Pistons 138734 Pistons, Forged, Flat, 4.030 in. Bore, Ford, Lincoln, Mercury, Set of 8
A$1,389.97
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
SRP Ford small block flat top pistons fit Ford, TFS, GT40, Canfield, Brodix Track I, OE, and Dart Windsor cylinder heads. They're made from 4032 low-expansion, high-silicon aluminum alloy that's heat-treated to SRP specifications. Their CNC-machined ring grooves accept 1/16, 1/16, 3/16 in. piston rings that are sold separately, and a wrist pin is included. These flat top models are available with two or three valve reliefs, as well as a variety of bores, strokes, and rod lengths. Choose the factory-style replacements designed for fitment in your vehicle application—sold individually or in a set of 8.
Part Type
SBF Flat Top Piston Set 4.030 Bore -5cc
Specifications
- Product Attributes - Brand
- Sportsman Racing Products
- Product Attributes - Manufacturer's Part Number
- 138734
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- SRP Ford Small Block Flat Top Pistons
- Product Attributes - UPC
- 193564251695
- Product Attributes - Piston Rings Included
- No
- Product Attributes - Bore (in.)
- 4.030 in.
- Product Attributes - Bore (mm)
- 102.362mm
- Product Attributes - Stroke
- 3.000 in.
- Product Attributes - Rod Length
- 5.956 in.
- Product Attributes - Piston Style
- Flat top, with two valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.600 in.
- Product Attributes - Piston Head Volume (cc)
- +5.00cc
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.912 in.
- Product Attributes - Piston Ring Thickness
- 1/16 in. x 1/16 in. x 3/16 in.
- Product Attributes - File Fit
- No
- Product Attributes - Gapless
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a set of 8.
Reference Information
| Brand Name/s | Sportsman Racing Products |
|---|---|
| StreetFX SKU | srp138734 |
| SFX Item ID | 5157045 |
| Supplier Item Code | 5157045 |
| Manufacturer SKU | 138734 |
| Manufacturer UPC | 193564251695 |
Compatibility
Loading compatibility information...
Keep shopping
More from Sportsman Racing Products
Sportsman Racing Products

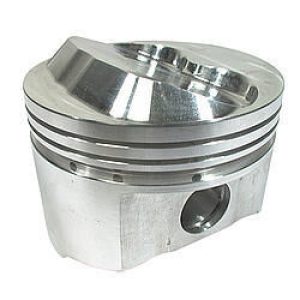

Piston - 302 Dome - Forged - 4.030 in Bore - 1/16 x 1/16 x 3/16 in Ring Grooves - plus 6.50 cc - Small Block Chevy - Set of 8
srp202890
A$1,534.38
Sportsman Racing Products
Piston - 502 Replacement Series - Forged - 4.470 in Bore - 1/16 x 1/16 x 3/16 in Ring Grooves - Plus 1.00 cc - Big Block Chevy - Set of 8
srp281916
A$1,606.72
Sportsman Racing Products

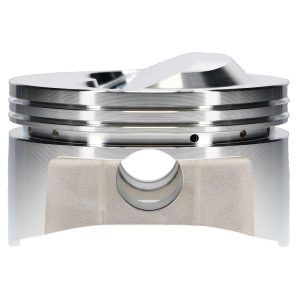

SRP Small Block Chevy 350/400 Dome Top Pistons 140350 Pistons, Forged, Dome, 4.060 in. Bore, 1/16 in., 1/16 in., 3/16 in. Ring Grooves, Chevy, Set of 8
srp140350
A$1,515.05
Sportsman Racing Products
SRP Small Block Chevy 350/400 Flat-Top Pistons 138089 Pistons, Forged, Flat, 4.030 in. Bore, Chevy, Set of 8
srp138089
A$1,359.20
Sportsman Racing Products

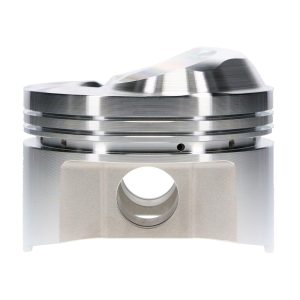

SRP Big Block Chevy High-Compression Dome Top Pistons 139832 Pistons, Forged, Dome, 4.310 in. Bore, Chevy, Set of 8
