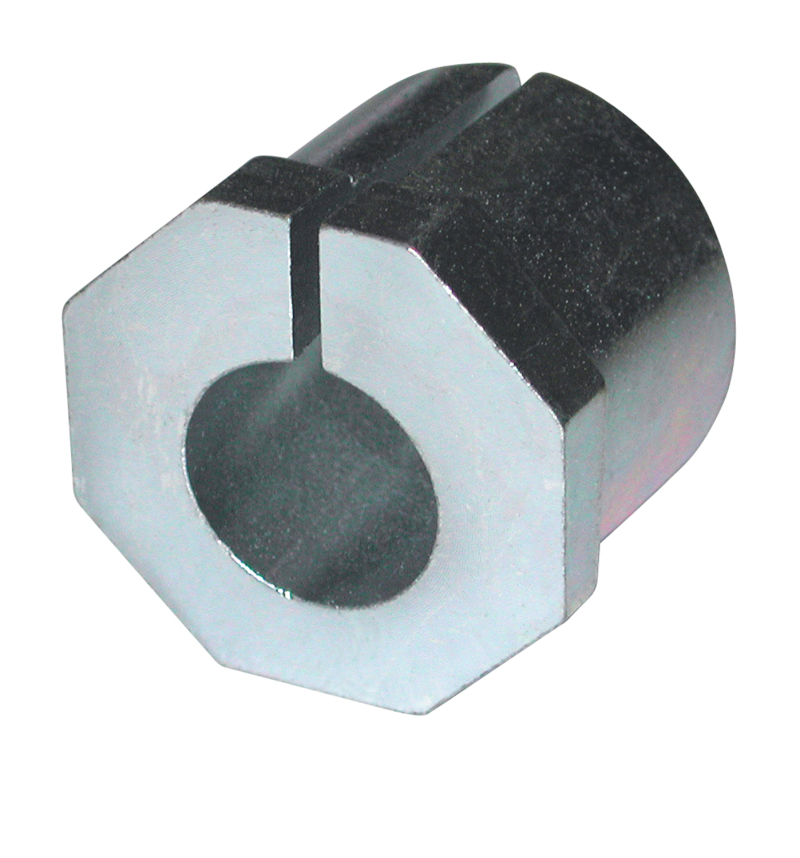

SPC Performance 0 deg. 4X4 Camber/Caster Sleeve
SPC Performance 0 deg. 4X4 Camber/Caster Sleeve
A$42.77
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
This sleeve will easily change Camber and/or Caster 0.00°. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve and install a zero-degree sleeve (23139) to determine the required change, then install the correct degree sleeve. To split camber and caster adjustment, rotate sleeve 45°.
Product Overview
*4WD CAM/CAS SLEEVES*
Change camber, caster, or both on twin traction beam Dana 44s with these sleeves. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve. Install zero degree sleeve 23109 to determine the change needed, then install the correct sleeve. To split camber and caster adjustment, rotate sleeve 45°.
*TIE ROD ADJUSTER SLEEVES*
These adjustable hex shaped sleeves replace the round tie rod sleeve to assure ease of adjustment without slippage. Recommended when the existing sleeve is damaged or when replacing a tie rod end for easy adjustment.
Features and Benefits
- Easily change caster / camber or both at the same time
- Clear Zinc coating for corrosion resistance
- Recommended Tools: 77880 - Sleeve Puller
- Front Adjustment Range: Camber/Caster ±0.00°
- Required: 1 per wheel
- Front Adjustment Range: Camber/Caster ±0.00˚
Product Details
| Year | Make |
|---|---|
| Add-On: | 77880, 87175, 23130, 23131, 23132, 23133, 23134, 23135, 23136, 23137, 23138, 24130 |
| Adjustable: | Yes |
| Adjustment: | CAMBER / CASTER ± 0.00 |
| California Proposition 65: | WARNING: This product contains chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. |
| Color: | Silver |
| Description: | 0deg 4X4 CAM/CAS SLEEVE |
| Grade Type: | Specialty |
| Grease Fitting Included: | No |
| Greaseable: | No |
| Hardware Included: | No |
| Height: | 35.2 |
| Inside Diameter: | 19.46 |
| Material: | Steel |
| Outside Diameter: | 35.4 |
| Part Number: | spc23139 |
| Position: | Front |
| Prop 65: | Y |
| Range: | 0.0deg Camber/Cas |
| Universal Or Specific Fit: | Specific |
Part Type
Alignment Caster / Camber Bushing
Features
- Clear Zinc coating for corrosion resistance
- Easily change caster / camber or both at the same time
- Front Adjustment Range: Camber/Caster ±0.00˚
- Front Adjustment Range: Camber/Caster ±0.00°
- Recommended Tools: 77880 - Sleeve Puller
- Required: 1 per wheel
Specifications
- Product Attributes - Brand
- SPC Performance
- Product Attributes - Manufacturer's Part Number
- 23139
- Product Attributes - Part Type
- Wheel Alignment Parts
- Product Attributes - Product Line
- SPC Performance Camber/Caster Sleeves
- Product Attributes - UPC
- 082642231394
- Product Attributes - Wheel Alignment Component Type
- Bushing
- Product Attributes - Includes Alignment Components For
- One front wheel
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Spc Performance |
|---|---|
| StreetFX SKU | spc23139 |
| SFX Item ID | 4178551 |
| Supplier Item Code | 4178551 |
| Manufacturer SKU | 23139 |
| Manufacturer UPC | 82642231394 |
| Alternative References | SPS-23139, 4X4 |
