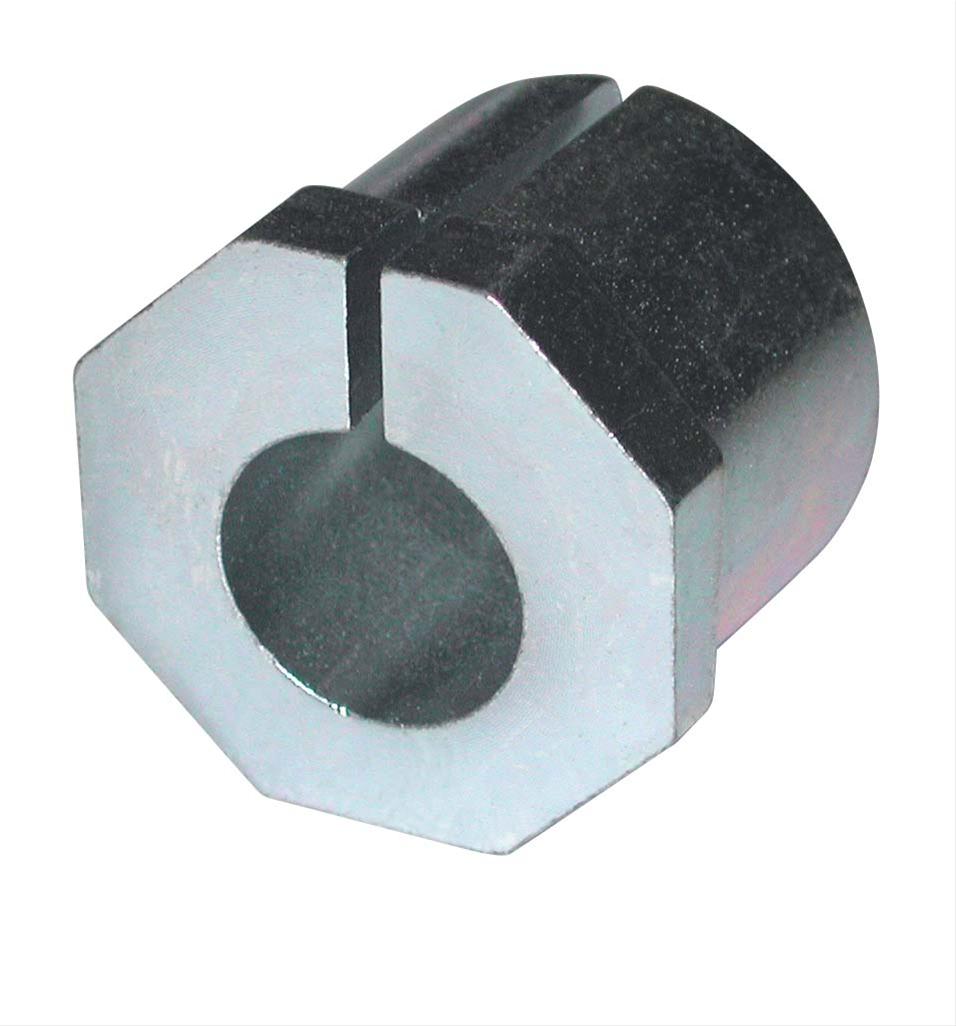

This sleeve will easily change Camber and/or Caster 0.25°. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve and install a zero-degree sleeve (23139) to determine the required change, then install the correct degree sleeve. To split camber and caster adjustment, rotate sleeve 45°.

Part Type

Alignment Caster / Camber Bushing

Features and Benefits

• Clear Zinc coating for corrosion resistance
• Easily change caster / camber or both at the same time
• Front Adjustment Range: Camber/Caster ±0.25Ëš
• Front Adjustment Range: Camber/Caster ±0.25°
• Recommended Tools: 77880 - Sleeve Puller
• Required: 1 per wheel

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

• Clear Zinc coating for corrosion resistance
• Easily change caster / camber or both at the same time
• Front Adjustment Range: Camber/Caster ±0.25˚
• Front Adjustment Range: Camber/Caster ±0.25°
• Recommended Tools: 77880 - Sleeve Puller
• Required: 1 per wheel

These SPC Performance camber/caster sleeves are designed to solve troublesome front-end alignment problems. They are manufactured from quality materials and are available in a variety of configurations for your specific application. SPC Performance camber/caster sleeves install easily with no modifications and adjust caster, camber, and even both in some applications. Save your tires from wearing out too quickly. Get one of these SPC Performance camber/caster sleeves and you'll be lined up in no time.

Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.

Detailed Compatibility

This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
