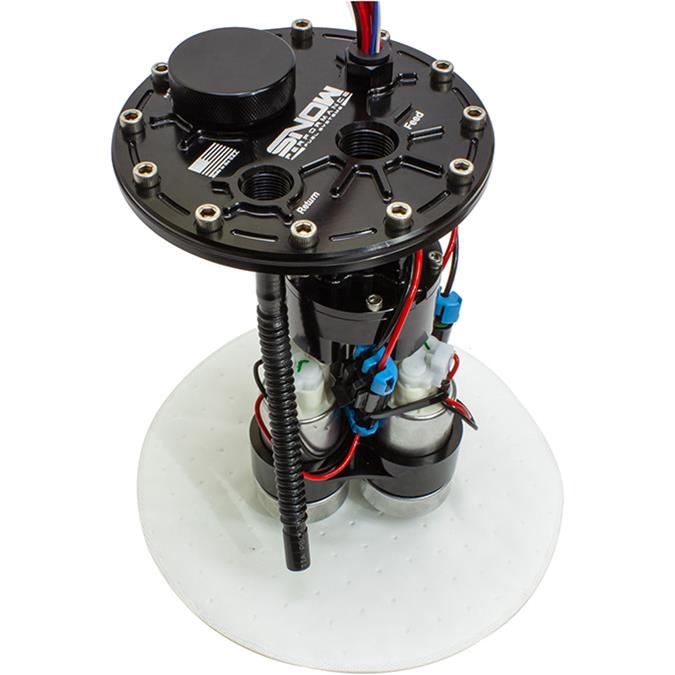

Snow Performance Universal 10 Gallon 12 Hole Fuel Cell Hat Xtreme Version (3 Pump)
Snow Performance Universal 10 Gallon 12 Hole Fuel Cell Hat Xtreme Version (3 Pump)
A$2,652.61
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
These pumps are NOT compatible with methanol. For street-driven applications, it can be beneficial to combine a smaller fuel pump along with one or two larger fuel pumps. This allows you to street drive on the smaller fuel pump which has a lower amp draw and does not generate as much heat. Once you get into boost, the larger pumps can be activated to support your high horsepower needs. The easiest way to do this is to use a Snow Performance Boost activated pressure switch (part # SNO-81014) and a Snow Performance Multi-Pump Relay Module (part # SNF-20003). Available pump configurations are shown below: 2 Pump Street able Configuration (one 450lph pump and one 470lph pump). This configuration is capable of supporting 1000+ rwhp on e85 and 1300+ on gasoline. -Current Selection 3 Pump Street able Configuration (One 450lph pump and Two 470lph pumps)- This configuration is capable of supporting 1500+ rwhp on e85 and up to 2000 rwhp on gasoline. This configuration draws 10-12% less current than the Race 3 pump version. 3 Pump Race Configuration (Three 470lph pumps). This configuration is capable of supporting 1600+ rwhp on e85 and up to 2100 rwhp on gasoline. This configuration is designed for max effort/flow.
Part Type
Fuel Pump
Features
- Does NOT include Fuel Level Sending Unit. Does NOT Include Fittings.
- Includes Wiring Harnesses for pumps and fuel level sending unit.
Specifications
- Product Attributes - Brand
- Snow Performance
- Product Attributes - Manufacturer's Part Number
- SNF-52900X
- Product Attributes - Part Type
- Fuel Pumps
- Product Attributes - Product Line
- Snow Performance Universal Multi-Pump Fuel Hats
- Product Attributes - UPC
- 00653374983990
- Product Attributes - Fuel Pump Type
- Electric In-tank
- Product Attributes - Flow Rate
- 388 gph/1,470 lph
- Product Attributes - Fuel Pump Voltage
- 12 V
- Product Attributes - Fuel Pressure Regulator Included
- No
- Product Attributes - Sending Unit Included
- Yes
- Product Attributes - Fuel Pump Outlet Size
- -10 AN O-ring
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Outlet Attachment
- Female O-ring
- Product Attributes - Gasket Included
- Yes
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Mounting Bracket Included
- Yes
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Pulley Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Designed for return-style systems only. Not compatible with Methanol. Compatible with E85, ethanol blends and gasoline. Triple pumps, three 490 LPH. Capable of supporting 1,900+ horsepower on E85 and 2,500 on gasoline.
Reference Information
| Brand Name/s | Snow Performance |
|---|---|
| StreetFX SKU | snoSNF-52900X |
| SFX Item ID | 4498198 |
| Supplier Item Code | 4498198 |
| Manufacturer SKU | SNF-52900X |
| Manufacturer UPC | 653374983990 |
