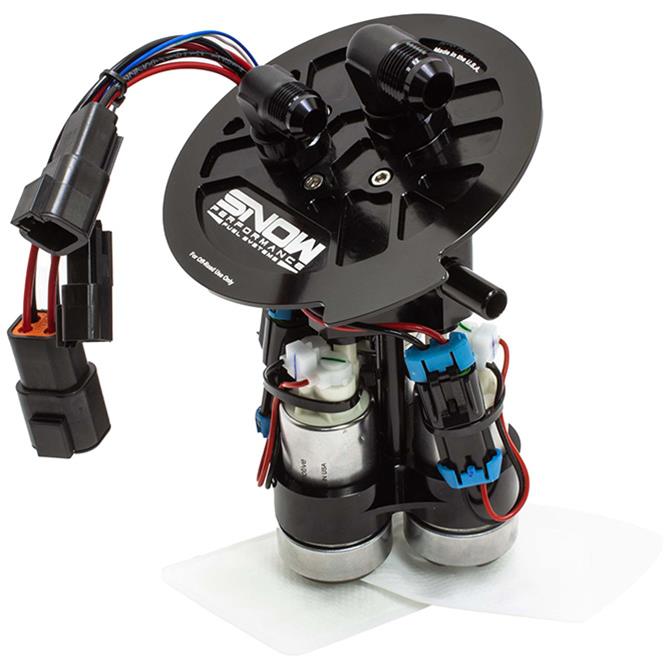

Snow 2011+ Ford Mustang Fuel Hat High Output (3 Pump 1-274 & 2-285)

SKU: SNOSNF-52601H

Fuel Pumps

SNOW Fuel Hats...

IN STOCK! Est Ship 3-5 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

These pumps are compatible with 100% Gasoline, 100% Ethanol or any blend of Gasoline and Ethanol (E10, E85, E98 for example). These pumps are NOT compatible with methanol. For street-driven applications, it can be beneficial to combine a smaller fuel pump along with one or two larger fuel pumps. This allows you to street drive on the smaller fuel pump which has a lower amp draw and does not generate as much heat. Once you get into boost, the larger pumps can be activated to support your high horsepower needs. The easiest way to do this is to use a Snow Performance Boost activated pressure switch (part # SNO-81014) and a Snow Performance Multi-Pump Relay Module (part # SNF-20003). Available pump configurations are shown below: 2 Pump Street able Configuration (one 450lph pump and one 470lph pump). This configuration is capable of supporting 1000+ rwhp on e85 and 1300+ on gasoline. -Current Selection 3 Pump Street able Configuration (One 450lph pump and Two 470lph pumps)- This configuration is capable of supporting 1500+ rwhp on e85 and up to 2000 rwhp on gasoline. This configuration draws 10-12% less current than the Race 3 pump version. 3 Pump Race Configuration (Three 470lph pumps). This configuration is capable of supporting 1600+ rwhp on e85 and up to 2100 rwhp on gasoline. This configuration is designed for max effort/flow.

Application Summary

2011+ Mustang

Part Type

Fuel Pump

Data: v4.2 - Upd: 2026-10-03 12:20:33

Features

Does NOT Include Fittings
Includes Wiring Harness for pumps and fuel level sending unit. Does NOT include Fuel Level Sending Unit.

Specifications

Product Attributes - Brand: Snow Performance
Product Attributes - Manufacturer's Part Number: SNF-52601H
Product Attributes - Part Type: Fuel Pumps
Product Attributes - Product Line: Snow Performance Mustang Billet Fuel Hats
Product Attributes - UPC: 653374981958
Product Attributes - Fuel Pump Type: Electric In-tank
Product Attributes - Flow Rate: 367 gph/1,390 lph
Product Attributes - Fuel Pump Voltage: 12 V
Product Attributes - Fuel Pressure Regulator Included: No
Product Attributes - Sending Unit Included: No
Product Attributes - Inlet Quantity: 3
Product Attributes - Fuel Pump Outlet Size: -10 AN O-ring
Product Attributes - Outlet Quantity: 1
Product Attributes - Outlet Attachment: Female straight cut O-ring
Product Attributes - Gasket Included: No
Product Attributes - Wiring Harness Included: No
Product Attributes - Mounting Bracket Included: No
Product Attributes - Mounting Hardware Included: No
Product Attributes - Pulley Included: No
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Triple street pump combination includes a 450 lph pump and 2 470 lph pumps. Will support 1,500+ RWHP on e85 and 2,000+ RWHP on gasoline. Includes a -8 AN O-ring female return port.

Reference Information

Brand Name/s	Snow Performance
StreetFX SKU	snoSNF-52601H
SFX Item ID	4498134
Supplier Item Code	4498134
Manufacturer SKU	SNF-52601H
Manufacturer UPC	653374981958
