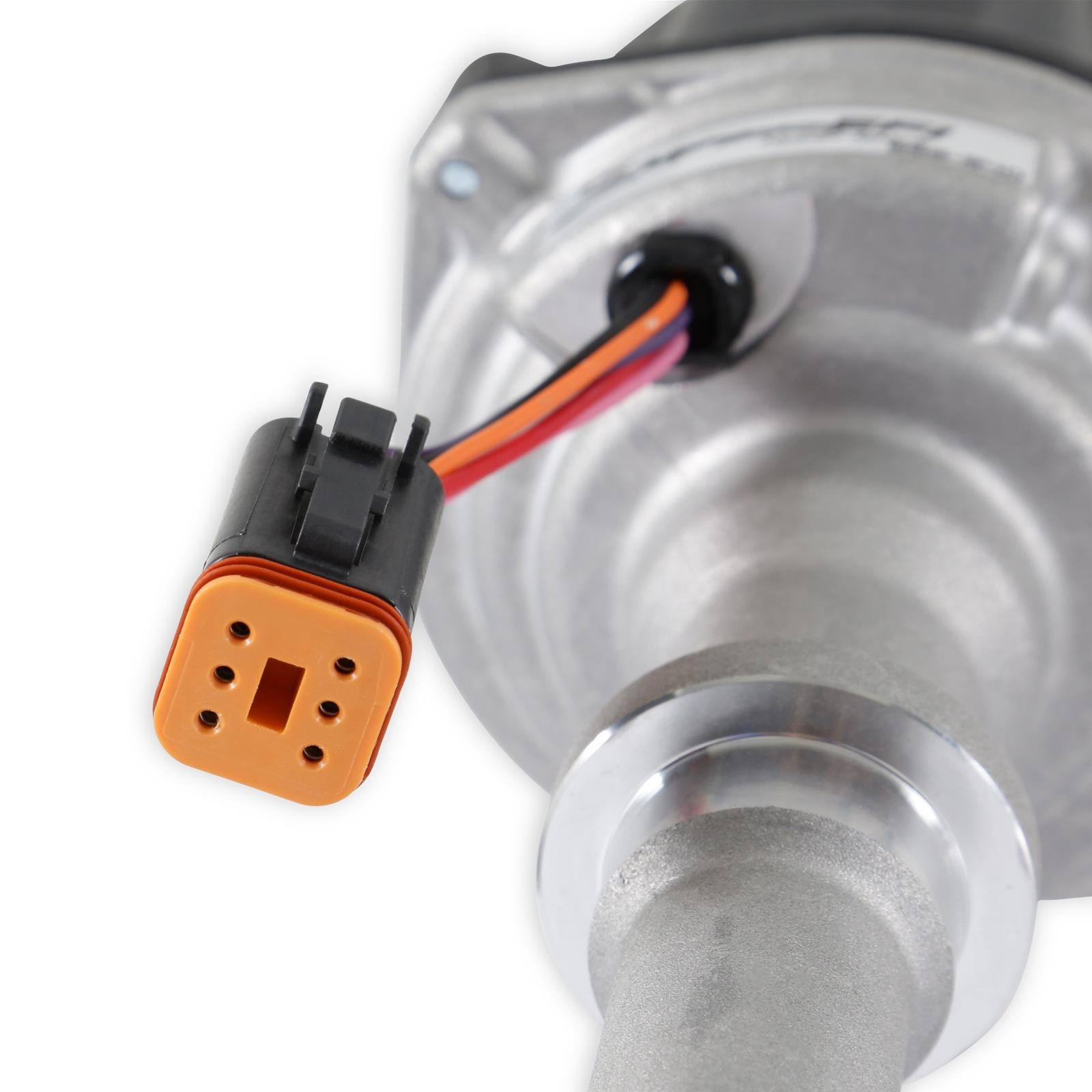

Holley Sniper HyperSpark Ready to Run Small Cap Distributors 565-340 Distributors, EFI, HyperSpark, HEI Cap, Hall Effect, Ignition Module, Shiny Billet Housing, Chevy, Gen I, 262-400ci, Mark IV-V, 396-454ci, Each
Holley Sniper HyperSpark Ready to Run Small Cap Distributors 565-340 Distributors, EFI, HyperSpark, HEI Cap, Hall Effect, Ignition Module, Shiny Billet Housing, Chevy, Gen I, 262-400ci, Mark IV-V, 396-454ci, Each
A$1,205.19
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Holley Sniper HyperSpark ready to run small cap distributors adds plug and play ignition timing control to any Holley EFI system. This line of distributors comes with a built-in ignition coil driver, removing the need of mounting an ignition box or external coil driver. The design includes a single Hall Effect sensor providing engine rpm to the ECU. The precision shutter wheel design ensures accurate timing, even at very high engine speeds. They can also be used with other EFI systems that support a Hall Effect crank signal input. Order the model designed for your application needs.
Features:
* Easiest plug-and-play way to add timing control to any Sniper EFI installation
* Designed to work with HyperSpark ignition coil (PN: 556-152); also compatible with most canister ignition coils using the supplied ring terminals
* Built-in ignition coil driver, safely provides enough spark energy for applications up to 450 hp
* Patented clear installation cap eliminates any confusion while installing the distributor
* Cast aluminum distributor housing looks right at home in nearly every engine bay
* Comes with cast gear installed—contact camshaft manufacturer for recommended gear material
* Comes with steel gear for SBF applications with an aftermarket camshaft
* Precision shutter wheel provides the ECU a clean rpm signal via a single Hall Effect sensor, ensuring accurate timing even at high engine rpm
* Shutter wheel design allows for a "timed sequential" fueling strategy with Terminator X, HP, and Dominator ECU's
* Includes wire retainer for a clean installation
Part Type
Distributors
Specifications
- Product Attributes - Brand
- Holley Sniper
- Product Attributes - Manufacturer's Part Number
- 565-340
- Product Attributes - Part Type
- Distributors
- Product Attributes - Product Line
- Holley Sniper HyperSpark Ready to Run Small Cap Distributors
- Product Attributes - UPC
- 090127147795
- Product Attributes - Distributor Cap Included
- Yes
- Product Attributes - Distributor Cap Style
- Male/HEI
- Product Attributes - Distributor Cap Type
- Small cap
- Product Attributes - Ignition Coil Included
- No
- Product Attributes - Ignition Module Included
- Yes
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Trigger Style
- Hall effect
- Product Attributes - Advance Type
- Computer-controlled
- Product Attributes - Ignition Box Required
- No
- Product Attributes - Slip Collar
- No
- Product Attributes - Distributor Gear Material
- Iron
- Product Attributes - Distributor Gear Rotation
- Standard
- Product Attributes - Distributor Cap Color
- Black
- Product Attributes - Housing Material
- Aluminum
- Product Attributes - Housing Finish
- Natural
- Product Attributes - Marine Use
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Holley Sniper |
|---|---|
| StreetFX SKU | sne565-340 |
| SFX Item ID | 5014059 |
| Supplier Item Code | 5014059 |
| Manufacturer SKU | 565-340 |
| Manufacturer UPC | 90127147795 |
| Alternative References | SNI565-340, 262-400ci, 396-454ci |
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
