Holley Sniper EFI HyperSpark Distributor Kits 565-314K Ignition Systems, 1 EFI, HyperSpark, Ignition Box, Coil, Distributor, Wire Harness, Pontiac, 326-455ci, Kit
Holley Sniper EFI HyperSpark Distributor Kits 565-314K Ignition Systems, 1 EFI, HyperSpark, Ignition Box, Coil, Distributor, Wire Harness, Pontiac, 326-455ci, Kit
A$2,547.10
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

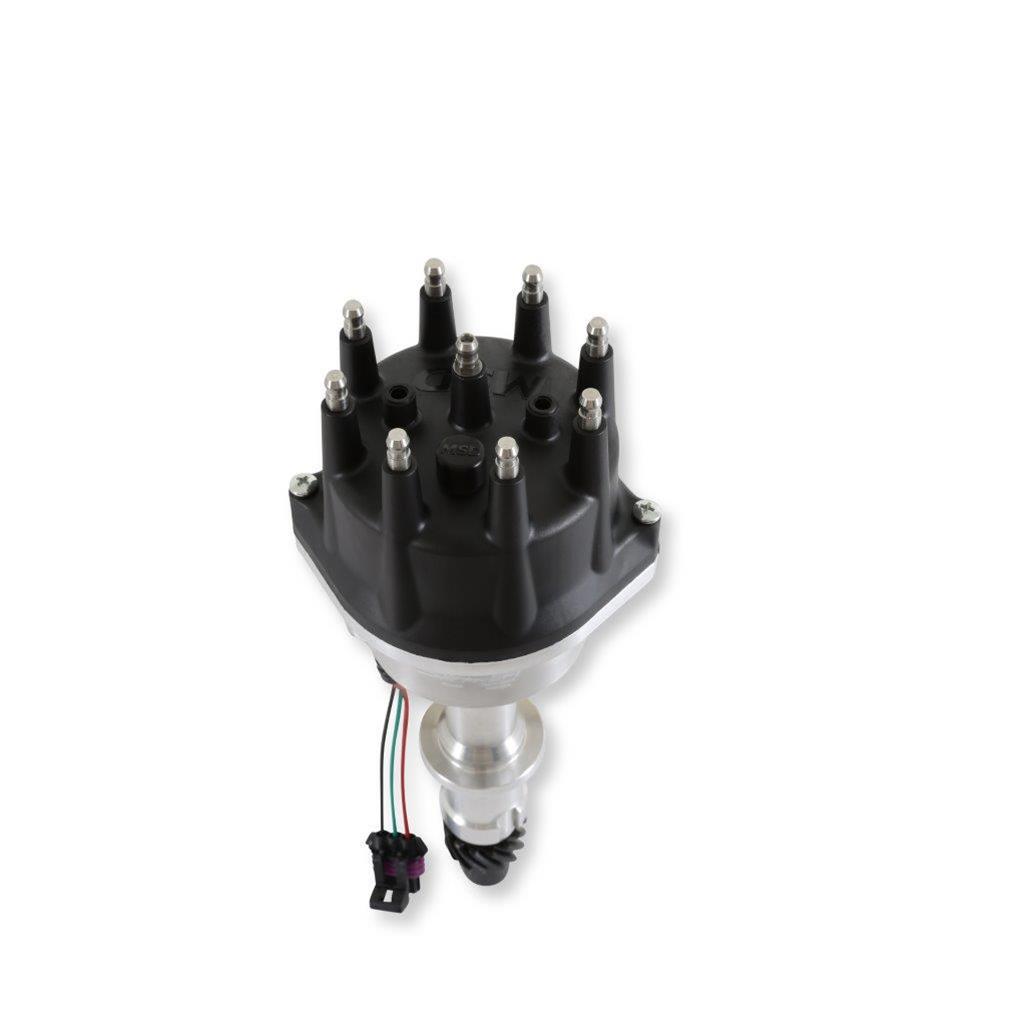

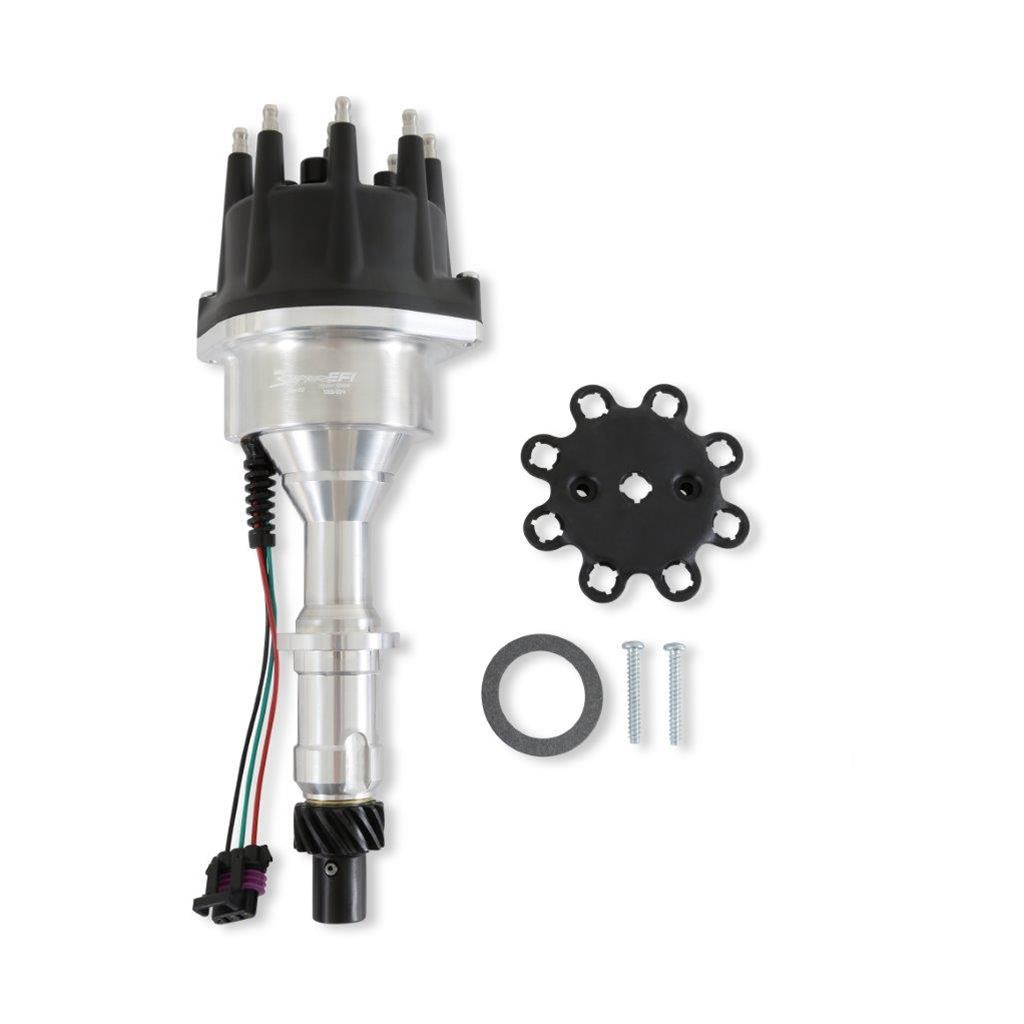

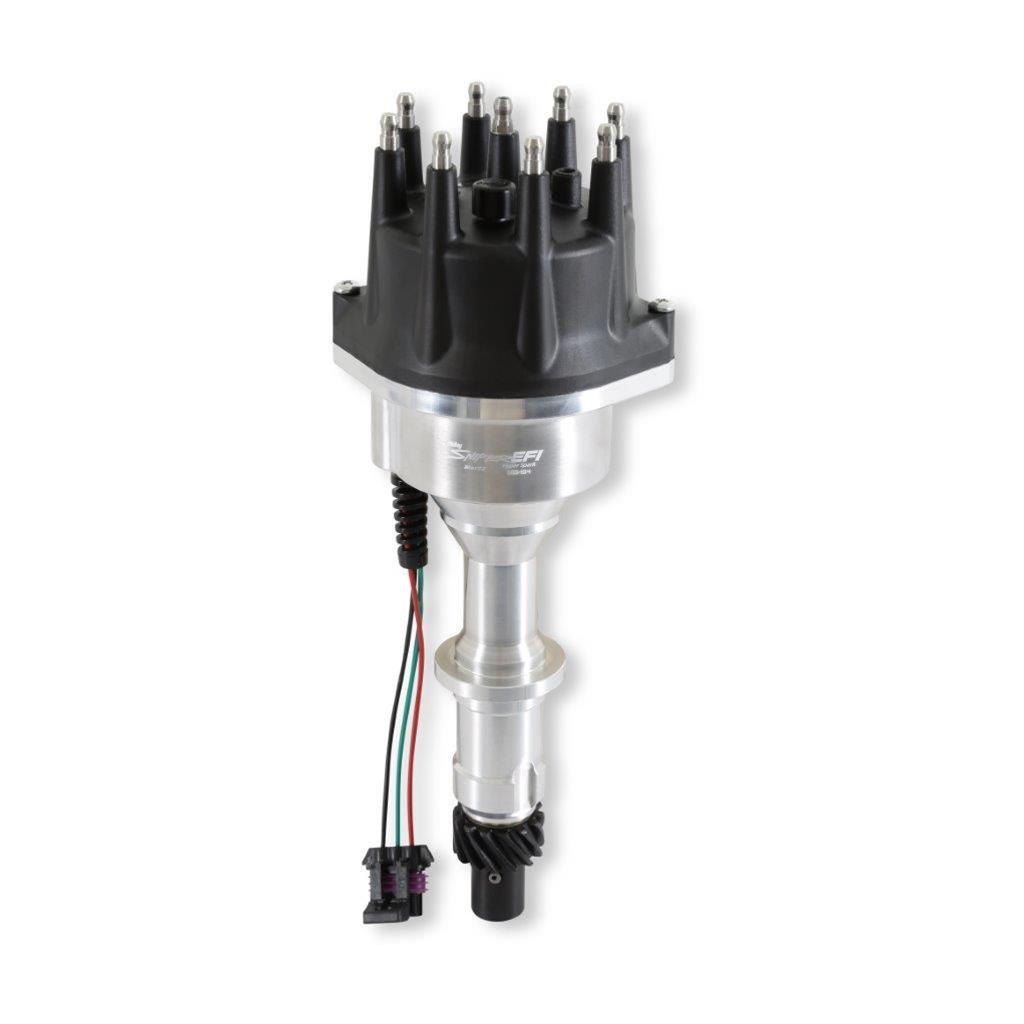

Holley Sniper EFI HyperSpark distributor kits were designed to make upgrading your ignition on a Sniper EFI-equipped engine simple. When installed concurrently with a new Sniper EFI system, the combination creates the easiest way to install EFI conversion on the market—and only four flying lead connections are required! The harness only requires one connection to a switched power source, battery positive, battery negative, and fuel pump power. The pre-terminated connectors and a built in 40A relay provides power to all of the components within the system. With the included Sniper EFI main harness you no longer need to run multiple wires to provide switched power for each individual component, which not only helps prevent wiring confusion, but it will also speed up your install time and clean up your engine bay. Simply route the harness and pre-terminated connectors to your HyperSpark coil, distributor, and ignition box and plug them in. Available for all popular engine combinations, these kits come with a distributor, coil, ignition box, and an integrated Sniper EFI harness. Order the application you need.
Key features:
* Plug-and-Play Sniper EFI main harness replaces the standard Sniper EFI harness with four loose leads, battery positive, battery ground, switched 12 V, and fuel pump power, for a simple and streamline installation
* Designed for existing or new Sniper EFI installations (the HyperSpark Master Kit harness retains the same flying lead wire colors as the Sniper EFI main harness; new installations will not use the Sniper EFI standard harness or coil driver

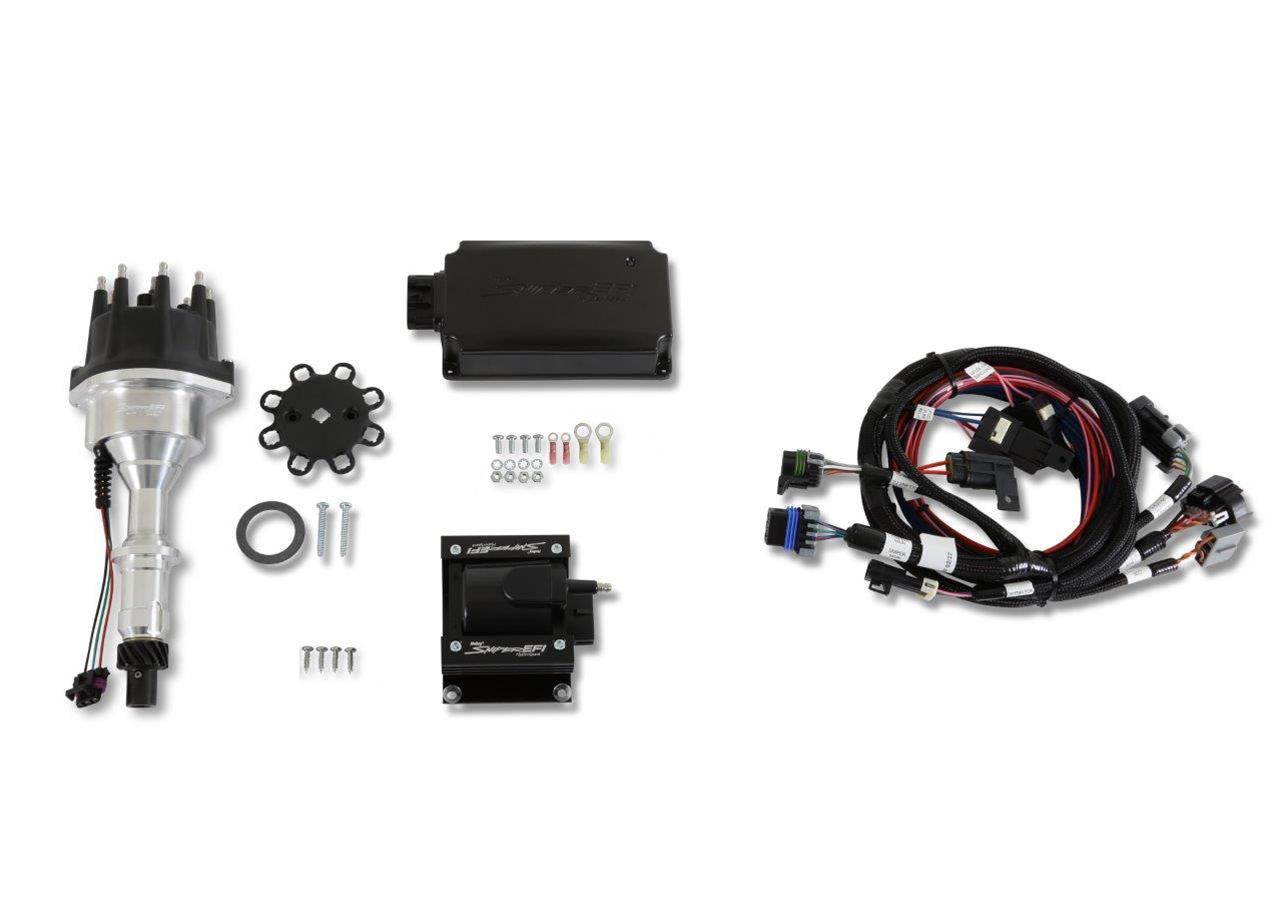

* Complete ignition system in a box, including: HyperSpark ignition box, HyperSpark ignition coil, HyperSpark distributor (for your application), and a plug-and-play main harness
* HyperSpark distributors feature a Hall Effect crank trigger sensor providing a noise-free rpm signal to the Sniper ECU
* Patented clear installation cap eliminates any confusion while installing the distributor

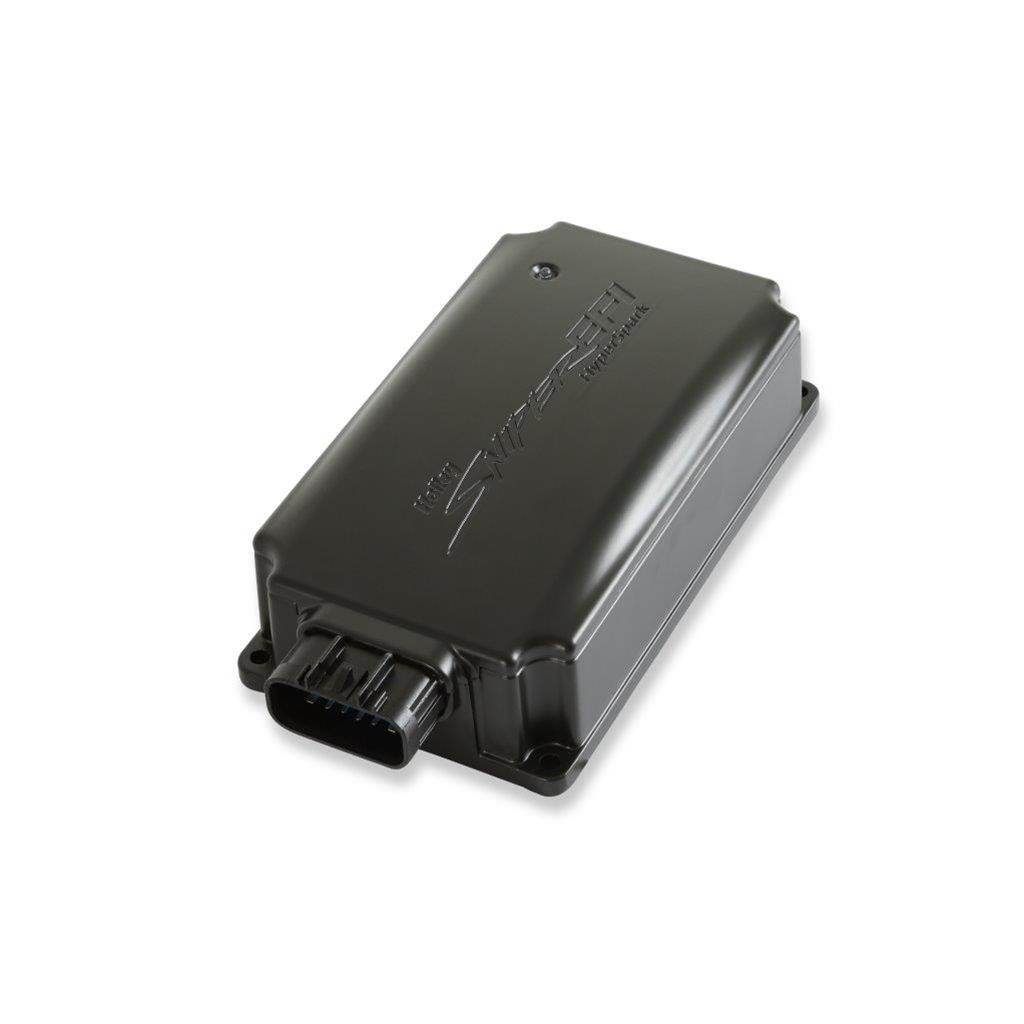

* HyperSpark CD ignition box is seal and powder coated to be installed in the harshest of locations
* External LED on HyperSpark CD Ignition box helps verify 12 V, cranking rpm, and low battery voltage
* 135mJ of spark energy when used with the HyperSpark ignition coil, ensures complete combustion

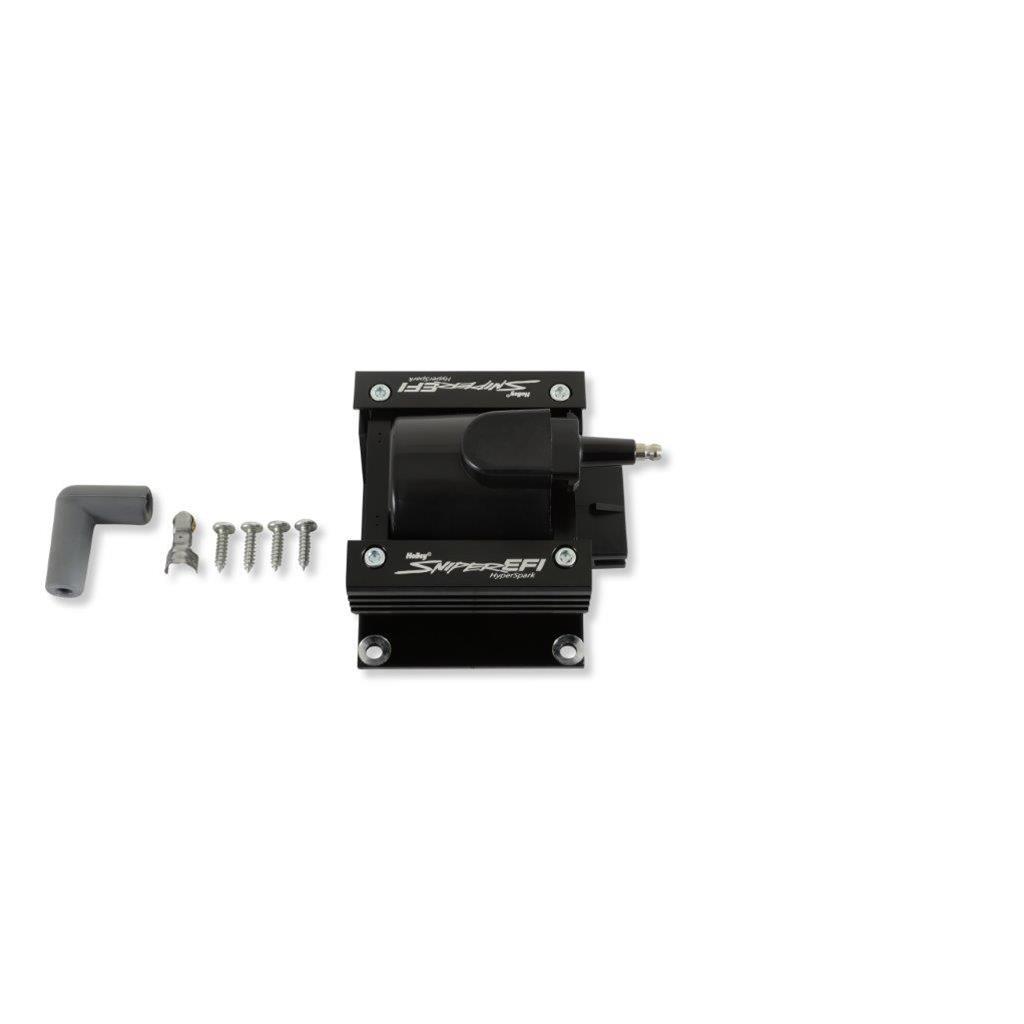

* Integrated ignition coil bracket simplifies mounting the Ignition coil
* Ignition coil connector removes any doubt of loose connections at the Ignition coil
* Enables timing control on a Sniper EFI Installation
Part Type
Ignition System Combo Kits
Specifications
- Product Attributes - Brand
- Holley Sniper
- Product Attributes - Manufacturer's Part Number
- 565-314K
- Product Attributes - Part Type
- Ignition System Combo Kits
- Product Attributes - Product Line
- Holley Sniper EFI HyperSpark Distributor Kits
- Product Attributes - UPC
- 90127135211
- Product Attributes - Advance Type
- Computer-controlled
- Product Attributes - Ignition Box Included
- Yes
- Product Attributes - Rev Limiter
- No
- Product Attributes - Ignition Coil Included
- Yes
- Product Attributes - Coil Style
- Remote mount
- Product Attributes - Distributor Included
- Yes
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Spark Plug Wires Included
- No
- Product Attributes - Spark Plugs Included
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Not compatible with Holley Sniper 2 systems.
Reference Information
| Brand Name/s | Holley Sniper |
|---|---|
| StreetFX SKU | sne565-314K |
| SFX Item ID | 5013935 |
| Supplier Item Code | 5013935 |
| Manufacturer SKU | 565-314K |
| Manufacturer UPC | 90127135211 |
| Alternative References | SNI565-314K, 326-455ci |
