Holley Sniper EFI Quadrajet Self-Tuning Fuel Injection Systems 550-869K Systems, EFI, Quadrajet, Throttle Body, Gold, Spread Bore Flange, Injectors, Pump, 255 lph, Regulator, Harness, Tuner, Kit
Holley Sniper EFI Quadrajet Self-Tuning Fuel Injection Systems 550-869K Systems, EFI, Quadrajet, Throttle Body, Gold, Spread Bore Flange, Injectors, Pump, 255 lph, Regulator, Harness, Tuner, Kit
Sale ends in Calculating...
A$4,286.15
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description

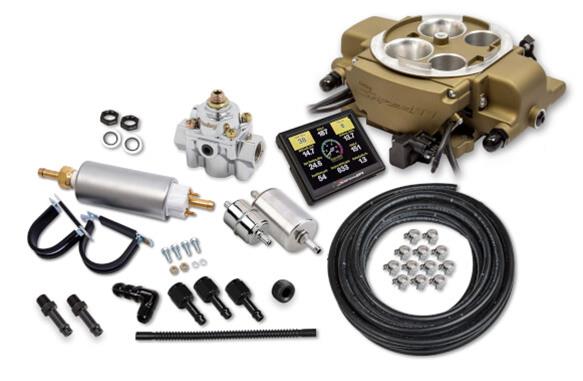

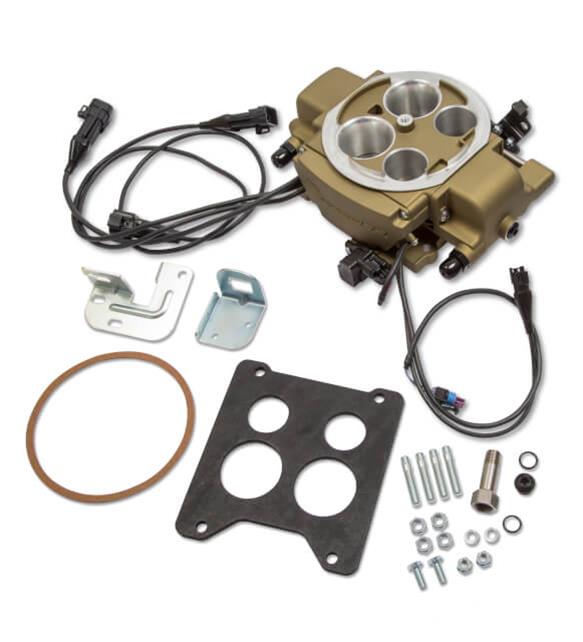

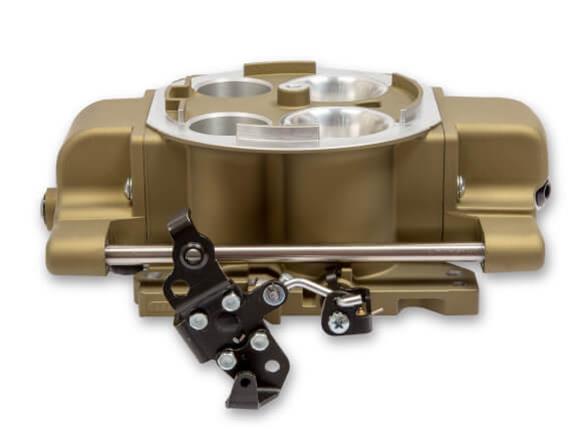

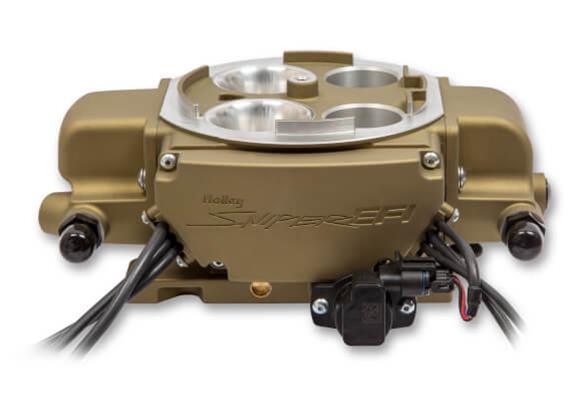

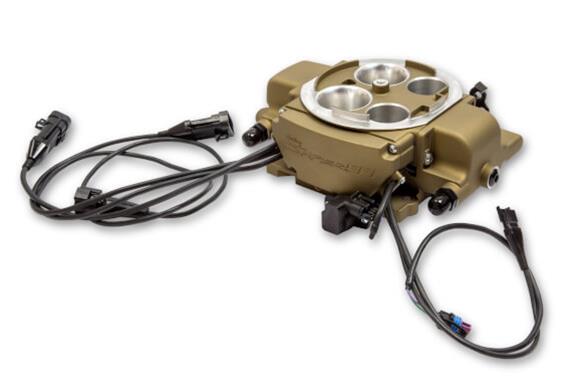

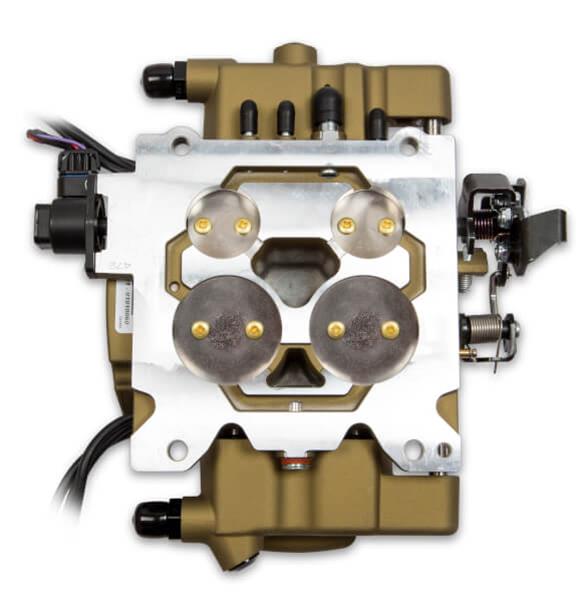

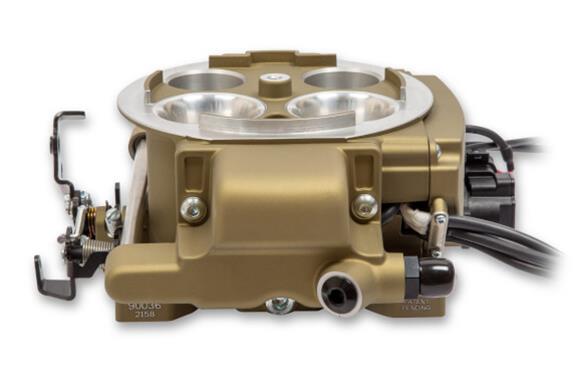

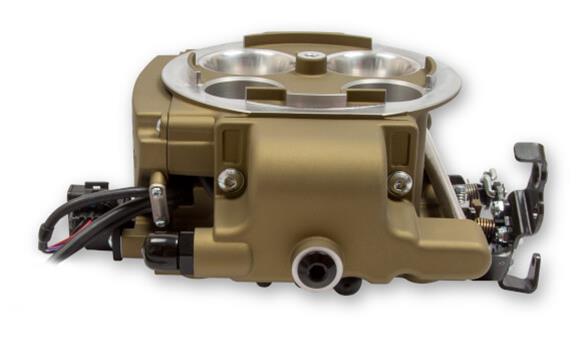

Holley Sniper EFI Quadrajet self-tuning fuel injection systems are ideal replacements when you're tired of rebuilding the 50-plus-year-old Rochester Quadrajet (Q-jet) on your classic ride. They're the first bolt-on, spread-bore, EFI throttle-body systems not requiring any additional adapters, sealing plates, or intake manifold swaps. They retain the same great features as the 4150 Sniper EFI version (four 100 lbs.-hr. injectors; built-in timing control; high resolution 3.5 in. full color touchscreen; etc.). Their throttle body will support naturally aspirated power up to 500 hp. In addition, they offer multiple fuel inlet configurations that allow for a stock-appearing installation and fit most stock air cleaners. Modernize your Q-jet-powered classic vehicle with a Holley Sniper EFI Quadrajet self-tuning fuel injection system. They are offered individually or in Master kits with external fuel pressure regulator preset to 58.5 psi, 20 ft. of 3/8 in. Vapor Guard fuel hose, fuel pump, filters, necessary hardware, and bulkhead fitting to return fuel into the tank.
Features, items, and specs:
* Designed to deliver the signature "Rochester Roar" at wide-open throttle!
* Throttle body-mounted ECU–no extra boxes to mount
* Only 4 wiring connections required (battery positive and negative, switched ignition, and rpm)
* Transmission provisions on throttle lever for TH350/TH400 and 200R4/700R4
* Universal throttle and transmission kick-down bracket
* Brake booster adapter (if required)
* Simple calibration wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own—no laptop required)
* Internal fuel pressure regulator preset to 58.5 psi
* 20 ft. of 3/8 in. Vapor Guard fuel hose
* Fuel pump and filters
* Necessary hardware and bulkhead fitting to return fuel to the tank
* Genuine Bosch LSU 4.9 wide-band oxygen sensor provides real-time fuel map learning
* OEM-style throttle position sensor (TPS) and idle air control (IAC) for years of dependable service
* Clamp-on oxygen sensor kit ensures leak-free oxygen sensor installation with stainless steel T-bolt clamps and weld-ready oxygen sensor flange
* United States Coast Guard approved (certified to ISO 8846, SAE J1171 requirements)
* Available in three finishes--Classic Gold, Shiny, and Black Ceramic
Part Type
Fuel Injection Systems
Specifications
- Product Attributes - Brand
- Holley Sniper
- Product Attributes - Manufacturer's Part Number
- 550-869K
- Product Attributes - Part Type
- Fuel Injection Systems
- Product Attributes - Product Line
- Holley Sniper EFI Quadrajet Self-Tuning Fuel Injection Systems
- Product Attributes - UPC
- 090127059005
- Product Attributes - Fuel Injection Style
- Throttle body
- Product Attributes - Fuel Injection System Type
- Single 4-Barrel Throttle Body (Spread-Bore Flange)
- Product Attributes - Maximum Horsepower with Gas
- 500
- Product Attributes - Timing Control Compatible
- Yes
- Product Attributes - ECM Included
- Yes
- Product Attributes - Self Tuning
- Yes
- Product Attributes - User Tunable
- Yes
- Product Attributes - Fuel System Included
- Inline pump kit
- Product Attributes - Fuel Pump Flow Rating (lph)
- 255
- Product Attributes - Ignition System Included
- None
- Product Attributes - Power Distribution Included
- None
- Product Attributes - User Interface Included
- 3.5 in. display
- Product Attributes - EGR
- No
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Metering Style
- Speed density
- Product Attributes - Multi-Port Fuel Rails Included
- No
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Throttle Body Mounting Flange
- 4-barrel spread bore
- Product Attributes - Venturi Quantity
- 4
- Product Attributes - Venturi Diameter (mm)
- 34.93/51.00mm
- Product Attributes - Airflow Rate (cfm)
- 715 cfm
- Product Attributes - Throttle Body Material
- Cast aluminum
- Product Attributes - Throttle Body Color
- Gold
- Product Attributes - Injectors Included
- Yes
- Product Attributes - Injector Size (lbs/hr)
- 100 lbs./hr.
- Product Attributes - Calibration Module Included
- Yes
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Oxygen Sensor Included
- Yes
- Product Attributes - Fuel Pressure Regulator Included
- Yes
- Product Attributes - MAP Sensor Included
- Yes
- Product Attributes - IAT Sensor Included
- No
- Product Attributes - TPS Sensor Included
- Yes
- Product Attributes - IAC Motor Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- This kit will work on any vehicle equipped with a 4-barrel Quadrajet style flange intake manifold. Kit features provisions on throttle lever for TH350, TH400, 200R4, or 700R4 transmissions and universal throttle and kickdown bracket.
Reference Information
| Brand Name/s | Holley Sniper |
|---|---|
| StreetFX SKU | sne550-869K |
| SFX Item ID | 5013640 |
| Supplier Item Code | 5013640 |
| Manufacturer SKU | 550-869K |
| Manufacturer UPC | 90127059005 |
| Alternative References | SNI550-869K |
