Shocks key role is to optimize your suspension by keeping your tires in contact with the terrain. They dampen out or control the unwanted oscillation motion and improve ride quality and vehicle handling. Engineered for higher speed applications, remote reservoir shocks still perform at crawl. If we are honest, we spend way more time on our daily commutes than we are able to spend on the trails. Quick starts, up and down acceleration and hard stops are a daily routine. The superior construction of Skyjacker's ADX 2.0 Remote Reservoir Aluminum Monotube Shocks delivers the most recent stage in the development in shock technology with an innovative off-road race inspired full displaced valve system. The large 46mm bore size of the Monotube and remote reservoir reacts quicker and creates the smoothest ride possible. The Teflon banded piston's smooth reaction delivers superior ride performance and adds stability on various terrains. The external remote reservoir separates the nitrogen gas from the oil with an Internal Floating Piston (IFP). Skyjacker's ADX 2.0 shock technology constant controlled resistance performance prevents lag (decline) or fade (failure). The high-pressure nitrogen gas and IFP technology combine to create the fastest responding shock ever. The separate remote reservoir allows more room in the shock cylinder to increase the oil capacity and to use a longer piston rod. The longer rod allows more piston stroke in consistent viscosity oil and more articulation travel. Skyjacker's ADX 2.0 Monotube design from high-grade T6061-T6 aluminum helps dissipate heat and runs cooler. This aluminum body and aluminum remote reservoir setup overall weighs less too. Skyjacker's new ADX 2.0 is all about cool, control and comfort. The unique smooth polished clear coat aluminum ADX 2.0 tubes are way cool looking straight out of the box, but their consistent dampening provides better performance, cooler running, more control and improved driving comfort.

Additional Information

ADX COM BOX; JK 4-DOOR 4-7in.

Features and Benefits

• ADX 2.0 Aluminum Monotube Provides Better Heat Dissipation
• ADX 2.0 Has Large 46mm/1.811 in. Bore Size
• ADX 2.0 Reacts Quicker To Improve Handling And Stability
• ADX 2.0 Teflon Banded Piston True Reaction Adds Stability
• Aggressive Look/Unparalleled Performance/Impressive Ride
• Constant Controlled Resistance Prevents Lag And Fade
• Delivers Consistent Dampening And Superior Ride Performance
• Factory Set Vehicle Specific Full Displaced Valve System
• From Higher Speeds To A Crawl Skyjacker ADX 2.0 Works
• IFP Prevents Gas/Oil From Mixing Or Foaming
• IFP Technology Provides Quickest Shock Reaction Time Ever
• Provides Better Performance/Cooler Running/More Control

Product Details

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	skyJK40BKXLT	Skyjacker Jeep Wrangler JKU 4in Dual Rate Long Travel Suspension Lift w/ ADX 2.0 Remote Res Shock (1x skyJK40BLT, 1x skyJK4070X)

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	skyJK40BKXLT	Skyjacker Jeep Wrangler JKU 4in Dual Rate Long Travel Suspension Lift w/ ADX 2.0 Remote Res Shock (1x skyJK40BLT, 1x skyJK4070X)

• ADX 2.0 Aluminum Monotube Provides Better Heat Dissipation
• ADX 2.0 Has Large 46mm/1.811 in. Bore Size
• ADX 2.0 Reacts Quicker To Improve Handling And Stability
• ADX 2.0 Teflon Banded Piston True Reaction Adds Stability
• Aggressive Look/Unparalleled Performance/Impressive Ride
• Constant Controlled Resistance Prevents Lag And Fade
• Delivers Consistent Dampening And Superior Ride Performance
• Factory Set Vehicle Specific Full Displaced Valve System
• From Higher Speeds To A Crawl Skyjacker ADX 2.0 Works
• IFP Prevents Gas/Oil From Mixing Or Foaming
• IFP Technology Provides Quickest Shock Reaction Time Ever
• Provides Better Performance/Cooler Running/More Control

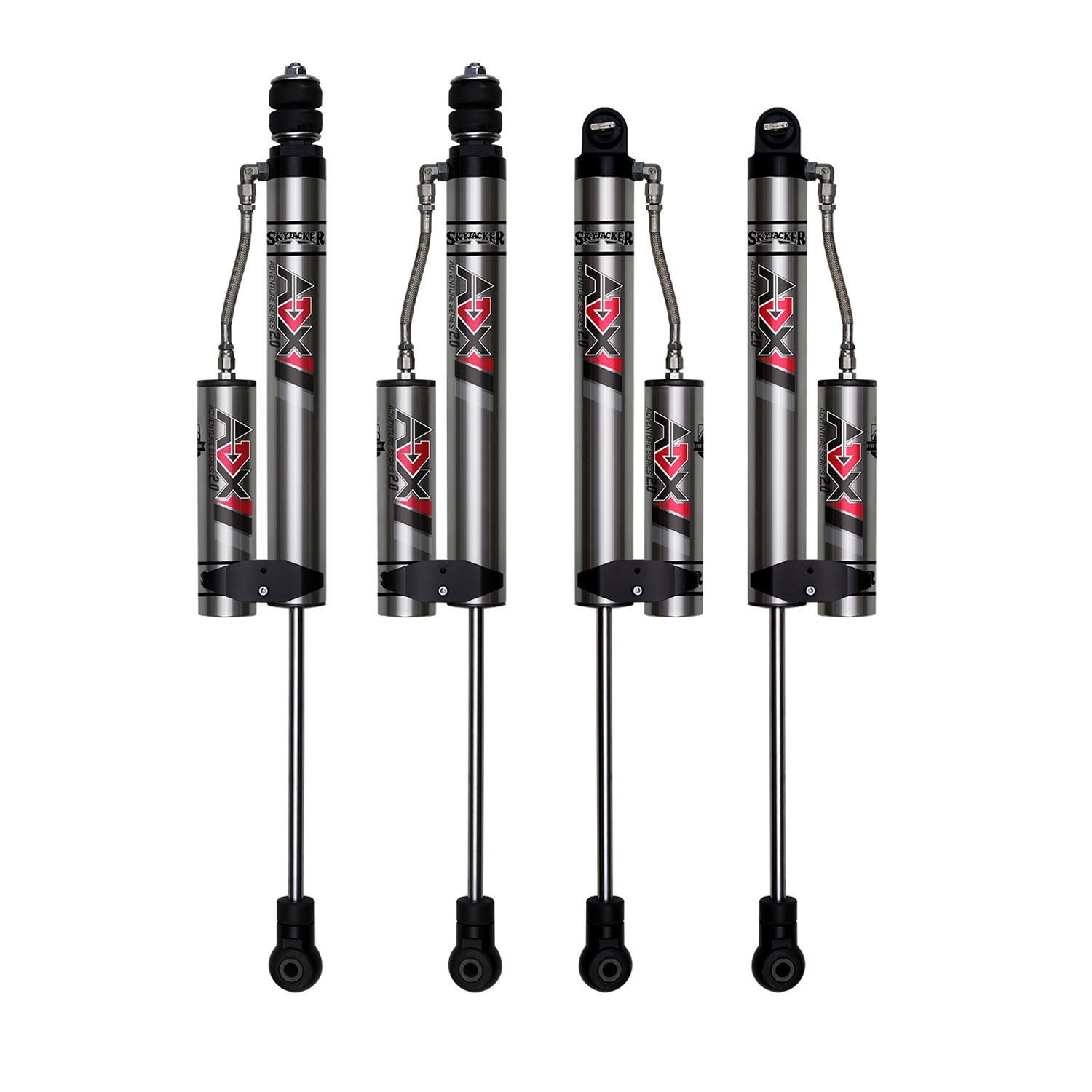

Skyjacker ADX 2.0 Adventure Series remote reservoir aluminum monotube shocks deliver modern technology in the design with an innovative off-road race-inspired full-displaced Custom Valve Tuned system. With this highest level of technology development, ADX 2.0 provides consistent dampening, high-end performance, cooler running, more control and improved driving comfort. ADX 2.0 shocks dampen out (control) the unwanted oscillation motion to improve handling and ride quality. They will optimize your suspension by keeping your tires in contact with the terrain. Engineered for higher speed applications, remote reservoir shocks still perform at crawl. Most drivers spend way more time on daily commutes than on the trails. The commutes are neither smooth surfaces or free of obstacles. Quick starts, up and down acceleration and hard stops are a daily routine.

The external remote reservoir separates the nitrogen gas from the oil with an Internal Floating Piston (IFP). ADX 2.0 constant controlled resistance performance prevents lag (decline) or fade (failure). High-pressure nitrogen gas Custom Valve Tuning and IFP technology combine to create the fastest responding shock ever. The separate reservoir allows more room in the shock cylinder to increase the oil capacity. The large bore size design reacts quicker and creates the smoothest ride possible; while the PTFE-banded piston's smooth reaction delivers a superior ride and added stability on any terrain.

Impact extruded CNC-machined T6061-T6 aluminum monotube dissipates heat and runs cooler versus traditional steel-bodied shocks. The overall weight of the aluminum body and aluminum remote reservoir setup is lighter too. Skyjacker ADX 2.0's superior construction will conquer off-road and on-road challenges through all manner of terrain, obstacles and extreme weather. Load up, set your waypoint where X marks the spot, and confidently conquer your next adventure to the far end of the trail and back again.
These shocks are available for a variety of front and/or rear height applications, ranging from stock (zero lift) to 8.5 in. Order the models recommended for your Jeep, Ford, Ram, or other compatible vehicle.

Product features and benefits:
• Impact Extruded CNC Machined T6061-T6 Aluminum Monotube
• Full-Displaced Valve System Inspired from Off-Road Racing
• High Pressure Nitrogen Gas and IFP Technology Performance
• Custom Valve Tuned, Vehicle Specific Consistent Dampening
• Cooler Running, More Control and Improved Driving Comfort
• Large 53.5mm Body OD with 46mm ID Bore Size
• Quality Assured 2-Year Warranty
• ADX 2.0 Smooth Reaction PTFE-Banded Piston
• ADX 2.0 Custom Valve Tuned Controlled Resistance Performance
• ADX 2.0 Has a Unique Clear Anodize Polished Aluminum Finish
• ADX 2.0 Reacts Quicker to Improve Handling and Stability
• ADX 2.0 Aluminum Monotube Provides Better Heat Dissipation

Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.

Detailed Compatibility

This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
