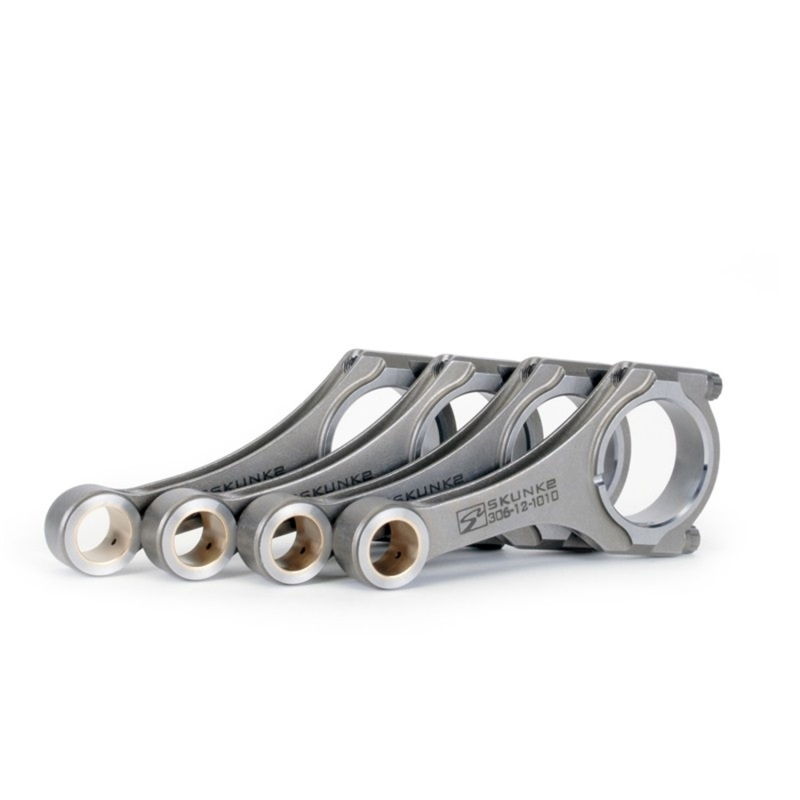

Skunk2 Alpha Series BRZ / FRS Connecting Rods

SKU: SKK306-12-1010

Connecting Rods

SK Alpha Connecting Rods...

Skunk2 Racing

Skunk2 Alpha Series BRZ / FRS Connecting Rods

SKU: SKK306-12-1010

Connecting Rods

SK Alpha Connecting Rods...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

Alpha Series Rods are forged from select 4340 chromoly steel and feature an H-beam design, resulting in the ultimate strength-to-weight ratio. 4340 chromoly is one of the strongest materials available, however, not all 4340 chromoly is the same. As such, Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series Rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2's rigid specifications. Skunk2's engineers spent nearly three years developing and testing its H-beam rod design. The results are one of the strongest beam configurations available, capable of handling more than 900 hp. Engineers made use of FEA (Finite Element Analysis) to determine high-stress points and implemented features to reduce wear and increase strength. Skunk2's straight design distributes stress across a larger area when compared to tapered rods, providing additional support where necessary. Alpha Series Rods are manufactured from two-piece forgings, resulting in optimal grain orientation along the rod cap for increased strength. By orienting the metal's grain in the direction of stress along the rod cap, perpendicular to the stress exerted along the beam, strength is significantly increased. Skunk2's two-piece forgings provide a precision-tight fit between the rod's cap and its beam without resorting to the brittle materials required by other processes. Alpha Series Rods also feature dual oil passages at their pin ends, providing additional lubrication and cooling, which leads to an even stronger, more durable rod. Unlike other designs, Skunk2's carefully positioned, offset oil passages help deliver lubrication around the entire wrist pin, during each phase of the engine cycle.

Product Overview

Skunk2 is proud to introduce its all-new Alpha Series Connecting Rods, available for most popular Honda and Acura applications. Alpha Series Rods are forged from select 4340 chromoly steel and feature a straight H-beam design, resulting in the ultimate strength-to-weight ratio. 4340 chromoly is one of the strongest materials available, however, not all 4340 chromoly is the same. As such, Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series Rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2’s rigid specifications. Skunk2’s engineers spent nearly three years developing and testing its straight H-beam rod design. The results are one of the strongest beam configurations available, capable of handling more than 900 hp. Engineers made use of FEA (Finite Element Analysis) to determine high-stress points and implemented features to reduce wear and increase strength. Skunk2’s straight design distributes stress across a larger area when compared to tapered rods, providing additional support where necessary. Alpha Series Rods are manufactured from two-piece forgings, resulting in optimal grain orientation along the rod cap for increased strength. By orienting the metal’s grain in the direction of stress along the rod cap, perpendicular to the stress exerted along the beam, strength is significantly increased. Skunk2’s two-piece forgings provide a precision-tight fit between the rod’s cap and its beam without resorting to the brittle materials required by other processes. Alpha Series Rods also feature dual oil passages at their pin ends, providing additional lubrication and cooling, which leads to an even stronger, more durable rod. Unlike other designs, Skunk2’s carefully positioned, offset oil passages help deliver lubrication around the entire wrist pin, during each phase of the engine cycle. Connecting rod bolts endure more stress than any other engine fastener. Each Alpha Series Rod features high-quality, Skunk2-branded, 3/8-inch ARP2000 bolts. ARP2000 rod bolts are forged, heat-treated, precision-machined, and capable of clamping loads as high as 220,000 psi. Precision-machined, bronze wrist pin bushings are also fitted to each Alpha Series Rod for increased wear resistance, and are compatible with most aftermarket pistons without additional machining. Not all forged H-beam rods are the same. Only Skunk2’s Alpha Series Rods feature our unique design, precision machining, and are capable of handling more than 900 hp, all at an economical price. *FEATURES:* * Precision Machined * 3/8-Inch ARP2000/Skunk2 Bolts * Shot-Peened For Reduced Fatigue * Bronze Wrist Pin Bushings * Laser-Etched Skunk2 Logo For Authenticity * Fatter, H-Beam Design Without Drastic Weight Increase * Pin End Compatible With Most Pistons Without Machining * Dual-Pin Oil Passages For Increased Lubrication And Strength * 900+ HP Capable * Balanced +/- 1 Gram * Magna-flux Inspected * Heat-Treated * FEA Analyzed

Features and Benefits

Length 129.39mm
Weight 527 Grams
Big End 53mm
Big End Width 21.41
Small End 22mm
Small End Width 21.41
3/8-in. ARP2000/Skunk2 Bolts
Shot-Peened For Reduced Fatigue
Bronze Wrist Pin Bushings
Dual-Pin Oil Passages For Increased Lubrication And Strength
Balanced +/- 1 Gram
Magna-flux Inspected

Product Details

Description:	Alpha Series Connecting Rod Set
Length:	129.38mm Weight: 502 Grams
Part Number:	skk306-12-1010
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to chemicals including lead; which is known to the State of California to cause cancer. For more information; go to www.P65Warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Part Type

Connecting Rods

Data: v4.2 - Upd: 2026-10-13 15:48:47

Features

3/8-in. ARP2000/Skunk2 Bolts
Balanced +/- 1 Gram
Big End 53mm
Big End Width 21.41
Bronze Wrist Pin Bushings
Dual-Pin Oil Passages For Increased Lubrication And Strength
Length 129.39mm
Magna-flux Inspected
Shot-Peened For Reduced Fatigue
Small End 22mm
Small End Width 21.41
Weight 527 Grams

Specifications

Product Attributes - UPC: 873265009862
Product Attributes - Brand: Skunk 2
Product Attributes - Quantity: Sold as a set of 4.
Product Attributes - Part Type: Connecting Rods
Product Attributes - Magnafluxed: Yes
Product Attributes - Product Line: Skunk2 Racing Alpha Series Connecting Rods
Product Attributes - Remanufactured: No
Product Attributes - Wrist Pin Style: Floating
Product Attributes - Weight Matched Set: Yes
Product Attributes - Big End Width (in.): 0.843
Product Attributes - Cap Retention Style: Cap screw
Product Attributes - Pin End Width (in.): 0.843 in.
Product Attributes - Connecting Rod Color: Shot-peened
Product Attributes - Pin End Bore Diameter: 0.866 in.
Product Attributes - Clearanced for Stroker: No
Product Attributes - Connecting Rod Material: Chromoly 4340 steel
Product Attributes - Connecting Rod Beam Style: H-beam
Product Attributes - Connecting Rod Bolt Brand: ARP
Product Attributes - Manufacturer's Part Number: 306-12-1010
Product Attributes - Big End Bore Diameter (in.): 2.0860
Product Attributes - Advertised Horsepower Rating: 900 hp
Product Attributes - Connecting Rod Bolt Diameter: 3/8 in.
Product Attributes - Connecting Rod Bolt Material: ARP2000 alloy
Product Attributes - Connecting Rod Bolt Head Style: 12-point
Product Attributes - Fastener Tensile Strength (psi): 200,000 psi
Product Attributes - Approximate Connecting Rod Weight (g): 518
Product Attributes - Connecting Rod Length Center to Center (in.): 5.094 in.

Reference Information

Brand Name/s	Skunk2 Racing
StreetFX SKU	skk306-12-1010
SFX Item ID	4442498
Supplier Item Code	4442498
Manufacturer SKU	306-12-1010
Manufacturer UPC	873265009862
Alternative References	skunk2, sk2-306-12-1010
