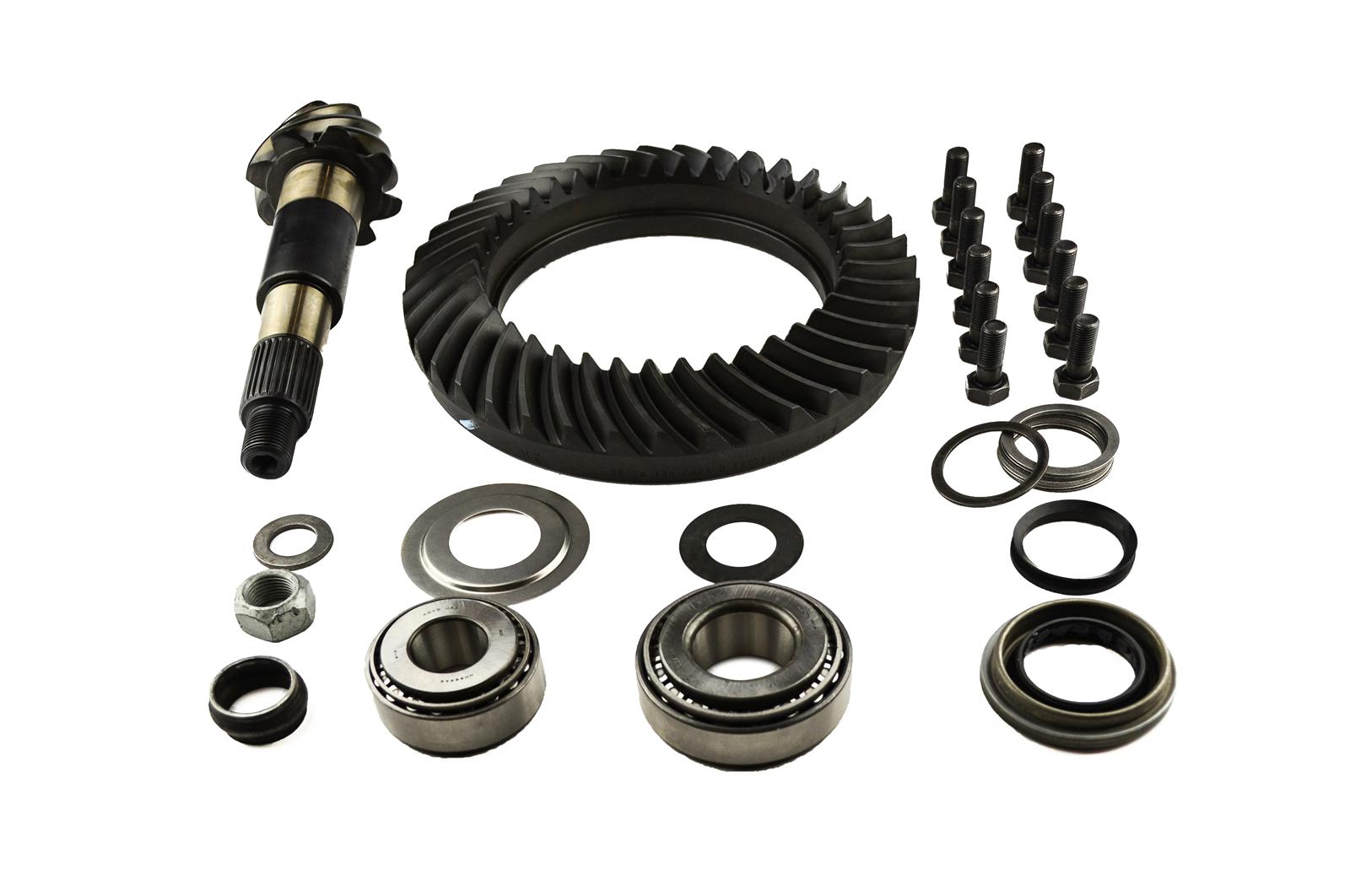

Spicer Drivetrain Products Ring and Pinion Gear with Installation Kits 707475-4X Dana 60 4.88 Gears Gears, 4.88:1 Ratio, 29-spline, Reverse Rotation, Kit, 60, Kit

SKU: SDH707475-4X

Ring and Pinion Gears

Spicer Drivetrain Products Ring and Pinion Gear with Installation Kits 707475-4X Dana 60 4.88 Gears Gears, 4.88:1 Ratio, 29-spline, Reverse Rotation, Kit, 60, Kit

SKU: SDH707475-4X

Ring and Pinion Gears
A$1,520.76
Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
View cart
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

IMPORTANT NOTICE: Note for Pistons, Rings, Rotors, Rods and engine internalsUnless otherwise specified, some brands supply brake rotors, pistons, rods and rings separately. In some cases, titles may indicate plural, or 'set' - eg the term “ring set” often refers to the rings for a single piston only. If you’re unsure about what’s included with this product, please contact our team for clarification.(keyword: ring)Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.Reference Information Reference Data (Provide these details to our support team) Brand Name/s Dana Spicer Drivetrain Products, DANA - SPICER, Dana/spicer, Spicer StreetFX SKU sdh707475-4X SFX Item ID 4937770 Accounting SKU sdh-707475-4X Manufacturer SKU 707475-4X Manufacturer UPC 023913128739 Alternative References 707475-4X, DAN707475-4X, SDH-707475-4X


Data: v2 - Desc: v4.2 - Upd: 2026-10-14 03:03:35

Part Type

Ring and Pinion Gears

Data: v4.2 - Upd: 2026-09-27 17:52:19

Specifications

Ring and Pinion Gears, 4.88:1 Ratio, 29-spline, Reverse Rotation, Installation Kit, Dana 60, Kit

Errrr, bang! Clunk clunk clunk. Very few parts last forever, especially those rotating at a high rate of speed. Spicer Drivetrain Products ring and pinion gears are perfect for replacing worn or damaged gears, changing ratios, or when refreshing the differentials. They hob and shave the gears for longevity with minimal mating stress, combine modern designs and materials including heat-treating and shot-peening to maximize life, and use high-grade steel for consistency and exceptional durability. Each gear set meets or exceeds Dana's standards for OEM equipment. Whether you need lower, higher, or the same ratio gears, look into Spicer Drivetrain ring and pinion gears with installation kit, available for hundreds of applications.

Product Attributes
BrandDana Spicer Drivetrain Products
Manufacturer's Part Number707475-4X
Part TypeRing and Pinion Gears
Product LineSpicer Drivetrain Products Ring and Pinion Gear with Installation Kits
UPC023913128739
Differential Case Design TypeDana 60
Ring and Pinion Ratio4.88:1
Cover Bolts10
Ring Gear Bolts12
Pinion Spline Count29
Carrier Series3
Ring Gear RotationReverse
Ring Gear Teeth39
Pinion Gear Teeth8
Ring Gear Diameter (in.)9.750 in.
Pinion Shaft Diameter (in.)1.600 in.
Installation Kit IncludedYes
Cover Gasket IncludedNo
Pinion Shims IncludedYes
Carrier Shims IncludedYes
Crush Sleeve IncludedYes
Pinion Seal IncludedYes
Pinion Nut IncludedYes
Ring Gear Bolts IncludedYes
Head Bearing IncludedYes
Tail Bearing IncludedYes
Carrier Bearings IncludedNo
Axle Seals IncludedNo
Axle Bearings IncludedNo
Differential Cover IncludedNo
Differential Oil IncludedNo
Friction Modifier IncludedNo
Installation DVD IncludedNo
QuantitySold as a kit.
NotesFits 4.56:1 and numerically higher ratio carriers.

Reference Information

Brand Name/s Dana Spicer Drivetrain Products
StreetFX SKU sdh707475-4X
SFX Item ID 4937770
Supplier Item Code 4937770
Manufacturer SKU 707475-4X
Manufacturer UPC 23913128739
Alternative References DAN707475-4X, 29-spline

Compatibility

No specific fitment data available for this part. For clarification, please contact us.

Detailed Compatibility


Application Data
MakeFORD
ModelF-250 SUPER DUTY
SubmodelLARIAT
Beginning Year1999
Ending Year2000
Engine TypeV10
Engine Size6.8L/415
Engine FamilyFord modular V10
Axle LocationFront
Liter6.8
CID415
Application NotesDrive Type: 4WD
Engine VIN CodeS
MakeFORD
ModelF-250 SUPER DUTY
SubmodelLARIAT
Beginning Year1999
Ending Year2000
Engine TypeV8
Engine Size5.4L/330
Engine FamilyFord modular V8
Axle LocationFront
Liter5.4
CID330
Application NotesDrive Type: 4WD
Engine VIN CodeL
MakeFORD
ModelF-250 SUPER DUTY
SubmodelLARIAT
Beginning Year1999
Ending Year2000
Engine TypeV8
Engine Size7.3L/445
Engine FamilyPOWERSTROKE V8 DIESEL
Axle LocationFront
Liter7.3
CID445
Application NotesDrive Type: 4WD
Engine VIN CodeF

This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
