South Bend Clutch
South Bend / DXD Racing Clutch 00-06 Volkswagen Golf IV GTI 5Sp 1.8T Stg 3 Daily Clutch Kit (w/ FW)
sbcK70319F-SS-O
A$2,149.68

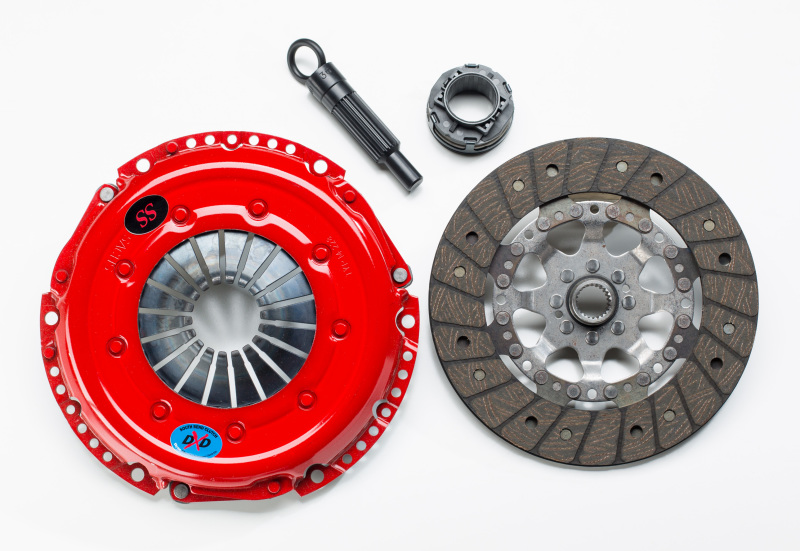

South Bend / DXD Racing Clutch 97-05 Audi A4/A4 Quattro B5 1.8T Stg 3 Daily Clutch Kit
South Bend / DXD Racing Clutch 97-05 Audi A4/A4 Quattro B5 1.8T Stg 3 Daily Clutch Kit
A$1,855.97
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Product Overview
*STAGE 3 DAILY:*
Recommended for single mass flywheel (SMF) when original design is DMF. This clutch package is designed for high HP vehicles desiring a start performance similar to O.E. The pressure plate is Race Engineered (SS) and SFI approved with significant load increase over stage 1,2 pressure plates (+600-800 lbs.). Expect a pedal effort increase of 20%-25%. Discs are assembled with heat-treated wear resistant hubs; drive plates and springs for high load transfer and dependable operation. The sprung centers on the disc in conjunction with the marcel fin between the linings create a dual dampening effect that simulates O.E. start performance. A Performance Organic friction material with a high metal content increases torque and RPM capability and maintains low operating temperatures which reduces wear and glazing.
Recommended usages are daily, spirited street and occasional track.
*STAGE 3 ENDURANCE:*
Recommended for single mass flywheel (SMF) when original design is DMF to achieve optimal performance. This kit uses the same Race Engineered SFI approved pressure plate as stage 3 daily package. The disc is designed for the special needs of a vehicle with circuit racing in mind. Kevlar friction material is used for its unique static to dynamic ratios of friction co-efficients at high energy levels. This translates to a perfect transition from one gear to the next. Discs are assembled with only performance components and equipped with torsion springs functioning as a damper between engine and gearbox.
Recommend usages are Rally, endurance race, clubsport, autocross, street and daily.
*STAGE 3 DRAG:*
Drag racing requires a Single Mass Steel Flywheel to be included with each kit when the original design is Dual Mass Flywheel. This clutch package is built to handle heavily modified cars and designed to function according to the specific needs of the 1/4 and 1/8 mile track. The pressure plate for this kit is SFI approved Race Cover engineered to disengage with less pedal travel shortening the shift time. Discs are a puck design, which reduces rotational mass and are assembled with all high carbon component pieces for maximum strength. The friction material used is Graphite impregnated Ceramic perfectly suited for drag racing because of its maximum friction co-efficient, rapid heat dissipation and abrupt engagement characteristics.
Recommended uses are drag, pulling, drifting.
Product Details
| Alignment Tool Included: | Yes |
|---|---|
| Clutch Disc Quantity: | Single |
| Clutch Usage: | Performance |
| Description: | Stage 3 Clutch Kit; DAILY Series; For Single Mass Flywheel |
| Disc Diameter: | 230 |
| Disc Material: | Organic |
| Disc Style: | Full Face |
| Flywheel Included: | No |
| Hub Style: | Sprung |
| Input Shaft Diameter: | 0.94 |
| Input Spline Quantity: | 23 |
| Mounting Hardware Included: | No |
| Part Number: | sbcK70205-SS-O-SMF |
| Pilot Bushing Included: | No |
| Pressure Plate Style: | Diaphragm |
| Prop 65 Yes/No: | No |
| Quantity: | Sold as a kit |
| Throwout Bearing Included: | Yes |
| Throwout Bearing Style: | Standard |
| Title: | South Bend Clutch K70205-SS-O-SMF, STAGE 3 DAILY, FOR Single MASS FLY |
| Torque Rating: | 395ft/lbs |
Part Type
Transmission Clutch Kit
Specifications
- Alignment Tool Included:
- Yes
- Clutch Disc Quantity:
- Single
- Clutch Usage:
- Performance
- Description:
- Stage 3 Clutch Kit; DAILY Series; For Single Mass Flywheel
- Disc Diameter:
- 230
- Disc Material:
- Organic
- Disc Style:
- Full Face
- Flywheel Included:
- No
- Hub Style:
- Sprung
- Input Shaft Diameter:
- 0.94
- Input Spline Quantity:
- 23
- Mounting Hardware Included:
- No
- Part Number:
- sbcK70205-SS-O-SMF
- Pilot Bushing Included:
- No
- Pressure Plate Style:
- Diaphragm
- Prop 65 Yes/No:
- No
- Quantity:
- Sold as a kit
- Throwout Bearing Included:
- Yes
- Throwout Bearing Style:
- Standard
- Title:
- South Bend Clutch K70205-SS-O-SMF, STAGE 3 DAILY, FOR Single MASS FLY
- Torque Rating:
- 395ft/lbs
Reference Information
| Brand Name/s | South Bend Clutch |
|---|---|
| StreetFX SKU | sbcK70205-SS-O-SMF |
| SFX Item ID | 4423185 |
| Supplier Item Code | 4423185 |
| Manufacturer SKU | K70205-SS-O-SMF |
| Manufacturer UPC | 840416323276 |
| Alternative References | A4/A4, 1.8T |
