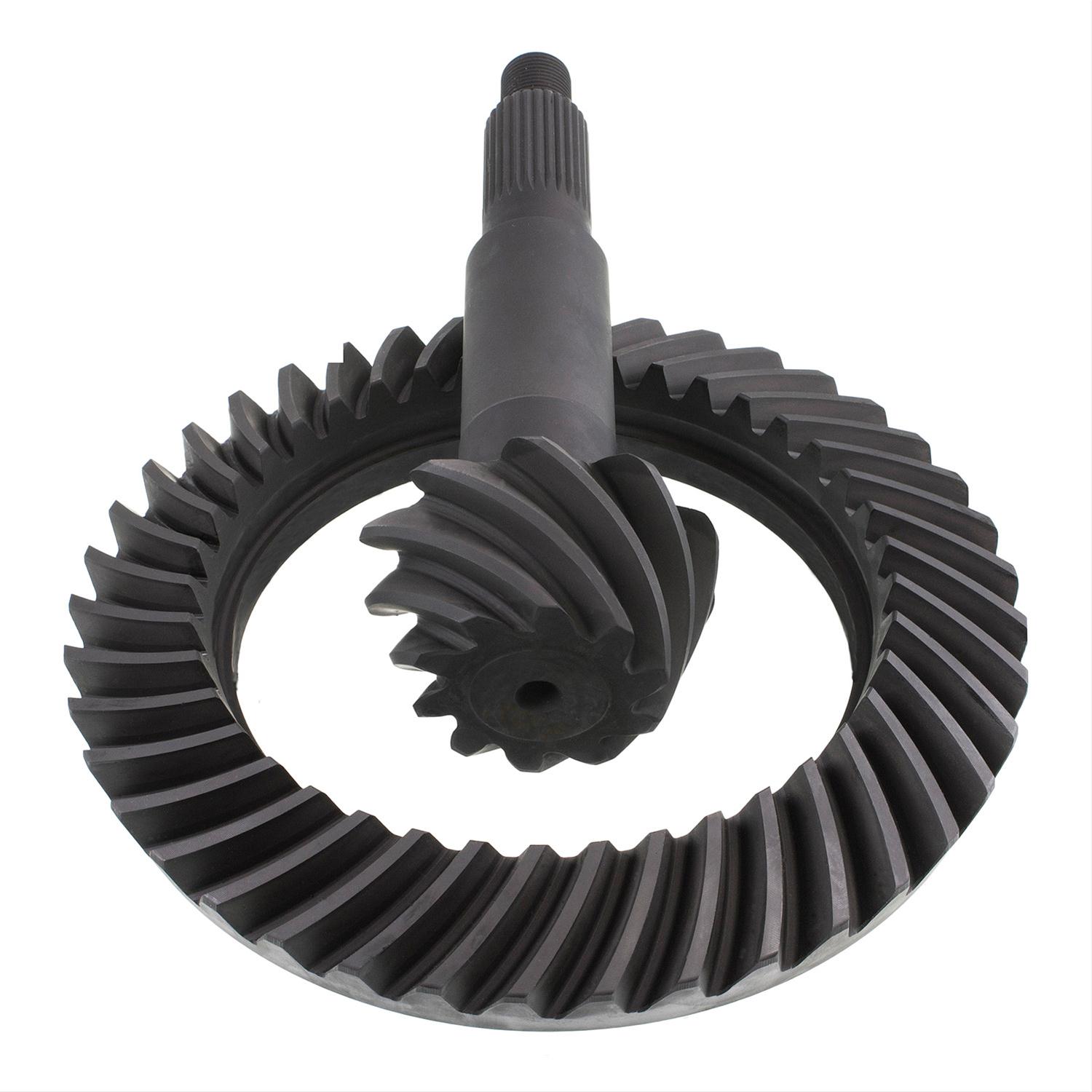

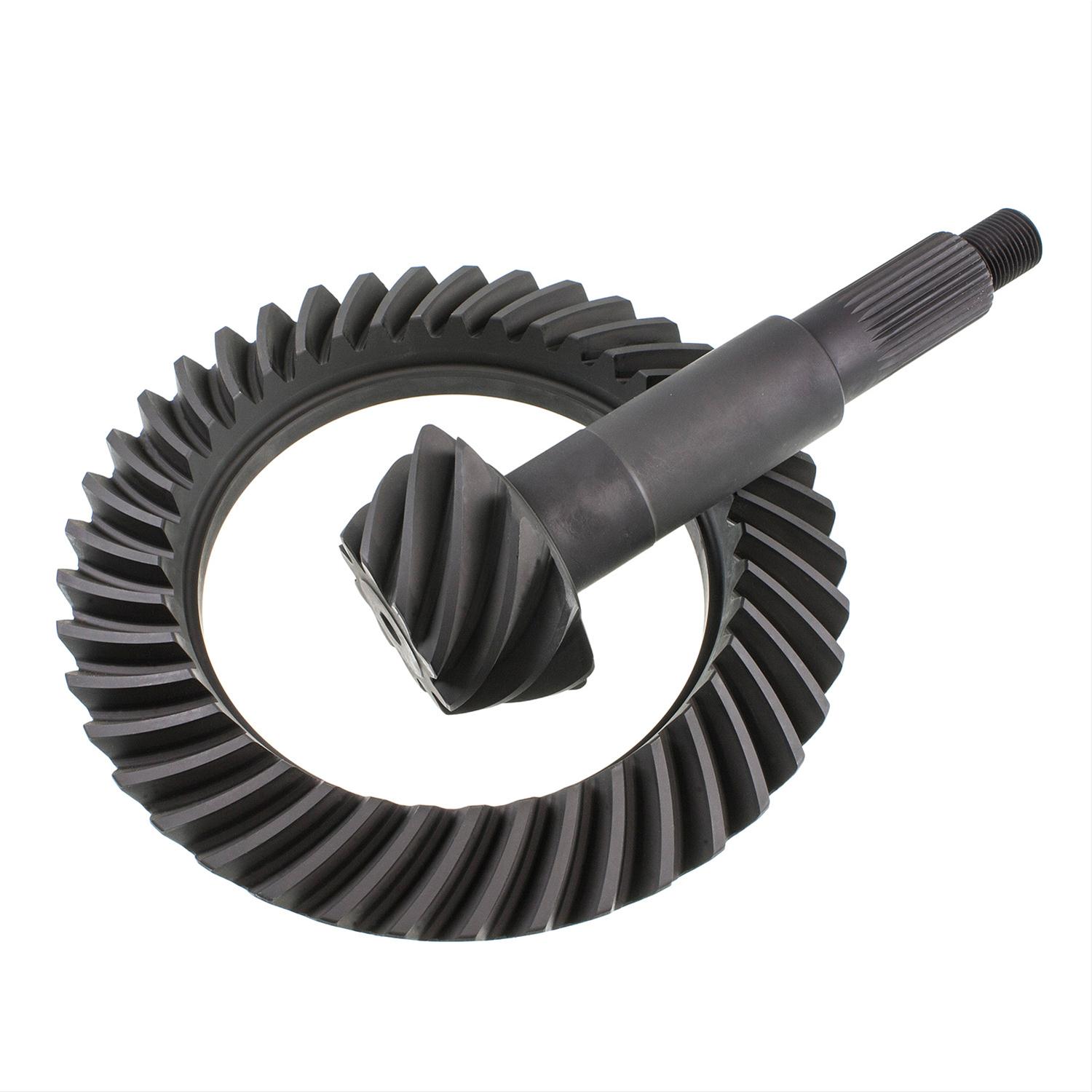

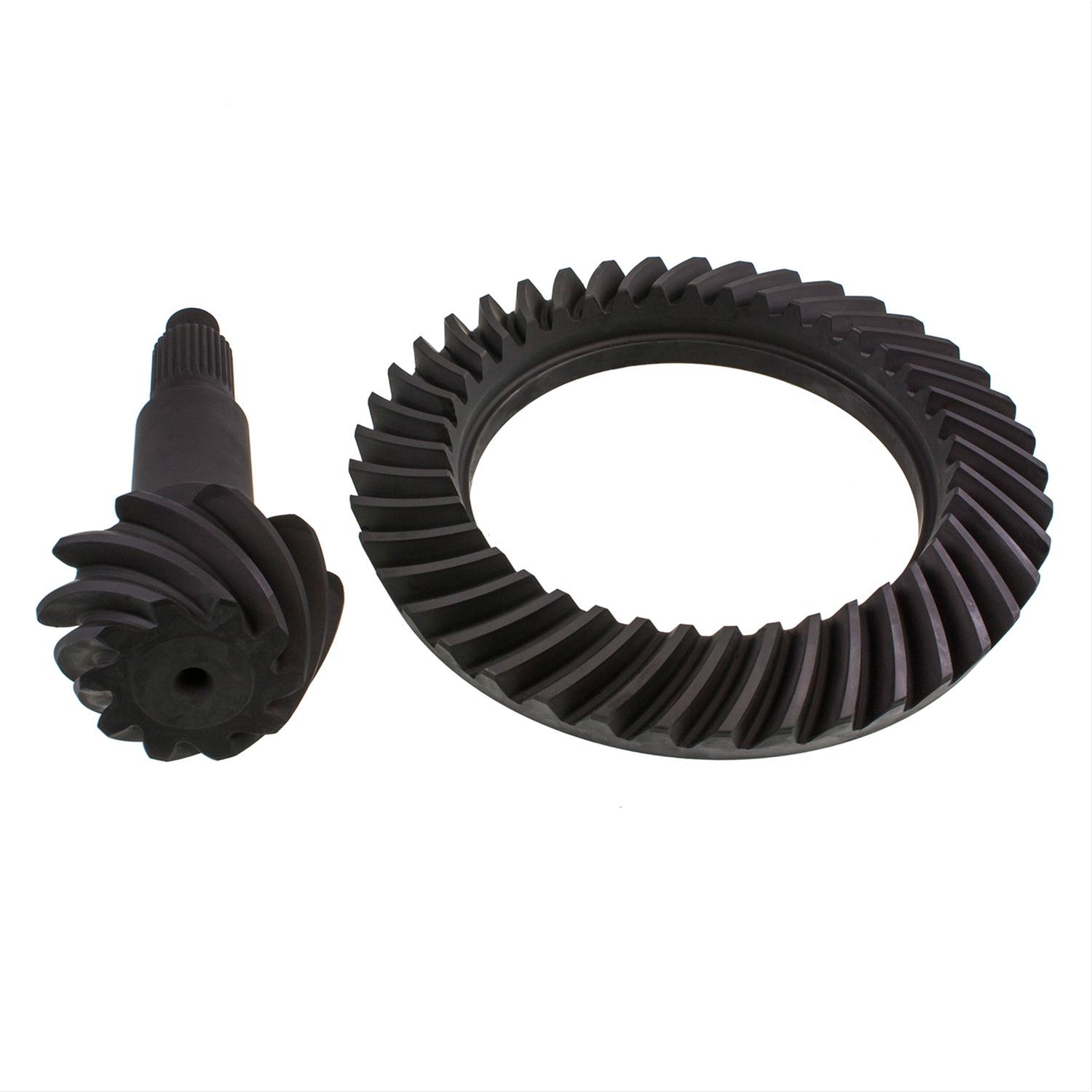

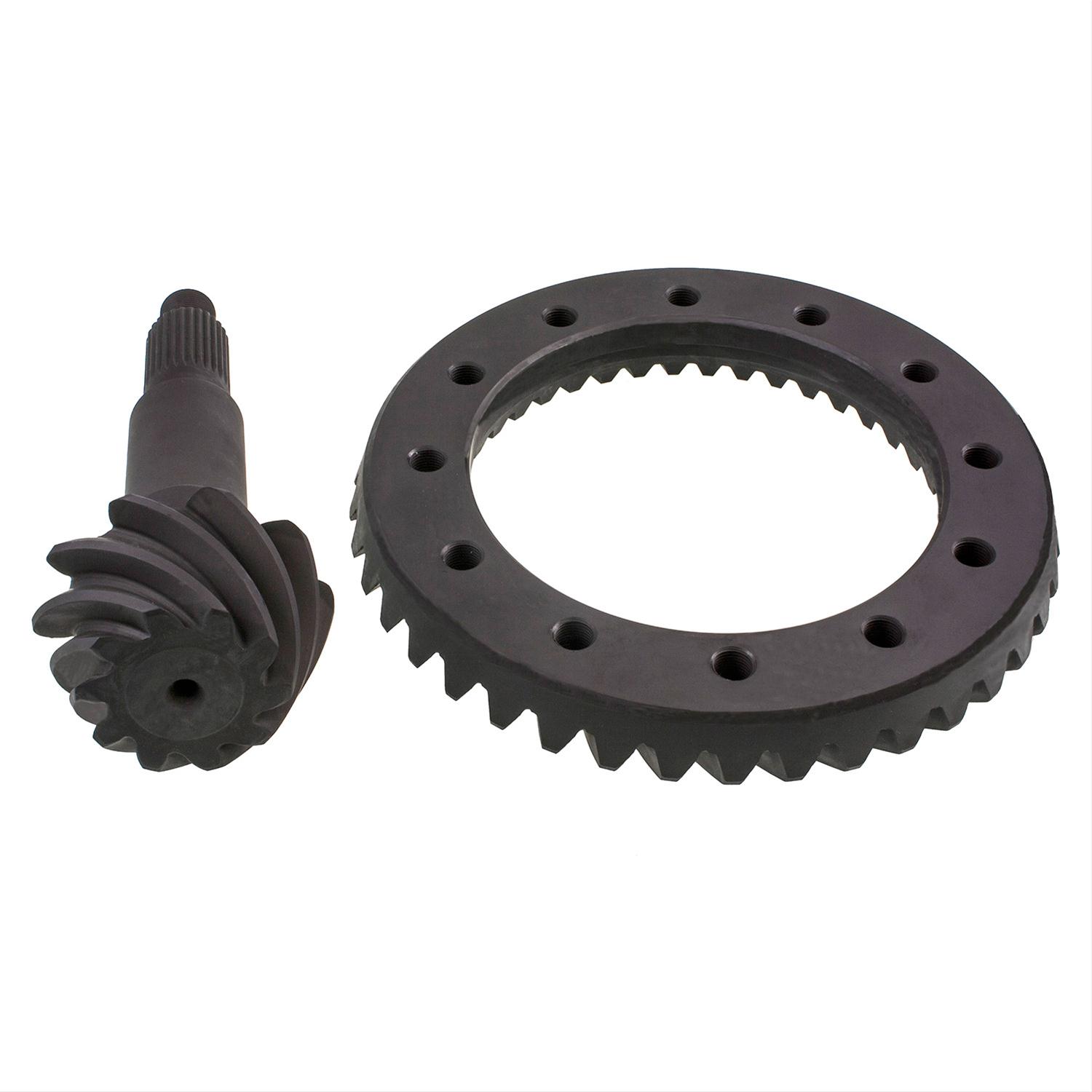

Richmond Gear Pro Ring and Pinion Sets 79-0011-1 Dana 60 4.10 Gears Gear, Pinion, 4.10:1 Ratio, 60, Set

SKU: RMG79-0011-1

Ring and Pinion Gears

Richmond Gear

Richmond Gear Pro Ring and Pinion Sets 79-0011-1 Dana 60 4.10 Gears Gear, Pinion, 4.10:1 Ratio, 60, Set

SKU: RMG79-0011-1

Ring and Pinion Gears

Sale ends in Calculating... Wed 14 Oct, 1:24 am AEST

LAST ONE! Est Ship 4-7 days. LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

Richmond Gear Pro Gear ring and pinion sets take it a step further. The gear sets are designed for race use only where hard launches and severe heat cycling occurs. They're made from a softer, more malleable 9310 steel alloy to be more resistant to breakage under harsh racing conditions. These gears feature an outstanding rotating weight loss of up to 6 pounds, ground pinion threads for trouble-free installation, and a special heat treatment for improved strength.

Part Type

4.10 Ratio Dana 60

Data: v4.2 - Upd: 2026-09-29 18:48:29

Specifications

Product Attributes - Brand: Richmond Gear
Product Attributes - Manufacturer's Part Number: 79-0011-1
Product Attributes - Part Type: Ring and Pinion Gears
Product Attributes - Product Line: Richmond Gear Pro Gear Ring and Pinion Sets
Product Attributes - UPC: 698231685600
Product Attributes - Differential Case Design Type: Dana 60
Product Attributes - Ring and Pinion Ratio: 4.10:1
Product Attributes - Cover Bolts: 10
Product Attributes - Ring Gear Bolts: 12
Product Attributes - Pinion Spline Count: 29
Product Attributes - Carrier Series: 4
Product Attributes - Ring Gear Rotation: Standard
Product Attributes - Ring Gear Teeth: 41
Product Attributes - Pinion Gear Teeth: 10
Product Attributes - Ring Gear Diameter (in.): 9.750 in.
Product Attributes - Pinion Shaft Diameter (in.): 1.626 in.
Product Attributes - Installation Kit Included: No
Product Attributes - Cover Gasket Included: No
Product Attributes - Pinion Shims Included: No
Product Attributes - Carrier Shims Included: No
Product Attributes - Crush Sleeve Included: No
Product Attributes - Pinion Seal Included: No
Product Attributes - Pinion Nut Included: No
Product Attributes - Ring Gear Bolts Included: No
Product Attributes - Head Bearing Included: No
Product Attributes - Tail Bearing Included: No
Product Attributes - Carrier Bearings Included: No
Product Attributes - Axle Seals Included: No
Product Attributes - Axle Bearings Included: No
Product Attributes - Differential Cover Included: No
Product Attributes - Differential Oil Included: No
Product Attributes - Friction Modifier Included: No
Product Attributes - Installation DVD Included: No
Product Attributes - Quantity: Sold as a set.
Product Attributes - Notes: Fits 4.56:1 and numerically higher series carriers.

Reference Information

Brand Name/s	Richmond Gear
StreetFX SKU	rmg79-0011-1
SFX Item ID	5501174
Supplier Item Code	5501174
Manufacturer SKU	79-0011-1
Manufacturer UPC	698231685600
Alternative References	RIC79-0011-1

Compatibility

Application Data

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1967
Ending Year	1967
Engine Type	L6
Engine Size	4.1L/250
Engine Family	CHEVROLET L6 GAS
Axle Location	Rear
Liter	4.1
CID	250
CC	4097
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1967
Ending Year	1967
Engine Type	L6
Engine Size	4.1L/250
Engine Family	CHEVROLET L6 GAS
Axle Location	Rear
Liter	4.1
CID	250
CC	4098
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1967
Ending Year	1967
Engine Type	V8
Engine Size	4.6L/283
Engine Family	Chevy small block Gen I
Axle Location	Rear
Liter	4.6
CID	283
CC	4638
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1967
Ending Year	1969
Engine Type	L6
Engine Size	3.8L/230
Engine Family	CHEVROLET L6 GAS
Axle Location	Rear
Liter	3.8
CID	230
CC	3769
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1967
Ending Year	1969
Engine Type	V8
Engine Size	5.3L/327
Engine Family	Chevy small block Gen I
Axle Location	Rear
Liter	5.3
CID	327
CC	5358
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1967
Ending Year	1971
Engine Type	L6
Engine Size	4.8L/292
Engine Family	CHEVROLET L6 GAS
Axle Location	Rear
Liter	4.8
CID	292
CC	4801
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1968
Ending Year	1968
Engine Type	V8
Engine Size	5.3L/327
Engine Family	Chevy small block Gen I
Axle Location	Rear
Liter	5.3
CID	327
CC	5358
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Engine VIN Code	E
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1968
Ending Year	1969
Engine Type	L6
Engine Size	3.8L/230
Engine Family	CHEVROLET L6 GAS
Axle Location	Rear
Liter	3.8
CID	230
CC	3769
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Engine VIN Code	S
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1968
Ending Year	1969
Engine Type	L6
Engine Size	4.1L/250
Engine Family	CHEVROLET L6 GAS
Axle Location	Rear
Liter	4.1
CID	250
CC	4097
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Engine VIN Code	P
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1968
Ending Year	1969
Engine Type	V8
Engine Size	5.0L/307
Engine Family	Chevy small block Gen I
Axle Location	Rear
Liter	5.0
CID	307
CC	5031
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Engine VIN Code	E
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1968
Ending Year	1969
Engine Type	V8
Engine Size	6.5L/396
Engine Family	Chevy big block Mark IV
Axle Location	Rear
Liter	6.5
CID	396
CC	6489
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Engine VIN Code	E
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1968
Ending Year	1969
Engine Type	V8
Engine Size	6.5L/396
Engine Family	Chevy big block Mark IV
Axle Location	Rear
Liter	6.5
CID	396
CC	6489
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Engine VIN Code	Y
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1968
Ending Year	1972
Engine Type	L6
Engine Size	4.8L/292
Engine Family	CHEVROLET L6 GAS
Axle Location	Rear
Liter	4.8
CID	292
CC	4801
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Engine VIN Code	S
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1969
Ending Year	1969
Engine Type	V8
Engine Size	5.0L/307
Engine Family	Chevy small block Gen I
Axle Location	Rear
Liter	5.0
CID	307
CC	5031
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Engine VIN Code	U
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1969
Ending Year	1972
Engine Type	V8
Engine Size	5.7L/350
Engine Family	Chevy small block Gen I
Axle Location	Rear
Liter	5.7
CID	350
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Engine VIN Code	E
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1969
Ending Year	1972
Engine Type	V8
Engine Size	5.7L/350
Engine Family	Chevy small block Gen I
Axle Location	Rear
Liter	5.7
CID	350
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1970
Ending Year	1970
Engine Type	V8
Engine Size	5.0L/307
Engine Family	Chevy small block Gen I
Axle Location	Rear
Liter	5.0
CID	307
CC	5031
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Engine VIN Code	A
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1970
Ending Year	1970
Engine Type	V8
Engine Size	5.0L/307
Engine Family	Chevy small block Gen I
Axle Location	Rear
Liter	5.0
CID	307
CC	5031
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Engine VIN Code	B
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1970
Ending Year	1971
Engine Type	L6
Engine Size	4.1L/250
Engine Family	CHEVROLET L6 GAS
Axle Location	Rear
Liter	4.1
CID	250
CC	4097
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Engine VIN Code	N
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1970
Ending Year	1971
Engine Type	L6
Engine Size	4.1L/250
Engine Family	CHEVROLET L6 GAS
Axle Location	Rear
Liter	4.1
CID	250
CC	4097
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Engine VIN Code	S
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1970
Ending Year	1972
Engine Type	V8
Engine Size	6.6L/402
Engine Family	Chevy big block Mark IV
Axle Location	Rear
Liter	6.6
CID	402
CC	6588
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Engine VIN Code	E
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1971
Ending Year	1971
Engine Type	V8
Engine Size	5.0L/307
Engine Family	Chevy small block Gen I
Axle Location	Rear
Liter	5.0
CID	307
CC	5031
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Engine VIN Code	H
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1971
Ending Year	1971
Engine Type	V8
Engine Size	5.0L/307
Engine Family	Chevy small block Gen I
Axle Location	Rear
Liter	5.0
CID	307
CC	5031
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Engine VIN Code	P
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1971
Ending Year	1971
Engine Type	V8
Engine Size	5.7L/350
Engine Family	Chevy small block Gen I
Axle Location	Rear
Liter	5.7
CID	350
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Engine VIN Code	A
Region	USA

Make	CHEVROLET
Model	C10 PICKUP
Submodel	BASE
Beginning Year	1971
Ending Year	1971
Engine Type	V8
Engine Size	5.7L/350
Engine Family	Chevy small block Gen I
Axle Location	Rear
Liter	5.7
CID	350
Application Notes	Differential Ring and Pinion; For Dana 60; 4.10 Ratio; Thin Ring Gear; Pro Gear; Requires a 4.56 and Numerically Higher Ratio Carrier
Engine VIN Code	B
Region	USA

Loading compatibility information...

Keep shopping

Select Your Vehicle

Richmond Gear Pro Ring and Pinion Sets 79-0011-1 Dana 60 4.10 Gears Gear, Pinion, 4.10:1 Ratio, 60, Set

Richmond Gear Pro Ring and Pinion Sets 79-0011-1 Dana 60 4.10 Gears Gear, Pinion, 4.10:1 Ratio, 60, Set

Description

Part Type

Specifications

Reference Information

Compatibility

More from Richmond Gear

Richmond Gear Super T-10 4-Speed Transmissions 1304000070 Transmission, Manual, 4-Speed, GM, V8, Each

Richmond Gear Super T-10 4-Speed Transmissions 1304000069 Transmission, Manual, 4-Speed, GM, V8, Each

Richmond Gear Ring and Pinion Sets 69-0177-1 Ford 9 in. 3.89 Gears Gear, Pinion, 3.89:1 Ratio, Ford, in., Set

Richmond Gear Ring and Pinion Sets 69-0069-1 Ford 9 in. 5.43 Gears Gear, Pinion, 5.43:1 Ratio, Ford, in., Set

Richmond Gear Differential Carrier Bearing Shim Kits 38-0006-1 Side Spacer; Shims; For Ford 7.5 in./GM 7.5 in./GM 8.5 in./GM 8.2 in

Ring and Pinion - 3.08 Ratio - 25 Spline Pinion - 3 Series - 8.2 in - GM 10-Bolt - Kit
