Description

Ridetech 1973-79 Ford complete bolt-on coilover suspension systems deliver the best handling for your classic truck—in a package that you can install yourself with hand tools and a little elbow grease.

1965-1979 FRONT SUSPENSION:

* Removes bulky, heavy, poor handling twin I-beam suspension

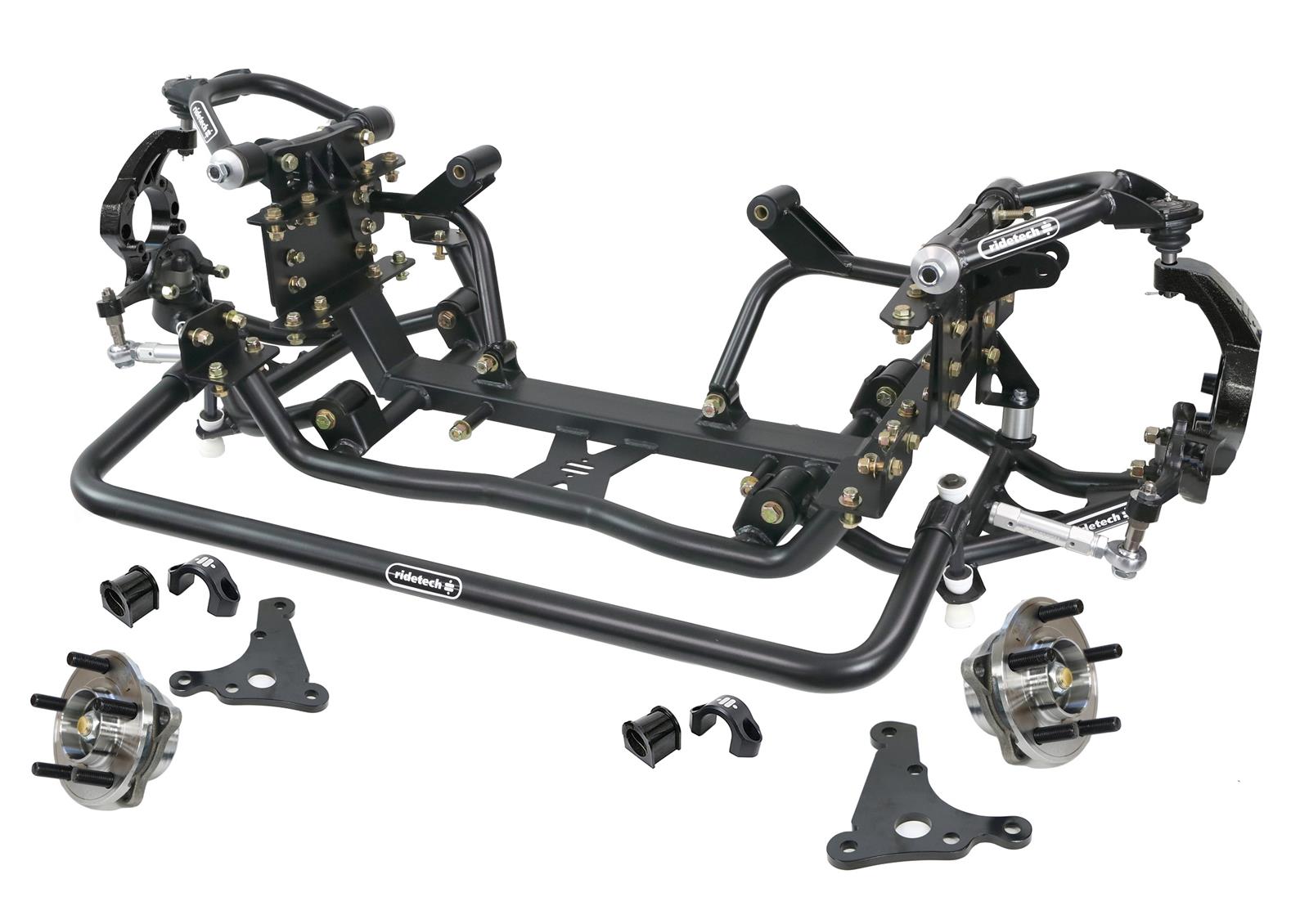

* Bolt-in cradle strengthens the front of the truck while providing structural mounts for front control arms; utilizes substantial "H" style design compared to other "I" style crossmembers.
* Superb suspension geometry, built without compromise, vastly superior to adapted salvage yard "Crown-Vic suspension swaps" or "street rod style" / Mustang II front systems with optimized roll centers and anti-dive.

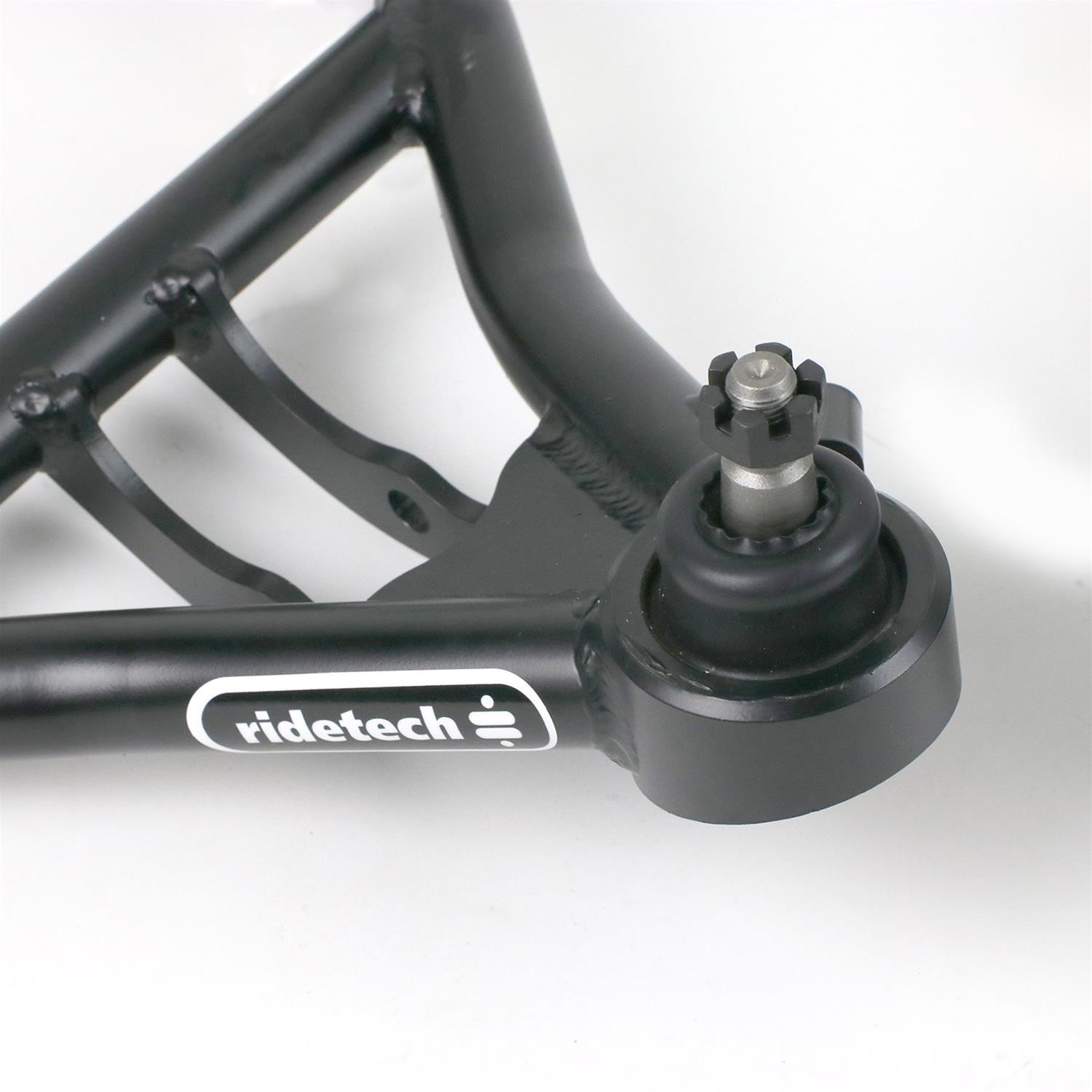

* Delrin© bushings on upper and lower control arms provide smooth, squeak-free long life

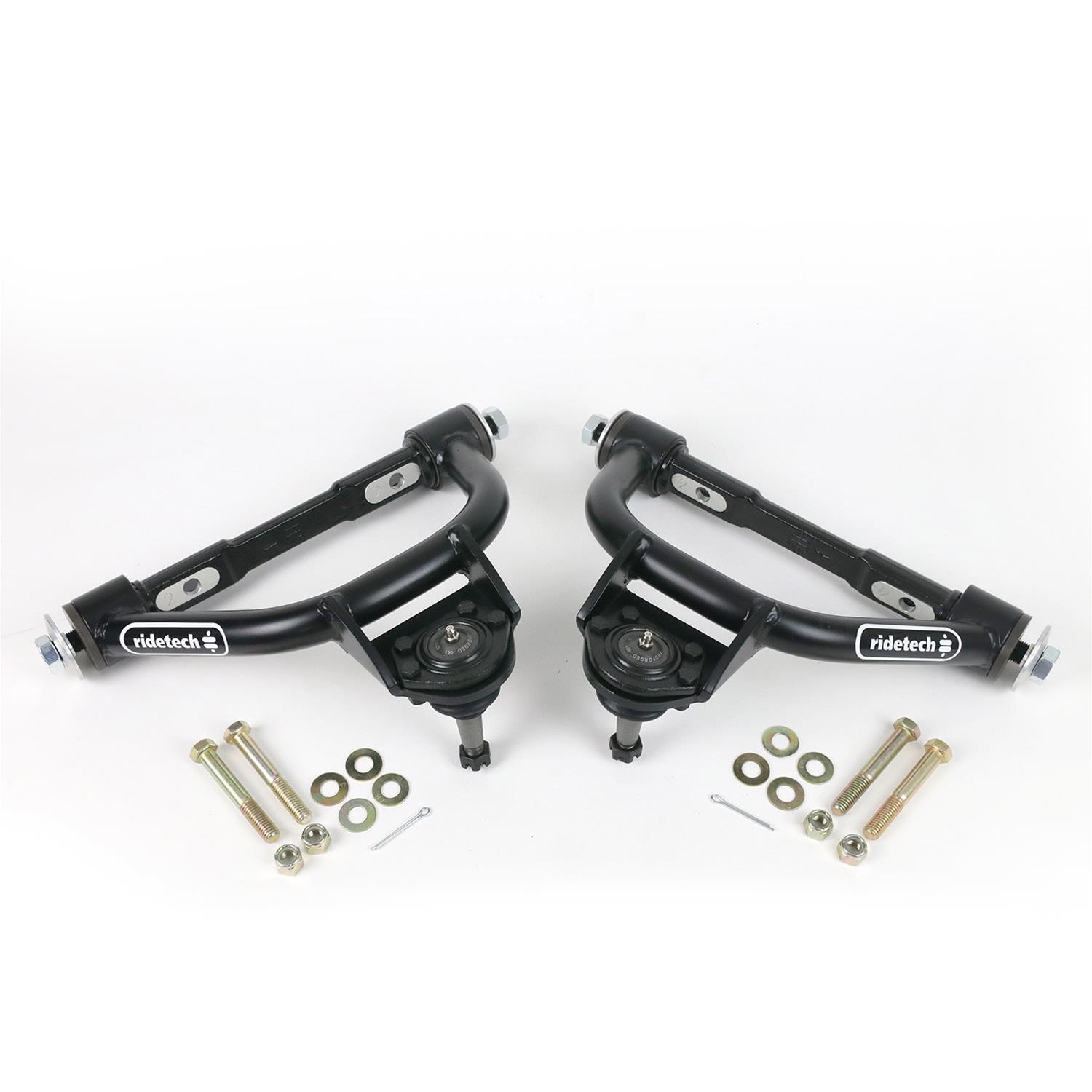

* Upper control arm cross-shaft allows for easy alignment and use of caster slugs
* Adjustable steering stop on lower control arm
* Utilizes Ridetech tall "pin" spindle, which uses "AFX brake kits." Many brake kits (including Wilwood) are dual drilled for 5 x 4.5 in. or 5 x 4.75. lug pattern

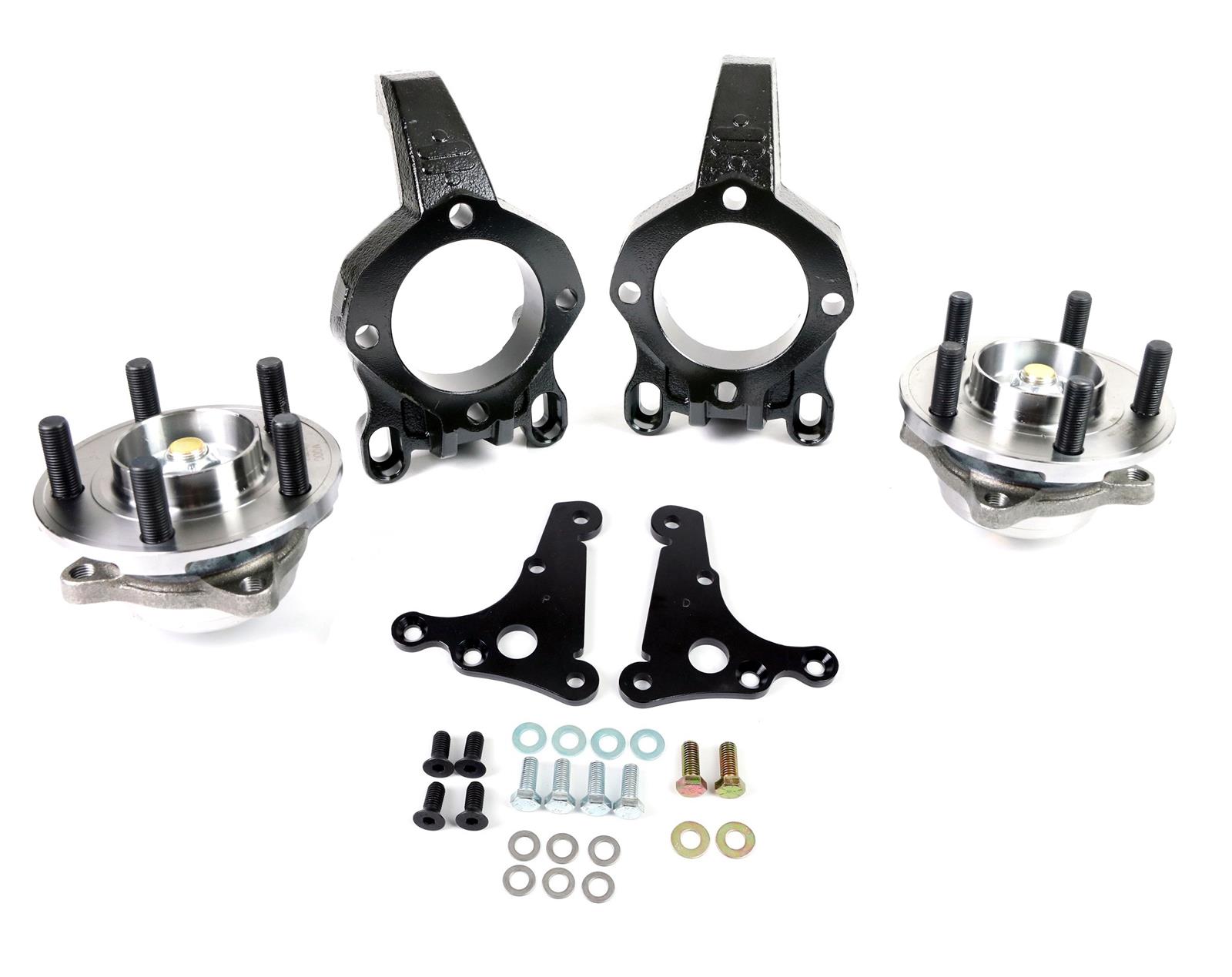

* Optional "Hub" spindles offer the same geometry improvements as the pin spindles but add the performance and simplicity of late model Mustang hubs and brakes. Includes S550 2015-23 Mustang hubs for maximum strength, consistent braking and reduced maintenance. Compatible with 2015-23 Mustang brake systems, OE and aftermarket (caliper brackets included). Minimum 17 in. wheels. Hubs fit Ford car 5 x 4.5 in. lug pattern and include 14mm studs.
* Brake kit for the stock 5 x 5.5″ lug pattern with Ridetech pin spindle are available as well
* Increased camber gain with tall spindle, 5-8 degrees caster for improved high-speed stability
* 63.5 in. in front width (wheel mount surface to wheel mount surface); provides options for "traditional" offset wheel choices (4 in. narrower than Crown Vic)
* Fits 14 in. and larger wheels. If using more than 4.5 in. of backspacing, 18 in. wheels are required
* Motor mount "loops" connect cradle to frame rails to reinforce frame
* Motor mount options for Modular Ford, Ford FE, and Small Block Ford, Chevy LS / Small Block / Big Block
* Front sway bar measures 1.5 in. x .250 wall and provides confident cornering and smooth ride
* Adjustable bump stops
* Rack and pinion steering conversion with 15.5 in. center to center bushing mounts for 1979-93 Mustang-style steering rack
* Includes billet adjustable tie rods
* Bump steer has been virtually eliminated
* Adaptable to stock steering column using kit 12319505; includes column adapter, U-Joint and shaft.
* High-quality satin black powdercoat finish
* Entire system saves approximately 130 lbs. from the front of the truck

Rear 4-LINK SUSPENSION:

* Removes factory leaf spring suspension and bracketry

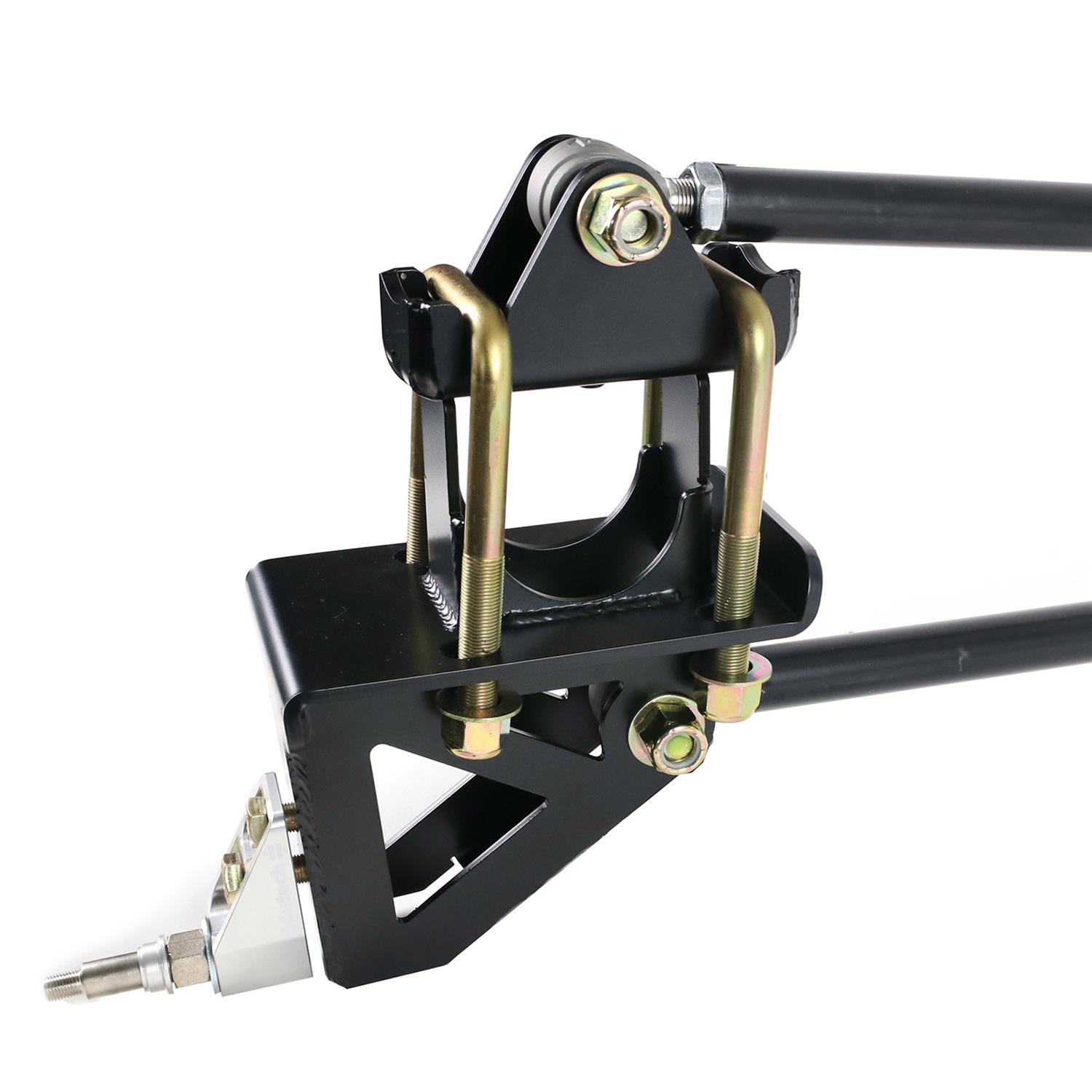

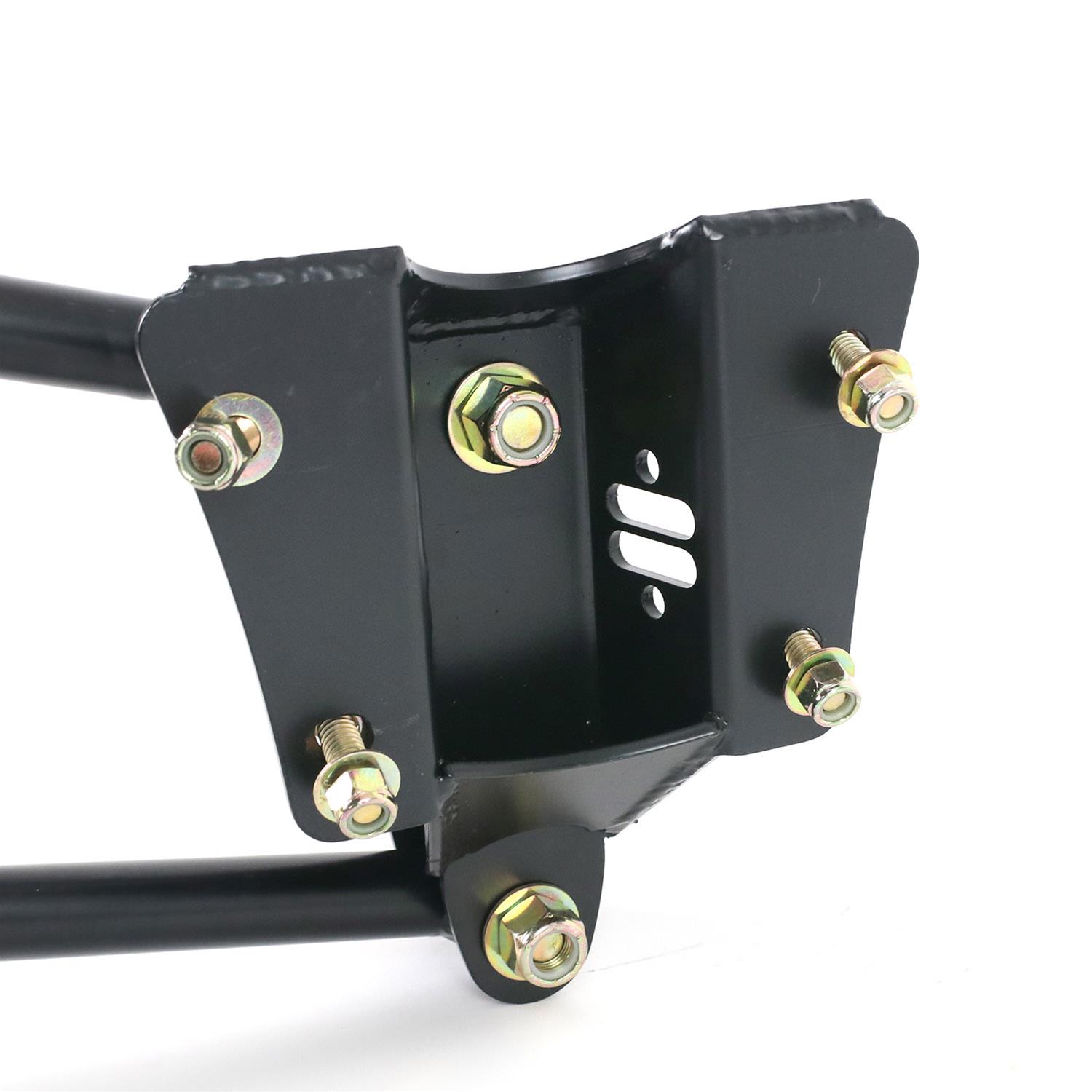

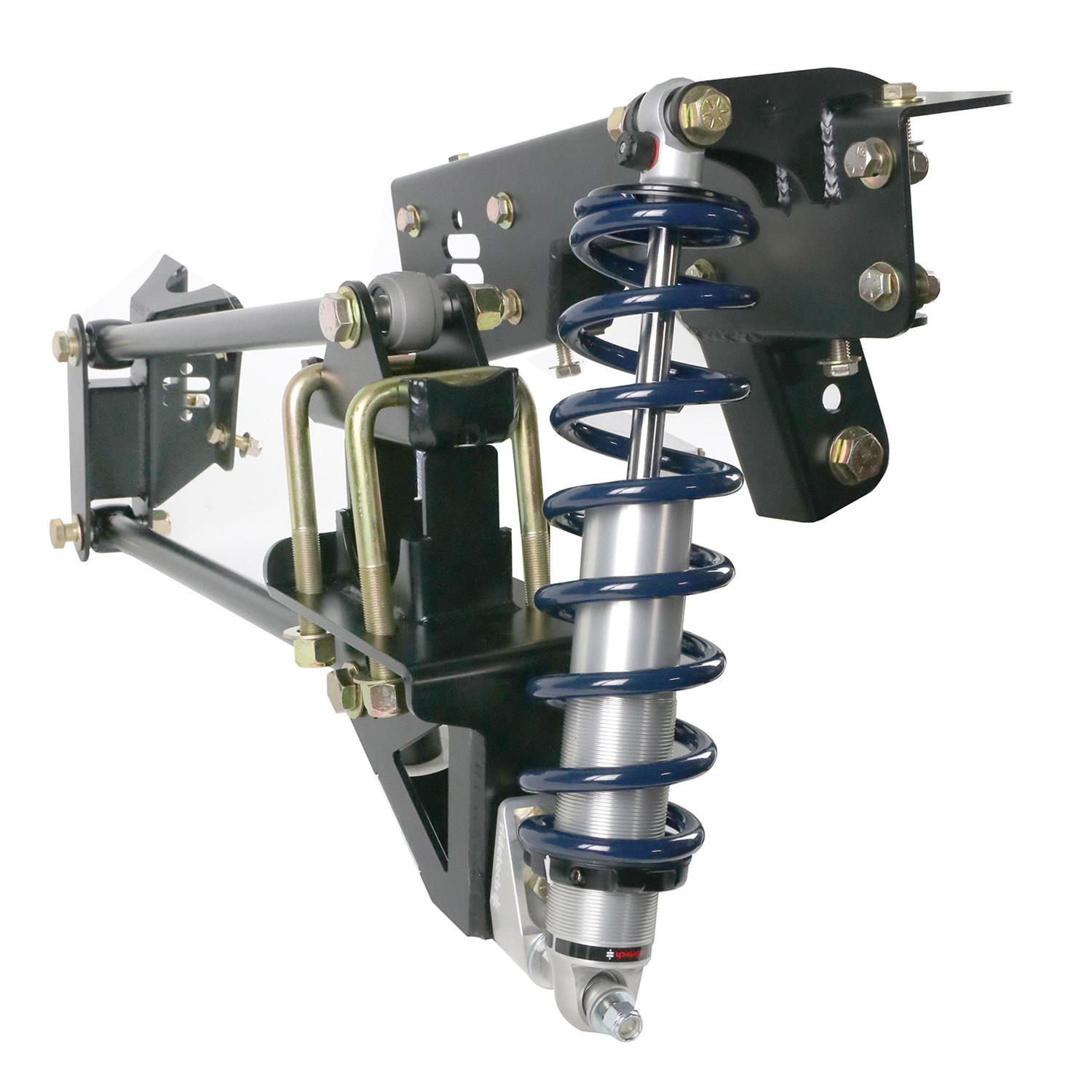

* Complete parallel 4-link with panhard and C-notches
* Works with coilover or Shockwave air suspension

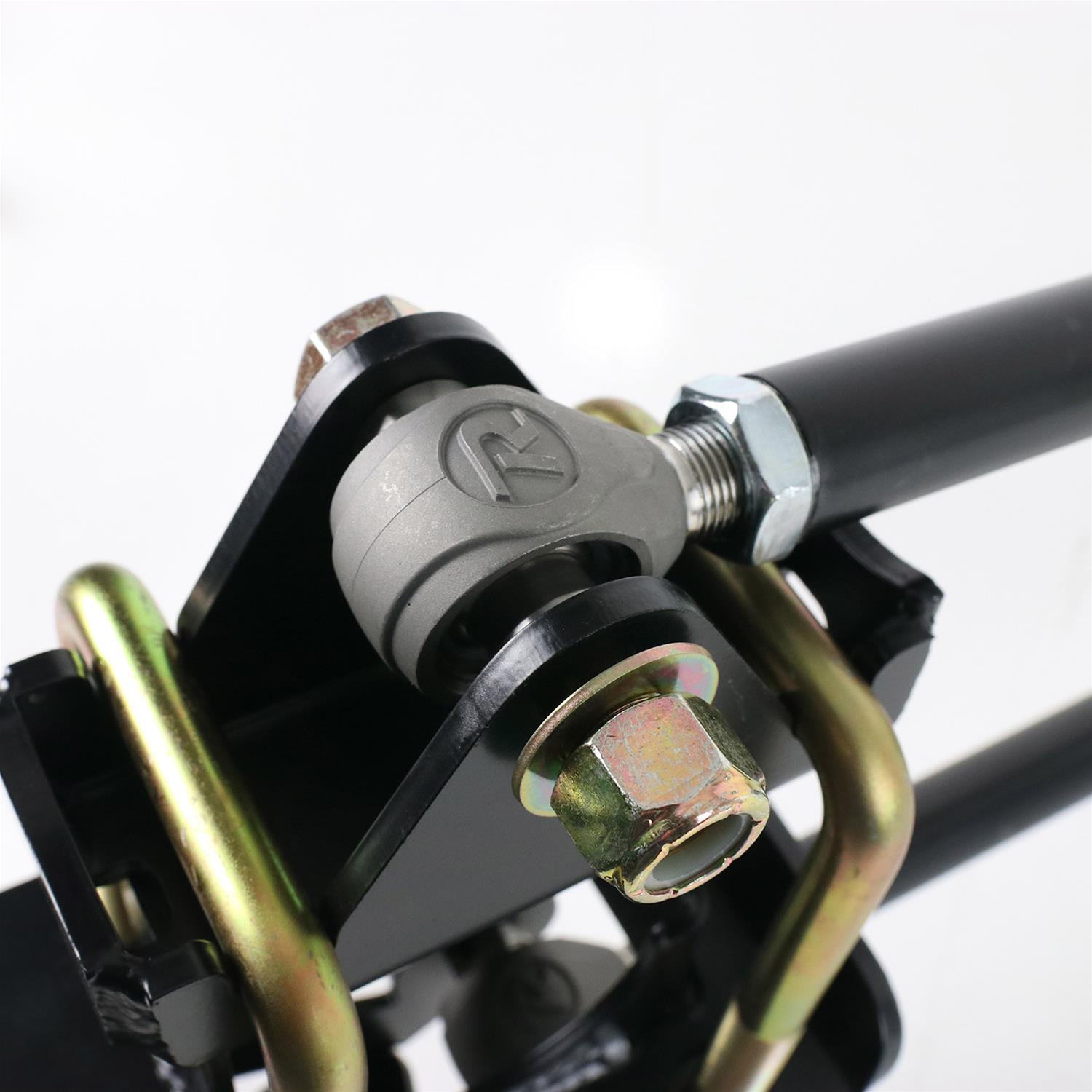

* Includes R-Joints on all links for smooth, bind-free, quiet operation and long life
* Optimized roll center and anti-squat (60 percent anti-dive) for amazing traction and elimination of wheel hop
* High-quality satin black powdercoat finish
* Reduces rear weight by 50 lbs.
* 1965-1972: No bed modification needed
* 1973-1979: Slight bed support rail modification needed (not visible from the top side of the truck
* Compatible with short bed and long bed trucks
* Adjustable coilover suspension system

Product Overview

Ridetech 73-79 Ford F-100 2WD HQ Coilover System w/ Hub Spindles

Product Details

Description:	Ridetech 73-79 Ford F-100 2WD HQ Coilover System w/ Hub Spindles

This is a group bundle consisting of:

Image	Qty	SKU	MFR SKU	UPC	Description
	1x	rid85000000	85000000	840123511379	Ridetech CoilOver Spanner Wrench

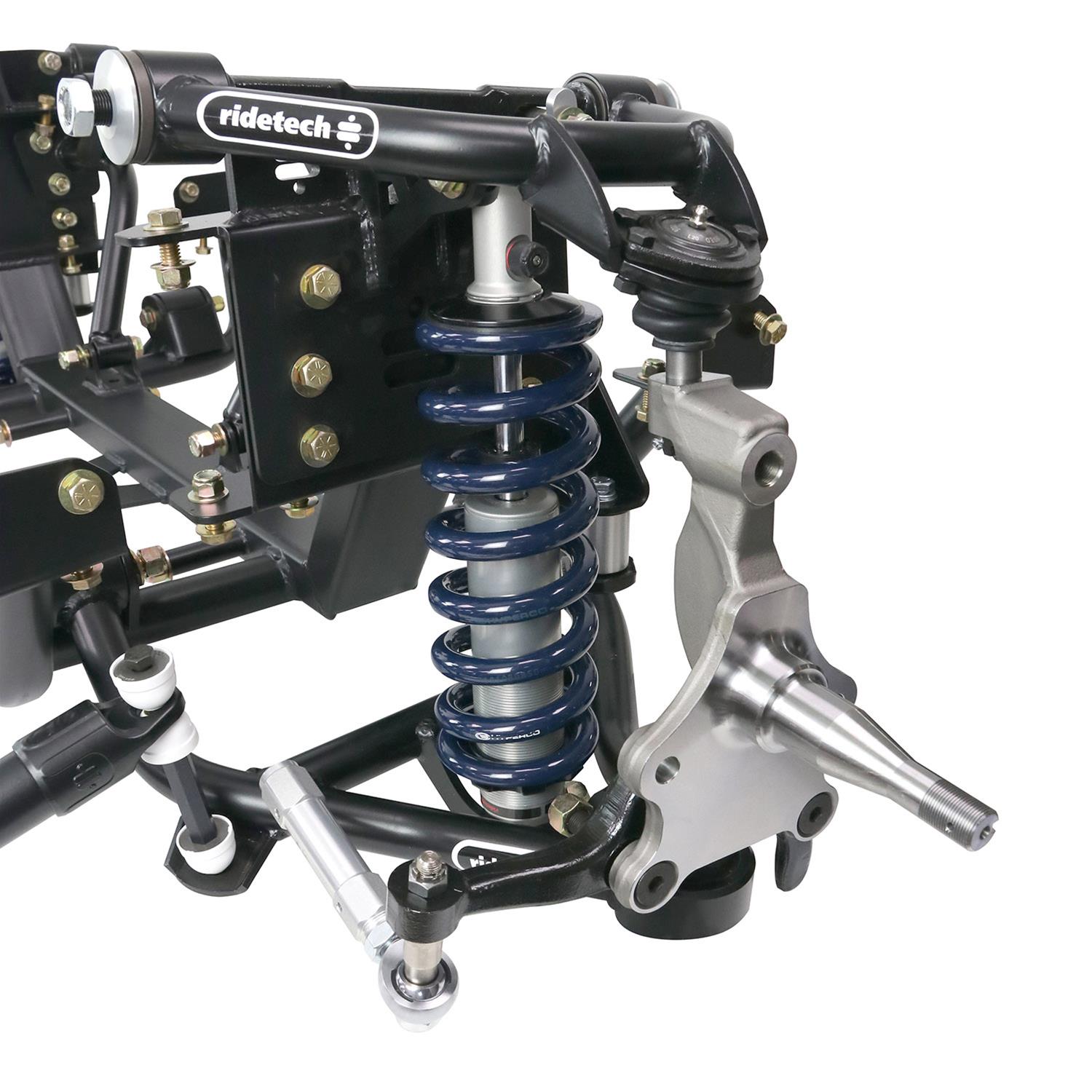

	1x	rid12313510	12313510	840123517081	Ridetech 65-79 Ford F100 2WD HQ Series Coilovers Front Pair

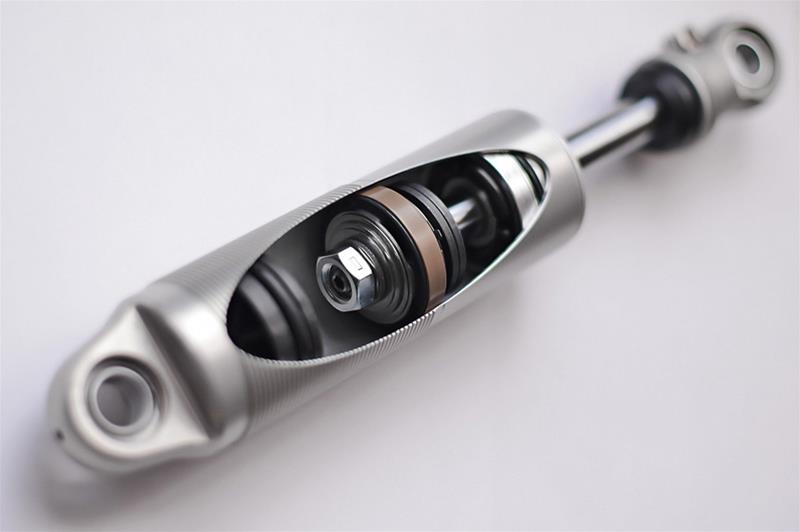

	1x	rid12316510	12316510	840123517104	Ridetech 65-79 Ford F100 2WD HQ Series Coilovers Rear Pair
	1x	rid12337199	12337199	840123517074	Ridetech 73-79 Ford F100 2WD Rear Bolt-On 4-Link Suspension System
	1x	rid12312798	12312798	840123517821	Ridetech 65-79 Ford F150 2WD TruTurn Front Suspension Package

Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.

Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.

For details on the individual components in this bundle, click here.

Data: v4.2 - Upd: 2026-10-02 07:50:59

Specifications

Product Attributes - Brand

Ridetech

Product Attributes - Manufacturer's Part Number

12330203

Product Attributes - Part Type

Suspension Handling Packages

Product Attributes - Product Line

Ridetech 1973-79 Ford Complete Coilover Suspension Systems

Product Attributes - UPC

840123517852

Product Attributes - Front Coil Springs Included

Yes

Product Attributes - Rear Coil Springs Included

Yes

Product Attributes - Rear Leaf Springs Included

No

Product Attributes - Front Shocks/Struts Included

Yes

Product Attributes - Front Shock Type

Single adjustable coilover

Product Attributes - Rear Shocks/Struts Included

Yes

Product Attributes - Rear Shock Type

Single adjustable coilover

Product Attributes - Front Sway Bar Included

Yes

Product Attributes - Front Sway Bar Color

Black

Product Attributes - Front Sway Bar Type

Hollow

Product Attributes - Front Sway Bar Diameter (in.)

1.500 in.

Product Attributes - Front Sway Bar Diameter (mm)

38.10 mm

Product Attributes - Rear Sway Bar Included

No

Product Attributes - Tie Rod Sleeves Included

Yes

Product Attributes - End Link Bushings Included

Yes

Product Attributes - Rear Leaf Spring Bushings Included

No

Product Attributes - Sway Bar Bushings Included

Yes

Product Attributes - Upper Trailing Arms Included

Yes

Product Attributes - Lower Trailing Arms Included

Yes

Product Attributes - Trailing Arm Mount Braces Included

No

Product Attributes - Panhard Bar Included

No

Product Attributes - Torque Arm Included

No

Product Attributes - Upper Control Arms Included

Yes

Product Attributes - Lower Control Arms Included

Yes

Product Attributes - Control Arm Style

Tubular

Product Attributes - Control Arm Material

Steel

Product Attributes - Control Arm Color

Black

Product Attributes - Front Strut Tower Bar Included

No

Product Attributes - K-Member Included

Yes

Product Attributes - K-Member Support Brace Included

No

Product Attributes - Rear Strut Tower Bar Included

No

Product Attributes - Subframe Connectors Included

No

Product Attributes - Chassis Stiffener Included

No

Product Attributes - Calipers Included

No

Product Attributes - Rotors Included

No

Product Attributes - Brake Pads Included

No

Product Attributes - Brake Lines Included

No

Product Attributes - Wheel Studs Included

Yes

Product Attributes - Center Link Included

No

Product Attributes - Spindles Included

Yes

Product Attributes - Inner Tie Rod Ends Included

Yes

Product Attributes - Outer Tie Rod Ends Included

Yes

Product Attributes - Mounting Hardware Included

Yes

Product Attributes - Quantity

Sold as a kit.

Product Attributes - Notes

Kit includes HQ series coilover shocks.
