Ridetech 79-93 Ford Mustang w/ Stock K-Member Front SLA Suspension System
Ridetech 79-93 Ford Mustang w/ Stock K-Member Front SLA Suspension System
A$7,354.73
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

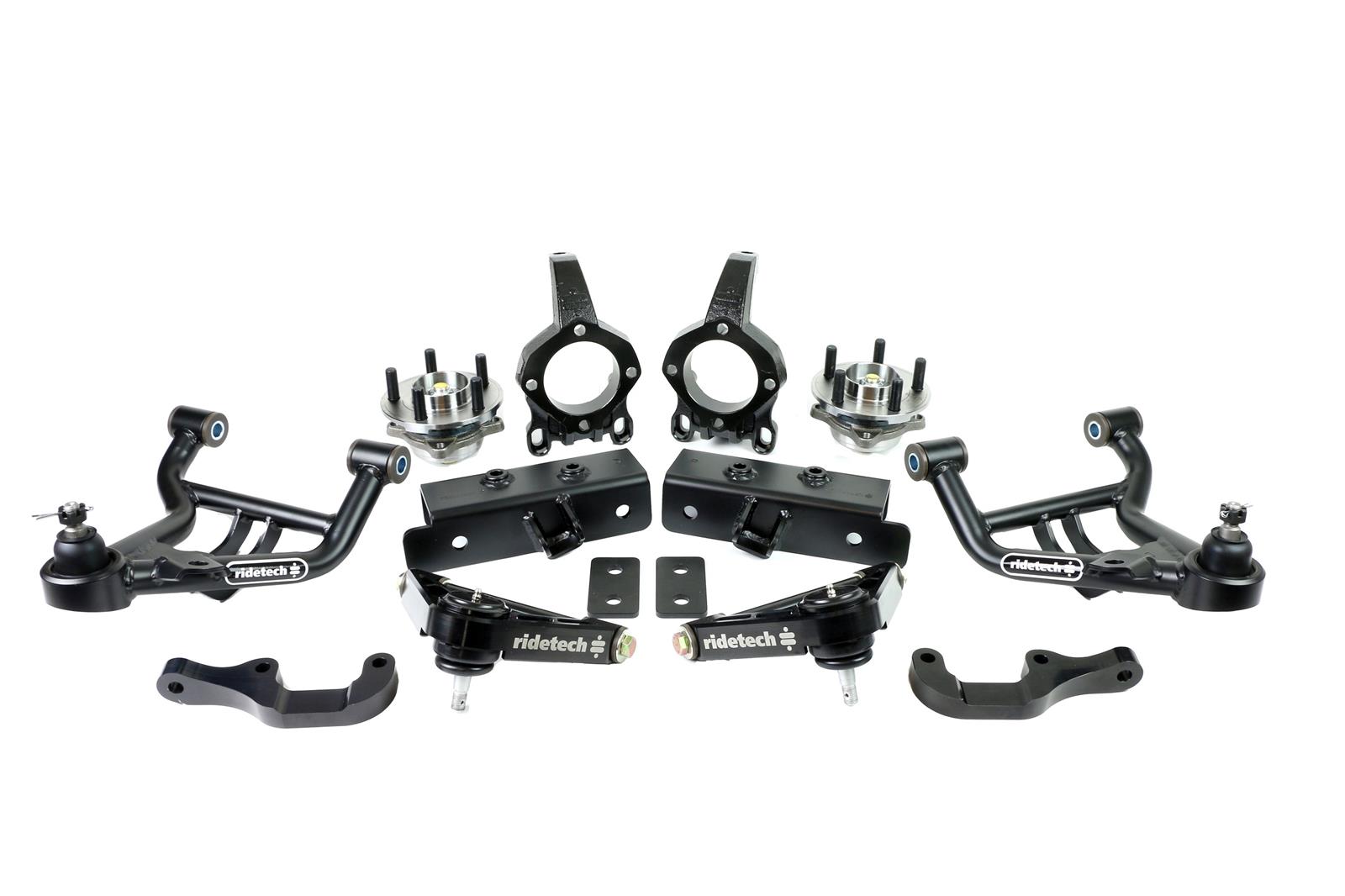

This bolt-in SLA (Short-Long-Arm) suspension system replaces the McPherson strut design with a billet aluminum upper control arm, tubular lower arm and spindles with S-550 Mustang hub's. This design greatly improves negative camber gain and overall suspension geometry. Available with either Ridetech Coil-Overs or Shockwave air suspension. (Sold separately) The factory strut design offers very little camber gain and poor overall geometry. This design incorporates an upper control arm to induce negative camber gain. This positions the tire perpendicular to the pavement through the corners without the need for excessive static camber. Caster, roll center and Ackerman angles were also optimized. The bolt-in frame surrounds create attachment points for the upper control arms and the shocks, this keeps all of the load on the frame rails. The upper and lower arms feature Delrin bushings to minimize stiction. The spindles utilize S550 Mustang hubs to prevent flex and are compatible with S550 or SN-95 Mustang brakes. (Sold separately) Camber gain is 1.25 deg./inch. Positive caster setting from 7-9 degree's. Bumpsteer is nearly eliminated, under .050". Tire clearance improved on lower arm to allow 30 degree’s of steering angle with up to a 275mm wide tire (minimum 17"). This system is compatible with the stock sway bar or most aftermarket sway bars. This system is design for the stock k-member (not compatible with stock 84-86 SVO k-member.)
Product Overview
This bolt-in SLA (Short-Long-Arm) suspension system replaces the McPherson strut design with a billet aluminum upper control arm, tubular lower arm and spindles with S-550 Mustang hub's. This design greatly improves negative camber gain and overall suspension geometry. Available with either Ridetech Coil-Overs or Shockwave air suspension. (Sold separately)
The factory strut design offers very little camber gain and poor overall geometry. This design incorporates an upper control arm to induce negative camber gain. This positions the tire perpendicular to the pavement through the corners without the need for excessive static camber. Caster, roll center and Ackerman angles were also optimized.
The bolt-in frame surrounds create attachment points for the upper control arms and the shocks, this keeps all of the load on the frame rails. The upper and lower arms feature Delrin bushings to minimize stiction. The spindles utilize S550 Mustang hubs to prevent flex and are compatible with S550 or SN-95 Mustang brakes. (Sold separately)
Camber gain is 1.25 deg./inch. Positive caster setting from 7-9 degree's. Bumpsteer is nearly eliminated, under .050". Tire clearance improved on lower arm to allow 30 degree’s of steering angle with up to a 275mm wide tire (minimum 17"). This system is compatible with the stock sway bar or most aftermarket sway bars. This system is design for the stock k-member (not compatible with stock 84-86 SVO k-member.)
Product Details
| Description: | Ridetech 79-93 Ford Mustang w/ Stock K-Member Front SLA Suspension System |
|---|---|
| Part Number: | rid12122600 |
| Pricing Group: | TruTurn |
| Prop 65 Chemicals: | chromium,nickel,nickel_acetate,nickel_compounds |
| Proposition 65 Warning: | Y |
Application Summary
1979-1993 Mustang
Part Type
Suspension Lowering Kit
Specifications
- Product Attributes - Brand
- RideTech
- Product Attributes - Manufacturer's Part Number
- 12122600
- Product Attributes - Part Type
- Suspension Handling Packages
- Product Attributes - Product Line
- RideTech 1979-93 Mustang SLA Front Suspension Systems
- Product Attributes - UPC
- 840123517685
- Product Attributes - Front Coil Springs Included
- No
- Product Attributes - Rear Coil Springs Included
- No
- Product Attributes - Rear Leaf Springs Included
- No
- Product Attributes - Front Shocks/Struts Included
- No
- Product Attributes - Rear Shocks/Struts Included
- No
- Product Attributes - Front Sway Bar Included
- No
- Product Attributes - Rear Sway Bar Included
- No
- Product Attributes - Tie Rod Sleeves Included
- No
- Product Attributes - End Link Bushings Included
- No
- Product Attributes - Rear Leaf Spring Bushings Included
- No
- Product Attributes - Sway Bar Bushings Included
- No
- Product Attributes - Upper Trailing Arms Included
- No
- Product Attributes - Lower Trailing Arms Included
- No
- Product Attributes - Trailing Arm Mount Braces Included
- No
- Product Attributes - Panhard Bar Included
- No
- Product Attributes - Torque Arm Included
- No
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- Yes
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Front Strut Tower Bar Included
- No
- Product Attributes - K-Member Included
- No
- Product Attributes - K-Member Support Brace Included
- No
- Product Attributes - Rear Strut Tower Bar Included
- No
- Product Attributes - Subframe Connectors Included
- No
- Product Attributes - Chassis Stiffener Included
- No
- Product Attributes - Calipers Included
- No
- Product Attributes - Rotors Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Brake Lines Included
- No
- Product Attributes - Wheel Studs Included
- Yes
- Product Attributes - Center Link Included
- No
- Product Attributes - Spindles Included
- Yes
- Product Attributes - Inner Tie Rod Ends Included
- No
- Product Attributes - Outer Tie Rod Ends Included
- No
- Product Attributes - Bushing Material
- Rubber
- Product Attributes - Bushing Color
- Black
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- For use with stock K-member.
Reference Information
| Brand Name/s | Ridetech |
|---|---|
| StreetFX SKU | rid12122600 |
| SFX Item ID | 4135591 |
| Supplier Item Code | 4135591 |
| Manufacturer SKU | 12122600 |
| Manufacturer UPC | 840123517685 |
| Alternative References | RDT000051, ART-12122600, RDT12122600 |
Compatibility
1979-1993 Mustang
