Ridetech 63-79 Chevrolet Corvette Complete Coil-Over Suspension System (Bundled Kit)
Ridetech 63-79 Chevrolet Corvette Complete Coil-Over Suspension System (Bundled Kit)
A$16,222.10
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
IMPORTANT NOTICE: OEM Front Brakes will not work with this kit.

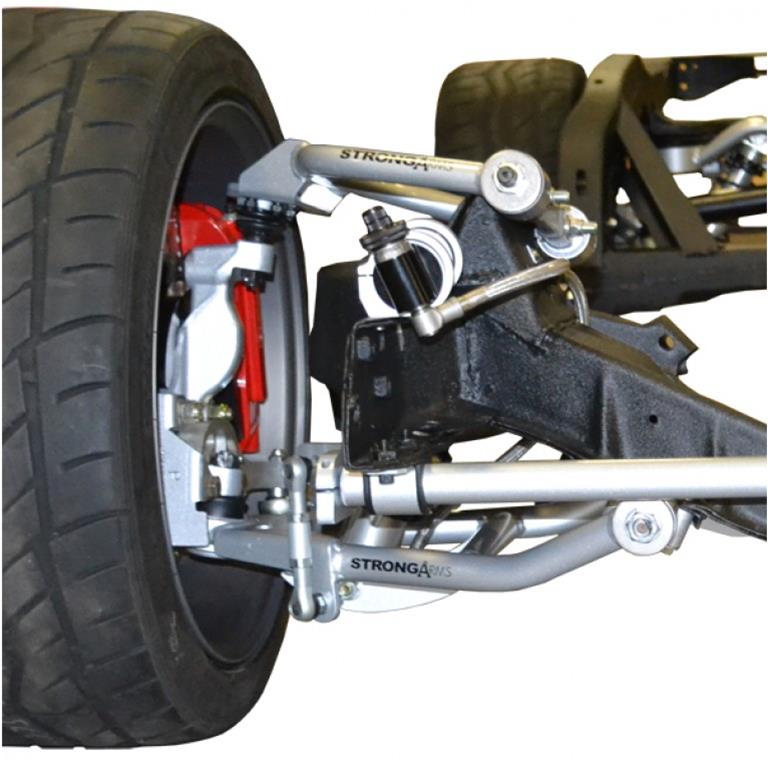

RideTech Corvette coilover suspension systems include MuscleBar sway bars, Delrin control arm bushings, and powdercoated conversion brackets. The 100 percent bolt-on kit will significantly improve your Corvette's handling, while giving you control over ride-height adjustment. RideTech engineers custom-tailored the system's HQ Series shock absorber valving for modern, world-class ride quality. Rebound adjustment knobs help you fine-tune ride and handling to your driving style and tire selection. For the ultimate track experience, upgrade to the TQ Series coilovers with a remote reservoir for high and low speed compression adjustments.
RideTech's CNC-bent MuscleBar sway bars increase bar rate over stock, allowing for more comfortable, compliant coil spring rates. MuscleBars feature investment cast bar ends that perfectly engage end-link bushings as your Corvette's cornering loads change. Delrin-lined mounting bushings never squeak or need lubricating. The same is true for the kit's Delrin A-arm bushings. Overall, the C4 Corvette coilover conversion systems offer tremendous bang for the buck with real-world improvements. They're a game changer for the C4 Corvette platform. (Included shock absorbers carry a 1,000,001 mile warranty.)
Product Details
This is a group bundle consisting of:
| Image | Qty | SKU | MFR SKU | UPC | Description |
|---|---|---|---|---|---|
 | 1x | rid85000000 | 85000000 | 840123511379 | Ridetech CoilOver Spanner Wrench |

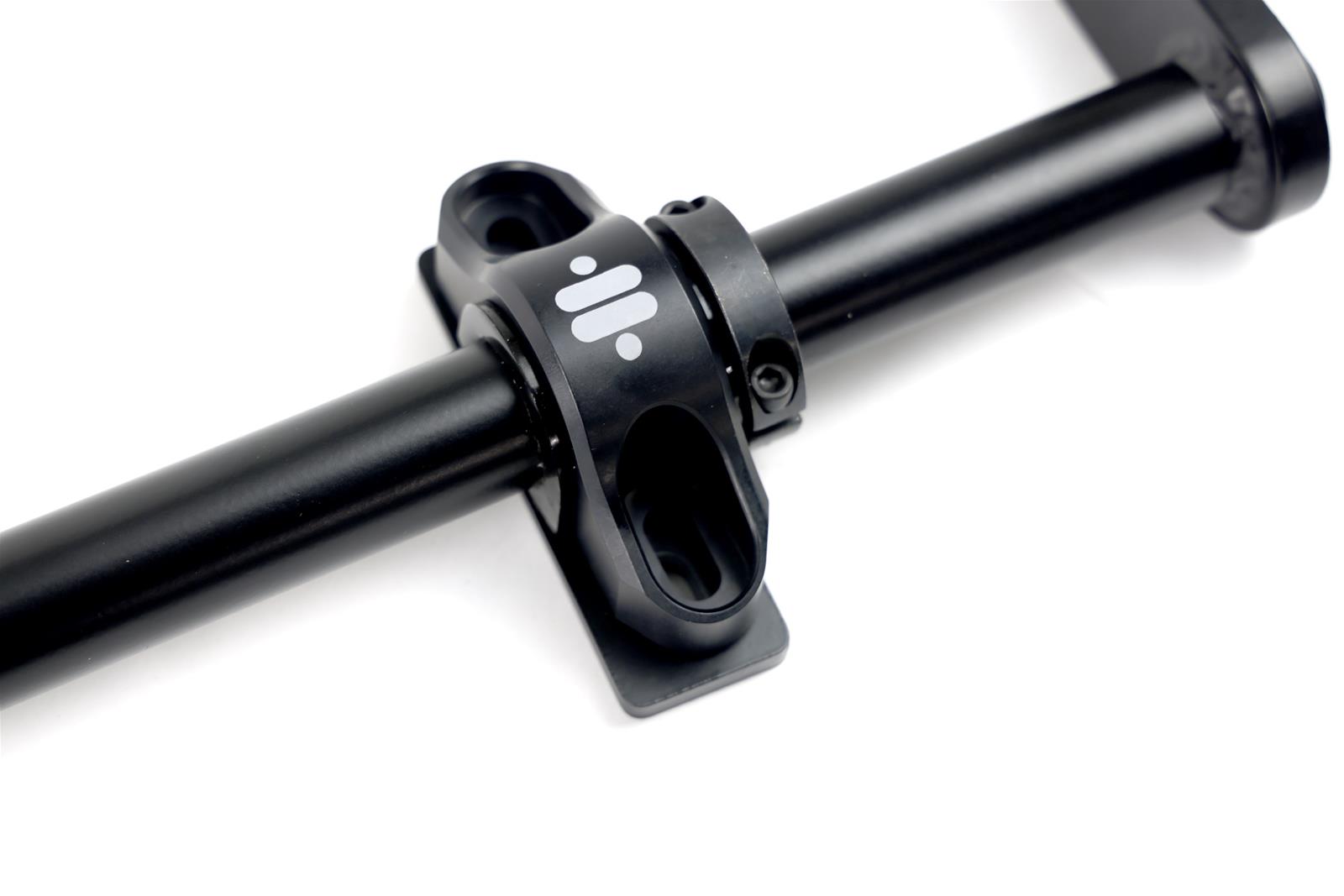

 | 1x | rid11539101 | 11539101 | 840123517401 | Ridetech 63-82 Chevy Corvette Front Sway Bar |
 | 1x | rid11536510 | 11536510 | 840123507198 | Ridetech 68-79 Chevy C3 Corvette HQ Series CoilOvers Rear Pair |

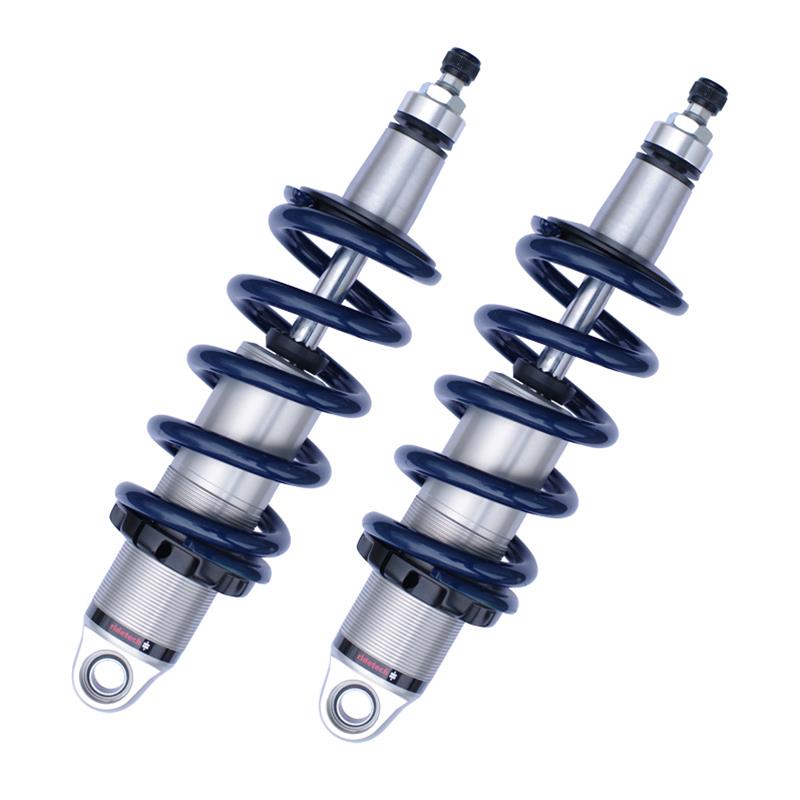

 | 1x | rid11533510 | 11533510 | 840123507174 | Ridetech 68-79 Chevy C3 Corvette HQ Series CoilOvers Front Pair |

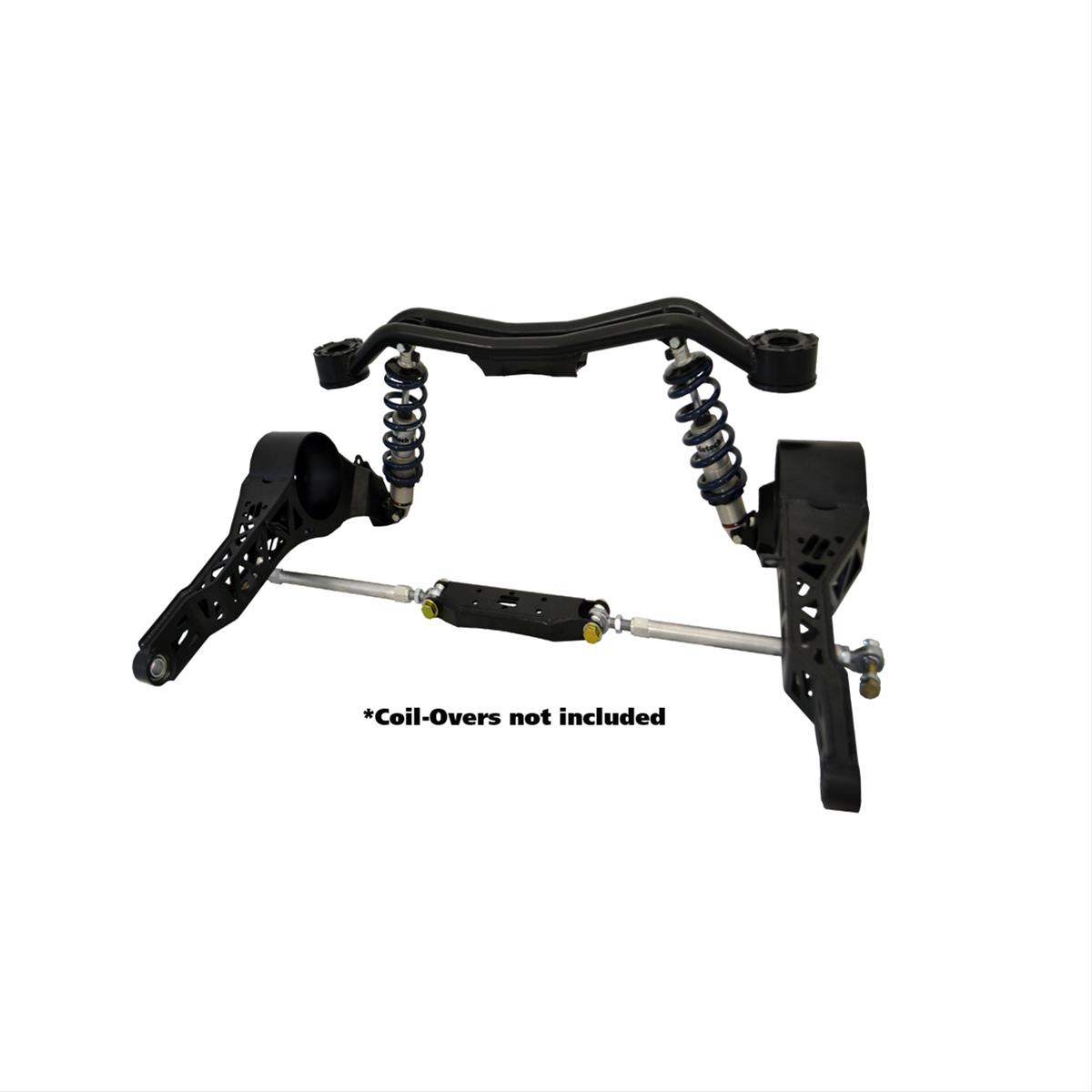

 | 1x | rid11527199 | 11527199 | 840123507129 | Ridetech 63-67 Chevy C2 Corvette Rear StrongArm System |

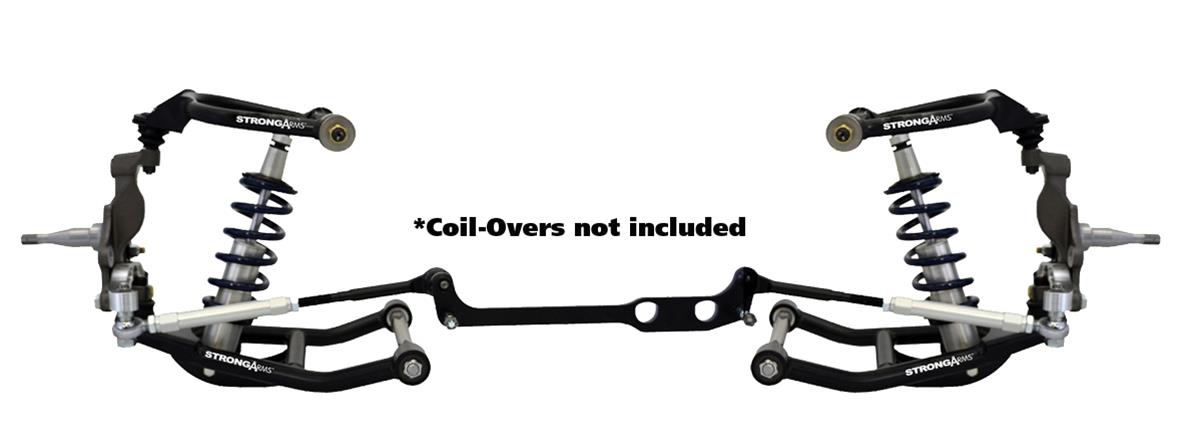

 | 1x | rid11539599 | 11539599 | 840123507235 | Ridetech 68-79 Chevy C3 Corvette Front TruTurn System (Pin Spindle) |
 | 1x | rid11539598 | 11539598 | 840123517425 | Ridetech 68-79 Chevy C3 Corvette Front TruTurn System (Hub Spindle) |

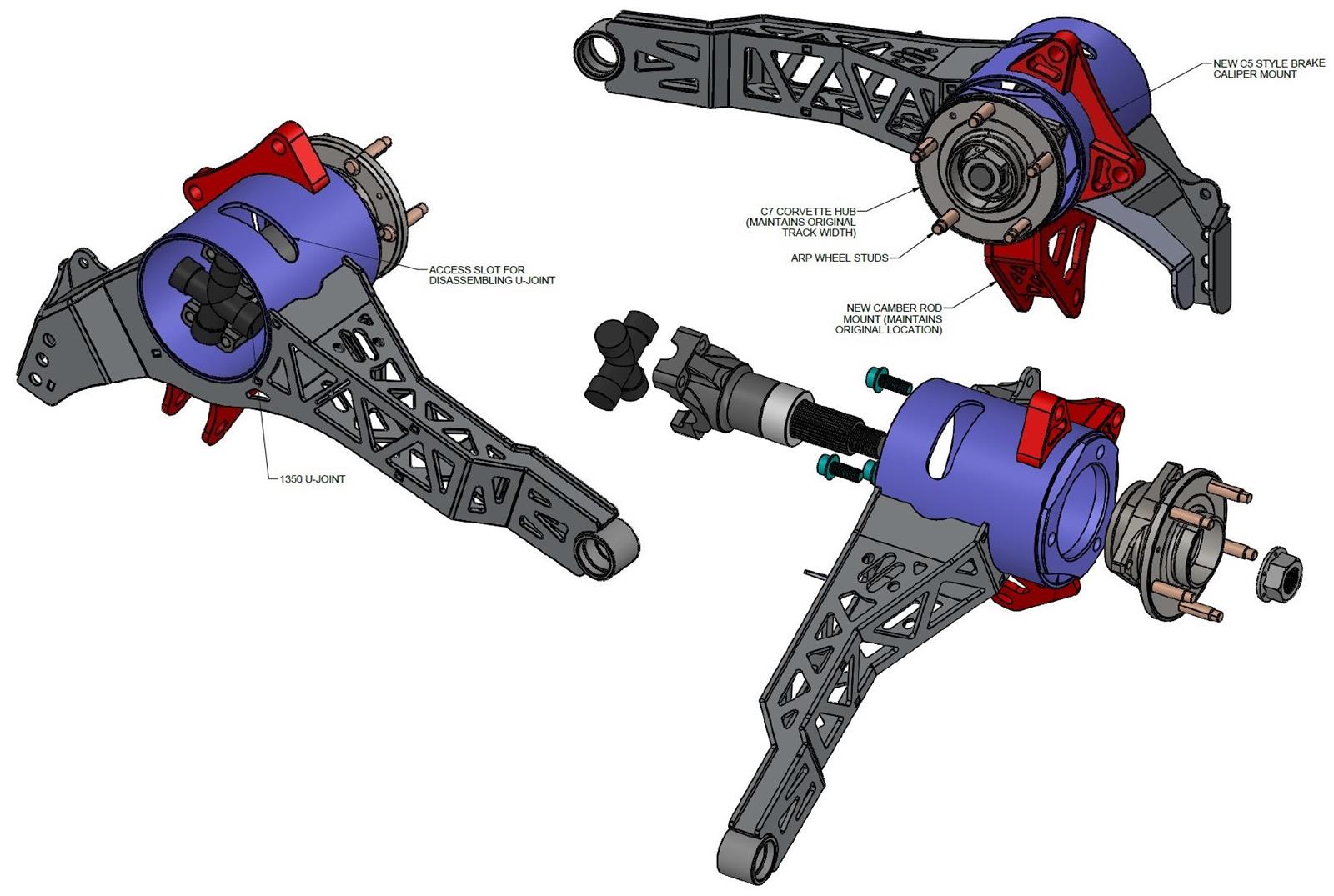

 | 1x | rid11537194 | 11537194 | 840123517388 | Ridetech 63-79 Chevy Corvette Rear StrongArms System For C7 Hubs |
Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.
Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.
For details on the individual components in this bundle, click here.
Part Type
HQ Coil-Over System for 1963-1979 Corvette.
Specifications
- Product Attributes - Brand
- RideTech
- Product Attributes - Manufacturer's Part Number
- 11530202
- Product Attributes - Part Type
- Suspension Handling Packages
- Product Attributes - Product Line
- RideTech Corvette Coilover Suspension Systems
- Product Attributes - UPC
- 840123517364
- Product Attributes - Front Coil Springs Included
- Yes
- Product Attributes - Rear Coil Springs Included
- Yes
- Product Attributes - Rear Leaf Springs Included
- No
- Product Attributes - Front Shocks/Struts Included
- Yes
- Product Attributes - Front Shock Type
- Single adjustable coilover
- Product Attributes - Rear Shocks/Struts Included
- Yes
- Product Attributes - Rear Shock Type
- Single adjustable coilover
- Product Attributes - Front Sway Bar Included
- Yes
- Product Attributes - Front Sway Bar Color
- Black
- Product Attributes - Front Sway Bar Type
- Hollow
- Product Attributes - Front Sway Bar Diameter (in.)
- 1.250 in.
- Product Attributes - Front Sway Bar Diameter (mm)
- 31.75 mm
- Product Attributes - Rear Sway Bar Included
- No
- Product Attributes - Tie Rod Sleeves Included
- Yes
- Product Attributes - End Link Bushings Included
- Yes
- Product Attributes - Rear Leaf Spring Bushings Included
- No
- Product Attributes - Sway Bar Bushings Included
- Yes
- Product Attributes - Upper Trailing Arms Included
- No
- Product Attributes - Lower Trailing Arms Included
- Yes
- Product Attributes - Trailing Arm Mount Braces Included
- No
- Product Attributes - Panhard Bar Included
- No
- Product Attributes - Torque Arm Included
- No
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- Yes
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Front Strut Tower Bar Included
- No
- Product Attributes - K-Member Included
- No
- Product Attributes - K-Member Support Brace Included
- No
- Product Attributes - Rear Strut Tower Bar Included
- No
- Product Attributes - Subframe Connectors Included
- No
- Product Attributes - Chassis Stiffener Included
- No
- Product Attributes - Calipers Included
- No
- Product Attributes - Rotors Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Brake Lines Included
- No
- Product Attributes - Wheel Studs Included
- No
- Product Attributes - Center Link Included
- Yes
- Product Attributes - Spindles Included
- Yes
- Product Attributes - Inner Tie Rod Ends Included
- Yes
- Product Attributes - Outer Tie Rod Ends Included
- Yes
- Product Attributes - Bushing Material
- Delrin®
- Product Attributes - Bushing Color
- Black
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- OEM Front Brakes will not work with this kit.
Reference Information
| Brand Name/s | Ridetech |
|---|---|
| StreetFX SKU | rid11530202 |
| SFX Item ID | 4562751 |
| Supplier Item Code | 4562751 |
| Manufacturer SKU | 11530202 |
| Manufacturer UPC | N/A |
| Alternative References | rid-11527199, C2, rid-11533510, C3, rid-11536510, rid11539599 |
