Ridetech 68-72 GM A-Body CoilOver System (Bundled Kit)
Ridetech 68-72 GM A-Body CoilOver System (Bundled Kit)
A$11,488.44
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

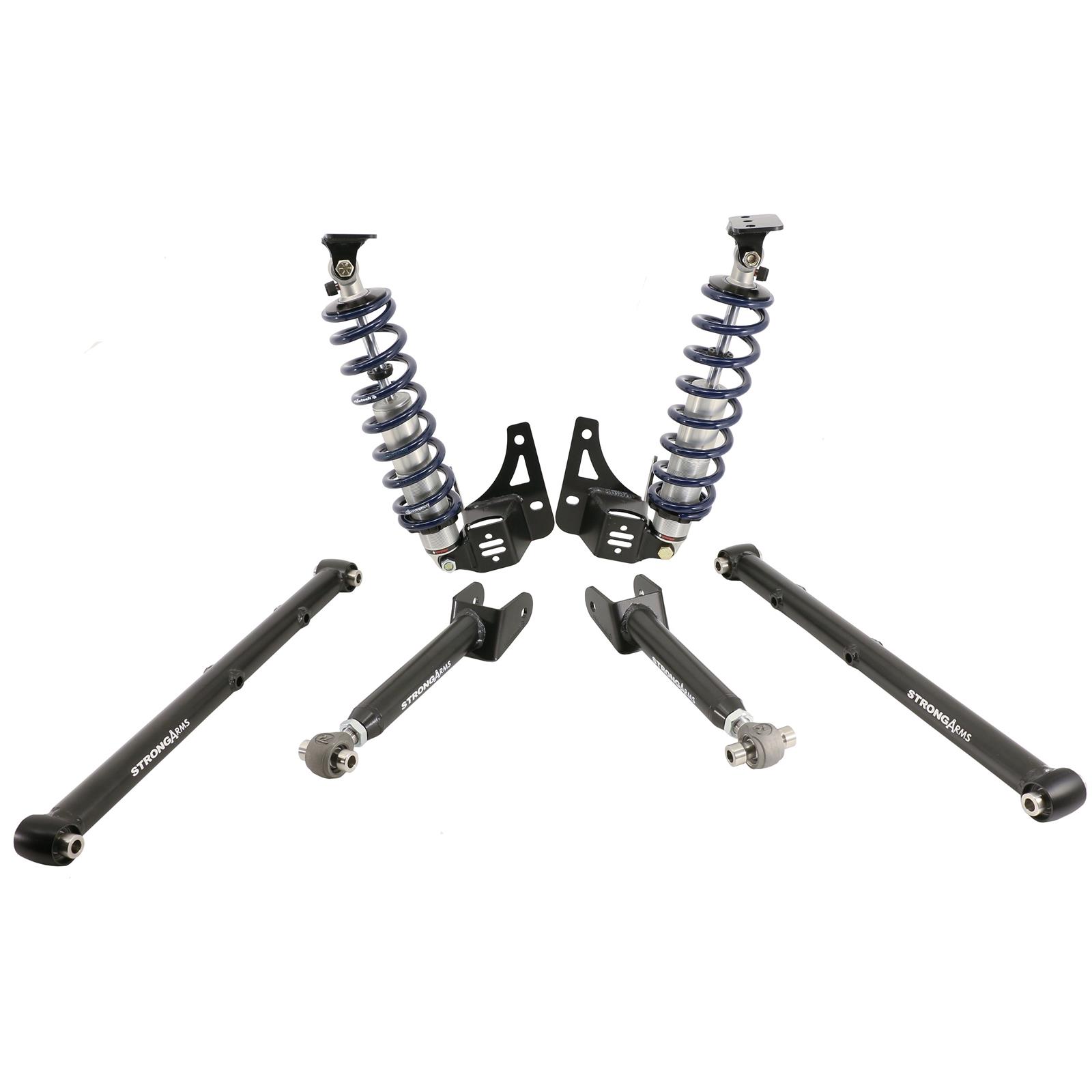

RideTech 1968-72 GM A-body complete coilover systems include everything necessary to create modern drivability for your vintage GM muscle car. All the parts are designed to maximize tire contact, while providing high-speed stability and steering feel. The included rear StrongArms utilize RideTech's innovative R-Joint technology—combining the best qualities of low-friction movement, lateral stability, full-range articulation, and quiet operation in one bearing. Take the guesswork out of purchasing a new suspension for your classic with a RideTech complete coilover system.
Kit items, features, and specs:
* Front upper and lower control arms
* Tall spindles induce more negative camber gain, allowing tires to lean into the turn—and allowing for longer shocks and more suspension travel
* Upper and lower front StrongArms include Delrin bushings to reduce deflection and stiction
* Four HQ Series coilovers allow fine tuning via rebound knob at the top of the shock; they come standard with a 1,000,0001-mile warranty
* Brackets included with rear coilovers for easy attachment to frame and rear-end

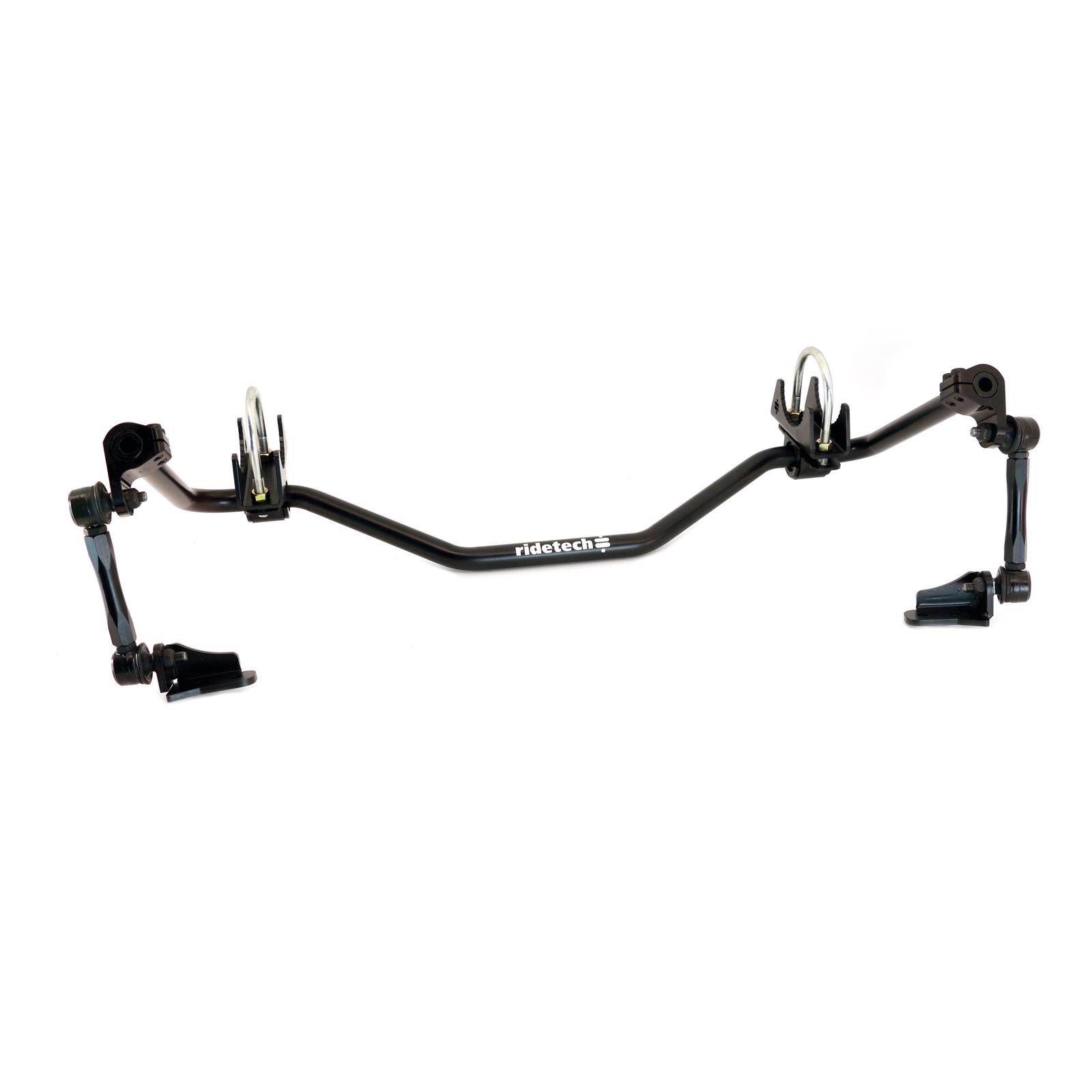

* Front MuscleBar helps reduce body roll, creates room for wider front tires, and includes PosiLink end links for immediate engagement between chassis and control arms
* Adjustable-rate rear MuscleBar
Product Overview
Ridetech 68-72 GM A-Body CoilOver System
Product Details
| Description: | Ridetech 68-72 GM A-Body CoilOver System |
|---|
This is a group bundle consisting of:
| Image | Qty | SKU | MFR SKU | UPC | Description |
|---|---|---|---|---|---|
 | 1x | rid85000000 | 85000000 | 840123511379 | Ridetech CoilOver Spanner Wrench |

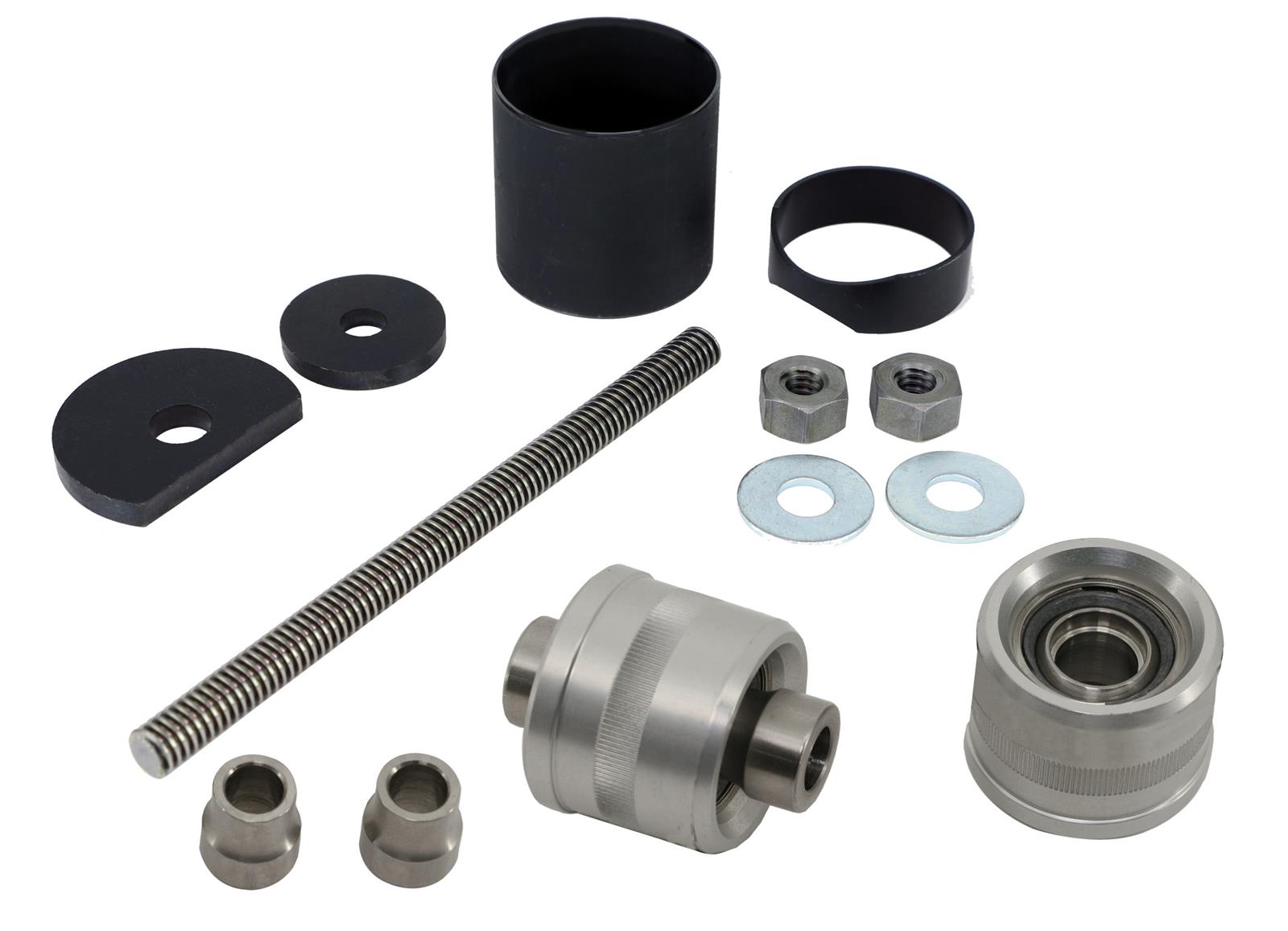

 | 1x | rid11227299 | 11227299 | 840123502124 | Ridetech 64-77 GM A-Body and 78-88 GM G-Body Rear Upper R-Joint Assembly |

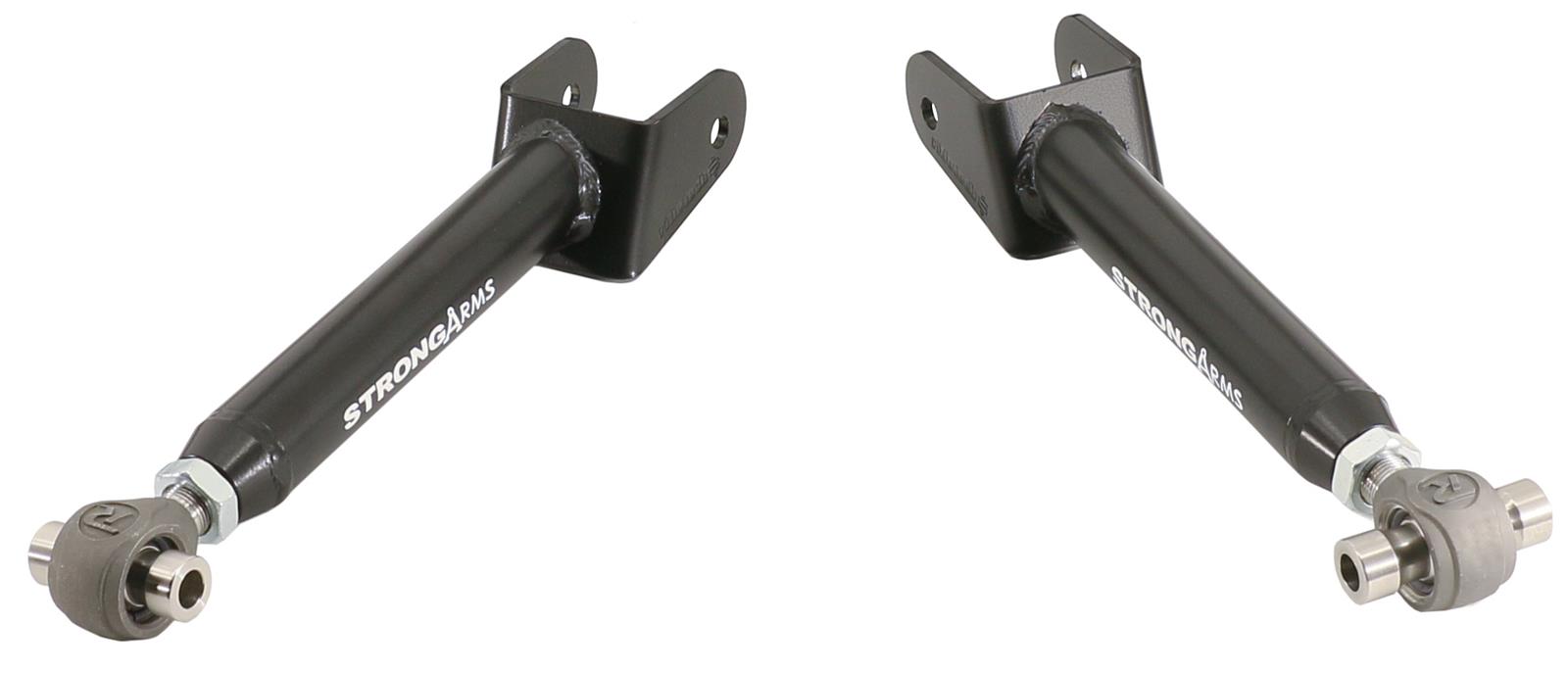

 | 1x | rid11246699 | 11246699 | 840123504722 | Ridetech 68-72 GM A-Body StrongArms Rear Upper |
 | 1x | rid11224499 | 11224499 | 840123504395 | Ridetech 64-72 GM A-Body StrongArms Rear Lower |
 | 1x | rid11249120 | 11249120 | 840123502315 | Ridetech 68-72 GM A-Body Front MuscleBar |
 | 1x | rid11009300 | 11009300 | 840123500052 | Ridetech 67-69 GM F-Body 68-74 X-Body 64-72 A-Body Tall Spindles Pair |
 | 1x | rid11249122 | 11249122 | 840123502322 | Ridetech 68-72 GM A-Body Rear MuscleBar |
 | 1x | rid11223699 | 11223699 | 840123504371 | Ridetech 64-72 GM A-Body StrongArms Front Upper |
 | 1x | rid11222899 | 11222899 | 840123504364 | Ridetech 64-72 GM A-Body StrongArms Front Lower |
 | 1x | rid11243510 | 11243510 | 840123504678 | Ridetech 68-72 GM A-Body HQ Series CoilOvers Front Pair |
 | 1x | rid11226110 | 11226110 | 840123504425 | Ridetech 64-72 GM A-Body HQ Series CoilOvers Rear Pair |
Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.
Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.
For details on the individual components in this bundle, click here.
Application Summary
1968-1972 Chevelle, Cutlass, etc.
Part Type
Suspension Lowering Kit
Specifications
- Product Attributes - Brand
- RideTech
- Product Attributes - Manufacturer's Part Number
- 11240201
- Product Attributes - Part Type
- Suspension Handling Packages
- Product Attributes - Product Line
- RideTech 1968-72 GM A-Body Complete Coilover Systems
- Product Attributes - UPC
- 840123504616
- Product Attributes - Front Coil Springs Included
- Yes
- Product Attributes - Rear Coil Springs Included
- Yes
- Product Attributes - Rear Leaf Springs Included
- No
- Product Attributes - Front Shocks/Struts Included
- Yes
- Product Attributes - Front Shock Type
- Adjustable coilover
- Product Attributes - Rear Shocks/Struts Included
- Yes
- Product Attributes - Rear Shock Type
- Adjustable coilover
- Product Attributes - Front Sway Bar Included
- Yes
- Product Attributes - Front Sway Bar Color
- Black
- Product Attributes - Front Sway Bar Type
- Hollow
- Product Attributes - Rear Sway Bar Included
- Yes
- Product Attributes - Rear Sway Bar Color
- Black
- Product Attributes - Rear Sway Bar Type
- Hollow
- Product Attributes - Tie Rod Sleeves Included
- No
- Product Attributes - End Link Bushings Included
- Yes
- Product Attributes - Rear Leaf Spring Bushings Included
- No
- Product Attributes - Sway Bar Bushings Included
- Yes
- Product Attributes - Upper Trailing Arms Included
- Yes
- Product Attributes - Lower Trailing Arms Included
- Yes
- Product Attributes - Trailing Arm Mount Braces Included
- Yes
- Product Attributes - Panhard Bar Included
- No
- Product Attributes - Torque Arm Included
- No
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- Yes
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Front Strut Tower Bar Included
- No
- Product Attributes - K-Member Included
- No
- Product Attributes - K-Member Support Brace Included
- No
- Product Attributes - Rear Strut Tower Bar Included
- No
- Product Attributes - Subframe Connectors Included
- No
- Product Attributes - Chassis Stiffener Included
- No
- Product Attributes - Calipers Included
- No
- Product Attributes - Rotors Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Brake Lines Included
- No
- Product Attributes - Wheel Studs Included
- No
- Product Attributes - Center Link Included
- No
- Product Attributes - Spindles Included
- Yes
- Product Attributes - Inner Tie Rod Ends Included
- No
- Product Attributes - Outer Tie Rod Ends Included
- No
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Brackets are included with the rear coilovers for easy attachment to the frame and to the 10/12 bolt rear-end or Currie 9 in.
Reference Information
| Brand Name/s | Ridetech |
|---|---|
| StreetFX SKU | rid11240201 |
| SFX Item ID | 4562613 |
| Supplier Item Code | 4562613 |
| Manufacturer SKU | 11240201 |
| Manufacturer UPC | N/A |
| Alternative References | art-11240201, rid-11222899, rid-11223699, rid-11224499, rid-11246699, rid11009300 |
Compatibility
1968-1972 Chevelle, Cutlass, etc.
