Description

The Ridetech 1967-1969 Camaro / Firebird TQ Coil-Over package: includes everything you need to upgrade your existing suspension and give your Camaro the aggressive lowered stance with modern drivability. The benefit of buying a complete suspension system is that it takes all the guesswork out when purchasing a new suspension. Ridetech has spent hours collecting data to find the perfect spring rate and components for your vehicle’s performance and ride quality. Tubular Upper and Lower StrongArms feature Injection-molded Delrin bushings with 13% Teflon reduce deflection and stiction. Ball joint angles are corrected for the tall spindles and the positions altered to allow more caster while keeping the wheel centered in the wheel opening. The additional caster settings improve high-speed stability and steering feel. The lower arms feature a double sheer lower mount that has been lowered for increased suspension travel. TQ Series Coil-Overs utilize an impact-forged aluminum body and Monotube design to deliver excellent ride quality and handling. They offer a rebound adjustment from at the eyelet and include a remote reservoir with high and low speed compression adjustments. Tall Spindles will induce more negative camber gain to maximize tire contact patch during cornering. It also offers a 2” pin drop which allows for the use of longer shocks creating more suspension travel. Front Sway Bar reduces body roll and creates room for wider front tires. Includes billet aluminum frame straps (anodized black) and low friction bushings. The Bolt-On 4-Link dramatically improves traction, handling, and ride quality. Installation does not require significant modifications to the floor pan and requires only minimal welding to the axle tube. Works with mini-tubs. All links are double adjustable with R-Joint rod ends which combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation.

Product Overview

Ridetech 67-69 Camaro and Firebird TQ Coil-Over System

Product Details

Description:	Ridetech 67-69 Camaro and Firebird TQ Coil-Over System

This is a group bundle consisting of:

Image	Qty	SKU	MFR SKU	UPC	Description
	1x	rid85000000	85000000	840123511379	Ridetech CoilOver Spanner Wrench

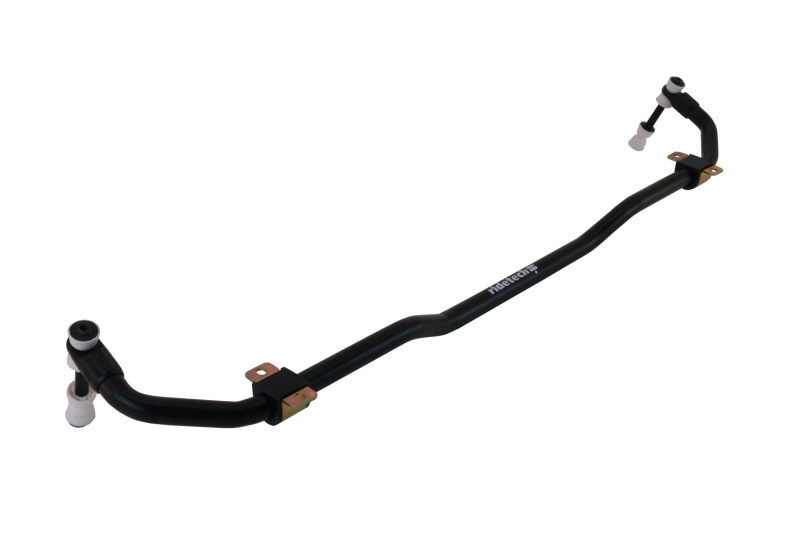

	1x	rid11169120	11169120	840123501349	Ridetech 67-69 Camaro Firebird and 68-74 Nova Front MuscleBar
	1x	rid11009300	11009300	840123500052	Ridetech 67-69 GM F-Body 68-74 X-Body 64-72 A-Body Tall Spindles Pair

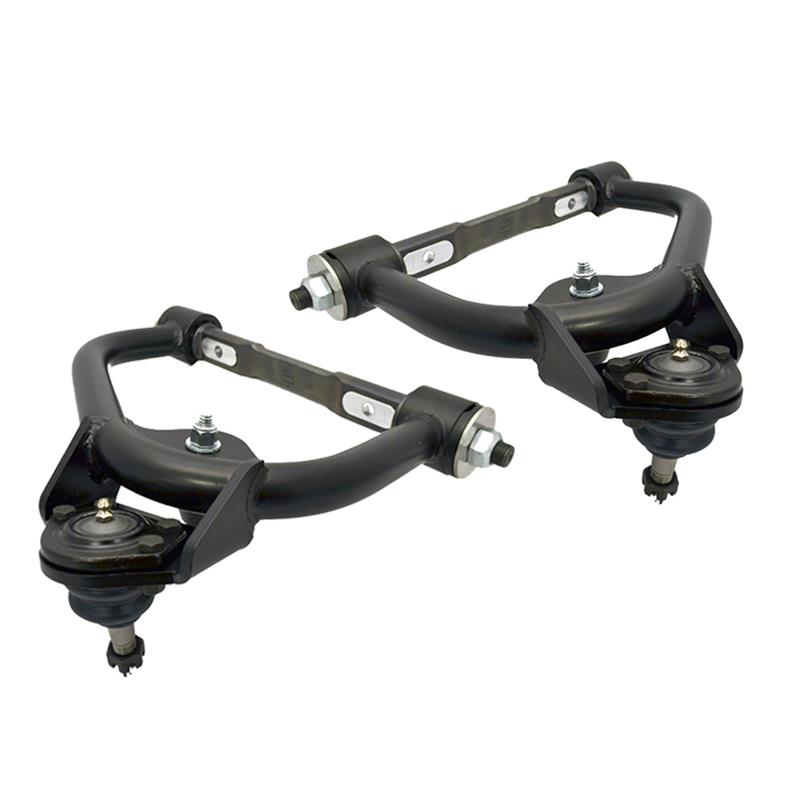

	1x	rid11163699	11163699	840123501240	Ridetech 67-69 Camaro Firebird and 68-74 Nova Front Upper StrongArms
	1x	rid11162899	11162899	840123501196	Ridetech 67-69 Camaro Firebird and 68-74 Nova Front Lower StrongArms
	1x	rid11166511	11166511	840123501301	Ridetech 67-69 Camaro and Firebird Rear TQ Series CoilOver Pair
	1x	rid11167197	11167197	840123501318	Ridetech 67-69 Camaro and Firebird Bolt-On 4 Link System

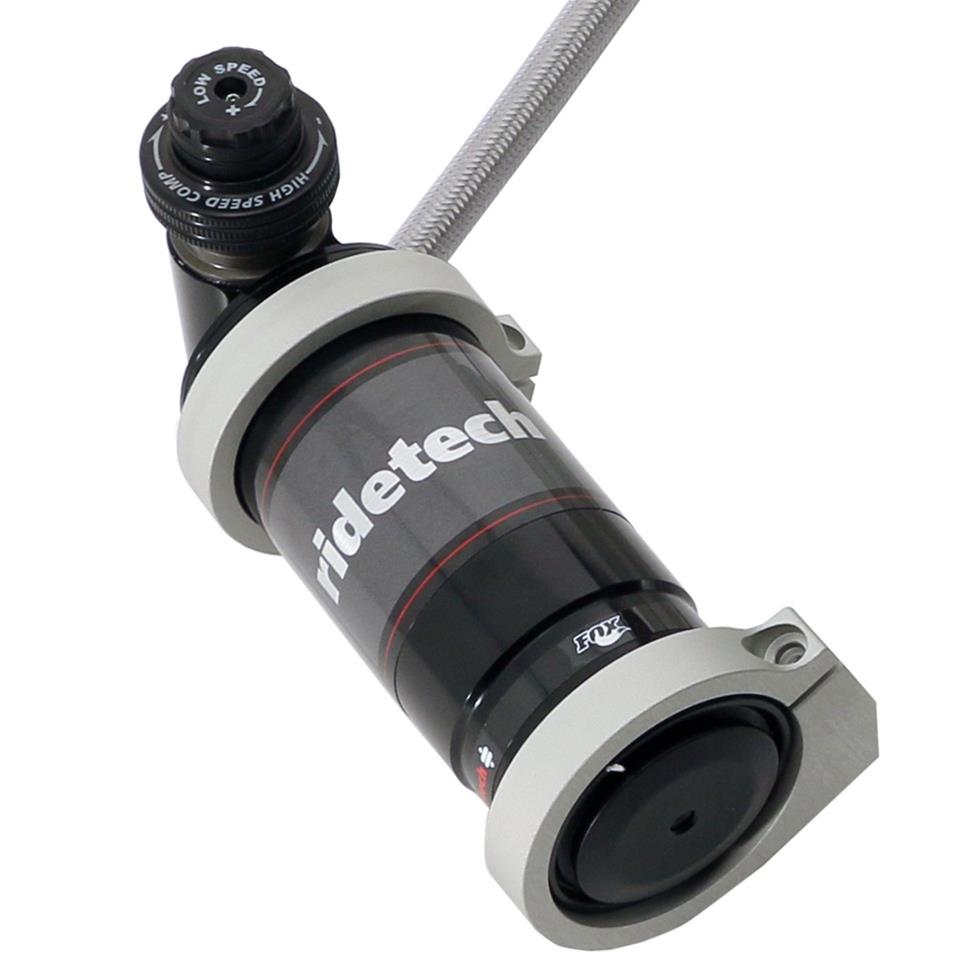

	1x	rid11163511	11163511	840123501233	Ridetech 67-69 Camaro and Firebird TQ Series CoilOvers Front Pair

Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.

Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.

For details on the individual components in this bundle, click here.

Data: v4.2 - Upd: 2026-10-02 15:54:52

Specifications

Product Attributes - Brand

RideTech

Product Attributes - Manufacturer's Part Number

11160302

Product Attributes - Part Type

Suspension Kits, Air Springs

Product Attributes - Product Line

RideTech 1967-69 Camaro/Firebird TQ Coil-Over Systems

Product Attributes - UPC

840123579553

Product Attributes - Ride Height

Lowered

Product Attributes - Air Spring Suspension Kit Type

TQ-Series coilover

Product Attributes - Air Springs Included

No

Product Attributes - Air Bar System Type

4-link suspension

Product Attributes - Air Compressor Included

No

Product Attributes - Air Line Included

No

Product Attributes - Frame Brackets Included

Yes

Product Attributes - Gauges Included

No

Product Attributes - Leveling Switch Included

No

Product Attributes - Links Included

Yes

Product Attributes - Shocks Included

Yes

Product Attributes - Welding Required

Yes

Product Attributes - Mounting Hardware Included

Yes

Product Attributes - Quantity

Sold as a kit.
