Description
Featuring a unique, exclusive valving system and advanced compression functionality, Rancho® RS5000™X shocks deliver improved overall on- and off-road handling and performance.
Product Overview
Featuring a unique, exclusive valving system and advanced compression functionality, Rancho® RS5000™X shocks deliver improved overall on- and off-road handling and performance.
Features and Benefits
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
- MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
- STRONG AND DURABLE -- Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
- REDUCES FADE -- Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
- MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
Product Details
| Active or Passive Suspension: | Passive |
|---|---|
| Adjustable Compression: | No |
| Adjustable Damping: | No |
| Adjustable Rebound: | No |
| Adjustable Ride Height: | No |
| Air Adjustable: | No |
| Air Ride Suspension: | No |
| Bearing Plate Included: | No |
| Bladder Heavy Duty Crimping Rings Included: | No |
| Bladder Sleeve(s) Included: | No |
| Bladder(s) Included: | No |
| Body Color: | White |
| Body Diameter: | 2.18 |
| Body Material: | Steel |
| Boot Included: | Yes |
| Coil Over Springs Included: | No |
| Coil Spring Insulator(s) Included: | No |
| Color: | White |
| Compressed Length: | 327.4 |
| Cylinder Color: | White |
| Cylinder Finish: | Painted |
| Cylinder Material: | Steel |
| Cylinder Outside Diameter: | 57.2 |

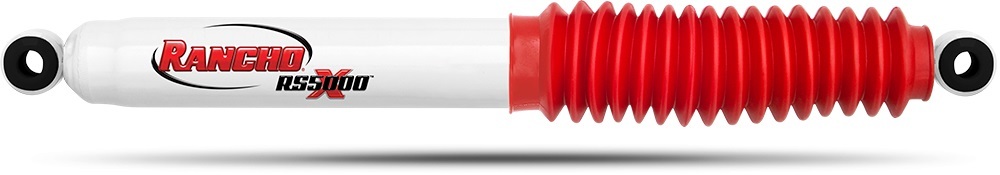

| Description: | Rancho 59-66 Jeep CJ3 Rear RS5000X Shock |
| Dust Shield Color: | Red |
| Dust Shield Diameter: | 2.99 |
| Dust Shield Included: | Yes |
| Dust Shield Material: | Rubber |
| Extended Length: | 20.29 |
| Finish: | Painted |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Hydraulic Lockout: | No |
| Includes Bump Stop: | No |
| Internal Construction Type: | Twin Tube |
| Internal Rebound Bumper: | No |
| Internal Rebound Spring: | No |
| Lower Mount Code: | L1 |
| Lower Mount Type: | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Maximum Ride Height Lowering Distance: | 0 |
| Maximum Ride Height Raising Distance: | 0 |
| Mounting Hardware Included: | Yes |
| New Or Remanufactured: | New |
| Part Number: | rhoRS55113 |
| Parts Pack(s): | P00916 |
| Remote Reservoir: | No |
| Rod Diameter: | 15.8 |
| Self-Leveling: | No |
| Shaft Material: | Nitrocarburized |
| Shock Absorber Body End Measuring Point: | Center of Loop |
| Shock Absorber Bore Size: | 1.3779527559055118 |
| Shock Absorber Rod End Measuring Point: | Center of Loop |
| Shock Stroke: | 188 |
| Spring Included: | No |
| Spring Isolators Included: | No |
| Spring Seat Included: | No |
| Strut Mount Insulator(s) Included: | No |
| Travel Length: | 7.4 |
| Type: | Telescopic |
| Upper Mount Code: | L1 |
| Upper Mount Type: | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Valving Type: | Progressive |
Application Summary
1991-1995 Isuzu Pickup (Rear); 1971-1974 Dodge B100 Van (Rear); 1975-1980 Dodge B100 (Rear); 1995-1998 Dodge B1500 (Rear); 1981-1994 Dodge B150 (Rear); 1975-1980 Dodge B200 (Rear); 1981-1994 Dodge B250 (Rear); 1975-1980 Dodge B300 (Rear); 1995-1998 Dodge B3500 (Rear); 1981-1994 Dodge B350 (Rear); 1996-2003 Dodge Ram 2500 Van (Rear); 1996-2003 Dodge Ram 3500 Van (Rear); 1995-2003 Dodge Ram 1500 Van (Rear); 1971-1974 Dodge B200 Van (Rear); 1971-1974 Dodge B300 Van (Rear); 1995-1998 Dodge B2500 (Rear); 1956-1962 Jeep Utility Wagon (Rear); 1943-1958 Jeep Willys CJ-2 Jeepster CJ-3 CJ-3 Chassis CJ-5 Utility Wagon CJ-6 (Rear, Front); 1959-1966 Jeep CJ3 (Rear); 1969-1973 Jeep Commando (Rear, Front); 1972-1974 Jeep DJ5 (Front, Rear); 1962-1969 Jeep Gladiator (Rear, Front); 1963-1973 Jeep J-100 (Front, Rear); 1965-1973 Jeep J-2500 (Front, Rear); 1965-1973 Jeep J-2600 (Rear, Front); 1965-1970 Jeep J-2700 (Rear, Front); 1965-1968 Jeep J-2800 (Rear, Front); 1965-1970 Jeep J-3500 (Front, Rear); 1965-1970 Jeep J-3600 (Rear, Front); 1965-1970 Jeep J-3700 (Front, Rear); 1965-1971 Jeep J-3800 (Rear, Front); 1969-1971 Jeep Jeepster (Rear, Front); 1961-1962 Jeep Utility (Rear); 1959-1983 Jeep CJ5 (Front, Rear); 1959-1975 Jeep CJ6 (Front, Rear); 1976-1986 Jeep CJ7 (Rear, Front); 1984-1991 Jeep Grand Wagoneer (Rear, Front); 1974-1986 Jeep J10 (Rear, Front); 1974-1986 Jeep J20 (Rear, Front); 1981-1985 Jeep Scrambler (Rear, Front); 1963-1983 Jeep Wagoneer (Front, Rear); 1987-1995 Jeep Wrangler (Rear); 1963-1965 Jeep J-210 (Front, Rear); 1963-1965 Jeep J-220 (Front, Rear); 1963-1965 Jeep J-230 (Front, Rear); 1963-1965 Jeep J-300 (Front, Rear); 1963-1965 Jeep J-310 (Front, Rear); 1963-1965 Jeep J-320 (Rear, Front); 1963-1965 Jeep J-330 (Front, Rear); 1963-1965 Jeep J-200 (Front, Rear); 1966-1968 Jeep CJ5A (Rear); 1966-1968 Jeep CJ6A (Rear, Front); 1970-1973 Jeep J-4500 (Rear, Front); 1970-1973 Jeep J-4600 (Rear, Front); 1970-1973 Jeep...
Part Type
Suspension Shock Absorber
Features
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
- MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
- MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
- REDUCES FADE -- Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
- STRONG AND DURABLE -- Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
Specifications
- Product Attributes - UPC
- 039703006293
- Product Attributes - Brand
- Rancho
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - Boot Color
- Red
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Ride Height
- Stock/Lifted
- Product Attributes - Upper Mount
- Eyelet
- Product Attributes - Product Line
- Rancho RS5000X Shock Absorbers
- Product Attributes - Boot Included
- Yes
- Product Attributes - Bushing Color
- Black
- Product Attributes - Internal Design
- Twin-tube
- Product Attributes - Bushing Material
- Rubber
- Product Attributes - Ride Height Note
- Additional ride height information may be available for your vehicle, please refer to the app tab.
- Product Attributes - Adjustable Valving
- No
- Product Attributes - Extended Length (in.)
- 20.29
- Product Attributes - Collapsed Length (in.)
- 12.89
- Product Attributes - Lifted Amount Range (in.)
- 0.00-3.00 in.
- Product Attributes - Manufacturer's Part Number
- RS55113
Reference Information
| Brand Name/s | Rancho |
|---|---|
| StreetFX SKU | rhoRS55113 |
| SFX Item ID | 4249467 |
| Supplier Item Code | 4249467 |
| Manufacturer SKU | RS55113 |
| Manufacturer UPC | 39703006293 |
| Alternative References | rs5000x, RANRS55113, ROSRS55113, CJ3 |
Brochures
Compatibility
1991-1995 Isuzu Pickup (Rear); 1971-1974 Dodge B100 Van (Rear); 1975-1980 Dodge B100 (Rear); 1995-1998 Dodge B1500 (Rear); 1981-1994 Dodge B150 (Rear); 1975-1980 Dodge B200 (Rear); 1981-1994 Dodge B250 (Rear); 1975-1980 Dodge B300 (Rear); 1995-1998 Dodge B3500 (Rear); 1981-1994 Dodge B350 (Rear); 1996-2003 Dodge Ram 2500 Van (Rear); 1996-2003 Dodge Ram 3500 Van (Rear); 1995-2003 Dodge Ram 1500 Van (Rear); 1971-1974 Dodge B200 Van (Rear); 1971-1974 Dodge B300 Van (Rear); 1995-1998 Dodge B2500 (Rear); 1956-1962 Jeep Utility Wagon (Rear); 1943-1958 Jeep Willys CJ-2 Jeepster CJ-3 CJ-3 Chassis CJ-5 Utility Wagon CJ-6 (Rear, Front); 1959-1966 Jeep CJ3 (Rear); 1969-1973 Jeep Commando (Rear, Front); 1972-1974 Jeep DJ5 (Front, Rear); 1962-1969 Jeep Gladiator (Rear, Front); 1963-1973 Jeep J-100 (Front, Rear); 1965-1973 Jeep J-2500 (Front, Rear); 1965-1973 Jeep J-2600 (Rear, Front); 1965-1970 Jeep J-2700 (Rear, Front); 1965-1968 Jeep J-2800 (Rear, Front); 1965-1970 Jeep J-3500 (Front, Rear); 1965-1970 Jeep J-3600 (Rear, Front); 1965-1970 Jeep J-3700 (Front, Rear); 1965-1971 Jeep J-3800 (Rear, Front); 1969-1971 Jeep Jeepster (Rear, Front); 1961-1962 Jeep Utility (Rear); 1959-1983 Jeep CJ5 (Front, Rear); 1959-1975 Jeep CJ6 (Front, Rear); 1976-1986 Jeep CJ7 (Rear, Front); 1984-1991 Jeep Grand Wagoneer (Rear, Front); 1974-1986 Jeep J10 (Rear, Front); 1974-1986 Jeep J20 (Rear, Front); 1981-1985 Jeep Scrambler (Rear, Front); 1963-1983 Jeep Wagoneer (Front, Rear); 1987-1995 Jeep Wrangler (Rear); 1963-1965 Jeep J-210 (Front, Rear); 1963-1965 Jeep J-220 (Front, Rear); 1963-1965 Jeep J-230 (Front, Rear); 1963-1965 Jeep J-300 (Front, Rear); 1963-1965 Jeep J-310 (Front, Rear); 1963-1965 Jeep J-320 (Rear, Front); 1963-1965 Jeep J-330 (Front, Rear); 1963-1965 Jeep J-200 (Front, Rear); 1966-1968 Jeep CJ5A (Rear); 1966-1968 Jeep CJ6A (Rear, Front); 1970-1973 Jeep J-4500 (Rear, Front); 1970-1973 Jeep J-4600 (Rear, Front); 1970-1973 Jeep...
