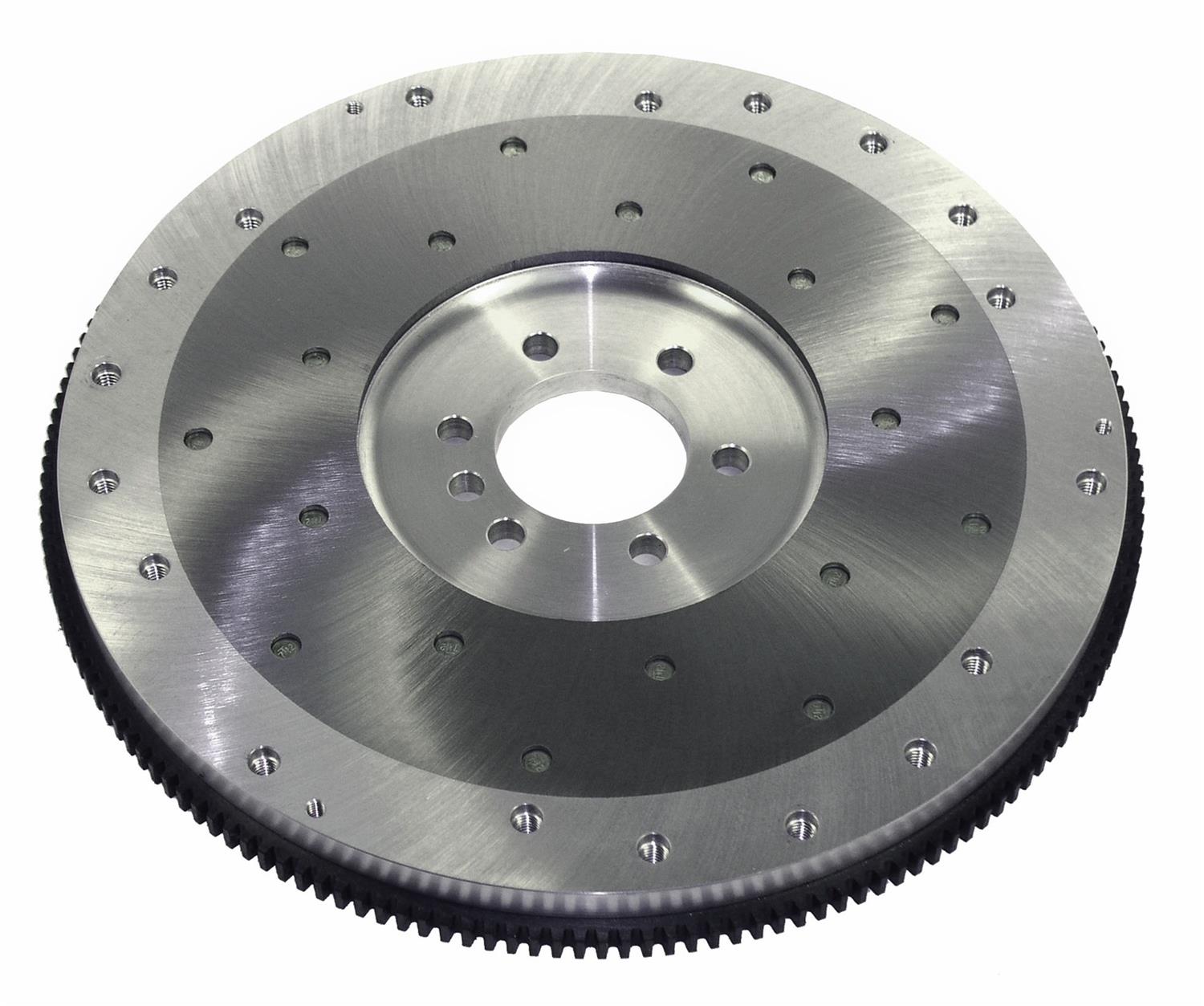

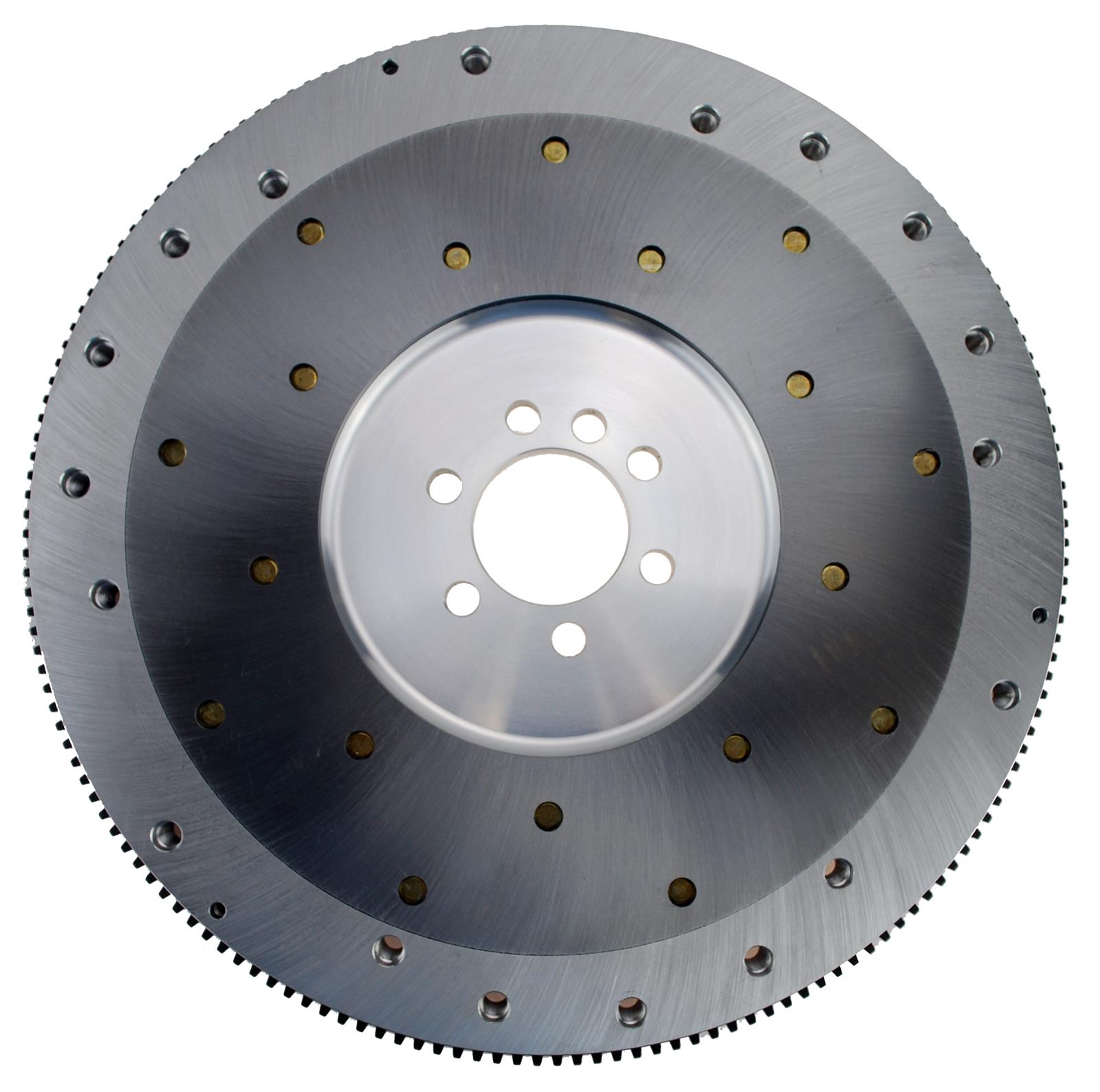

RAM Billet Aluminum 168-Tooth Flywheel 2530 Flywheel, Aluminum, 168-Tooth, External Engine Balance, 16.000 lbs., 1-Piece Rear Main Seal, SFI 1.1, Chevy, V8, Each
RAM Billet Aluminum 168-Tooth Flywheel 2530 Flywheel, Aluminum, 168-Tooth, External Engine Balance, 16.000 lbs., 1-Piece Rear Main Seal, SFI 1.1, Chevy, V8, Each
A$1,110.56
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
If you're building an all-out competition car, then you need a lightweight flywheel that will allow the engine to rev quicker and not eat up a lot of power. RAM billet aluminum flywheels greatly reduce rotating weight to permit quicker revving and higher power output, but still retain enough mass to resist heat distortion that could adversely affect clutch performance. RAM billet aluminum flywheels are made in America and produced in house. All RAM flywheels are computer-balanced within a 1/2 oz., surface ground (which results an optimum mating surface), and are ready to run out of the box. SFI-approved, these flywheels are CNC-machined from certified materials and have rugged steel friction-surface inserts. RAM's billet aluminum flywheels feature a 1/4 in. thick friction insert to dissipate heat away without distortion.
Technical note: As it spins, a heavy flywheel stores more energy than a lighter one. Engine and gearing combinations that require more power or inertia to make the car launch without bogging the motor need heavier flywheels. However, heavier flywheels accelerate slower. Lighter flywheels create less inertia at launch, but accelerate quicker through the gears. To effectively use a lighter flywheel, you must consider the car's weight, operating rpm of the engine, and, most importantly, the gearing. Too little gear will cause the engine to 'bog' on launch.
Part Type
Billet Alum Flywheel SBC 86- Ext Bal 168t
Specifications
- Product Attributes - Brand
- RAM Clutches
- Product Attributes - Manufacturer's Part Number
- 2530
- Product Attributes - Part Type
- Flywheels
- Product Attributes - Product Line
- RAM Billet Aluminum Flywheels
- Product Attributes - UPC
- 809009112659
- Product Attributes - SFI Rating
- SFI 1.1
- Product Attributes - Ring Gear Tooth Quantity
- 168-tooth
- Product Attributes - Crankshaft to Flywheel Bolt Quantity
- 6-bolt
- Product Attributes - Pressure Plate Style
- Borg & Beck/Diaphragm/Long
- Product Attributes - Rear Main Seal Style
- 1-piece
- Product Attributes - Flywheel Diameter
- 14.000 in.
- Product Attributes - Flywheel Material
- Billet aluminum
- Product Attributes - Engine Balance
- External
- Product Attributes - Disc Diameter (in.)
- 10.500/11.000 in.
- Product Attributes - Weight
- 16.000 lbs.
- Product Attributes - Replaceable Friction Surface
- Yes
- Product Attributes - Marine Use
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Special Attention
- Please call if you require a SFI label when you purchase.
Reference Information
| Brand Name/s | Ram Clutches |
|---|---|
| StreetFX SKU | ram2530 |
| SFX Item ID | 5126179 |
| Supplier Item Code | 5126179 |
| Manufacturer SKU | 2530 |
| Manufacturer UPC | 809009112659 |
| Alternative References | 168-Tooth, 1-Piece, V8 |
