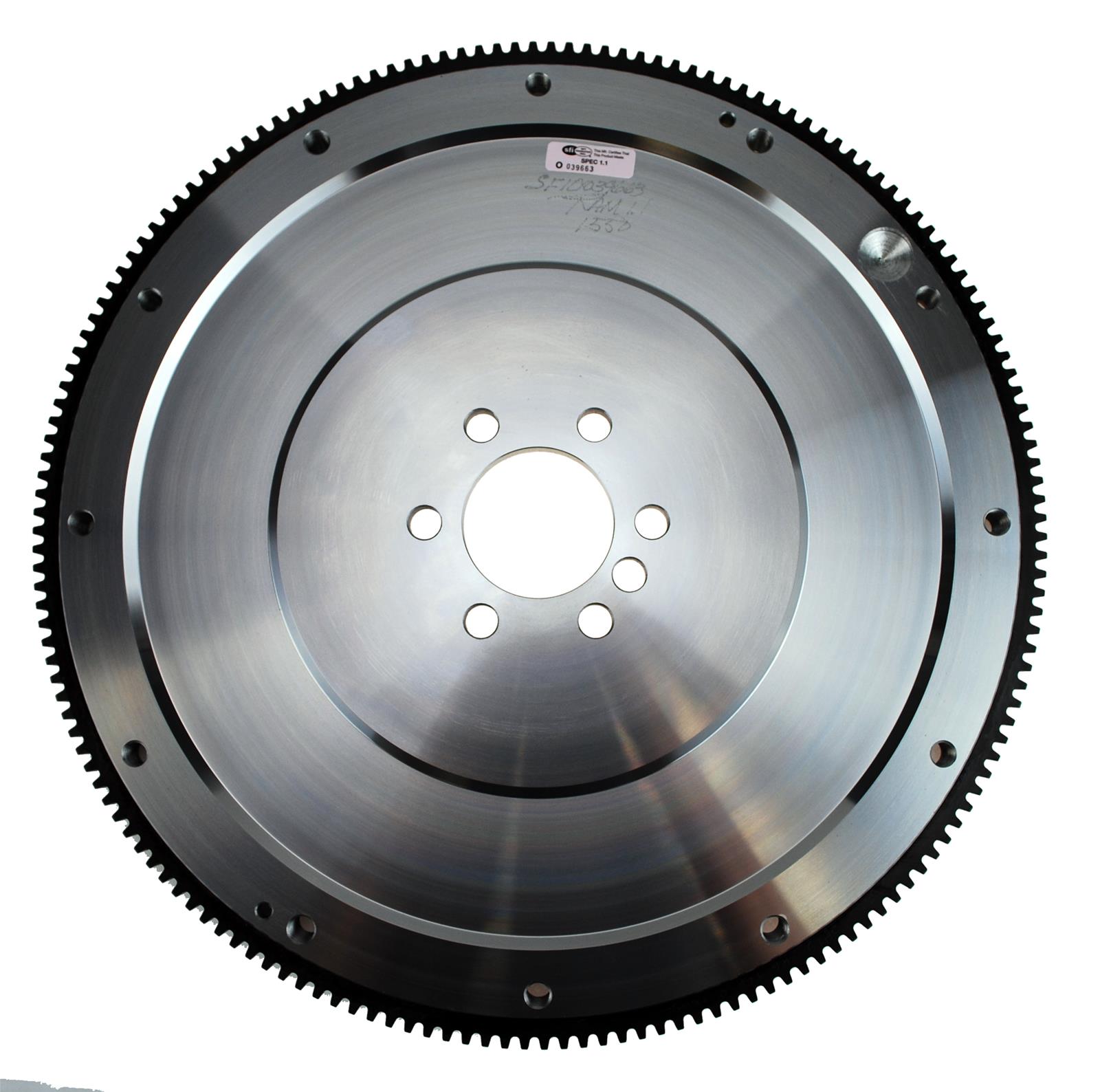

RAM Billet Steel 168-Tooth Flywheel 1550 Flywheel, Steel, 168-Tooth, Internal Engine Balance, 27.000 lbs., 1-Piece Rear Main Seal, SFI 1.1, Chevy Gen III/IV (LS-based engines), Each
RAM Billet Steel 168-Tooth Flywheel 1550 Flywheel, Steel, 168-Tooth, Internal Engine Balance, 27.000 lbs., 1-Piece Rear Main Seal, SFI 1.1, Chevy Gen III/IV (LS-based engines), Each
A$943.52
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
IMPORTANT NOTICE: This will not fit 1999-2000 6.0L applications with 0.400 in. extended crank flange.
Cast flywheels are not explosion-proof and can be dangerous when used in high performance applications at higher rpm. RAM billet steel flywheels are recommended as replacements for factory-cast flywheels in high performance and racing vehicles. Made in America and produced in-house, all RAM flywheels are computer balanced within a 1/2 oz., surface ground (which results an optimum mating surface), and are ready to run out of the box. They're better for launching heavier drag race cars and provide better drivability in street vehicles. SFI-approved, RAM billet steel flywheels are CNC-machined from certified materials. Order the model recommended for your year/make and engine application.
Technical note: As they spin, heavy flywheels store more energy than lighter ones. Engine and gearing combinations that require more power or inertia to make the car launch without bogging the motor need heavier flywheels. However, heavier flywheels accelerate slower. Lighter flywheels create less inertia at launch, but accelerate quicker through the gears. When choosing a flywheel, you must consider the car's weight, operating rpm of the engine, and, most importantly, the gearing. Insufficient gearing will cause an engine with too light of a flywheel to "bog" on launch.
Part Type
Steel Billet SFI F/W 98-02 GM LS1
Specifications
- Product Attributes - Brand
- RAM Clutches
- Product Attributes - Manufacturer's Part Number
- 1550
- Product Attributes - Part Type
- Flywheels
- Product Attributes - Product Line
- RAM Billet Steel Flywheels
- Product Attributes - UPC
- 809009233903
- Product Attributes - SFI Rating
- SFI 1.1
- Product Attributes - Ring Gear Tooth Quantity
- 168-tooth
- Product Attributes - Crankshaft to Flywheel Bolt Quantity
- 6-bolt
- Product Attributes - Pressure Plate Style
- Diaphragm
- Product Attributes - Rear Main Seal Style
- 1-piece
- Product Attributes - Flywheel Material
- Billet steel
- Product Attributes - Engine Balance
- Internal
- Product Attributes - Disc Diameter (in.)
- 11.000 in.
- Product Attributes - Weight
- 28.000 lbs.
- Product Attributes - Replaceable Friction Surface
- No
- Product Attributes - Marine Use
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- This will not fit 1999-2000 6.0L applications with 0.400 in. extended crank flange.
- Product Attributes - Special Attention
- Please call if you require a SFI label when you purchase.
Reference Information
| Brand Name/s | Ram Clutches |
|---|---|
| StreetFX SKU | ram1550 |
| SFX Item ID | 5124966 |
| Supplier Item Code | 5124966 |
| Manufacturer SKU | 1550 |
| Manufacturer UPC | 809009233903 |
| Alternative References | 168-Tooth, 1-Piece |
