Home / Shop / Cold Case Radiator Support Module Kits for 1957 BEL AIR, ONE-FIFTY SERIES, TWO-TEN SERIES - CHT56357K Radiator, Performance, Module, Aluminum, Satin Brushed, Crossflow, 2 Row, Dual 14 in. Fan, Chevrolet, Kit

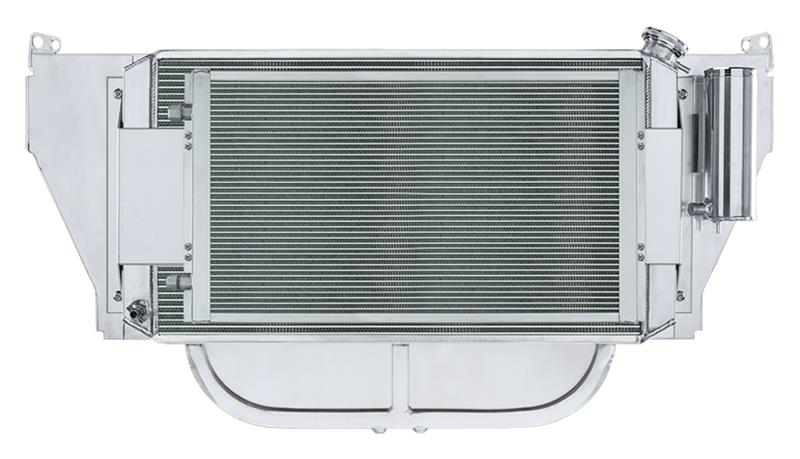

Cold Case Radiator Support Module Kits for 1957 BEL AIR, ONE-FIFTY SERIES, TWO-TEN SERIES - CHT56357K Radiator, Performance, Module, Aluminum, Satin Brushed, Crossflow, 2 Row, Dual 14 in. Fan, Chevrolet, Kit

SKU: RADCHT56357K

Radiators

Cold Case Radiators

Cold Case Radiator Support Module Kits for 1957 BEL AIR, ONE-FIFTY SERIES, TWO-TEN SERIES - CHT56357K Radiator, Performance, Module, Aluminum, Satin Brushed, Crossflow, 2 Row, Dual 14 in. Fan, Chevrolet, Kit

SKU: RADCHT56357K

Radiators

LAST ONE! Est Ship 4-7 days. LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

Cold Case offers radiator support module kits for a variety of applications, including 1960s era Camaro LS engine swaps. Each module comes fully assembled and ready to bolt into your vehicle. They consist of an aluminum radiator support, big 1.25 in. tube dual-core crossflow radiator, two 3600 cfm fans/shroud combination, billet cap, and billet overflow tank. These units are very popular with high-tech, high horsepower builds in which maximum cooling is a must. Available in either standard Chevrolet outlet configurations or LS outlet configurations, they're 100 percent TIG-welded and ready to paint or polish.

Radiator support module features:

* Extra forward design will clear big block and LS front drives
* Brushed aluminum finish
* 2 row design with 1.25" tubes

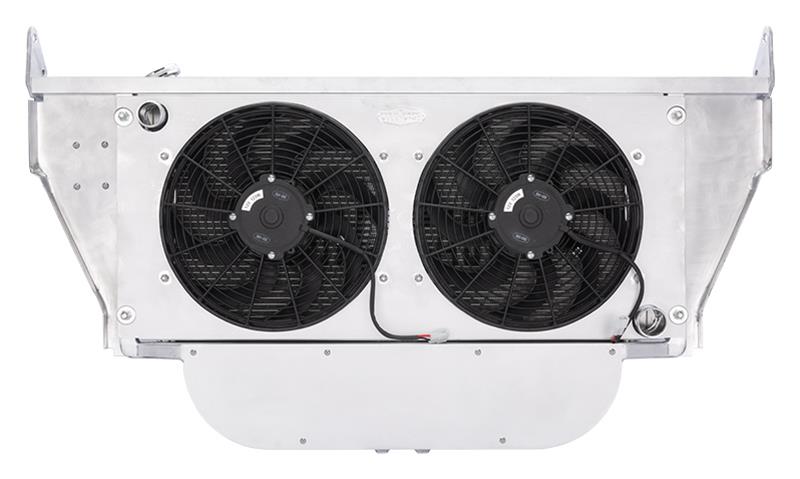

* Includes dual 14 in. 3600 cfm fans and shroud combination setup
* Easy to install even in finished cars
* Optional AC condenser and electronic fan controller upgrades available

Part Type

57 Chevy Radiator Support Kit w/AC

Data: v4.2 - Upd: 2026-10-14 09:27:10

Specifications

Product Attributes - Brand: Cold Case Radiators
Product Attributes - Manufacturer's Part Number: CHT56357K
Product Attributes - Part Type: Radiators
Product Attributes - Product Line: Cold Case Radiator Support Module Kits
Product Attributes - UPC: 846861015650
Product Attributes - Radiator Material: Aluminum
Product Attributes - Radiator Style: Crossflow
Product Attributes - Transmission Cooler: No
Product Attributes - Inlet Location: Upper driver side
Product Attributes - Outlet Location: Lower passenger side
Product Attributes - Row Quantity: 2
Product Attributes - Radiator Finish: Satin
Product Attributes - Radiator Inlet Size: 1.500 in.
Product Attributes - Radiator Outlet Size: 1.750 in.
Product Attributes - Trans Cooler Adapter Fittings Included: No
Product Attributes - Tube Size: 1 1/4 in.
Product Attributes - Fan Included: Yes
Product Attributes - Fan Quantity: Dual
Product Attributes - Fan Diameter (in.): 14.00 in.
Product Attributes - Maximum Fan CFM: 3,600 cfm
Product Attributes - Fan CFM Range: 3,600-3,699
Product Attributes - Blade Material: Plastic
Product Attributes - Blade Color: Black
Product Attributes - Shroud Material: Aluminum
Product Attributes - Shroud Color: Satin
Product Attributes - Radiator Cap Included: Yes
Product Attributes - Quantity: Sold as a kit.
Product Attributes - Notes: Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.

Reference Information

Brand Name/s	Cold Case Radiators
StreetFX SKU	radCHT56357K
SFX Item ID	5025317
Supplier Item Code	5025317
Manufacturer SKU	CHT56357K
Manufacturer UPC	846861015650
Alternative References	CCRCHT56357K

Compatibility

Application Data

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy small block Gen I
Engine Size	4.3L/262
Engine Type	V8
Make	CHEVROLET
Model	BEL AIR
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy small block Gen I
Engine Size	4.3L/265
Engine Type	V8
Make	CHEVROLET
Model	BEL AIR
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy small block Gen I
Engine Size	4.4L/267
Engine Type	V8
Make	CHEVROLET
Model	BEL AIR
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy small block Gen I
Engine Size	4.6L/283
Engine Type	V8
Make	CHEVROLET
Model	BEL AIR
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy small block Gen I
Engine Size	4.9L/302
Engine Type	V8
Make	CHEVROLET
Model	BEL AIR
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy small block Gen I
Engine Size	5.0L/305
Engine Type	V8
Make	CHEVROLET
Model	BEL AIR
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy small block Gen I
Engine Size	5.0L/307
Engine Type	V8
Make	CHEVROLET
Model	BEL AIR
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy small block Gen I
Engine Size	5.3L/327
Engine Type	V8
Make	CHEVROLET
Model	BEL AIR
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy small block Gen I
Engine Size	5.4L/327
Engine Type	V8
Make	CHEVROLET
Model	BEL AIR
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy small block Gen I
Engine Size	5.7L/350
Engine Type	V8
Make	CHEVROLET
Model	BEL AIR
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy big block Mark IV
Engine Size	6.5L/396
Engine Type	V8
Make	CHEVROLET
Model	BEL AIR
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy small block Gen I
Engine Size	6.6L/400
Engine Type	V8
Make	CHEVROLET
Model	BEL AIR
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy big block Mark IV
Engine Size	6.6L/402
Engine Type	V8
Make	CHEVROLET
Model	BEL AIR
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy big block Mark IV
Engine Size	7.0L/427
Engine Type	V8
Make	CHEVROLET
Model	BEL AIR
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy big block Gen V
Engine Size	7.4L/454
Engine Type	V8
Make	CHEVROLET
Model	BEL AIR
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy big block Gen VI
Engine Size	7.4L/454
Engine Type	V8
Make	CHEVROLET
Model	BEL AIR
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy big block Mark IV
Engine Size	7.4L/454
Engine Type	V8
Make	CHEVROLET
Model	BEL AIR
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy small block Gen I
Engine Size	4.3L/262
Engine Type	V8
Make	CHEVROLET
Model	ONE-FIFTY SERIES
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy small block Gen I
Engine Size	4.3L/265
Engine Type	V8
Make	CHEVROLET
Model	ONE-FIFTY SERIES
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy small block Gen I
Engine Size	4.4L/267
Engine Type	V8
Make	CHEVROLET
Model	ONE-FIFTY SERIES
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy small block Gen I
Engine Size	4.6L/283
Engine Type	V8
Make	CHEVROLET
Model	ONE-FIFTY SERIES
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy small block Gen I
Engine Size	4.9L/302
Engine Type	V8
Make	CHEVROLET
Model	ONE-FIFTY SERIES
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy small block Gen I
Engine Size	5.0L/305
Engine Type	V8
Make	CHEVROLET
Model	ONE-FIFTY SERIES
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy small block Gen I
Engine Size	5.0L/307
Engine Type	V8
Make	CHEVROLET
Model	ONE-FIFTY SERIES
Transmission	Manual
Universal	No

Application Notes	Designed for models with air conditioner and includes 134A condenser. Automatic transmission applications will require an external cooler.
Beginning Year	1957
Drivetrain	RWD
Ending Year	1957
Engine Family	Chevy small block Gen I
Engine Size	5.3L/327
Engine Type	V8
Make	CHEVROLET
Model	ONE-FIFTY SERIES
Transmission	Manual
Universal	No

Loading compatibility information...
