Cold Case Radiators
Cold Case Performance Aluminum Radiator Modules for 1967-1970 MUSTANG - FOM588K Radiator, Performance, Module, Aluminum, Polished, Downflow, 2 Row, Dual Fans, Ford, Kit
radFOM588K
A$2,169.53
Cold Case Radiator Support Module Kits for 1967-1969 CAMARO, FIREBIRD - CHC11RS Radiator, Module, Aluminum, Crossflow, 2 Row, Chevy, Pontiac, Kit
Cold Case Radiator Support Module Kits for 1967-1969 CAMARO, FIREBIRD - CHC11RS Radiator, Module, Aluminum, Crossflow, 2 Row, Chevy, Pontiac, Kit
A$5,348.45
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

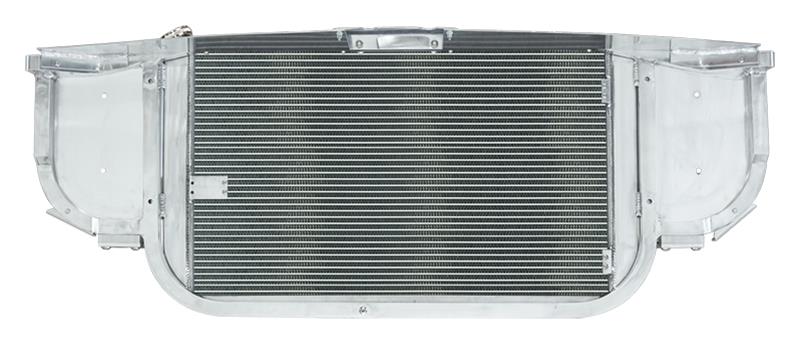

Cold Case offers radiator support module kits for a variety of applications, including 1960s era Camaro LS engine swaps. Each module comes fully assembled and ready to bolt into your vehicle. They consist of an aluminum radiator support, big 1.25 in. tube dual-core crossflow radiator, two 3600 cfm fans/shroud combination, billet cap, and billet overflow tank. These units are very popular with high-tech, high horsepower builds in which maximum cooling is a must. Available in either standard Chevrolet outlet configurations or LS outlet configurations, they're 100 percent TIG-welded and ready to paint or polish.
Radiator support module features:
* Extra forward design will clear big block and LS front drives
* Brushed aluminum finish
* 2 row design with 1.25" tubes

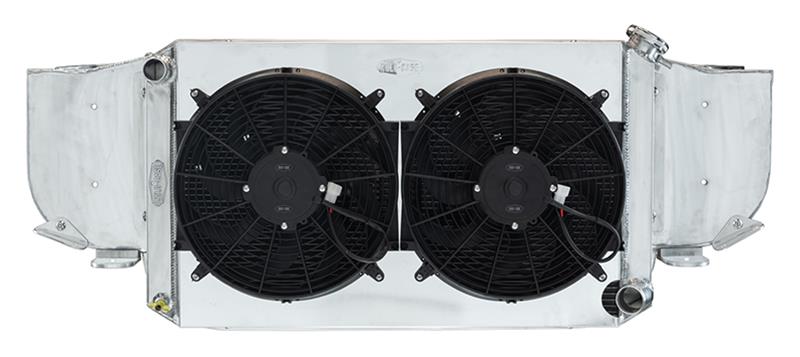

* Includes dual 14 in. 3600 cfm fans and shroud combination setup
* Easy to install even in finished cars
* Optional AC condenser and electronic fan controller upgrades available
Part Type
Radiators
Specifications
- Product Attributes - Brand
- Cold Case Radiators
- Product Attributes - Manufacturer's Part Number
- CHC11RS
- Product Attributes - Part Type
- Radiators
- Product Attributes - Product Line
- Cold Case Radiator Support Module Kits
- Product Attributes - UPC
- 846861014363
- Product Attributes - Radiator Material
- Aluminum
- Product Attributes - Radiator Style
- Crossflow
- Product Attributes - Transmission Cooler
- No
- Product Attributes - Inlet Location
- Upper driver side
- Product Attributes - Outlet Location
- Lower passenger side
- Product Attributes - Row Quantity
- 2
- Product Attributes - Radiator Finish
- Satin
- Product Attributes - Radiator Inlet Size
- 1.500 in.
- Product Attributes - Radiator Outlet Size
- 1.750 in.
- Product Attributes - Trans Cooler Adapter Fittings Included
- No
- Product Attributes - Tube Size
- 1 1/4 in.
- Product Attributes - Fan Included
- Yes
- Product Attributes - Fan Quantity
- Dual
- Product Attributes - Fan Diameter (in.)
- 14.00 in.
- Product Attributes - Maximum Fan CFM
- 3,600 cfm
- Product Attributes - Fan CFM Range
- 3,600-3,699
- Product Attributes - Blade Material
- Plastic
- Product Attributes - Blade Color
- Black
- Product Attributes - Shroud Material
- Aluminum
- Product Attributes - Shroud Color
- Satin
- Product Attributes - Radiator Cap Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Designed for models without air conditioner. Automatic transmission applications will require an external cooler.
Reference Information
| Brand Name/s | Cold Case Radiators |
|---|---|
| StreetFX SKU | radCHC11RS |
| SFX Item ID | 5025670 |
| Supplier Item Code | 5025670 |
| Manufacturer SKU | CHC11RS |
| Manufacturer UPC | 846861014363 |
| Alternative References | CCRCHC11RS |
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
