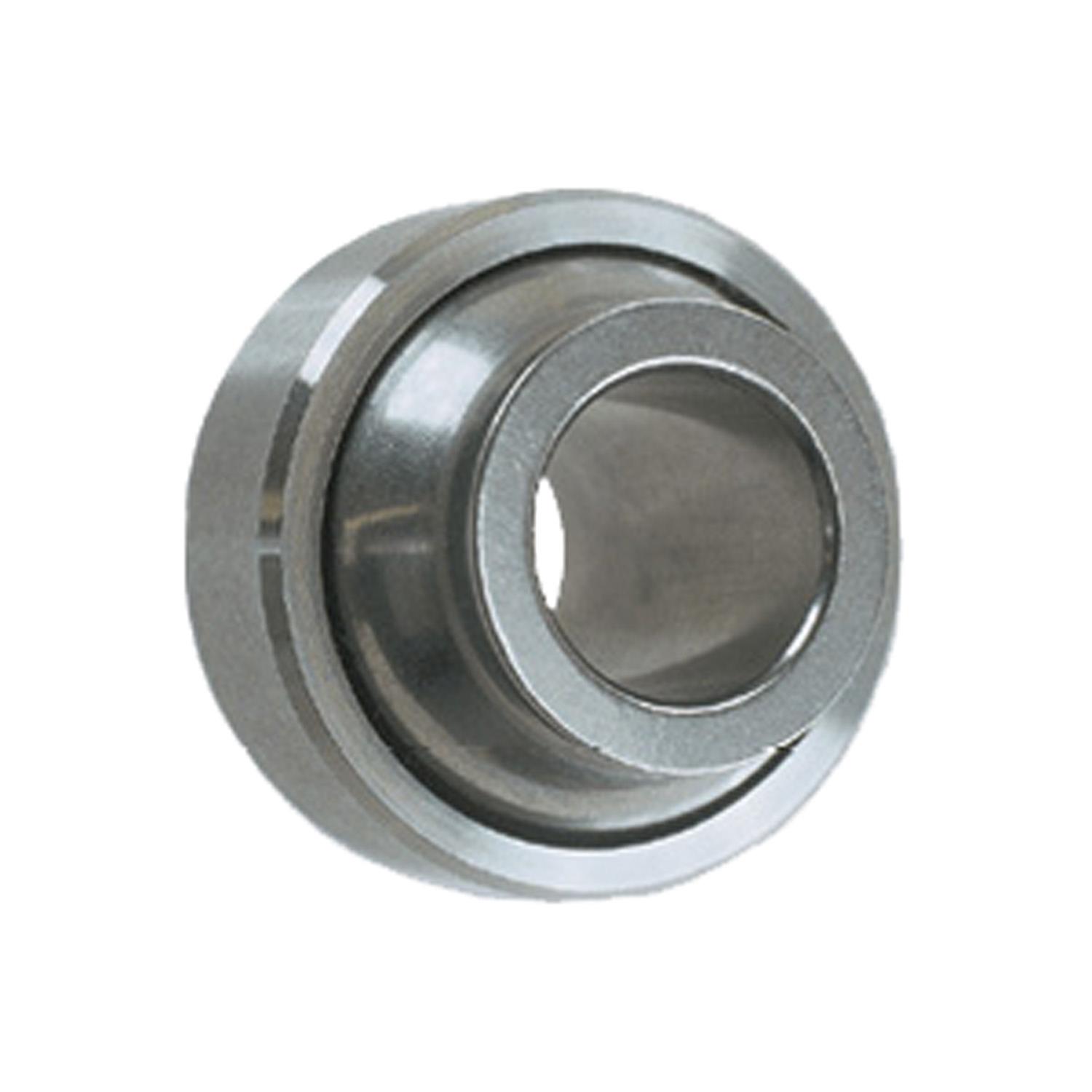

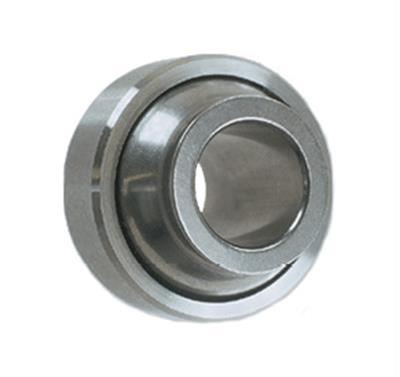

QA1 YPB-T High Misalignment Series Bearing - 1/4in Bore - Heat Treated Chrome Plated S.S. w/PTFE
QA1 YPB-T High Misalignment Series Bearing - 1/4in Bore - Heat Treated Chrome Plated S.S. w/PTFE
A$33.12
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
QA1 YPB-T Series high-misalignment stainless steel spherical bearings offer an increased misalignment angle. Providing tighter tolerances and at least double the misalignment angle of traditional spherical bearings, QA1 YPB-T bearings are an ideal choice for your high-misalignment project. These bearings are crafted with heat-treated stainless steel races and balls with self-lubricating PTFE liners. Fit your pivoting, high-load application with YPB-T Series high-misalignment stainless steel spherical bearings from QA1. They make quality and affordability #1.
Product Overview
For applications requiring high misalignment, QA1's YPB-T High Misalignment Stainless Steel Series spherical bearings are the ideal choice. Each bearing is made from Stainless Steel with a PTFE liner, has tighter tolerances and at least double the misalignment angle compared to traditional spherical bearings. The ball is made of 440C stainless steel that has been heat treated, hard chrome plated and precision ground. The PTFE liner is self-lubricating, and the race is stainless steel that has been heat treated.
Features and Benefits
- Wide selection for a variety of uses
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 YPB-T High Misalignment Series Bearing - 1/4in Bore - Heat Treated Chrome Plated S.S. w/PTFE |
| Inside Diameter: | 0.25 |
| Manufacturer Part Number: | YPB4T |
| Outside Diameter: | 0.74 |
| Part Number: | qapYPB4T |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Title: | QA1 Suspension Bearing YPB4T |
| UPC: | 806990009548 |
Part Type
Suspension Bearing
Features
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
- Wide selection for a variety of uses
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- YPB4T
- Product Attributes - Part Type
- Rod End Receiver Bearings
- Product Attributes - Product Line
- QA1 YPB-T Series High-Misalignment Stainless Steel Spherical Bearings
- Product Attributes - UPC
- 806990009548
- Product Attributes - Receiver Race Diameter
- 0.7400 in.
- Product Attributes - Race Width
- 0.255 in.
- Product Attributes - Inner Ball Width
- 0.593 in.
- Product Attributes - Inner Ball Diameter
- 0.2500 in.
- Product Attributes - Rod End Ball Diameter
- 0.593 in.
- Product Attributes - Chamfer Reference
- 0.020 in.
- Product Attributes - Rod End Misalign Angle
- 24 degrees
- Product Attributes - ULT. Static Radial Load (lbs.)
- 7,560 lbs.
- Product Attributes - Rod End Bearing Material
- Stainless steel
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- The bearing and race are stainless steel. This is a PTFE lined self lubricating bearing.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapYPB4T |
| SFX Item ID | 4095728 |
| Supplier Item Code | 4095728 |
| Manufacturer SKU | YPB4T |
| Manufacturer UPC | 806990009548 |
| Alternative References | qa1, QA1-YPB4T, 1/4in |
