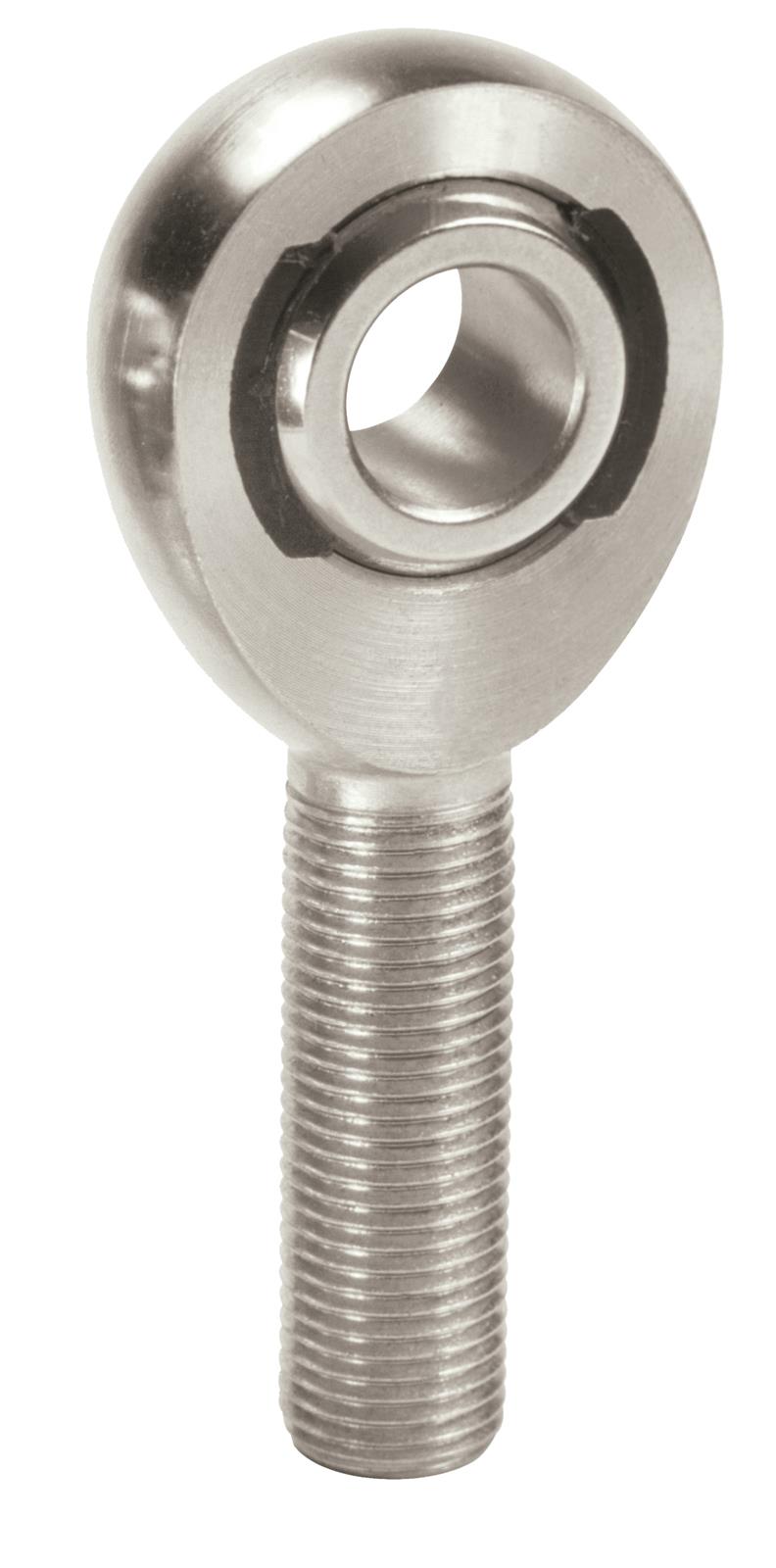

QA1 X Series Endura Rod End - Male/Left Hand - .25in Bore x 5/16-24 - Alloy Steel
QA1 X Series Endura Rod End - Male/Left Hand - .25in Bore x 5/16-24 - Alloy Steel
A$25.61
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
For the ultimate in performance rod ends, look no further than QA1's XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out. The ball is made of 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The PTFE race is self-lubricating and self-sealing, and the body is made from heat treated chromoly steel that has a protective coating for corrosion resistance. EXCLUSIVE FEATURES: Metal to metal support for heavy shock loads and increased cross-sectional thickness for greater tensile strength.
Product Overview
For the ultimate in performance rod ends, look no further than QA1's XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out. The ball is made of 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The PTFE race is self-lubricating and self-sealing, and the body is made from heat treated chromoly steel that has a protective coating for corrosion resistance. EXCLUSIVE FEATURES: Metal to metal support for heavy shock loads and increased cross-sectional thickness for greater tensile strength.
Features and Benefits
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 X Series Endura Rod End - Male/Left Hand - .25in Bore x 5/16-24 - Alloy Steel |
| Gasket Or Seal Included: | No |
| Inside Diameter: | 0.25 |
| Manufacturer Part Number: | XML4-5 |
| Outside Diameter: | 0.875 |
| Part Number: | qapXML4-5 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Race Included: | Yes |
| Title: | QA1 Suspension Rod End Bearing XML4-5 |
| UPC: | 806990007513 |
| Width: | 0.375 |
Part Type
Suspension Rod End Bearing
Features
- Guaranteed strength, durability and quality champions demand
- Precise tolerances
- Rod ends for every motorsport need
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- XML4-5
- Product Attributes - Part Type
- Rod Ends
- Product Attributes - Product Line
- QA1 X Series Rod Ends
- Product Attributes - UPC
- 806990007513
- Product Attributes - Rod End Thread Size
- 5/16 in.-24 LH
- Product Attributes - Rod End Attachment
- Male threads
- Product Attributes - Rod End Head Bore Size
- 0.250 in.
- Product Attributes - Rod End Construction
- 2-piece
- Product Attributes - Jam Nut Included
- No
- Product Attributes - Rod End Style
- PTFE/Kevlar® lined
- Product Attributes - Thread Length
- 1.250 in.
- Product Attributes - Rod End Head Diameter
- 0.875 in.
- Product Attributes - Rod End Head Width
- 0.375 in.
- Product Attributes - Grease Fitting
- No
- Product Attributes - Rod End Centerline Length
- 1.875 in.
- Product Attributes - Heat-Treated
- Yes
- Product Attributes - Rod End Ball Width
- 0.375 in.
- Product Attributes - Rod End Misalign Angle
- 13 degrees
- Product Attributes - Rod End Static Load Capacity
- 8,452 lbs.
- Product Attributes - Rod End Material
- Chromoly
- Product Attributes - Rod End Finish
- Zinc plated
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapXML4-5 |
| SFX Item ID | 4095673 |
| Supplier Item Code | 4095673 |
| Manufacturer SKU | XML4-5 |
| Manufacturer UPC | 806990007513 |
| Alternative References | qa1, QA1-XML4-5, .25in |
