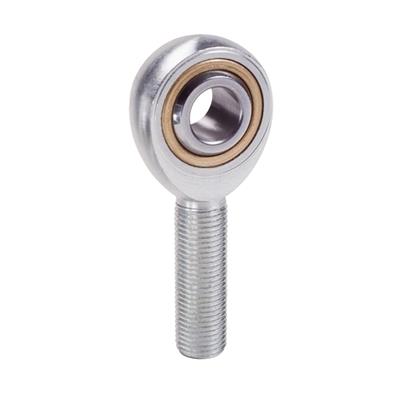

QA1 V Series 3-Pc Rod End - Male/Left Hand - 5mm Bore x M5x.08 - Carbon Steel
QA1 V Series 3-Pc Rod End - Male/Left Hand - 5mm Bore x M5x.08 - Carbon Steel
A$17.48
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
These QA1 V Series rod ends are designed for excellent durability. They feature a carbon steel body with a protective coating for corrosion resistance and a heat-treated 52100 steel ball bearing that is precision-ground and hard chrome plated. The rod ends use a sintered bronze race and are oil-impregnated. The QA1 V Series rod ends use unique, 4-piece construction to provide high strength and reliability.
Product Overview
QA1's Bronze Race Carbon Steel rod ends are generally appropriate for low load, high oscillation applications. These rod ends are protective coated for corrosion resistance and are available with left and right hand threads. The ball is made of 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The race is oil impregnated sintered bronze, and the body is carbon steel with a protective coating for corrosion resistance.
Features and Benefits
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 V Series 3-Pc Rod End - Male/Left Hand - 5mm Bore x M5x.08 - Carbon Steel |
| Gasket Or Seal Included: | No |
| Inside Diameter: | 0.3125 |
| Manufacturer Part Number: | VML5 |
| Outside Diameter: | 0.875 |
| Part Number: | qapVML5 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Race Included: | Yes |
| Title: | QA1 Suspension Rod End Bearing VML5 |
| UPC: | 806990018748 |
| Width: | 0.437 |
Part Type
Suspension Rod End Bearing
Features
- Guaranteed strength, durability and quality champions demand
- Precise tolerances
- Rod ends for every motorsport need
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- VML5
- Product Attributes - Part Type
- Rod Ends
- Product Attributes - Product Line
- QA1 V Series Rod Ends
- Product Attributes - UPC
- 806990018748
- Product Attributes - Rod End Thread Size
- 5/16 in.-24 LH
- Product Attributes - Rod End Attachment
- Male threads
- Product Attributes - Rod End Head Bore Size
- 0.313 in.
- Product Attributes - Rod End Construction
- 3-piece
- Product Attributes - Jam Nut Included
- No
- Product Attributes - Rod End Style
- Metal to metal
- Product Attributes - Thread Length
- 1.250 in.
- Product Attributes - Rod End Head Diameter
- 0.875 in.
- Product Attributes - Rod End Head Width
- 0.437 in.
- Product Attributes - Grease Fitting
- No
- Product Attributes - Rod End Centerline Length
- 1.875 in.
- Product Attributes - Heat-Treated
- Yes
- Product Attributes - Rod End Ball Width
- 0.437 in.
- Product Attributes - Rod End Misalign Angle
- 14 degrees
- Product Attributes - Rod End Static Load Capacity
- 2,784 lbs.
- Product Attributes - Rod End Material
- Carbon steel
- Product Attributes - Rod End Finish
- Zinc plated
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Only rod end ball is heat-treated.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapVML5 |
| SFX Item ID | 4095557 |
| Supplier Item Code | 4095557 |
| Manufacturer SKU | VML5 |
| Manufacturer UPC | 806990018748 |
| Alternative References | qa1, QA1-VML5, 3-Pc, 5mm, M5x.08 |
