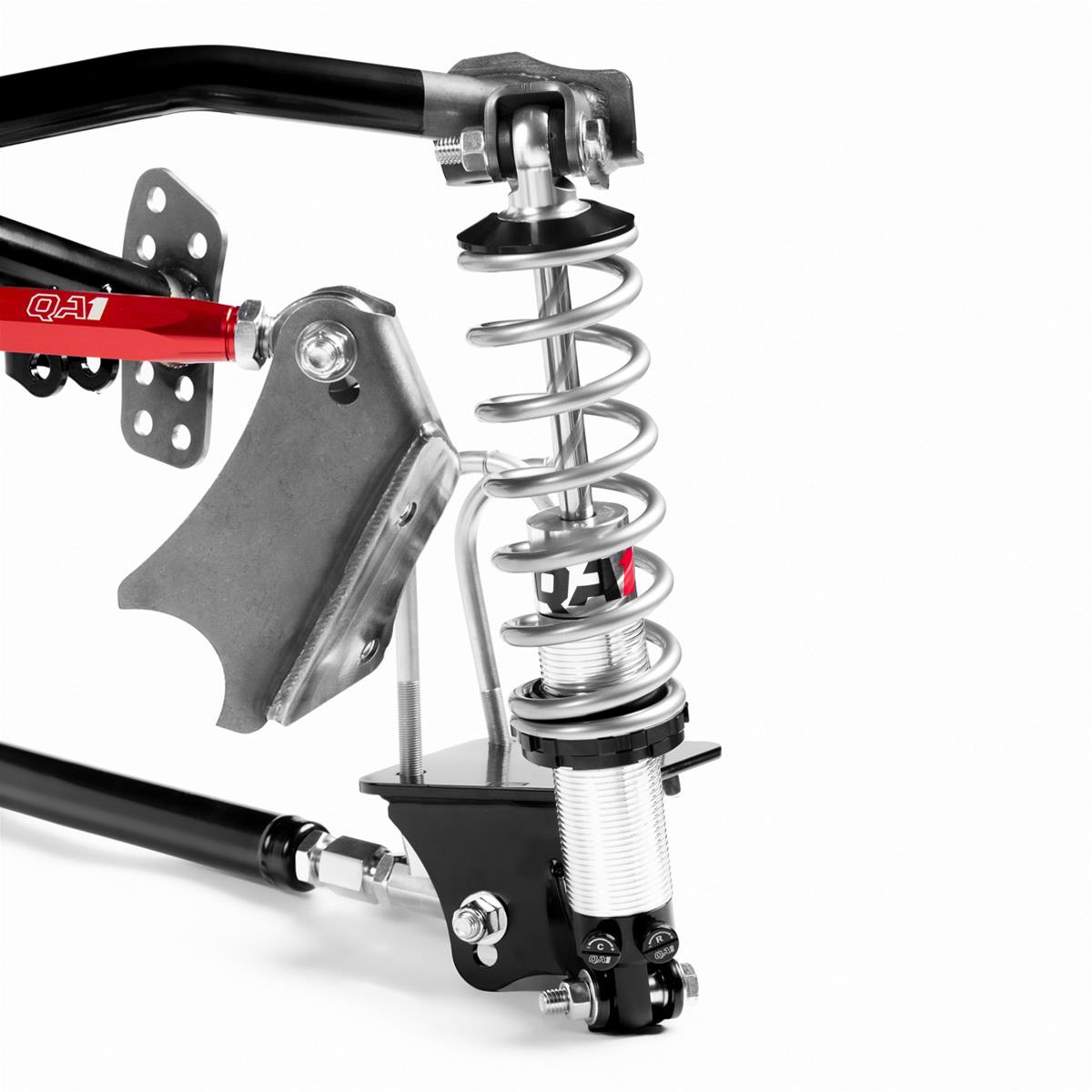

QA1 70-81 GM F Body Four Link Kit Stage 1 Double Adjustment
QA1 70-81 GM F Body Four Link Kit Stage 1 Double Adjustment
A$5,680.56
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
IMPORTANT NOTICE: Exhaust modification required. Will not work with over the axle exhaust. Welding Required. QA1 Subframe Connectors strongly recommended.
Ditch those clunky leaf springs and take control of your rear suspension with QA1's coilovers and triangulated 4-link conversions. This upgrade improves ride quality, enhances handling performance, and enables you to dial in the perfect stance. With the added benefit of accommodating wider wheels and tires, this kit is the ideal solution for your car.
QA1's 4-link conversion delivers handling control without compromising your daily comfort. Perfect for both street and track use, adjustable shocks are famous for their tunability, giving you exceptional handling and control and finer control over your suspension.
Thoughtful design meets effortless installation requiring minimal welding. You'll experience a painless installation and setup process, where adjusting ride height, pinion angle, or wheelbase is as simple as a few tweaks – no link removal required. No modifications to floor pan required.
Product Overview
Product Overview Ditch those clunky leaf springs and take control of your 1970-1981 2nd Gen F-body with QA1's coilovers and triangulated 4-link. This upgrade improves ride quality, enhances handling performance, and enables you to dial in the perfect stance. With the added benefit of accommodating wider wheels and tires, this kit is the ideal solution for your car. Achieve a Lowered, more Aggressive Stance Leaf springs limit your ability to achieve the perfect stance and require modifications to tune ride height. Give your Camaro or Firebird a sleek, aggressive, lowered look with QA1's tubular 4-link. This kit provides an optimized ride height that improves handling, roll center, and center of gravity. QA1 coilovers offer height adjustability that can be dialed in with ease. Fit Wider Wheels & Tires Designed to work with both standard and mini-tubs, this system offers generous clearance for up to 12-inch-wide wheels and 335 tires. Note: Achieving maximum wheel and tire width will require mini tubs. Improved Handling and Stability QA1 4-link delivers handling control without compromising your daily comfort. Perfect for both street and track use, double adjustable shocks are famous for their independent rebound and compression tunability, giving you exceptional handling and finer control over your suspension. Easy, Installation & Adjustment Thoughtful design meets effortless installation requiring minimal welding. You'll experience a painless install and setup process, where adjusting ride height, pinion angle, or wheelbase is as simple as a few tweaks. Fitment Notes Typical ride height range from axle centerline to fender arch is 10.75 to 12 for Camaros, and 13.75 to 15 on Firebirds. Wheel and tire fitment should be verified on the vehicle. Exhaust modification required. Will not work with over the axle exhaust. Welding Required. Includes Spanner Wrench. QA1 Subframe Connectors strongly recommended.
Features and Benefits
- Improve ride quality
- Enhance handling and stability
- Dial in the perfect stance
- Fit wider wheels and tires
- Best-in-class warranty
- Made in the USA
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 70-81 GM F Body Four Link Kit Stage 1 Double Adjustment |
| Manufacturer Part Number: | R257-170 |
| Part Number: | qapR257-170 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Title: | QA1Suspension Kit R257-170 |
| UPC: | 806990175571 |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |
qapDK42-GMF2 | QA1 70-74 GM F-Body Level 2 Drag Kit 2.0 w/ Shocks (1x qap5252, 1x qap52918, 1x qap52920, 1x qap7888-109, 1x qapGD501-10350C, 1x qapR257-170, 1x qap52828, 1x qap52094) |
 |
qapDK52-GMF2 | QA1 75-81 GM F-Body Level 2 Drag Kit 2.0 w/ Shocks (1x qap5252, 1x qap52918, 1x qap52920, 1x qap7888-109, 1x qapGD501-10350C, 1x qapR257-170, 1x qap52828, 1x qap52094) |
 |
qapHK42-GMF2 | QA1 70-74 GM F-Body Level 2 Handling Kit 2.0 w/ Shocks (1x qap5252, 1x qap52718, 1x qap52720, 1x qap52893, 1x qap7888-109, 1x qapGD501-10450C, 1x qapR257-170, 1x qap52828, 1x qap52094) |
 |
qapHK52-GMF2 | QA1 75-81 GM F-Body Level 2 Handling Kit 2.0 w/ Shocks (1x qap5252, 1x qap52718, 1x qap52720, 1x qap52893, 1x qap7888-109, 1x qapGD501-10450C, 1x qapR257-170, 1x qap52828, 1x qap52095) |
Part Type
Coilover Adjustable Spring Lowering Kit
Features
- Best-in-class warranty
- Dial in the perfect stance
- Enhance handling and stability
- Fit wider wheels and tires
- Improve ride quality
- Made in the USA
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- R257-170
- Product Attributes - Part Type
- Rear Suspension Packages
- Product Attributes - Product Line
- QA1 Four Link Conversions
- Product Attributes - UPC
- 806990175571
- Product Attributes - Third Member Included
- No
- Product Attributes - Axle Shafts Included
- No
- Product Attributes - Upper Control Arms Included
- No
- Product Attributes - Lower Control Arms Included
- No
- Product Attributes - Air Bags Included
- No
- Product Attributes - Rear Shocks/Struts Included
- Yes
- Product Attributes - Rear Shock Type
- Double adjustable coilover
- Product Attributes - Coilover Springs Included
- Yes
- Product Attributes - Coilover Spring Rate (lbs/in)
- 170 lbs./in.
- Product Attributes - Spring Finish
- Gray/Silver
- Product Attributes - Suspension Package Finish
- Black powdercoated
- Product Attributes - Bushings Included
- Yes
- Product Attributes - Bushing Material
- Polyurethane
- Product Attributes - Bushing Color
- Black
- Product Attributes - Sway Bar Included
- No
- Product Attributes - Watts Link Included
- No
- Product Attributes - Panhard Bar Included
- No
- Product Attributes - Adjustable Panhard Bar Included
- No
- Product Attributes - Upper Trailing Arms Included
- No
- Product Attributes - Adjustable Upper Trailing Arms Included
- No
- Product Attributes - Lower Trailing Arms Included
- Yes
- Product Attributes - Adjustable Lower Trailing Arms Included
- Yes
- Product Attributes - Adjustable Lower Trailing Arms Type
- Single adjustable
- Product Attributes - Trailing Arm Mount Braces Included
- Yes
- Product Attributes - Trailing Arm Hardware Included
- Yes
- Product Attributes - Rotors Included
- No
- Product Attributes - Calipers Included
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Exhaust modification required. Will not work with over the axle exhaust. Welding Required. QA1 Subframe Connectors strongly recommended.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapR257-170 |
| SFX Item ID | 4096238 |
| Supplier Item Code | 4096238 |
| Manufacturer SKU | R257-170 |
| Manufacturer UPC | 806990175571 |
| Alternative References | qa1, QA1R257-170 |
