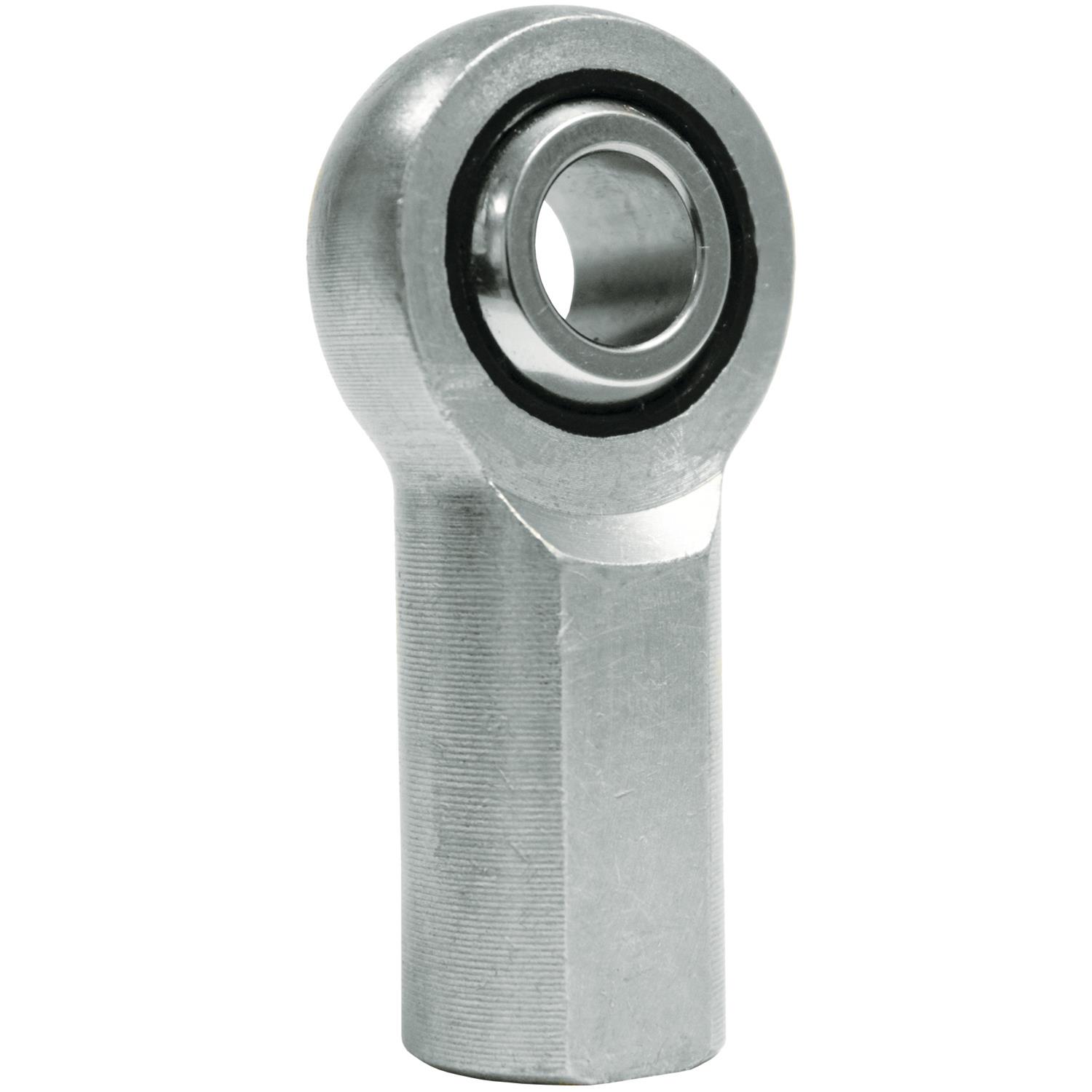

QA1 N Series Injection Molded Rod End - Female/Right Hand - .19in Bore x 3/16-24 - Carbon Steel
QA1 N Series Injection Molded Rod End - Female/Right Hand - .19in Bore x 3/16-24 - Carbon Steel
A$11.97
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
These QA1 N Series rod ends feature an injection-molded race compound designed to provide low friction, low moisture absorbing properties, and high wear resistance. They are unique in the industry--no holes need to be drilled in the rod ends' bodies, thereby allowing the rod ends to maintain their full strength and integrity. The ball is manufactured from heat-treated 52100 bearing steel and then hard chrome plated for maximum durability. The race is reinforced nylon 12 with PTFE and the body is manufactured from carbon steel with a protective finish applied for corrosion resistance.
Product Overview
QA1's Injection Molded Carbon Steel rod ends are generally appropriate for low load, moderate oscillation applications. These PTFE Nylon 12 reinforced rod ends are protective coated for corrosion resistance and are available with left and right hand threads. This series features a molded race compound designed to provide low friction, low moisture absorbing properties and high wear resistance. QA1's Injection Molded Series design is unique in the industry since no holes need to be drilled in the rod end body, thereby allowing the rod end to maintain its full strength and integrity. The ball is made from 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The race is made from reinforced nylon 12 with PFTE, and the body is carbon steel that is protective coated. Notes: Stud configurations are available.
Features and Benefits
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 N Series Injection Molded Rod End - Female/Right Hand - .19in Bore x 3/16-24 - Carbon Steel |
| Gasket Or Seal Included: | No |
| Inside Diameter: | 0.19 |
| Manufacturer Part Number: | NFR3 |
| Outside Diameter: | 0.625 |
| Part Number: | qapNFR3 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Race Included: | Yes |
| Title: | QA1 Suspension Rod End Bearing NFR3 |
| UPC: | 806990022127 |
| Width: | 0.312 |
Part Type
Suspension Rod End Bearing
Features
- Guaranteed strength, durability and quality champions demand
- Precise tolerances
- Rod ends for every motorsport need
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- NFR3
- Product Attributes - Part Type
- Rod Ends
- Product Attributes - Product Line
- QA1 N Series Rod Ends
- Product Attributes - UPC
- 806990022127
- Product Attributes - Rod End Thread Size
- 10-32
- Product Attributes - Rod End Attachment
- Female threads
- Product Attributes - Rod End Head Bore Size
- 0.190 in.
- Product Attributes - Rod End Construction
- 1-piece
- Product Attributes - Jam Nut Included
- No
- Product Attributes - Rod End Style
- Nylon lined
- Product Attributes - Thread Length
- 0.562 in.
- Product Attributes - Rod End Head Diameter
- 1.062 in.
- Product Attributes - Rod End Head Width
- 0.312 in.
- Product Attributes - Grease Fitting
- No
- Product Attributes - Rod End Centerline Length
- 1.062 in.
- Product Attributes - Heat-Treated
- Yes
- Product Attributes - Rod End Ball Width
- 0.312 in.
- Product Attributes - Rod End Misalign Angle
- 13 degrees
- Product Attributes - Rod End Material
- Carbon steel
- Product Attributes - Rod End Finish
- Zinc plated
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Only rod end ball is heat-treated.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapNFR3 |
| SFX Item ID | 4095053 |
| Supplier Item Code | 4095053 |
| Manufacturer SKU | NFR3 |
| Manufacturer UPC | 806990022127 |
| Alternative References | qa1, QA1-NFR3, .19in |
