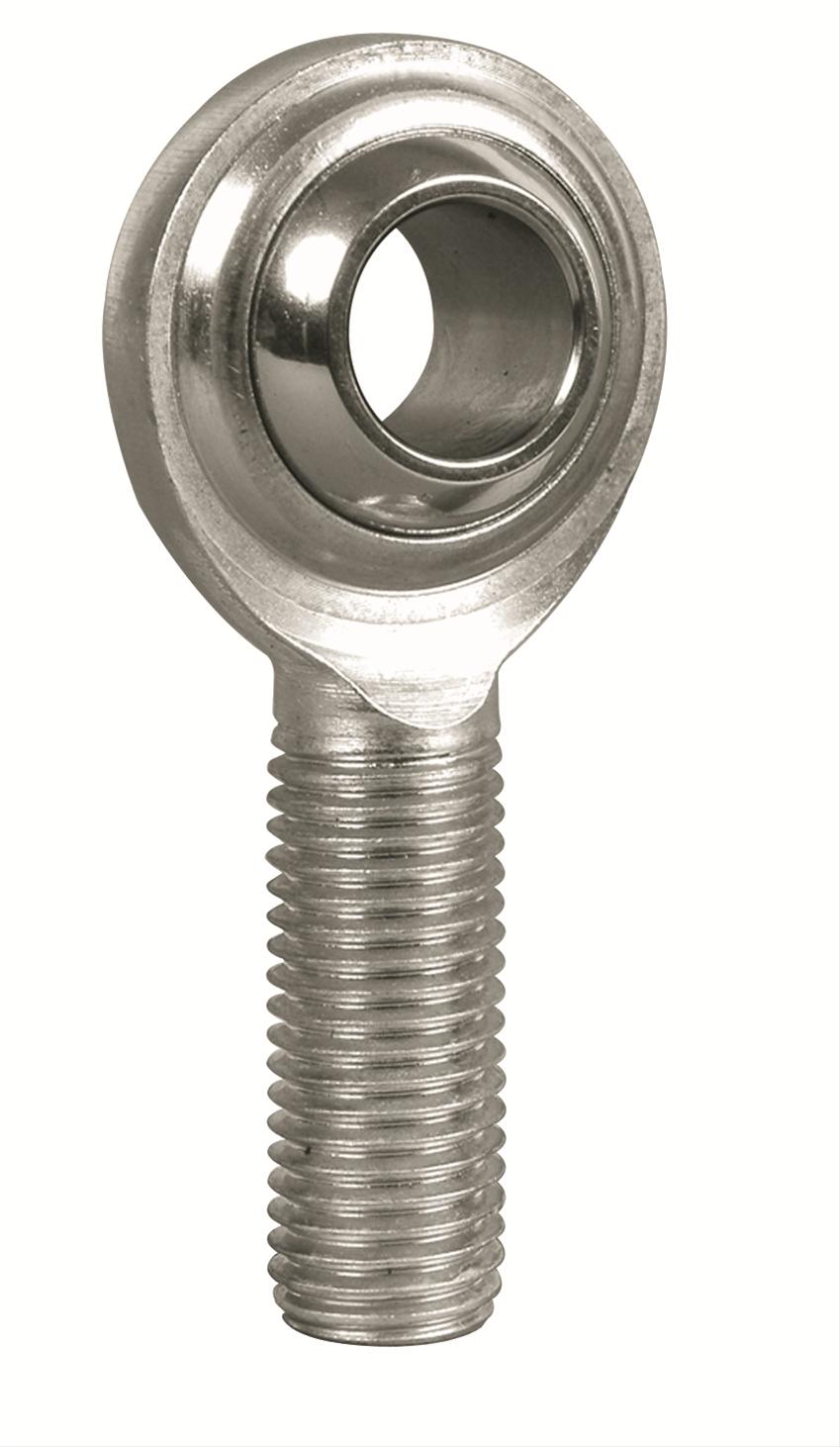

QA1 C Series 2-Pc Rod End - Male/Right Hand - 16mm Bore x M16x2.0 - Carbon Steel
QA1 C Series 2-Pc Rod End - Male/Right Hand - 16mm Bore x M16x2.0 - Carbon Steel
A$42.88
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
QA1 MC Series rod ends feature solid 2-piece construction and a metal to metal design. They have a body made from carbon steel with a protective coating applied for corrosion resistance. The rod ends use a precision-ground, heat-treated, hard chrome plated, 52100 bearing steel ball for maximum strength. The QA1 MC Series rod ends are available in both male and female configurations and are offered in a variety of sizes to suit your application's needs.
Product Overview
For a traditional carbon steel metric two-piece rod end, QA1 offers its CM Carbon Steel Series rod ends. These metric metal-to-metal rod ends are protective coated for corrosion resistance and are available in both metric and inch dimensions with left and right hand threads. Grease fittings and stud configurations are available by calling 800-721-7761. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , BODY, Carbon Steel, Protective Coated for Corrosion Resistance, , Notes: Load ratings apply only to rod ends without grease fittings. For ratings with grease fittings, please contact QA1. For sizes 2, 3, 3-4, 4, 4-5, 5 and 5-6, grease fittings are not available.
Features and Benefits
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 C Series 2-Pc Rod End - Male/Right Hand - 16mm Bore x M16x2.0 - Carbon Steel |
| Gasket Or Seal Included: | No |
| Inside Diameter: | 16 |
| Manufacturer Part Number: | MCMR16 |
| Outside Diameter: | 38 |
| Part Number: | qapMCMR16 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Race Included: | Yes |
| Title: | QA1 Suspension Rod End Bearing MCMR16 |
| UPC: | 806990016409 |
| Width: | 21 |
Part Type
Suspension Rod End Bearing
Features
- Guaranteed strength, durability and quality champions demand
- Precise tolerances
- Rod ends for every motorsport need
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- MCMR16
- Product Attributes - Part Type
- Rod Ends
- Product Attributes - Product Line
- QA1 MC Series Rod Ends
- Product Attributes - UPC
- 806990016409
- Product Attributes - Rod End Thread Size
- M16 x 2.0
- Product Attributes - Rod End Attachment
- Male threads
- Product Attributes - Rod End Head Bore Size
- 16.000mm
- Product Attributes - Rod End Construction
- 2-piece
- Product Attributes - Jam Nut Included
- No
- Product Attributes - Rod End Style
- Metal to metal
- Product Attributes - Thread Length
- 40.000mm
- Product Attributes - Rod End Head Diameter
- 38.000mm
- Product Attributes - Rod End Head Width
- 21.000mm
- Product Attributes - Grease Fitting
- No
- Product Attributes - Rod End Centerline Length
- 66.000mm
- Product Attributes - Heat-Treated
- Yes
- Product Attributes - Rod End Ball Width
- 21.000mm
- Product Attributes - Rod End Misalign Angle
- 33 degrees
- Product Attributes - Rod End Static Load Capacity
- 27,578 lbs.
- Product Attributes - Rod End Material
- Carbon steel
- Product Attributes - Rod End Finish
- Zinc plated
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Only rod end ball is heat-treated.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapMCMR16 |
| SFX Item ID | 4094549 |
| Supplier Item Code | 4094549 |
| Manufacturer SKU | MCMR16 |
| Manufacturer UPC | 806990016409 |
| Alternative References | qa1, QA1-MCMR16, 2-Pc, 16mm, M16x2.0 |
