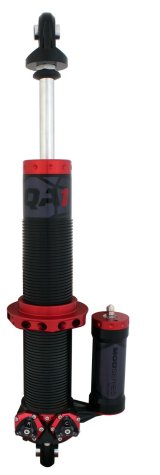

QA1 MOD Series Coil-Over Shock Absorber - Piggyback - Right Hand - Bearing Mount - 11.5in/16.875in
QA1 MOD Series Coil-Over Shock Absorber - Piggyback - Right Hand - Bearing Mount - 11.5in/16.875in
A$2,009.35
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
QA1 MOD Series coilover shocks put the ability to re-valve your shocks—on your car—into the palm of your hand.
These innovative shocks feature QuickTune Technology, an industry-first that provides the ability to adapt to any track, any conditions, any time. The technology consists of interchangeable, dry modular valve pack assemblies, that can be thought of as dozens of finely tuned shocks you can hold in the palm of your hand. They define the valving curve of the shocks and can be changed without interrupting the oil pathways.
Simply unscrew from the shock, bolt-in another one with a new pre-determined valving range—and you're ready to go. There's no mess, no contamination, no air intrusion, and no downtime waiting on someone to re-valve your shocks. Ideal for Circle Track and Street/Strip applications, the shocks are available in a variety of extended and collapsed length models to best fit your vehicle.
Additional benefits and features of QA1 MOD Series shocks:
* Design delivers force, control, and unmatched tenability
* Hard anodized aluminum bodies with PTFE—durable, non-galling surface
* Double-adjustable shocks with low-speed bleed adjustments
* Large solid piston (with blow-off valve)—improved driver feel and control with up to 1,600 lb. force
* High-speed valving adjustment (coarse adjustment)—relates to shock operation during impact events, like hitting a pothole or curb
* 24 clicks/settings—wider range of adjustment than comparable shocks
* Indexable base eyelet—multiple mounting position to optimize knob access and provide more mounting flexibility
* Low-speed valving (fine-tune adjustments)—adjusts ride quality and weight transfer on corner entry/exit; more bleed for softer feel and less bleed for stiffer feel
* Piggyback or remote canister options
* Unique spring adjuster nut and tool
* Thrust bearings included
* Superior thermal performance, as oil is in constant contact with outer body
* One base shock can be upgraded over time to keep up with increased performance levels of your vehicle
Product Overview
soft or firm compression and rebound valve packs also available. Once the desired valving is in place, the unique double adjustable design, with adjustable low-speed bleed, allows for fully independent control over the compression and rebound characteristics. With all these adjustability options, the MOD Series shock achieves an expansive force curve capability and an unprecedented level of tunability. The shock also features mounting adjustability to accommodate a variety of vehicles and mounting configurations. The nitrogen-charged canister is available in a piggyback or remote configuration for ease of installation in tight areas, and the base eyelet is indexable, so you can unbolt it and reattach it at the angle you need for the best shock and canister placement. Like all QA1 shocks, the MOD Series shock is 100% dyno tested and serialized and proudly made in QA1's Lakeville, Minnesota facility.
Features and Benefits
- 4-way adjustable high and low speed bleed
- QuickTune Technology: dry modular valve packs that can easily be swapped out
- Valve packs shock can quickly and easily be revalved without interrupting the oil path or opening the shock up for debris and air contamination
- Remote or piggyback canister mounting options
- 100% dyno tested and serialized
- Made in the USA
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 MOD Series Coil-Over Shock Absorber - Piggyback - Right Hand - Bearing Mount - 11.5in/16.875in |
| Manufacturer Part Number: | M511PR |
| Part Number: | qapM511PR |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Title: | QA1 Shock Absorber M511PR |
| UPC: | 806990154033 |
Part Type
Coilover
Features
- 100% dyno tested and serialized
- 4-way adjustable high and low speed bleed
- Made in the USA
- QuickTune Technology: dry modular valve packs that can easily be swapped out
- Remote or piggyback canister mounting options
- Valve packs shock can quickly and easily be revalved without interrupting the oil path or opening the shock up for debris and air contamination
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- M511PR
- Product Attributes - Part Type
- Coilover Shocks and Struts
- Product Attributes - Product Line
- QA1 MOD Series Coilover Shocks
- Product Attributes - UPC
- 806990154033
- Product Attributes - Coilover Shock Type
- Double-adjustable
- Product Attributes - Shock Body Material
- Aluminum
- Product Attributes - Shock Body Finish
- Black
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Number of Valving Selections
- 576
- Product Attributes - Extended Length (in.)
- 16.88
- Product Attributes - Collapsed Length (in.)
- 11.50
- Product Attributes - Upper Mount
- Eyelet
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Internal Design
- Twin-tube
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Bushing Material
- Spherical bearing
- Product Attributes - Bushing Color
- Natural
- Product Attributes - Coilover Springs Included
- No
- Product Attributes - Adjustable Mounting Bracket Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Piggyback canister mounted to the base of the shock.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapM511PR |
| SFX Item ID | 4094457 |
| Supplier Item Code | 4094457 |
| Manufacturer SKU | M511PR |
| Manufacturer UPC | 806990154033 |
| Alternative References | qa1, QA1-M511PR, 11.5in/16.875in |
