QA1 75-81 GM F-Body Level 2 Handling Kit 2.0 w/ Shocks (Bundled Kit)
QA1 75-81 GM F-Body Level 2 Handling Kit 2.0 w/ Shocks (Bundled Kit)
A$14,016.33
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
QA1's handling suspension kits provide a full-vehicle upgrade that fits your needs. Available in three different levels of performance, you can build your car in stages, using QA1's parts list as a road map to get to the level of performance you want and have peace of mind knowing you won't have compatibility issues.
Greater control and improved cornering are key benefits of QA1 Level 2 handling suspension kits. They're designed to boost performance and include a more extensive assembly of components than Level 1 kits. They offer easy bolt-on installation and full compatibility with the OEM parts you attach them to. All QA1 handling suspension kits are available with or without shocks and struts—giving you the flexibility to obtain the shocks or struts and spring rates you desire. Select the kit designed for your vehicle.
Product Overview
Product Overview QA1's Level 2 Handling Kit is a complete solution for 2nd Gen F-body owners who love twisty back roads and weekend track day events. This complete solution replaces your entire front and rear suspension, optimizing ride quality and handling performance. The coilovers offer adjustable ride height, while the rear suspension was optimized for wider wheels and tires. Bind Free, Light-weight Front Suspension QA1's tubular front control arms stand out as some of the lightest available in the market. Low friction polyurethane bushings reduce flex and deliver bind-free movement. When paired with QA1's double adjustable Pro-Coil coilovers, and front sway bar this kit offers plenty of control. Achieve the Perfect Stance Factory coil springs and leaf springs limit your ability to achieve the perfect stance on your Camaro or Firebird. Upgrading to QA1's coilovers and a tubular 4-link provides 0 to -2 inches of adjustability in the front and 1.25 inches of height adjustability in the rear. Fit Wider Wheels & Tires Designed to work with both standard and mini-tubs, the rear system offers generous clearance for up to 12-inch-wide wheels and 335 tires. Note: Achieving maximum wheel and tire width will require mini tubs. Improved Performance and Stability Perfect for both street and track use, double adjustable shocks are famous for their independent rebound and compression tunability. Easy, Installation & Adjustment Thoughtful design meets effortless installation with a completely bolt-in front suspension and a 4-link requiring minimal welding. You'll experience a painless installation and setup process. Fitment Notes Rear ride height range from axle centerline to fender arch is 10.75 to 12 for Camaros, and 13.75 to 15 on Firebirds. Wheel and tire fitment should be verified on the vehicle Welding Required Includes Spanner Wrench QA1 Subframe Connectors strongly recommended May require Exhaust Modification
Features and Benefits
- 3 levels of kits to choose from for better launch, straight-line stability & consistent performance
- Build in stages
- Carefully curated for maximum performance
- Ultimate ride height and shock tunability
- Strong, lightweight tubular components
- Best-in-class warranty
- Made in the USA
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 75-81 GM F-Body Level 2 Handling Kit 2.0 w/ Shocks |
| Manufacturer Part Number: | HK52-GMF2 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Title: | QA1Suspension Kit HK52-GMF2 |
| UPC: | 806990175533 |
This is a group bundle consisting of:
| Image | Qty | SKU | MFR SKU | UPC | Description |
|---|---|---|---|---|---|
 | 1x | qap7888-109 | 7888-109 | 806990017376 | QA1 2-1/2in Thrust Bearing Kit w/Washers for 2 Shocks |

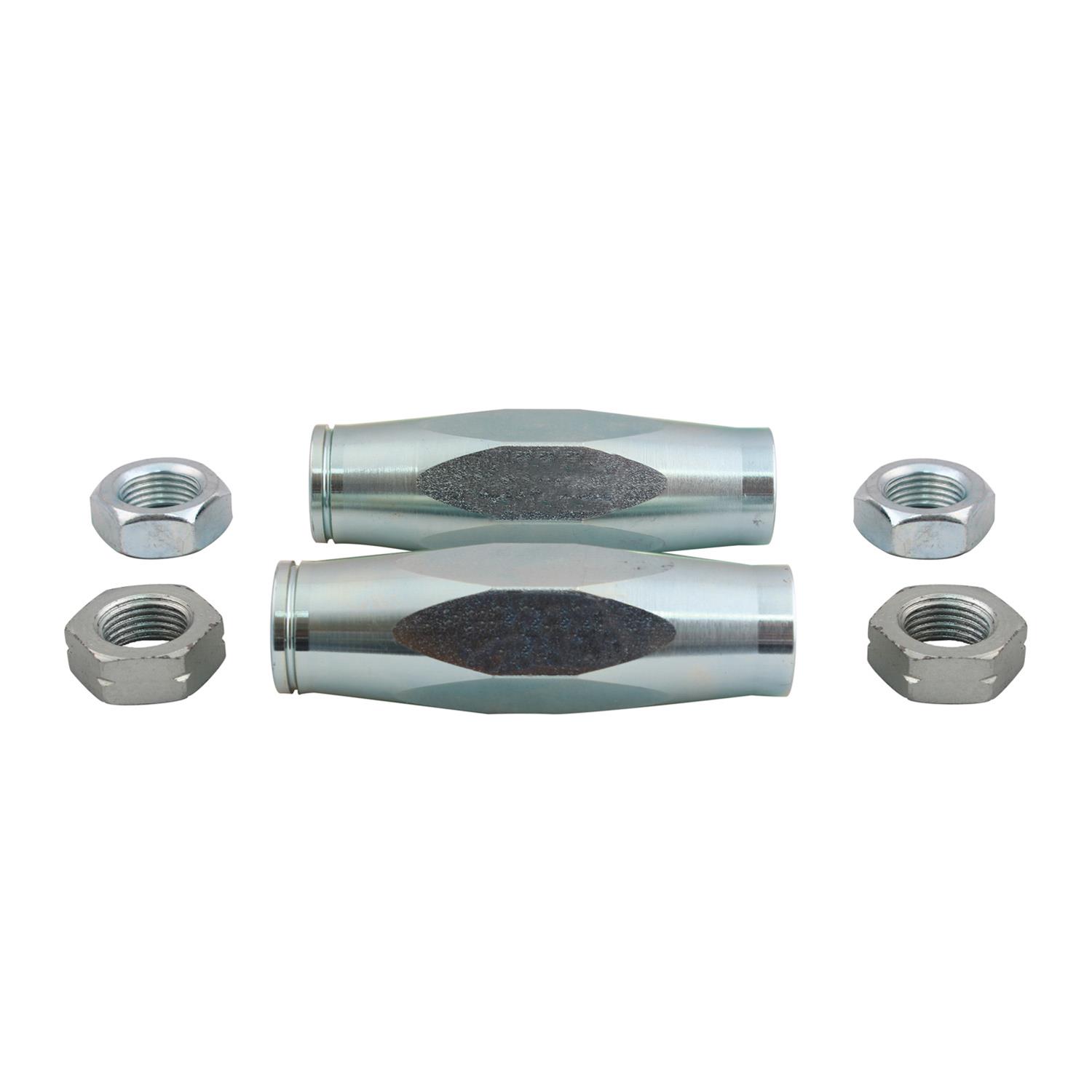

 | 1x | qap5252 | 5252 | 806990065285 | QA1 Heavy Duty Tie Rod Sleeve Kit - 11/16-18 x 3.5in Sleeve - 11/16-18 Thread x 4.28in Long |

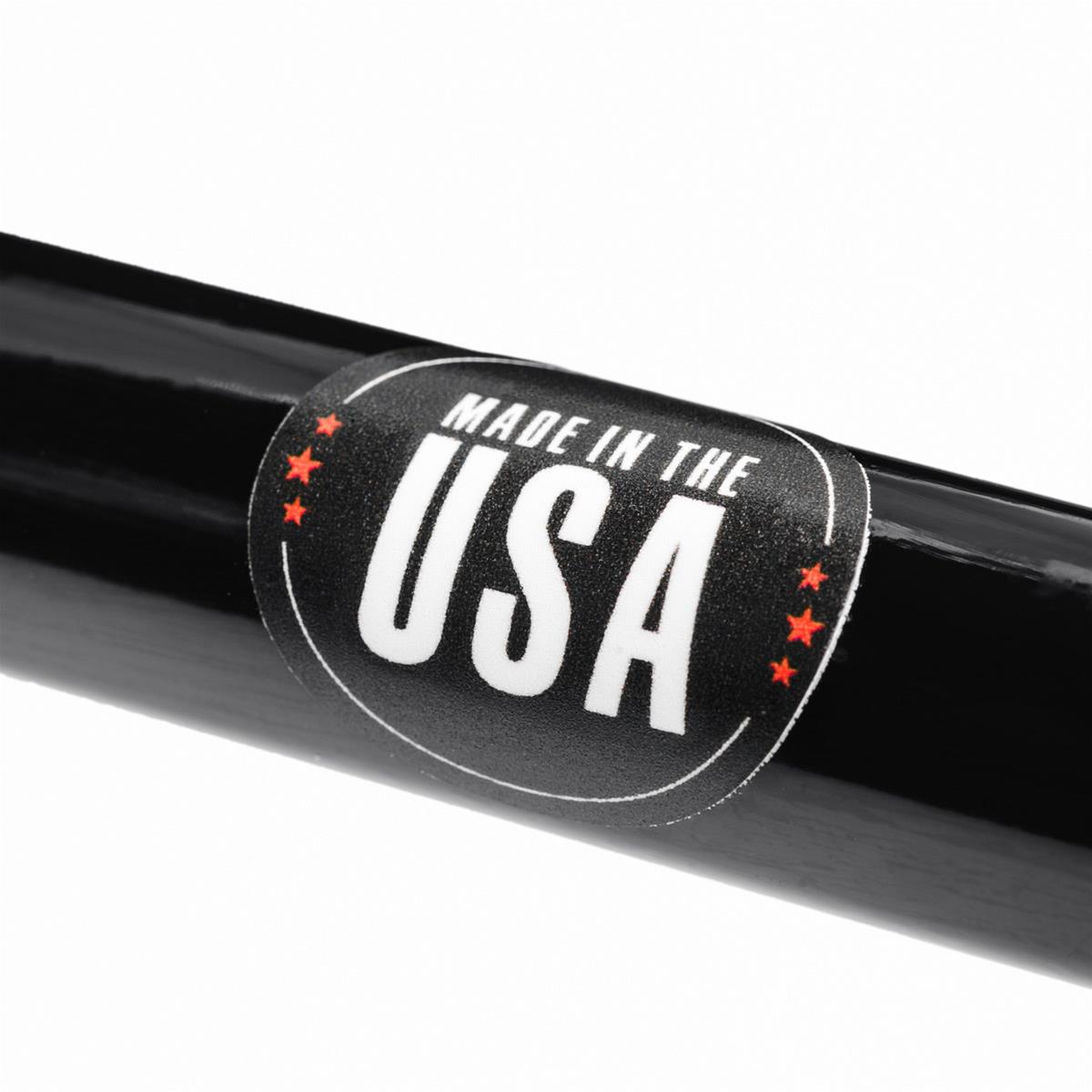

 | 1x | qap52828 | 52828 | 806990174673 | QA1 70-81 Chevrolet Camaro (F-Body) 7/8in Rear Sway Bar |
 | 1x | qap52893 | 52893 | 806990143884 | QA1 75-79 GM X-Body/73-77 A-Body/70-81 Chevrolet Camaro Front Sway Bar - 1-3/8in |
 | 1x | qap52095 | 52095 | 806990175441 | QA1 75-81 GM F-Body 2nd Gen Subframe Connector Kit |
 | 1x | qap52718 | 52718 | 806990160447 | QA1 70-81 GM F-Body/73-77 A-Body/75-79 X-Body/78-96 B-Body Street Perf Upper Control Arm Kit - Front |
 | 1x | qap52720 | 52720 | 806990160454 | QA1 70-81 GM F-Body/73-77 A-Body/75-79 X-Body/78-96 B-Body Street Perf Lower Control Arm Kit - Front |

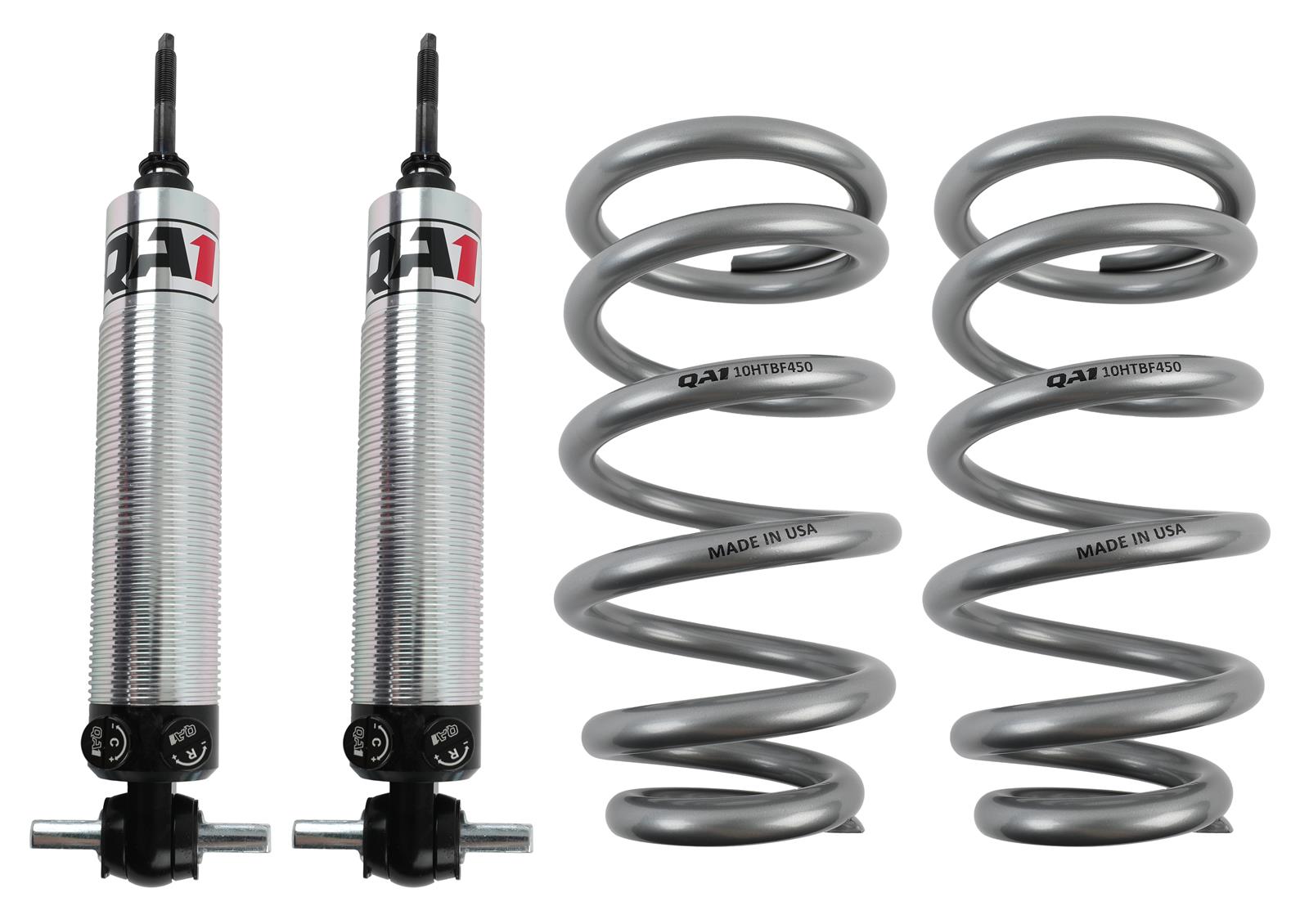

 | 1x | qapGD501-10450C | GD501-10450C | 806990063007 | QA1 GM Pro Front Coil-Over System - Double Adj. - 10in x 450lbs/in - Flat Large - Aluminum |
 | 1x | qapR257-170 | R257-170 | 806990175571 | QA1 70-81 GM F Body Four Link Kit Stage 1 Double Adjustment |
Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.
Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.
For details on the individual components in this bundle, click here.
Part Type
Handling Kit Level 2 75- 81 GM F-Body
Features
3 levels of kits to choose from for better launch, straight-line stability & consistent performance
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- HK52-GMF2
- Product Attributes - Part Type
- Suspension Handling Packages
- Product Attributes - Product Line
- QA1 Level 2 Full Vehicle Handling Suspension Kits
- Product Attributes - UPC
- 806990175533
- Product Attributes - Front Coil Springs Included
- Yes
- Product Attributes - Rear Coil Springs Included
- Yes
- Product Attributes - Rear Leaf Springs Included
- No
- Product Attributes - Front Shocks/Struts Included
- No
- Product Attributes - Front Shock Type
- Double adjustable twin-tube
- Product Attributes - Rear Shocks/Struts Included
- Yes
- Product Attributes - Rear Shock Type
- Double adjustable twin-tube
- Product Attributes - Front Sway Bar Included
- Yes
- Product Attributes - Front Sway Bar Color
- Black
- Product Attributes - Front Sway Bar Type
- Hollow
- Product Attributes - Front Sway Bar Diameter (in.)
- 1.375 in.
- Product Attributes - Front Sway Bar Diameter (mm)
- 34.93 mm
- Product Attributes - Rear Sway Bar Included
- Yes
- Product Attributes - Rear Sway Bar Color
- Black
- Product Attributes - Rear Sway Bar Type
- Solid
- Product Attributes - Rear Sway Bar Diameter (in.)
- 0.875 in.
- Product Attributes - Rear Sway Bar Diameter (mm)
- 22.23 mm
- Product Attributes - Tie Rod Sleeves Included
- Yes
- Product Attributes - End Link Bushings Included
- Yes
- Product Attributes - Rear Leaf Spring Bushings Included
- No
- Product Attributes - Sway Bar Bushings Included
- Yes
- Product Attributes - Upper Trailing Arms Included
- Yes
- Product Attributes - Lower Trailing Arms Included
- Yes
- Product Attributes - Trailing Arm Mount Braces Included
- Yes
- Product Attributes - Panhard Bar Included
- No
- Product Attributes - Torque Arm Included
- No
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- Yes
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Chromoly
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Front Strut Tower Bar Included
- No
- Product Attributes - K-Member Included
- No
- Product Attributes - K-Member Support Brace Included
- No
- Product Attributes - Rear Strut Tower Bar Included
- No
- Product Attributes - Subframe Connectors Included
- Yes
- Product Attributes - Chassis Stiffener Included
- No
- Product Attributes - Calipers Included
- No
- Product Attributes - Rotors Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Brake Lines Included
- No
- Product Attributes - Wheel Studs Included
- No
- Product Attributes - Center Link Included
- No
- Product Attributes - Spindles Included
- No
- Product Attributes - Inner Tie Rod Ends Included
- No
- Product Attributes - Outer Tie Rod Ends Included
- No
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapHK52-GMF2 |
| SFX Item ID | 4563187 |
| Supplier Item Code | 4563187 |
| Manufacturer SKU | HK52-GMF2 |
| Manufacturer UPC | N/A |
| Alternative References | QA1, qap-5252, 3.5in, 4.28in, qap-52718, qap52720 |
