QA1 67-69 GM F-Body Level 2 Full Vehicle Handling Kit w/ Shocks (Bundled Kit)
QA1 67-69 GM F-Body Level 2 Full Vehicle Handling Kit w/ Shocks (Bundled Kit)
A$13,795.90
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Product Overview QA1's Level 2 Handling Kit is a complete solution for F-body owners who love twisty back roads and weekend track day events. This complete solution replaces your entire front and rear suspension, optimizing ride quality and handling performance. The coilovers offer adjustable ride height, while the rear suspension was optimized for wider wheels and tires. Bind Free, Light-weight Front Suspension QA1's tubular front control arms stand out as some of the lightest available in the market. QA1 low-friction ball joints have 1 longer upper ball joint studs to improve camber gain and overall cornering grip. Composite bushings eliminate flex and deliver bind-free movement. Achieve the Perfect Stance Factory coil and leaf springs limit your ability to achieve the perfect stance. QA1 double adjustable coilovers and tubular 4-link provide 0 to -2 inches of adjustability in the front and +2 to -3 inches of ride height adjustability in the rear. Fit Wider Wheels & Tires Designed to work with both standard and mini-tubs, the rear system offers generous clearance wider wheels and tires resulting in a significantly more aggressive stance and improved traction and performance. Note: Achieving maximum wheel and tire width will require mini tubs Improved Performance and Stability Perfect for both street and track use, double adjustable shocks are famous for their independent rebound and compression tunability, giving you exceptional handling and control and finer control over your suspension. Easy, Installation & Adjustment Thoughtful design meets effortless installation with a completely bolt-in front suspension and a 4-link requiring minimal welding. No modifications to floor pan required. Note: Welding required Best In-Class Lifetime Warranty Made in the USA Fitment Notes Wheel and tire fitment should be verified on vehicle Welding Required Includes Spanner Wrench QA1 Subframe Connectors recommended May require Exhaust Modification
Product Overview
Product Overview QA1's Level 2 Handling Kit is a complete solution for F-body owners who love twisty back roads and weekend track day events. This complete solution replaces your entire front and rear suspension, optimizing ride quality and handling performance. The coilovers offer adjustable ride height, while the rear suspension was optimized for wider wheels and tires. Bind Free, Light-weight Front Suspension QA1's tubular front control arms stand out as some of the lightest available in the market. QA1 low-friction ball joints have 1 longer upper ball joint studs to improve camber gain and overall cornering grip. Composite bushings eliminate flex and deliver bind-free movement. Achieve the Perfect Stance Factory coil and leaf springs limit your ability to achieve the perfect stance. QA1 double adjustable coilovers and tubular 4-link provide 0 to -2 inches of adjustability in the front and +2 to -3 inches of ride height adjustability in the rear. Fit Wider Wheels & Tires Designed to work with both standard and mini-tubs, the rear system offers generous clearance wider wheels and tires resulting in a significantly more aggressive stance and improved traction and performance. Note: Achieving maximum wheel and tire width will require mini tubs Improved Performance and Stability Perfect for both street and track use, double adjustable shocks are famous for their independent rebound and compression tunability, giving you exceptional handling and control and finer control over your suspension. Easy, Installation & Adjustment Thoughtful design meets effortless installation with a completely bolt-in front suspension and a 4-link requiring minimal welding. No modifications to floor pan required. Note: Welding required Best In-Class Lifetime Warranty Made in the USA Fitment Notes Wheel and tire fitment should be verified on vehicle Welding Required Includes Spanner Wrench QA1 Subframe Connectors recommended May require Exhaust Modification
Features and Benefits
- 3 levels of kits to choose from for better launch, straight-line stability & consistent performance
- Build in stages
- Carefully curated for maximum performance
- Ultimate ride height and shock tunability
- Strong, lightweight tubular components
- Best-in-class warranty
- Made in the USA
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 67-69 GM F-Body Level 2 Full Vehicle Handling Kit w/ Shocks |
| Manufacturer Part Number: | HK42-GMF1 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Title: | QA1 Suspension Kit HK42-GMF1 |
| UPC: | 806990175250 |
This is a group bundle consisting of:
| Image | Qty | SKU | MFR SKU | UPC | Description |
|---|---|---|---|---|---|
 | 1x | qap7888-109 | 7888-109 | 806990017376 | QA1 2-1/2in Thrust Bearing Kit w/Washers for 2 Shocks |
 | 1x | qap5251 | 5251 | 806990064578 | QA1 Heavy Duty Tie Rod Sleeve Kit - 5/8-18 x 4.9in Sleeve - 5/8-18 Thread x 5.65in Long w/Jam Nuts |
 | 1x | qap52816 | 52816 | 806990112255 | QA1 67-69 GM F-Body/68-74 X-Body Front Sway Bar - 1-1/4in |

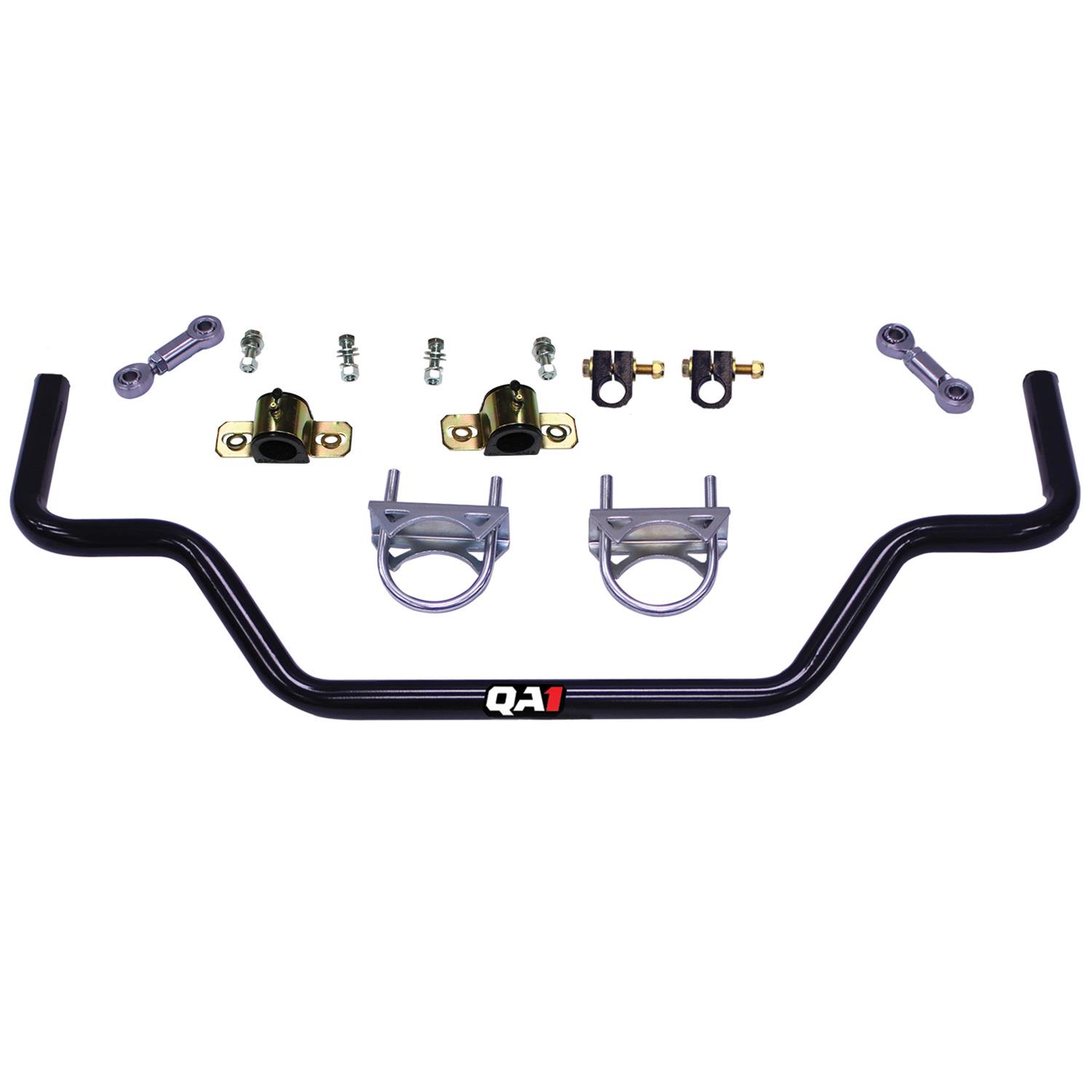

 | 1x | qap52827 | 52827 | 806990174666 | QA1 67-69 GM F-Body 4-Link Sway Bar Kit Rear 7/8in |

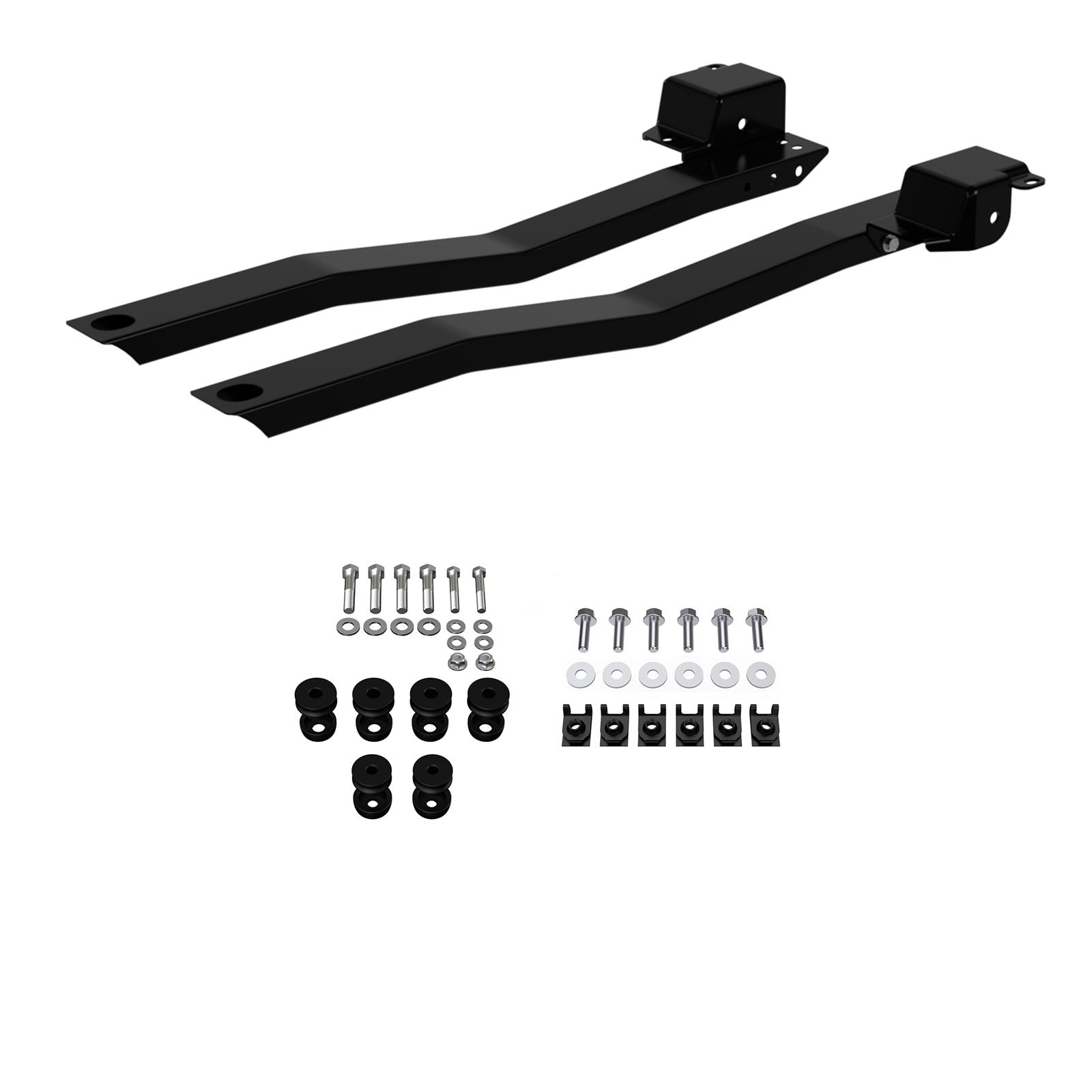

 | 1x | qap52093 | 52093 | 806990175274 | QA1 67-69 GM F-Body Subframe Connector Kit |
 | 1x | qap52717 | 52717 | 806990160423 | QA1 67-69 GM F-Body/68-74 X-Body Street Performance Upper Control Arm Kit - Front |
 | 1x | qap52719 | 52719 | 806990160430 | QA1 67-69 GM F-Body/68-74 X-Body Street Performance Lower Control Arm Kit - Front |
 | 1x | qapGD401-10450A | GD401-10450A | 806990062444 | QA1 GM Pro Front Coil-Over System - Double Adj. - 10in x 450lbs/in - Pigtail - Aluminum |
 | 1x | qapR256-170 | R256-170 | 806990175205 | QA1 67-69 GM F-Body Double Adjustable Rear Four Link Suspension System |
Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.
Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.
For details on the individual components in this bundle, click here.
Part Type
Suspension Kit
Features
3 levels of kits to choose from for better launch, straight-line stability & consistent performance
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- HK42-GMF1
- Product Attributes - Part Type
- Suspension Handling Packages
- Product Attributes - Product Line
- QA1 Level 2 Full Vehicle Handling Suspension Kits
- Product Attributes - UPC
- 806990175250
- Product Attributes - Front Coil Springs Included
- Yes
- Product Attributes - Rear Coil Springs Included
- Yes
- Product Attributes - Rear Leaf Springs Included
- No
- Product Attributes - Front Shocks/Struts Included
- Yes
- Product Attributes - Front Shock Type
- Double adjustable coilover
- Product Attributes - Rear Shocks/Struts Included
- Yes
- Product Attributes - Rear Shock Type
- Double adjustable coilover
- Product Attributes - Front Sway Bar Included
- Yes
- Product Attributes - Front Sway Bar Color
- Black
- Product Attributes - Front Sway Bar Type
- Hollow
- Product Attributes - Front Sway Bar Diameter (in.)
- 1.250 in.
- Product Attributes - Front Sway Bar Diameter (mm)
- 31.70 mm
- Product Attributes - Rear Sway Bar Included
- Yes
- Product Attributes - Rear Sway Bar Color
- Black
- Product Attributes - Rear Sway Bar Type
- Solid
- Product Attributes - Rear Sway Bar Diameter (in.)
- 0.875 in.
- Product Attributes - Rear Sway Bar Diameter (mm)
- 22.00 mm
- Product Attributes - Tie Rod Sleeves Included
- Yes
- Product Attributes - End Link Bushings Included
- No
- Product Attributes - Rear Leaf Spring Bushings Included
- No
- Product Attributes - Sway Bar Bushings Included
- Yes
- Product Attributes - Upper Trailing Arms Included
- Yes
- Product Attributes - Lower Trailing Arms Included
- Yes
- Product Attributes - Trailing Arm Mount Braces Included
- No
- Product Attributes - Panhard Bar Included
- No
- Product Attributes - Torque Arm Included
- No
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- Yes
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Front Strut Tower Bar Included
- No
- Product Attributes - K-Member Included
- No
- Product Attributes - K-Member Support Brace Included
- No
- Product Attributes - Rear Strut Tower Bar Included
- No
- Product Attributes - Subframe Connectors Included
- Yes
- Product Attributes - Chassis Stiffener Included
- No
- Product Attributes - Calipers Included
- No
- Product Attributes - Rotors Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Brake Lines Included
- No
- Product Attributes - Wheel Studs Included
- No
- Product Attributes - Center Link Included
- No
- Product Attributes - Spindles Included
- No
- Product Attributes - Inner Tie Rod Ends Included
- No
- Product Attributes - Outer Tie Rod Ends Included
- No
- Product Attributes - Bushing Material
- Polyurethane/Steel
- Product Attributes - Bushing Color
- Black
- Product Attributes - Mounting Hardware Included
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Included coil over springs feature a rate of 450 lbs in the front and 170 lbs in the rear.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapHK42-GMF1 |
| SFX Item ID | 4563202 |
| Supplier Item Code | 4563202 |
| Manufacturer SKU | HK42-GMF1 |
| Manufacturer UPC | N/A |
| Alternative References | QA1, qap-5251, 4.9in, 5.65in, qap-52717, qap52719 |
