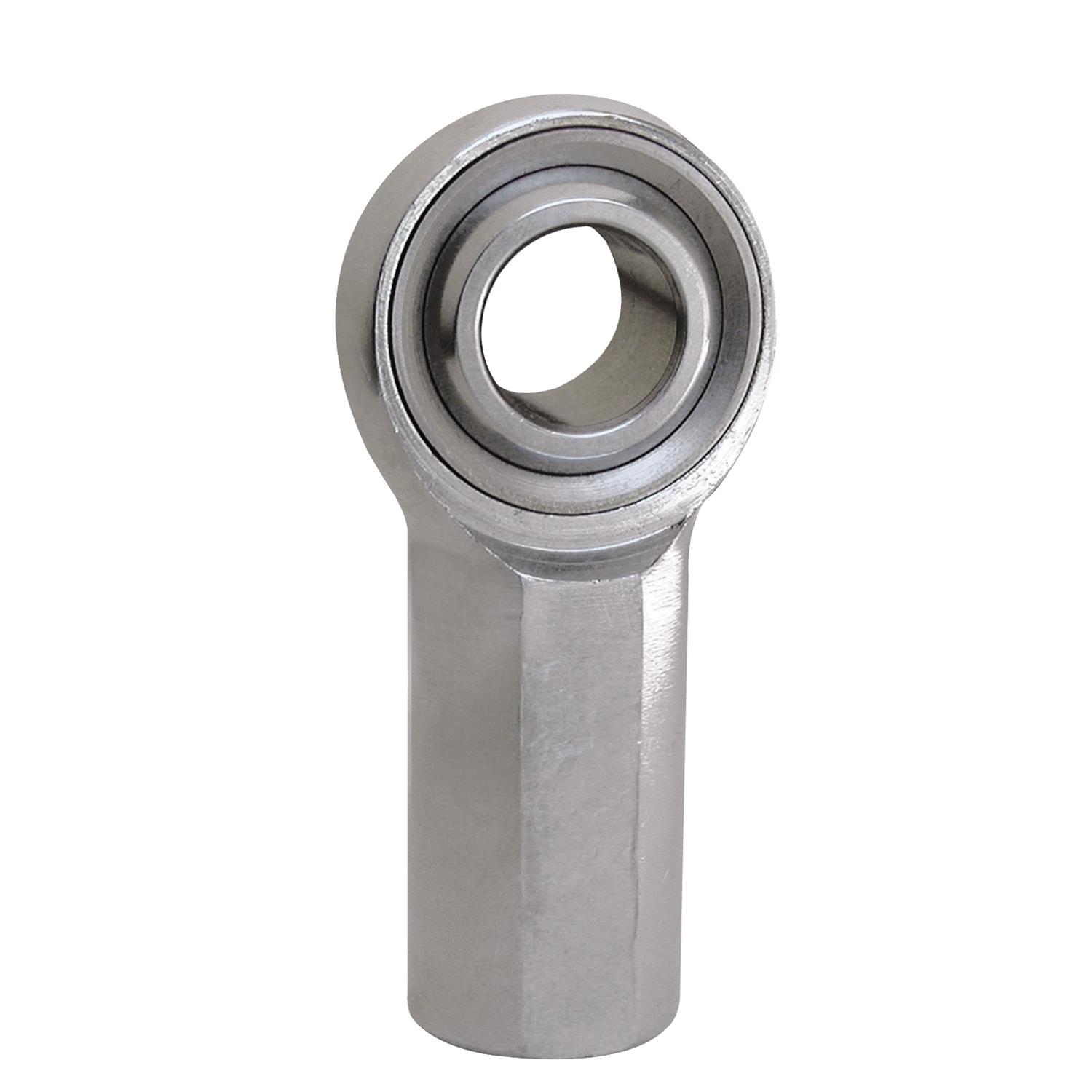

QA1 H Series 3-Pc Rod End - Female/Right Hand - .625in Bore x 5/8-18 - Alloy Steel
QA1 H Series 3-Pc Rod End - Female/Right Hand - .625in Bore x 5/8-18 - Alloy Steel
A$65.27
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
QA1 H Series rod ends feature a chromoly steel protective coating for corrosion resistance and a heat-treated, hard chrome plated ball. They are a 3-piece design and are available in metric and oversize bore configurations. You can trust QA1 H Series rod ends for your demanding 3-piece application needs.
Product Overview
QA1's HF Series female rod ends are a traditional three-piece chromoly steel rod end. These precision rod ends are heat treated, are available in right and left hand threads and in metric and inch dimensions. Grease fittings and stud configurations are available by calling 800-721-7761. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , RACE, Chromoly Heat Treated Steel, Corrosion and Wear Resistant, , BODY, Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance.
Features and Benefits
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 H Series 3-Pc Rod End - Female/Right Hand - .625in Bore x 5/8-18 - Alloy Steel |
| Gasket Or Seal Included: | No |
| Inside Diameter: | 0.625 |
| Manufacturer Part Number: | HFR10 |
| Outside Diameter: | 1.5 |
| Part Number: | qapHFR10 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Race Included: | Yes |
| Title: | QA1 Suspension Rod End Bearing HFR10 |
| UPC: | 806990005410 |
| Width: | 0.75 |
Part Type
Suspension Rod End Bearing
Features
- Guaranteed strength, durability and quality champions demand
- Precise tolerances
- Rod ends for every motorsport need
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- HFR10
- Product Attributes - Part Type
- Rod Ends
- Product Attributes - Product Line
- QA1 H Series Rod Ends
- Product Attributes - UPC
- 806990005410
- Product Attributes - Rod End Thread Size
- 5/8 in.-18
- Product Attributes - Rod End Attachment
- Female threads
- Product Attributes - Rod End Head Bore Size
- 0.625 in.
- Product Attributes - Rod End Construction
- 3-piece
- Product Attributes - Jam Nut Included
- No
- Product Attributes - Rod End Style
- Metal to metal
- Product Attributes - Thread Length
- 1.500 in.
- Product Attributes - Rod End Head Diameter
- 1.500 in.
- Product Attributes - Rod End Head Width
- 0.750 in.
- Product Attributes - Grease Fitting
- No
- Product Attributes - Rod End Centerline Length
- 2.500 in.
- Product Attributes - Heat-Treated
- Yes
- Product Attributes - Rod End Ball Width
- 0.750 in.
- Product Attributes - Rod End Misalign Angle
- 16 degrees
- Product Attributes - Rod End Static Load Capacity
- 17,955 lbs.
- Product Attributes - Rod End Material
- Chromoly
- Product Attributes - Rod End Finish
- Zinc plated
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapHFR10 |
| SFX Item ID | 4093765 |
| Supplier Item Code | 4093765 |
| Manufacturer SKU | HFR10 |
| Manufacturer UPC | 806990005410 |
| Alternative References | qa1, QA1-HFR10, 3-Pc, .625in |
