QA1 71-76 GM B-Body Level 2 Big Wheel Kit (Bundled Kit)
QA1 71-76 GM B-Body Level 2 Big Wheel Kit (Bundled Kit)
A$10,919.44
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Build your project exactly how you want with QA1 Level 2 Big Wheel kits! Get the perfect look by easily adjusting your ride height with front and rear coilovers. Raise or lower your car 2 in. the front. Raise it up to 2 in. or lower it by up to 3 in. in the rear. QA1 Level 2 Big Wheel kits allow you to dial-in the exact style you want in minutes with the included spanner wrench. These complete bolt-on suspension kits are designed to fit up to 28 in. wheels on your vehicle and include everything needed to get your Box sitting right, while giving you a better ride and improved handling.
Product features and benefits:
* Double-adjustable coilovers give you the ability to individually tune your shock compression and rebound to get the perfect ride and get more grip off the line for drag racing
* Adjustable upper and lower trailing arms allow your wheel and tire package to fit with adjustable trailing arms that center your rear axle in the wheel well to gain more clearance for up to 28 in. wheels
* Tubular control arms are much lighter and stronger than stock and will upgrade front-end geometry for better drivability—and are designed specifically for big wheel cars with corrected suspension angles for large wheels and tires
* Tubular sway bars help reduce body roll and improve stability with front and rear sway bars to reduce handling issues that come from big wheels and raised ride heights
* Easy, bolt-in installation
* Parts come powdercoated and ready-to-install with all necessary hardware to allow you to bolt up the kit right in your garage or work with your local shop
* Works with original factory rear axle housings or Quick Performance 9 in. rear axle housings
Product Overview
QA1 71-76 GM B-Body Level 2 Big Wheel Kit
Product Details
| Description: | QA1 71-76 GM B-Body Level 2 Big Wheel Kit |
|---|
This is a group bundle consisting of:
| Image | Qty | SKU | MFR SKU | UPC | Description |
|---|---|---|---|---|---|
 | 2x | qapT115W | T115W | 806990076205 | QA1 Ratchet Drive Spanner Wrench - Drag/Street (Non MOD Series) |
 | 2x | qap7888-109 | 7888-109 | 806990017376 | QA1 2-1/2in Thrust Bearing Kit w/Washers for 2 Shocks |
 | 1x | qap5252 | 5252 | 806990065285 | QA1 Heavy Duty Tie Rod Sleeve Kit - 11/16-18 x 3.5in Sleeve - 11/16-18 Thread x 4.28in Long |
 | 1x | qap5254 | 5254 | 806990147349 | QA1 78-96 GM B-Body Upper Adjustable Trailing Arms |

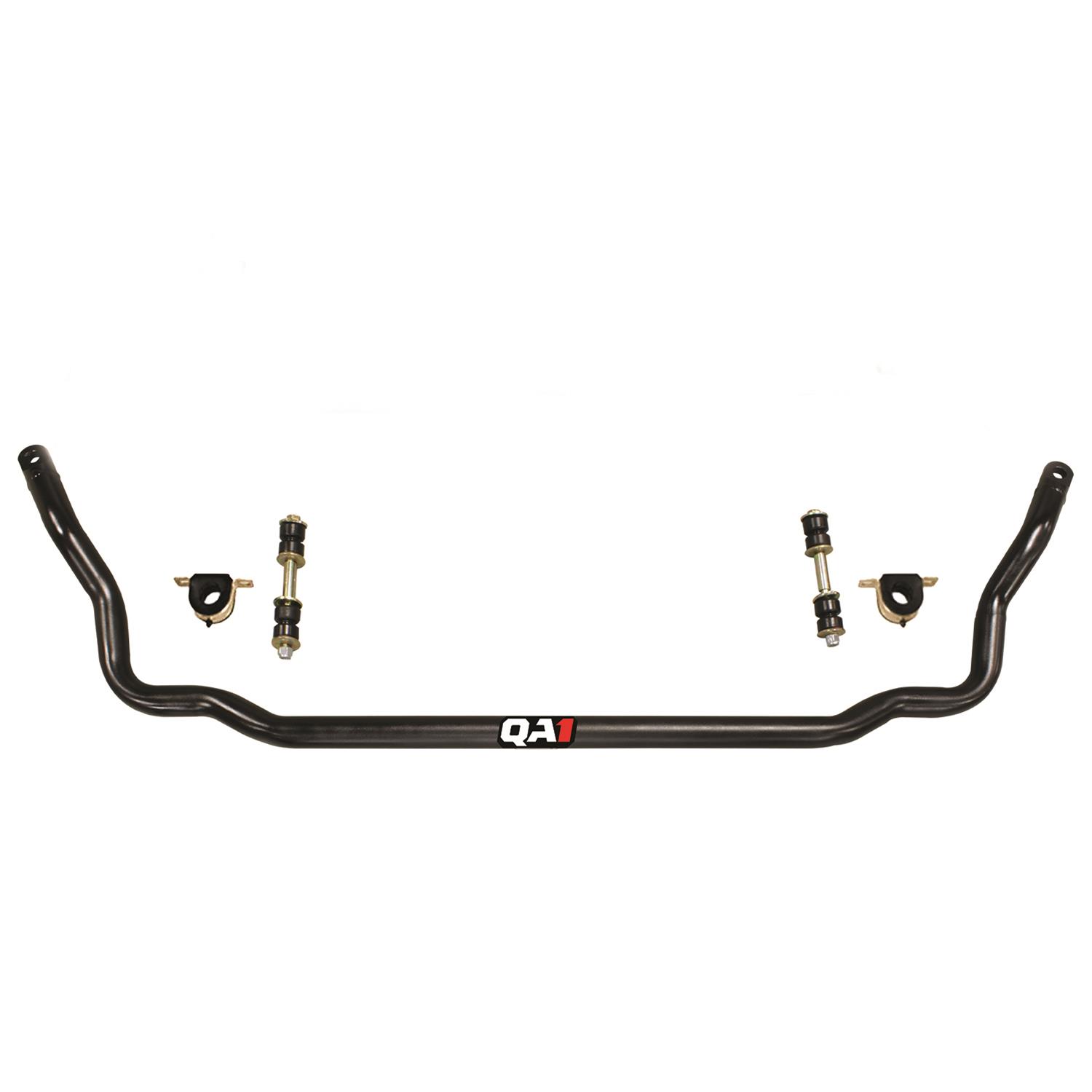

 | 1x | qap52850 | 52850 | 806990168795 | QA1 71-76 GM B-Body Sway Bar Kit Front 1-3/8in |
 | 1x | qap52851 | 52851 | 806990168801 | QA1 71-96 GM B-Body Big Wheel Sway Bar Kit Rear 1-1/4in |

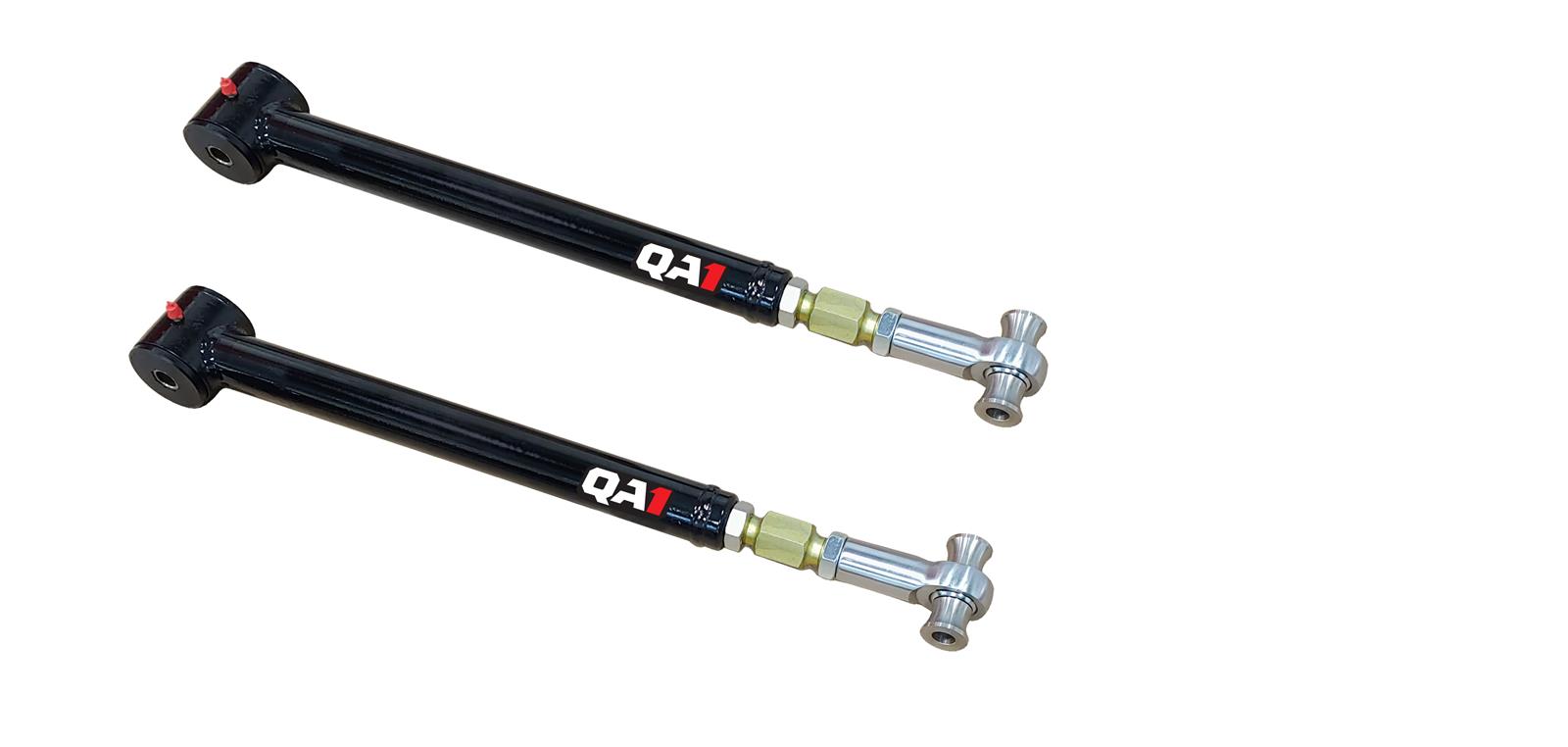

 | 1x | qap5201 | 5201 | 806990168856 | QA1 71-96 GM B-Body Trailing Arms Lower Adjustable |
 | 1x | qap52518 | 52518 | 806990160256 | QA1 70-81 GM F-Body/73-77 A-Body/75-79 X-Body/78-96 B-Body Pro-Touring Upper Control Arm Kit - Front |

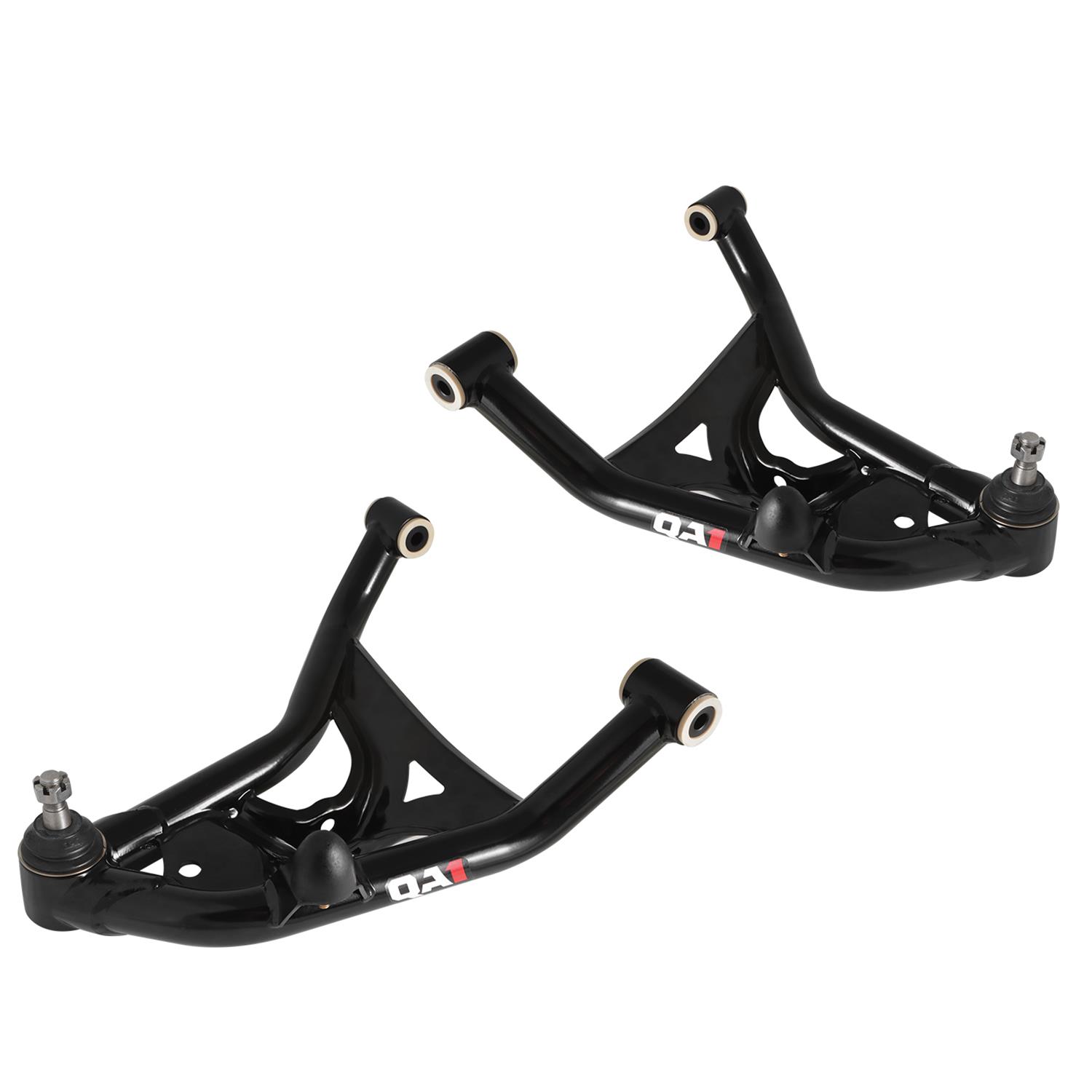

 | 1x | qap52721 | 52721 | 806990168788 | QA1 71-76 GM B-Body Control Arm Kit Lower Street Perform |

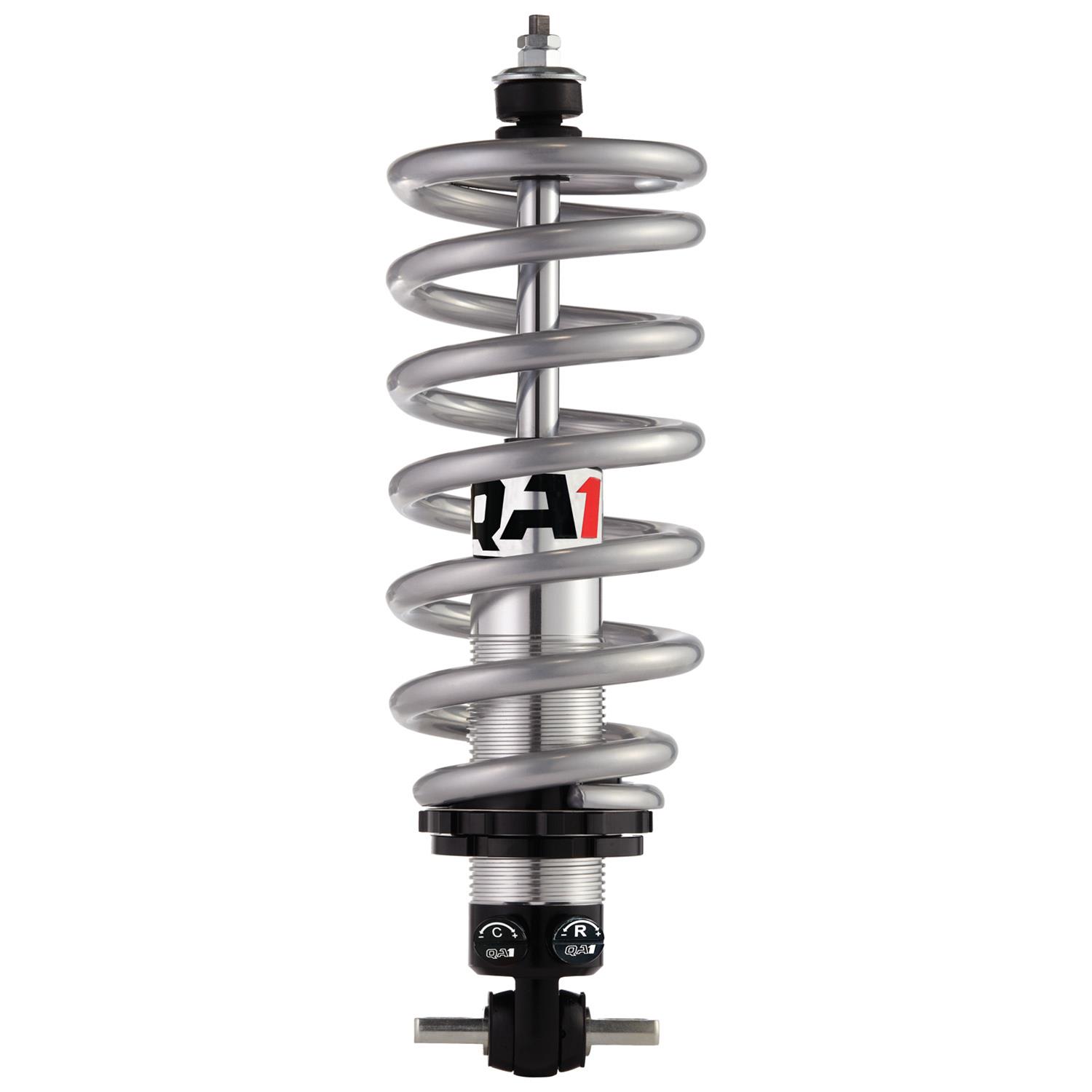

 | 1x | qapGD507-10550C | GD507-10550C | 806990136626 | QA1 GM Pro Front Coil-Over System - Double Adj. - 10in x 550lbs/in - Flat Large - Aluminum |
 | 1x | qapRCK52364 | RCK52364 | 806990168764 | QA1 71-76 GM B-Body 12-250 Kit Rear Pro-Coil D-Adj |
Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.
Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.
For details on the individual components in this bundle, click here.
Part Type
Suspension Kit
Features
Made in the USA
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- BW02-GMB4
- Product Attributes - Part Type
- Suspension Handling Packages
- Product Attributes - Product Line
- QA1 Level 2 Big Wheel Kits
- Product Attributes - UPC
- 806990168658
- Product Attributes - Front Coil Springs Included
- Yes
- Product Attributes - Rear Coil Springs Included
- Yes
- Product Attributes - Rear Leaf Springs Included
- No
- Product Attributes - Front Shocks/Struts Included
- Yes
- Product Attributes - Front Shock Type
- Double adjustable coilover
- Product Attributes - Rear Shocks/Struts Included
- Yes
- Product Attributes - Rear Shock Type
- Double adjustable coilover
- Product Attributes - Front Sway Bar Included
- Yes
- Product Attributes - Front Sway Bar Color
- Black
- Product Attributes - Front Sway Bar Diameter (in.)
- 1.375 in.
- Product Attributes - Front Sway Bar Diameter (mm)
- 34.93 mm
- Product Attributes - Rear Sway Bar Included
- Yes
- Product Attributes - Rear Sway Bar Color
- Black
- Product Attributes - Rear Sway Bar Diameter (in.)
- 1.250 in.
- Product Attributes - Rear Sway Bar Diameter (mm)
- 31.75 mm
- Product Attributes - Tie Rod Sleeves Included
- Yes
- Product Attributes - End Link Bushings Included
- Yes
- Product Attributes - Rear Leaf Spring Bushings Included
- No
- Product Attributes - Sway Bar Bushings Included
- Yes
- Product Attributes - Upper Trailing Arms Included
- Yes
- Product Attributes - Lower Trailing Arms Included
- Yes
- Product Attributes - Trailing Arm Mount Braces Included
- No
- Product Attributes - Panhard Bar Included
- No
- Product Attributes - Torque Arm Included
- No
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- Yes
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Front Strut Tower Bar Included
- No
- Product Attributes - K-Member Included
- No
- Product Attributes - K-Member Support Brace Included
- No
- Product Attributes - Rear Strut Tower Bar Included
- No
- Product Attributes - Subframe Connectors Included
- No
- Product Attributes - Chassis Stiffener Included
- No
- Product Attributes - Calipers Included
- No
- Product Attributes - Rotors Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Brake Lines Included
- No
- Product Attributes - Wheel Studs Included
- No
- Product Attributes - Center Link Included
- No
- Product Attributes - Spindles Included
- No
- Product Attributes - Inner Tie Rod Ends Included
- No
- Product Attributes - Outer Tie Rod Ends Included
- No
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapBW02-GMB4 |
| SFX Item ID | 4562871 |
| Supplier Item Code | 4562871 |
| Manufacturer SKU | BW02-GMB4 |
| Manufacturer UPC | N/A |
| Alternative References | QA1, qap-52518, qap-5252, 3.5in, 4.28in, qap5254 |
Brochures
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
