Description

IMPORTANT NOTICE: Trailing arms require the use of rear coilovers and will not work with factory style coil springs.

QA1 offers upper and lower rear trailing arms for Ford and GM applications in boxed, tubular, and heavy-duty adjustable options. All upper tubular and lower boxed trailing arms use polyurethane bushings on both ends, while upper adjustable and lower tubular trailing arms use a spherical ball or rod end assembly on the chassis end to eliminate bushing bind, allowing the suspension to move smoother for better control. They are powdercoated or zinc plated and anodized for a long-lasting finish. Keep your tires planted firmly on the ground for improved traction and a more predictable, better handling car with a set of QA1 rear trailing arms.

Features may include:

* Boxed trailing arms are constructed from 0.120 in. wall cold rolled steel tubing for maximum strength and flex elimination.
* Tubular trailing arms are constructed from 1 1/4 in. diameter, 0.120 in. wall steel tubing which offers increased strength over other designs, but also have the added advantage of lighter weight.
* Boxed and tubular styles feature fluted, greasable polyurethane bushings, which are superior to the stock rubber bushings.
* Heavy-duty adjustable trailing arms allow easy rear suspension adjustments for optimum handling and traction. Simply loosen the jam nuts and adjust the pinion angle without removing the arms from the vehicle. They replace soft OE differential bushings with polyurethane differential bushings, and they use a spherical ball or rod end assembly with UHMW polyethylene bushings on the chassis end
* Adjustable styles are available in aluminum and steel options

Product Overview

All upper tubular and lower boxed trailing arms use polyurethane bushings on both ends, while upper adjustable and lower tubular trailing arms use a spherical ball or rod end assembly on the chassis end to eliminate bushing bind, allowing the suspension to move smoother for better control. This keeps the tires planted firmly on the ground for improved traction and a more predictable, better handling car. For a long-lasting finish, tubular and boxed trailing arms are powder-coated gloss black, while the adjustable arms are zinc plated and anodized. Boxed Trailing Arms are constructed from 0.120'' wall cold rolled steel tubing for maximum strength and flex elimination. These trailing arms have fluted, greasable polyurethane bushings, which are superior to the stock rubber bushings. Tubular Trailing Arms are constructed from 1-1/4'' diameter, 0.120'' wall steel tubing which offers increased strength over other designs, but also have the added advantage of lighter weight. These trailing arms have fluted, greasable polyurethane bushings, which are superior to the stock rubber bushings. Heavy-Duty Adjustable Trailing Arms allow easy rear suspension adjustments for optimum handling and traction. Simply loosen the jam nuts and adjust the pinion angle without removing the arms from the vehicle. They replace soft OE differential bushings with polyurethane differential bushings, and they use a spherical ball or rod end assembly with UHMW polyethylene bushings on the chassis end to allow the rear suspension to move more freely and eliminate bushing bind. All parts sold in pairs.

Features and Benefits

• Direct fit options for many popular GM, Ford & Mopars
• Adjustable arms offer easy wheelbase and pinion angle adjustment
• Easy, bolt-in install
• Made in the USA

Product Details

Year	Make
Adjustable:	No
Brand:	QA1
Bushing Color:	Black
Bushing Material:	Polyurethane
Bushing(s) Included:	Yes
Construction:	Tubular

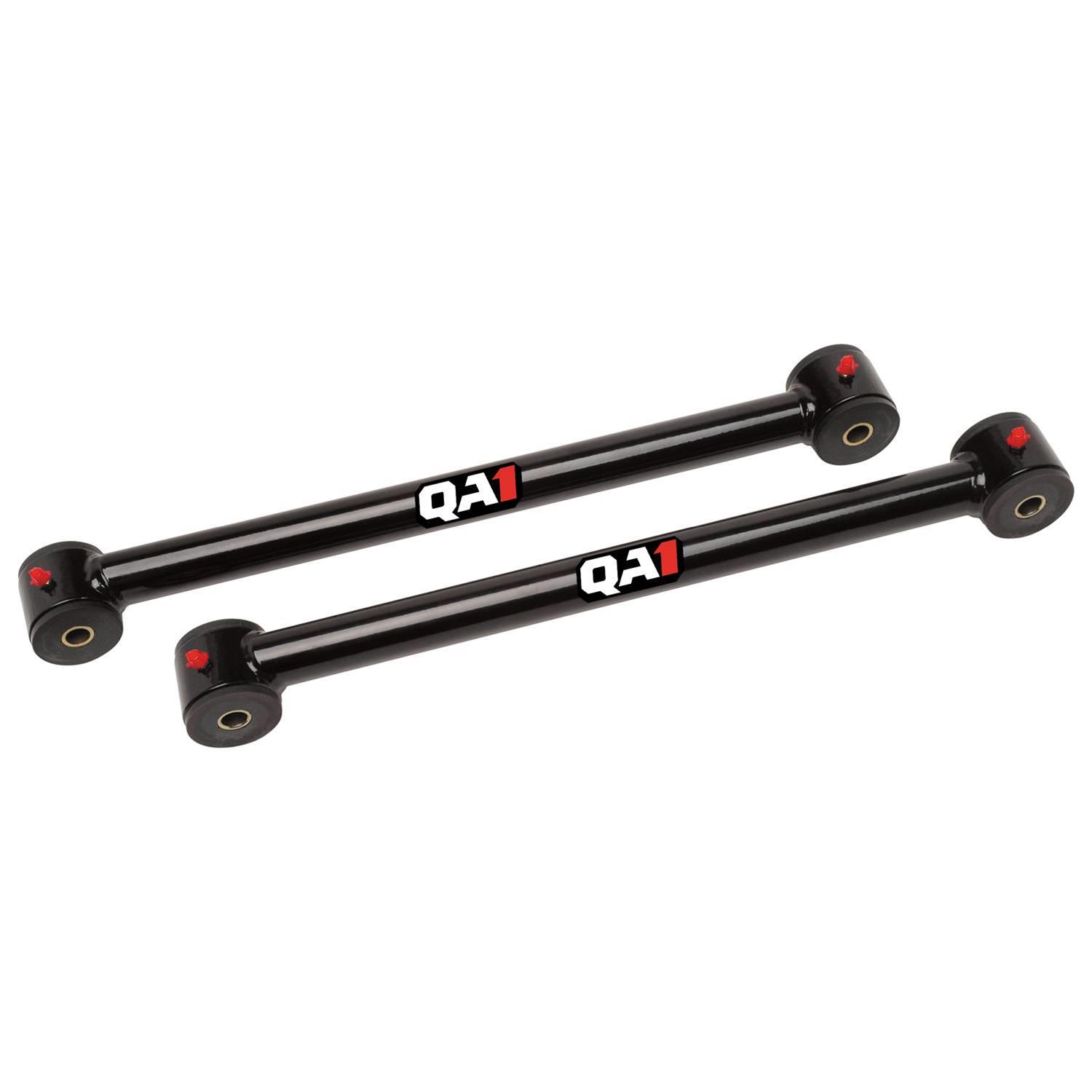

Description:	QA1 65-70 GM B-Body Lower Tubular Trailing Arms
Grade Type:	Performance
Grease Fitting Included:	Yes
Greaseable:	Yes
Manufacturer Part Number:	5294
Mounting Hardware Included:	Yes
Mounting Type:	Bolt On
Part Number:	qap5294
Pre-Greased:	Yes
Prop 65 - Short Label:	WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
Prop 65 Yes/No:	Yes
Title:	QA1 Suspension Trailing Arm 5294
UPC:	806990161901

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	qapDK01-GMB2	QA1 Level 1 Full Vehicle Drag Racing Suspension Kits DK01-GMB2 Handling Packages, Racing, Shocks/Struts, Trailing Arms, Rear Sway Bar, Buick, Chevrolet, Oldsmobile, Pontiac, Kit
	qapDK01-GMB3	QA1 Level 1 Full Vehicle Drag Racing Suspension Kits DK01-GMB3 Handling Packages, Racing, Shocks/Struts, Trailing Arms, Rear Sway Bar, Buick, Chevrolet, Pontiac, Kit
	qapDK02-GMB2	QA1 65-68 GM B-Body Level 2 Drag Kit 2.0 w/ Shocks (1x qap5251, 1x qap52700, 1x qap52701, 1x qap52826, 1x qap5289, 1x qap5294, 1x qap5297, 2x qap7888-109, 1x qapGD507-09450D, 1x qapRCK52389, 1x qapT114W)
	qapDK02-GMB3	QA1 69-70 GM B-Body Level 2 Drag Kit 2.0 w/ Shocks (1x qap5251, 1x qap52700, 1x qap52701, 1x qap52826, 1x qap5289, 1x qap5294, 1x qap5298, 2x qap7888-109, 1x qapGD507-09450D, 1x qapRCK52389, 1x qapT114W)
	qapDK03-GMB2	QA1 65-68 GM B-Body Level 3 Drag Kit 2.0 w/ Shocks (1x qap5251, 1x qap52700, 1x qap52701, 1x qap52826, 1x qap5289, 1x qap5294, 1x qap5297, 1x qap9039-308, 1x qapMG507-09450D, 1x qapRCK52392, 1x qapT121W)
	qapDK03-GMB3	QA1 Level 3 Full Vehicle Drag Racing Suspension Kits DK03-GMB3 Handling Packages, Racing, Coil Springs, Shocks/Struts, Rear Sway Bar, 0-2.000 in. Drop, Buick, Chevrolet, Pontiac, Kit
	qapDK11-GMB2	QA1 65-68 GM B-Body Level 1 Drag Kit 2.0 w/o Shocks (1x qap5251, 1x qap52826, 1x qap5289, 1x qap5294, 1x qap5297)
	qapDK11-GMB3	QA1 69-70 GM B-Body Level 1 Drag Kit 2.0 w/o Shocks (1x qap5251, 1x qap52826, 1x qap5289, 1x qap5294, 1x qap5298)
	qapDK12-GMB2	QA1 65-68 GM B-Body Level 2 Drag Kit 2.0 w/o Shocks (1x qap5251, 1x qap52700, 1x qap52701, 1x qap52826, 1x qap5289, 1x qap5294, 1x qap5297, 2x qap7888-109, 1x qapT114W)
	qapDK12-GMB3	QA1 69-70 GM B-Body Level 2 Drag Kit 2.0 w/o Shocks (1x qap5251, 1x qap52700, 1x qap52701, 1x qap52826, 1x qap5289, 1x qap5294, 1x qap5298, 2x qap7888-109, 1x qapT114W)
	qapDK13-GMB2	QA1 65-68 GM B-Body Level 3 Drag Kit 2.0 w/o Shocks (1x qap5251, 1x qap52700, 1x qap52701, 1x qap52826, 1x qap5289, 1x qap5294, 1x qap5297, 1x qap9039-308, 1x qapT121W)
	qapDK13-GMB3	QA1 69-70 GM B-Body Level 3 Drag Kit 2.0 w/o Shocks (1x qap5251, 1x qap52700, 1x qap52701, 1x qap52826, 1x qap5289, 1x qap5294, 1x qap5298, 1x qap9039-308, 1x qapT121W)
	qapHK02-GMB2	QA1 65-68 GM B-Body Level 2 Handling Kit 2.0 w/ Shocks (1x qap5251, 1x qap52700, 1x qap52701, 1x qap52824, 1x qap52826, 1x qap5289, 1x qap5294, 1x qap5297, 2x qap7888-109, 1x qapGD507-09650D, 1x qapRCK52390, 1x qapT114W)
	qapHK02-GMB3	QA1 69-70 GM B-Body Level 2 Handling Kit 2.0 w/ Shocks (1x qap5251, 1x qap52700, 1x qap52701, 1x qap52824, 1x qap52826, 1x qap5289, 1x qap5294, 1x qap5298, 2x qap7888-109, 1x qapGD507-09650D, 1x qapRCK52390, 1x qapT114W)
	qapHK03-GMB2	QA1 65-68 GM B-Body Level 3 Handling Kit 2.0 w/ Shocks (1x qap5251, 1x qap52700, 1x qap52701, 1x qap52824, 1x qap52826, 1x qap5289, 1x qap5294, 1x qap5297, 1x qap9039-308, 1x qapMG507-09650D, 1x qapRCK52394, 1x qapT121W)
	qapHK03-GMB3	QA1 69-70 GM B-Body Level 3 Handling Kit 2.0 w/ Shocks (1x qap5251, 1x qap52700, 1x qap52701, 1x qap52824, 1x qap52826, 1x qap5289, 1x qap5294, 1x qap5298, 1x qap9039-308, 1x qapMG507-09650D, 1x qapRCK52394, 1x qapT121W)
	qapHK12-GMB2	QA1 65-68 GM B-Body Level 2 Handling Kit 2.0 w/o Shocks (1x qap5251, 1x qap52700, 1x qap52701, 1x qap52824, 1x qap52826, 1x qap5289, 1x qap5294, 1x qap5297, 2x qap7888-109, 1x qapT114W)
	qapHK12-GMB3	QA1 69-70 GM B-Body Level 2 Handling Kit 2.0 w/o Shocks (1x qap5251, 1x qap52700, 1x qap52701, 1x qap52824, 1x qap52826, 1x qap5289, 1x qap5294, 1x qap5298, 2x qap7888-109, 1x qapT114W)
	qapHK13-GMB2	QA1 65-68 GM B-Body Level 3 Handling Kit 2.0 w/o Shocks (1x qap5251, 1x qap52700, 1x qap52701, 1x qap52824, 1x qap52826, 1x qap5289, 1x qap5294, 1x qap5297, 1x qap9039-308, 1x qapT121W)
	qapHK13-GMB3	QA1 69-70 GM B-Body Level 3 Handling Kit 2.0 w/o Shocks (1x qap5251, 1x qap52700, 1x qap52701, 1x qap52824, 1x qap52826, 1x qap5289, 1x qap5294, 1x qap5298, 1x qap9039-308, 1x qapT121W)

Data: v4.2 - Upd: 2026-10-10 18:30:40

Features

Specifications

Product Attributes - Brand

QA1

Product Attributes - Manufacturer's Part Number

5294

Product Attributes - Part Type

Control Arms

Product Attributes - Product Line

QA1 Rear Trailing Arms

Product Attributes - UPC

806990161901

Product Attributes - Control Arm Style

Tubular

Product Attributes - Control Arm Material

Steel

Product Attributes - Ball Joint Included

No

Product Attributes - Bushings Included

Yes

Product Attributes - Control Arm Color

Black

Product Attributes - Adjustable

No

Product Attributes - Hardware Included

No

Product Attributes - Bushing Material

Polyurethane

Product Attributes - Quantity

Sold as a pair.

Product Attributes - Notes

Trailing arms require the use of rear coilovers and will not work with factory style coil springs.

Compatibility
