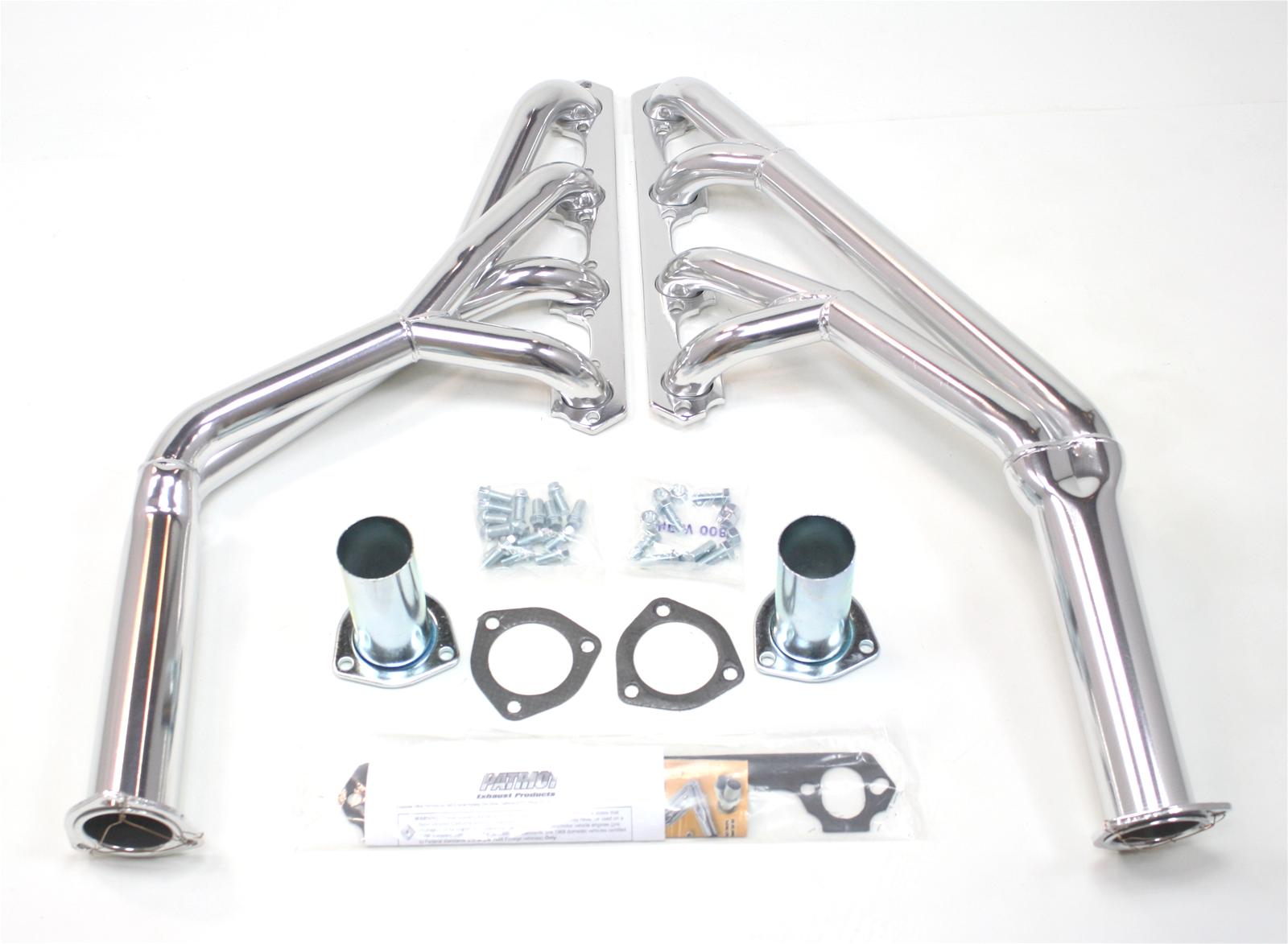

Patriot Full-Length Headers H8426-1 Headers, Tri-Y, Steel, Silver Ceramic Coated, Ford, Mercury, 260, 289, 302, Each
Patriot Full-Length Headers H8426-1 Headers, Tri-Y, Steel, Silver Ceramic Coated, Ford, Mercury, 260, 289, 302, Each
A$1,469.53
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Patriot full-length chassis and fenderwell headers provide the ultimate in performance for street rods and musclecars with high performance engines. The key is their use of long primary tubes, which results in more horsepower and torque than those from the competition. Other features include a close fit with the engine block for maximum chassis and steering clearance, mandrel-bent tubing, and new gaskets and bolts. Unless otherwise noted, these headers are designed to fit the vehicle as it came from the manufacturer. This includes components like cylinder heads, chassis, steering, motor mounts, body mounts and bushings, etc. If your vehicle is using aftermarket components, parts from other applications, or custom-altered parts, then it is the installer's responsibility to verify fitment.
Finishes available are:
* Metallic Ceramic Thermal Barrier Coating (MCTBC), which is polished with a vibratory finishing process that not only produces a high-luster aluminum appearance, but also compresses and activates the coating, which increases the surface hardness. The finish is 60 percent more corrosion resistant than an unpolished surface, easy to maintain, and will last for years under normal operation conditions. MCTBC also protects and extends the life of headers by creating a thermal barrier (heat-resistant up to 1,600 degrees F) that significantly lowers under hood temperatures and protects the substrate metal from thermal fatigue.
* Hi-Temp black coating is an affordably priced alternative to their MCTBC. This finish provides good corrosion and heat protection when compared to many of the "cheaper" header finishes being applied by our competitors.
* Raw steel is available for individual customizing
Part Type
Coated Headers - SBF 64-70 Mustang
Specifications
- Product Attributes - Brand
- Patriot Exhaust
- Product Attributes - Manufacturer's Part Number
- H8426-1
- Product Attributes - Part Type
- Headers
- Product Attributes - Product Line
- Patriot Full-Length Headers
- Product Attributes - UPC
- 694342504823
- Product Attributes - Header Style
- Tri-Y one-piece
- Product Attributes - Header Material
- Steel
- Product Attributes - Primary Tube Outside Diameter (in.)
- 1 1/2 - 1 3/4 in.
- Product Attributes - Header Color
- Silver ceramic coated
- Product Attributes - Flange Style
- Standard
- Product Attributes - Weld-Up
- No
- Product Attributes - Cylinder Head Port Shape
- Oval
- Product Attributes - Collector Attachment
- 3-bolt flange
- Product Attributes - Collector Diameter (in.)
- 2.50
- Product Attributes - Collector Reducers Included
- Yes
- Product Attributes - Collector Reducer Exit Diameter
- 2.250 in.
- Product Attributes - Tuned
- No
- Product Attributes - Primary Tube Gauge
- 16-gauge
- Product Attributes - Spark Plug Position
- Angle/Straight
- Product Attributes - Flange Thickness (in.)
- 0.31 in.
- Product Attributes - Bolts/Studs Included
- Yes
- Product Attributes - Gaskets Included
- Yes
- Product Attributes - Crossover Pipe Included
- No
- Product Attributes - Catalytic Converter(s) Included
- No
- Product Attributes - Motor Mounts Included
- No
- Product Attributes - Transmission Mount Included
- No
- Product Attributes - Quantity
- Sold as a pair.
- Product Attributes - Notes
- Will require clearancing for some applications. Power steering applications will need an additional bracket
Reference Information
| Brand Name/s | Patriot Exhaust |
|---|---|
| StreetFX SKU | pteH8426-1 |
| SFX Item ID | 5088576 |
| Supplier Item Code | 5088576 |
| Manufacturer SKU | H8426-1 |
| Manufacturer UPC | N/A |
| Alternative References | PEPH8426-1 |
