Patriot Tight Tuck Headers H8037-1 Headers, Tuck, Shorty, Steel, Ceramic Coated, Street Rod with Chevy, Small Block, Pair
Patriot Tight Tuck Headers H8037-1 Headers, Tuck, Shorty, Steel, Ceramic Coated, Street Rod with Chevy, Small Block, Pair
A$1,472.82
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
IMPORTANT NOTICE: Note for Australian and European MarketsUnless otherwise stated, this product may be engineered for use in Left-Hand Drive vehicles. Steering components, pedals, shifters, linkages, instrument clusters, panhard rods/traction bars, drag links, brake boosters, brake or clutch lines, accelerator cables, heater cores, some master cylinders and adjacent parts can vary between LHD and RHD configurations. In some models compenents such as windscreen wiper arms, motors and linkages could differ in their size and orientation. Items such as floor mats & dash mats may have differences in their structure around the front row (or padding in different locations). In many cases items are identical depending on the design of the vehicle and part, but may have differing mounts, lengths or bolt patterns. Carefully review the product images and details to ensure suitability for your vehicle, or contact StreetFX support if you are unsure. Returns are not accepted for special order products.(keyword: headers)Note for Pistons, Rings, Rotors, Rods and engine internalsUnless otherwise specified, some brands supply brake rotors, pistons, rods and rings separately. In some cases, titles may indicate plural, or 'set' - eg the term “ring set” often refers to the rings for a single piston only. If you’re unsure about what’s included with this product, please contact our team for clarification.(keyword: rod)Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.Reference Information Reference Data (Provide these details to our support team) Brand Name/s Patriot Exhaust StreetFX SKU pteH8037-1 SFX Item ID 5088187 Accounting SKU pte-H8037-1 Manufacturer SKU H8037-1 Manufacturer UPC 694342504571 Alternative References PEPH8037-1, PTE-H8037-1

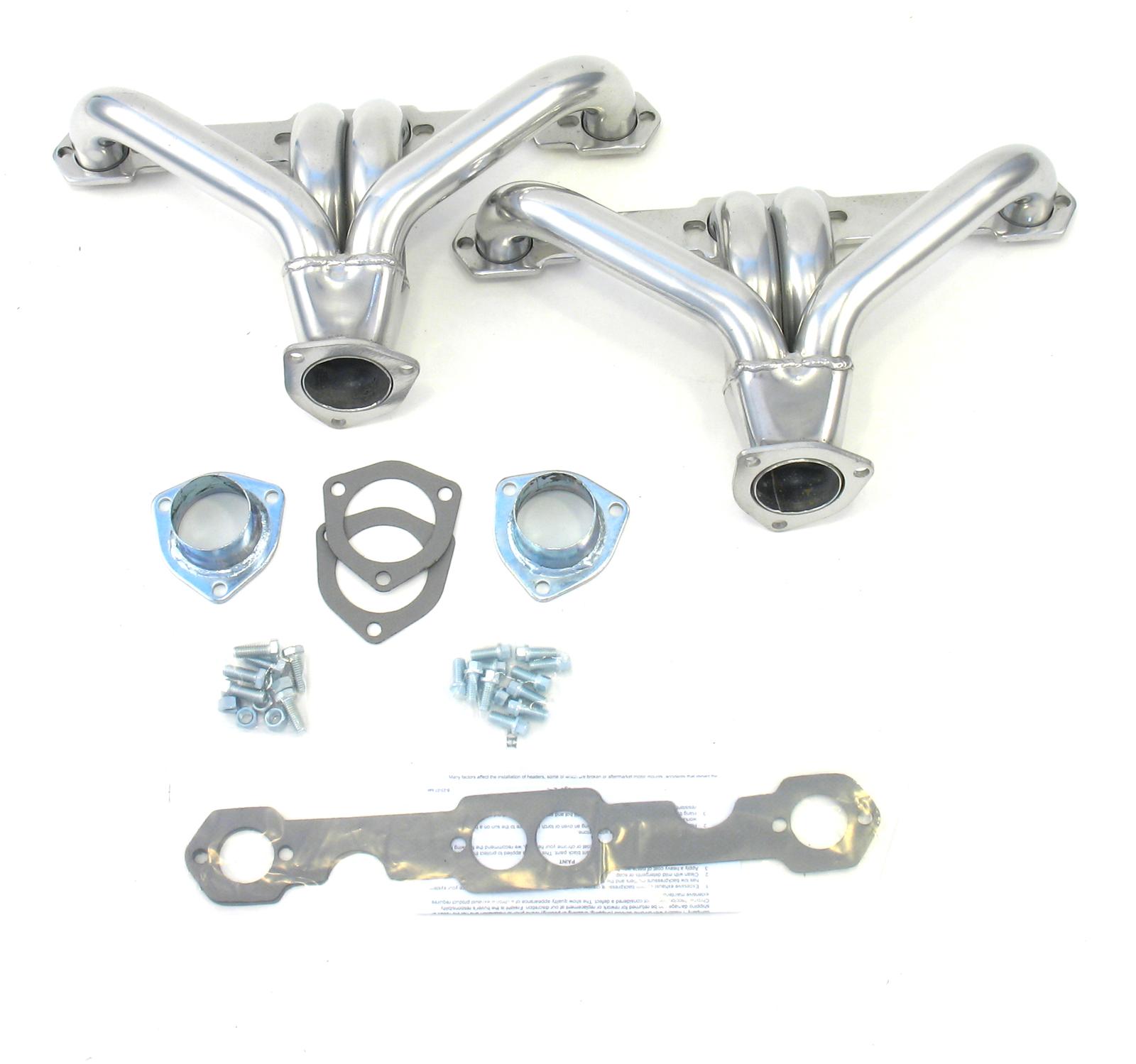

Headers - Tight Tuck - 1.625 in Primary - 2.5 in Collector - Gaskets / Hardware Included - Steel - Metallic Ceramic - Small Block Chevy - Universal - Pair
Data: v2 - Desc: v4.2 - Upd: 2026-10-14 03:25:56
Part Type
Coated Headers - SBC Tight Tuck
Specifications

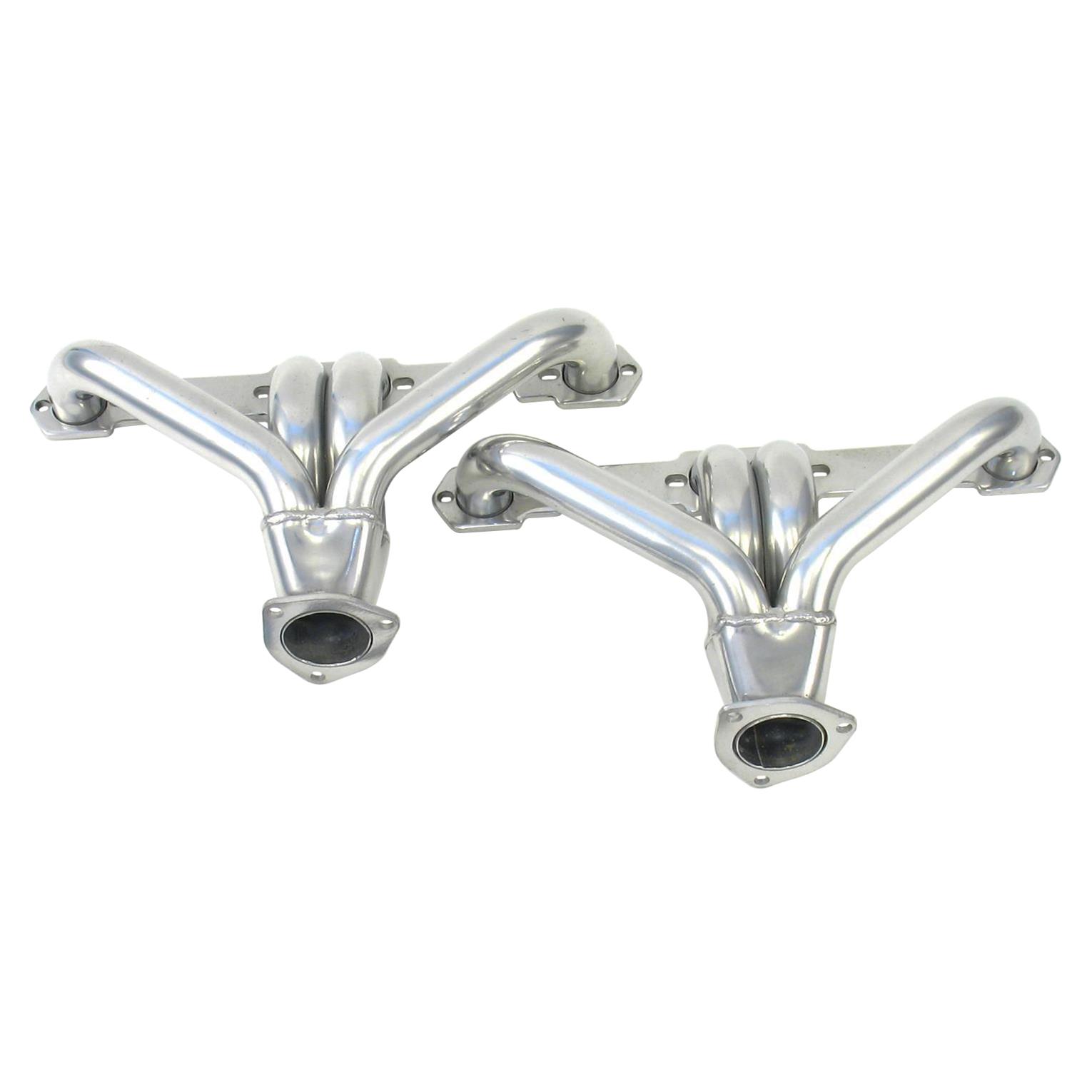

Headers, Tight Tuck, Shorty, Steel, Ceramic Coated, Street Rod with Chevy, Small Block, Pair
Patriot Tight Tuck headers provide the solution to many problems associated with engine swaps in modern street rods. They fit in the tightest of engine compartments, and they clear most stock motor mounts. Many Tight Tucks are manufactured from durable 16-gauge tubing and come complete with gaskets, header bolts, and collector reducers. Besides their popular finishes, Patriot also offers a chrome option that is polished before and after assembly for show-quality appearance, as well as a stainless steel option. Order the model designed for your vehicle and engine application.
Patriot Tight Tuck finishes:
• Metallic Ceramic Thermal Barrier Coating (MCTBC), which is polished with a vibratory finishing process that not only produces a high-luster aluminum appearance, but also compresses and activates the coating, which increases the surface hardness. The finish is 60 percent more corrosion-resistant than an unpolished surface, easy to maintain, and will last for years under normal operation conditions. MCTBC also protects and extends the life of headers by creating a thermal barrier (heat-resistant up to 1,600 degrees F) that significantly lowers underhood temperatures and protects the substrate metal from thermal fatigue.
• Hi-Temp black coating is an affordably priced alternative to their MCTBC. This finish provides good corrosion and heat protection when compared to many of the "cheaper" header finishes being applied by our competitors.
• Raw steel is available for individual customizing
Unless otherwise noted, these headers are designed to fit the vehicle as it came from the manufacturer. This includes components like cylinder heads, chassis, steering, motor mounts, body mounts, and bushings, etc. If your vehicle is using aftermarket components, parts from other applications, or custom altered parts, then it is the installer's responsibility to verify fitment.
| Product Attributes | |
|---|---|
| Brand | Patriot Exhaust |
| Manufacturer's Part Number | H8037-1 |
| Part Type | Headers |
| Product Line | Patriot Tight Tuck Headers |
| UPC | 694342504571 |
| Header Style | Block hugger |
| Header Material | Steel |
| Primary Tube Outside Diameter (in.) | 1 5/8 in. |
| Header Color | Silver ceramic coated |
| Flange Style | Standard |
| Weld-Up | No |
| Cylinder Head Port Shape | Round |
| Collector Attachment | 3-bolt flange |
| Collector Diameter (in.) | 2.50 |
| Collector Reducers Included | Yes |
| Collector Reducer Exit Diameter | 2.500 in. |
| Tuned | No |
| Primary Tube Gauge | 16-gauge |
| Spark Plug Position | Angle/Straight |
| Flange Thickness (in.) | 0.31 in. |
| Bolts/Studs Included | Yes |
| Gaskets Included | Yes |
| Crossover Pipe Included | No |
| Catalytic Converter(s) Included | No |
| Motor Mounts Included | No |
| Transmission Mount Included | No |
| Quantity | Sold as a pair. |
Reference Information
| Brand Name/s | Patriot Exhaust |
|---|---|
| StreetFX SKU | pteH8037-1 |
| SFX Item ID | 5088187 |
| Supplier Item Code | 5088187 |
| Manufacturer SKU | H8037-1 |
| Manufacturer UPC | 694342504571 |
| Alternative References | PEPH8037-1 |
Compatibility
No specific fitment data available for this part. For clarification, please contact us.
Detailed Compatibility
| Application Data | |
|---|---|
| Make | CHEVROLET |
| Model | STREET ROD |
| Beginning Year | 1923 |
| Ending Year | 1949 |
| Engine Type | V8 |
| Engine Family | Chevy small block Gen I |
| Engine Size | 4.3L/262 |
| Drivetrain | RWD |
| Footnotes | 11 - Universal application for most street rod applications. 15 - Can be used with any oil filter system or transmission and starter combination. 16 - Tucks very close to engine. 17 - Fits most angle plug heads. 24 - Tight tuck headers do not fit 1955-57 Chevy, Camaro, or other modern vehicles which have a crossmember below the engine's center two exhaust ports. |
| Make | CHEVROLET |
| Model | STREET ROD |
| Beginning Year | 1923 |
| Ending Year | 1949 |
| Engine Type | V8 |
| Engine Family | Chevy small block Gen I |
| Engine Size | 4.3L/265 |
| Drivetrain | RWD |
| Footnotes | 11 - Universal application for most street rod applications. 15 - Can be used with any oil filter system or transmission and starter combination. 16 - Tucks very close to engine. 17 - Fits most angle plug heads. 24 - Tight tuck headers do not fit 1955-57 Chevy, Camaro, or other modern vehicles which have a crossmember below the engine's center two exhaust ports. |
| Make | CHEVROLET |
| Model | STREET ROD |
| Beginning Year | 1923 |
| Ending Year | 1949 |
| Engine Type | V8 |
| Engine Family | Chevy small block Gen I |
| Engine Size | 4.4L/267 |
| Drivetrain | RWD |
| Footnotes | 11 - Universal application for most street rod applications. 15 - Can be used with any oil filter system or transmission and starter combination. 16 - Tucks very close to engine. 17 - Fits most angle plug heads. 24 - Tight tuck headers do not fit 1955-57 Chevy, Camaro, or other modern vehicles which have a crossmember below the engine's center two exhaust ports. |
This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
