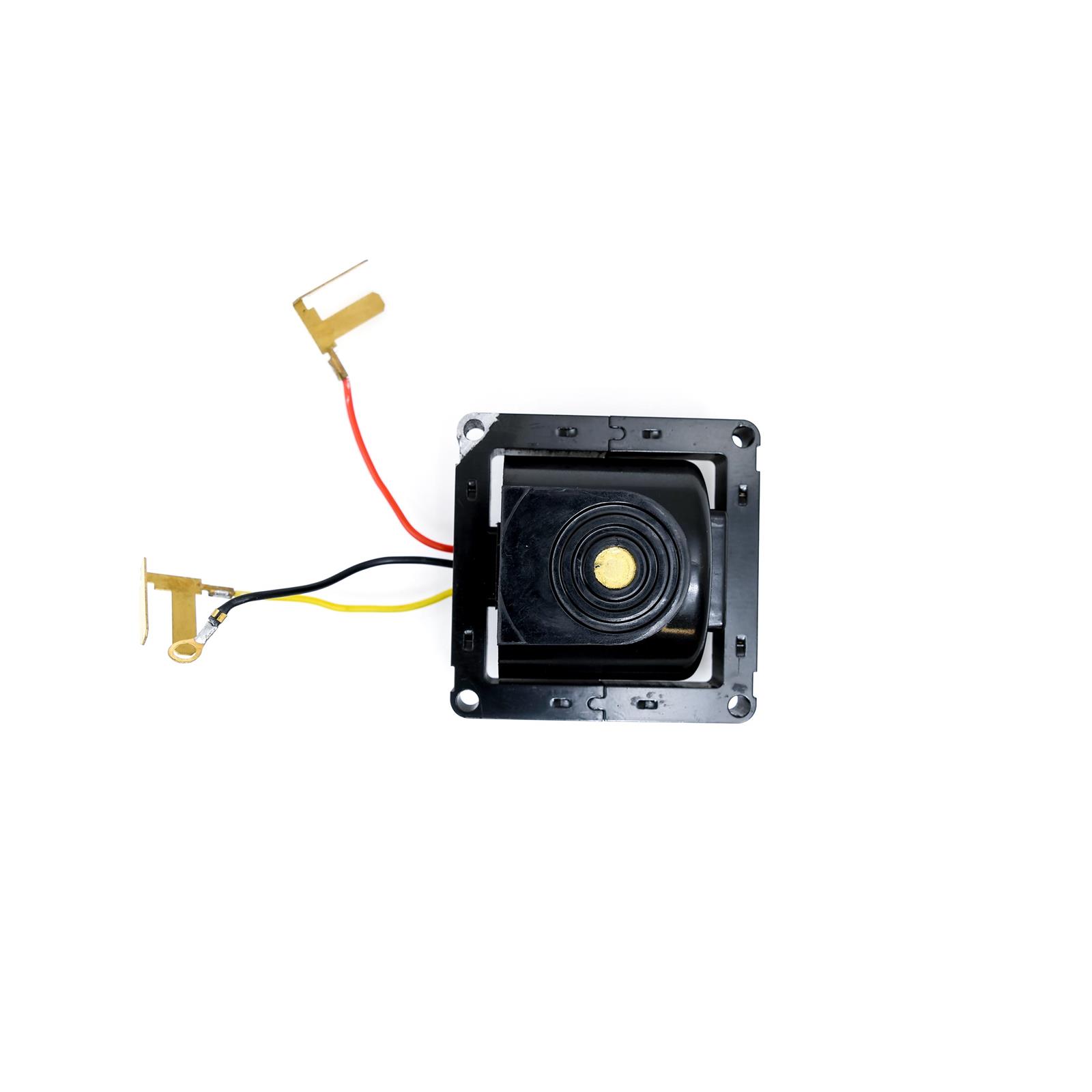

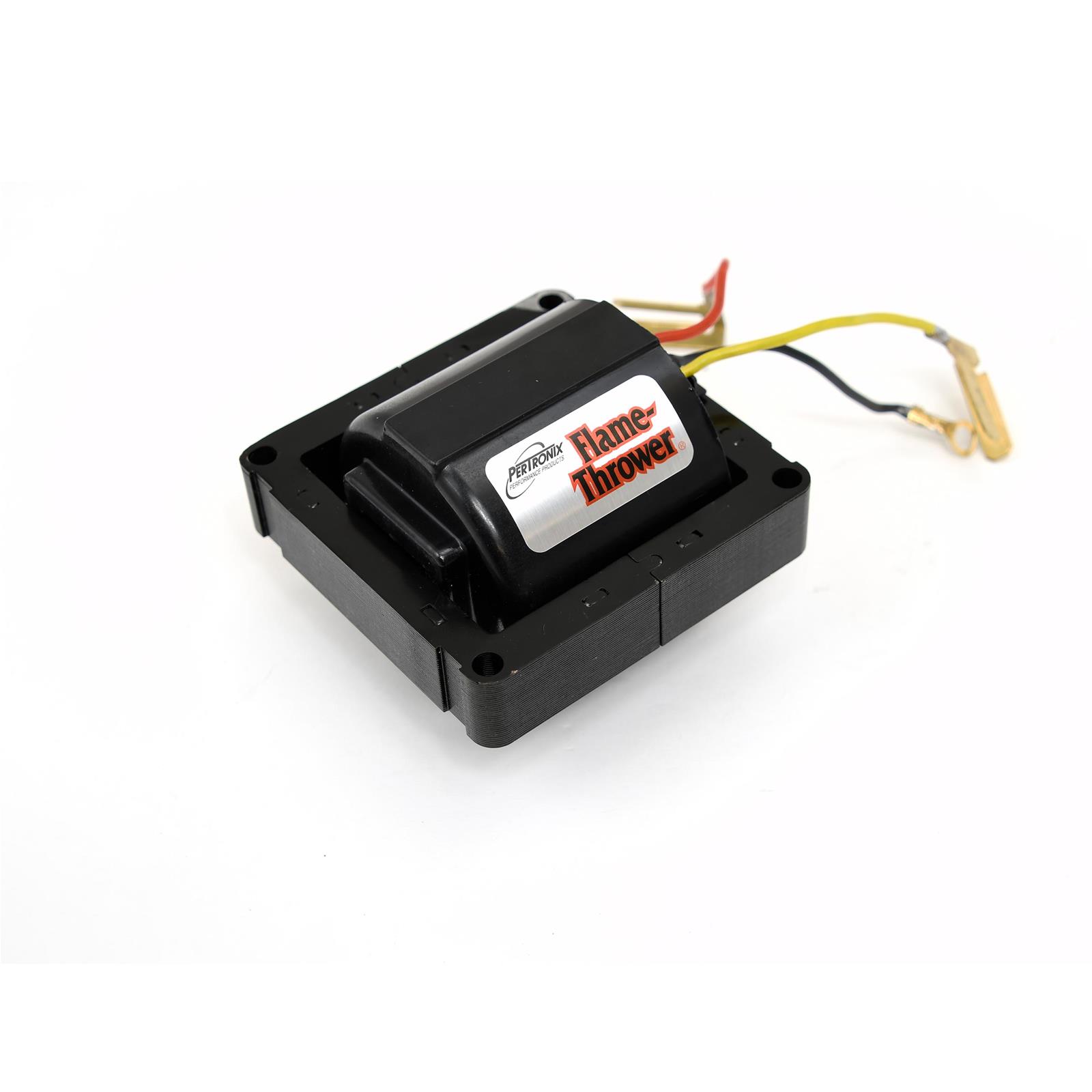

PerTronix Flame-Thrower HEI and TFI Ignition Coils D3000 Coil, E-Core, In-Cap, Epoxy, Black, 50,000 V, GM, Yellow Wire, Each
PerTronix Flame-Thrower HEI and TFI Ignition Coils D3000 Coil, E-Core, In-Cap, Epoxy, Black, 50,000 V, GM, Yellow Wire, Each
A$236.76
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
With their optimized winding design, PerTronix Flame-Thrower HEI and TFI ignition coils are a great upgrade from stock. They produce more than 50,000 V of energy to zap your plugs, for fuller, more complete combustion and better power. When used with their companion Flame-Thrower ignition modules, they produce more than twice the energy of a stock system at the plugs. They're wrapped in rugged alkyd housings and are available for both distributor-mounted and external applications.
Part Type
HEI Coil w/Red & Yellow Wires
Specifications
- Product Attributes - Brand
- PerTronix
- Product Attributes - Manufacturer's Part Number
- D3000
- Product Attributes - Part Type
- Ignition Coils
- Product Attributes - Product Line
- PerTronix Flame-Thrower HEI and TFI Ignition Coils
- Product Attributes - UPC
- 694342006310
- Product Attributes - Coil Style
- In-cap
- Product Attributes - Primary Resistance
- 0.500 ohms
- Product Attributes - Coil Internal Construction
- Epoxy
- Product Attributes - Coil Wire Attachment
- HEI in-cap
- Product Attributes - Coil Color
- Black
- Product Attributes - Maximum Voltage
- 50,000 V
- Product Attributes - Turns Ratio
- 75:1
- Product Attributes - Secondary Resistance
- 8.30K ohms
- Product Attributes - Inductance
- 4.40 mH
- Product Attributes - Peak Current
- 7.9 amps
- Product Attributes - Spark Duration
- 1.5 mS
- Product Attributes - Mounting Bracket Included
- No
- Product Attributes - Coil Wire Included
- No
- Product Attributes - Ballast Resistor Included
- No
- Product Attributes - Coil Shape
- Square
- Product Attributes - Height (in.)
- 2.440 in.
- Product Attributes - Length (in.)
- 3.080 in.
- Product Attributes - Width (in.)
- 3.080 in.
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Special Attention
- For use on HEI type distributors with a coil in the cap. Replaces GM coils wired with yellow, black, and red wires.
- Product Attributes - CARB EO Number(s)
- D-57-21
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Pertronix |
|---|---|
| StreetFX SKU | pnxD3000 |
| SFX Item ID | 5054233 |
| Supplier Item Code | 5054233 |
| Manufacturer SKU | D3000 |
| Manufacturer UPC | 694342006310 |
| Alternative References | PRTD3000 |
