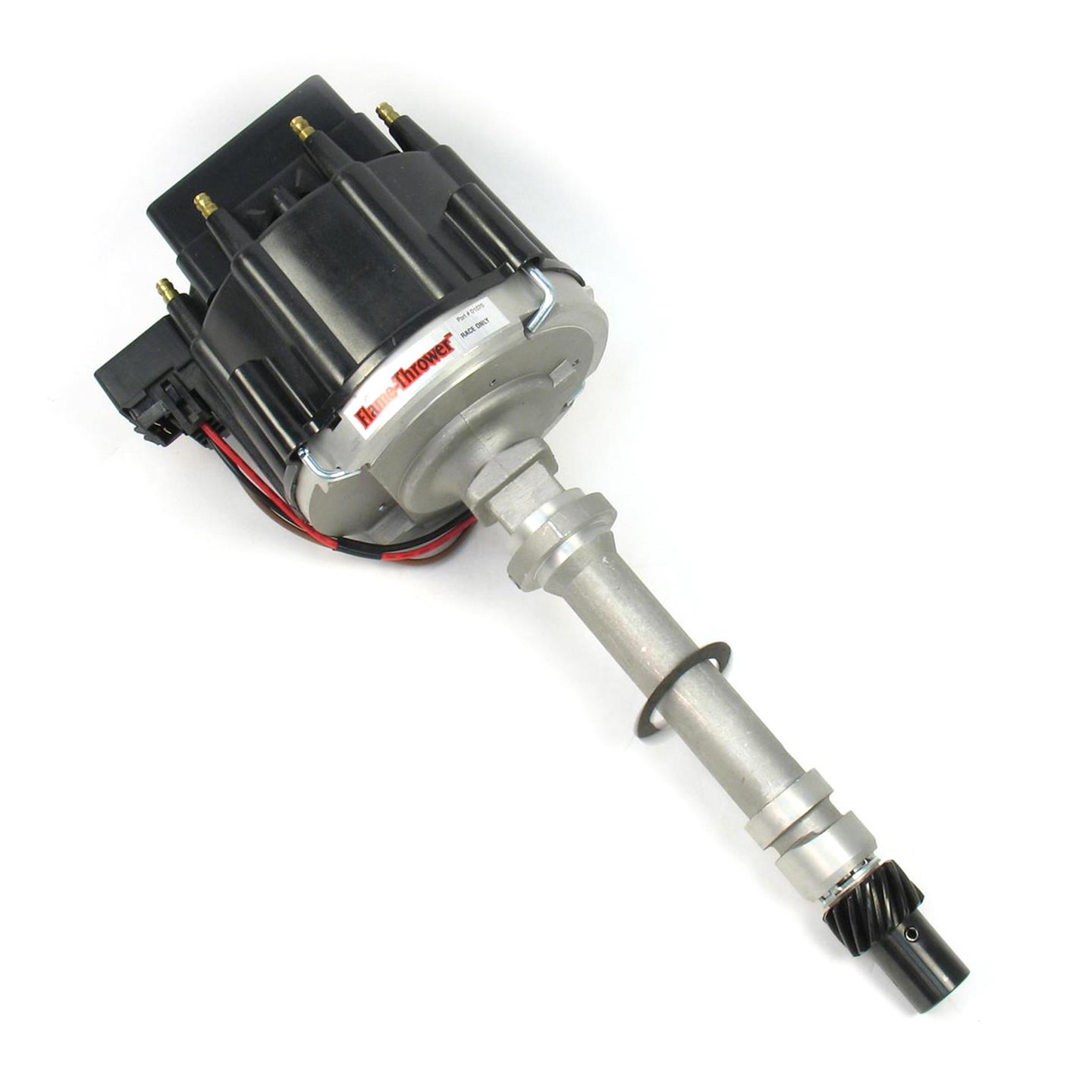

PerTronix Flame-Thrower Race HEI Distributors D1070 Distributor, Race, Magnetic Pickup, Mechanical Advance, Black Cap, Chevy, Big/Small Block, Each
PerTronix Flame-Thrower Race HEI Distributors D1070 Distributor, Race, Magnetic Pickup, Mechanical Advance, Black Cap, Chevy, Big/Small Block, Each
A$971.12
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Flame-Thrower Race HEI distributors from PerTronix produce 42 percent more energy in the coil, with 46 percent faster spark breakdown time. This allows 48 percent more peak current to reach the spark plug, compared to their Street/Strip HEI distributors. That's an enormous improvement over stock HEIs and most aftermarket HEI distributors. A specially designed vacuum lockout mechanism prevents timing adjustments that change rotor phasing, adversely affecting the burn time and efficient fuel combustion. The rotor plates are TIG-welded to the mechanical advance mechanism, preventing high-rpm distortion and improving mechanical reliability.
Each distributor uses a new aluminum housing cast and is machined from a strong, but lightweight A384 alloy. They're supplied with a high-dielectric strength cap with solid brass terminals, a balanced rotor, and a low-resistance center coil brush. Also included are nylon rotor hold-down screws and a factory-installed, high performance mechanical curve kit with precision-machined weights and a center plate. A hardened, machined steel gear is standard, along with an electronic module and coil combination that excels in the 6,000 to 8,500 rpm range. These distributors are great for both Circle Track and drag race applications where factory-type HEI distributors are mandated.
Part Type
SBC HEI Race Distributor w/Black Cap
Specifications
- Product Attributes - Brand
- PerTronix
- Product Attributes - Manufacturer's Part Number
- D1070
- Product Attributes - Part Type
- Distributors
- Product Attributes - Product Line
- PerTronix Flame-Thrower Race HEI Distributors
- Product Attributes - UPC
- 694342009663
- Product Attributes - Distributor Cap Included
- Yes
- Product Attributes - Distributor Cap Style
- Male/HEI
- Product Attributes - Distributor Cap Type
- HEI in-cap coil
- Product Attributes - Ignition Coil Included
- Yes
- Product Attributes - Ignition Module Included
- Yes
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Trigger Style
- Magnetic
- Product Attributes - Advance Type
- Mechanical
- Product Attributes - Ignition Box Required
- No
- Product Attributes - Mechanical Tach Drive
- No
- Product Attributes - Slip Collar
- No
- Product Attributes - Distributor Gear Material
- Steel
- Product Attributes - Distributor Gear Rotation
- Standard
- Product Attributes - Distributor Cap Color
- Black
- Product Attributes - Housing Material
- Aluminum
- Product Attributes - Housing Finish
- Natural
- Product Attributes - Marine Use
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Includes a Flame-Thrower coil and module.
Reference Information
| Brand Name/s | Pertronix |
|---|---|
| StreetFX SKU | pnxD1070 |
| SFX Item ID | 5053878 |
| Supplier Item Code | 5053878 |
| Manufacturer SKU | D1070 |
| Manufacturer UPC | 694342009663 |
| Alternative References | PRTD1070 |
