Oracle 17-22 Ford F-250/350 Superduty Flush Mount LED Tail Lights
Oracle 17-22 Ford F-250/350 Superduty Flush Mount LED Tail Lights
A$949.24
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
These lights include wiring adapters which make them compatible with all Super Duty models from 2017-2022 with or without the factory LED Option (halogen lights) and with or without the factory BLIS cross-traffic sensors. The adapters provide a true plug-and-play option without any other wiring being needed for installation. The factory cross-traffic sensors can be easily swapped over into these new lights with the original factory hardware and using our plug-and-play connectors. These innovative LED tail lights were designed and engineered by ORACLE Lighting right here in the USA. This Patent-Pending tail light design provides many unique features and characteristics, providing an aesthetically pleasing product with a forward-thinking design language.
Product Overview

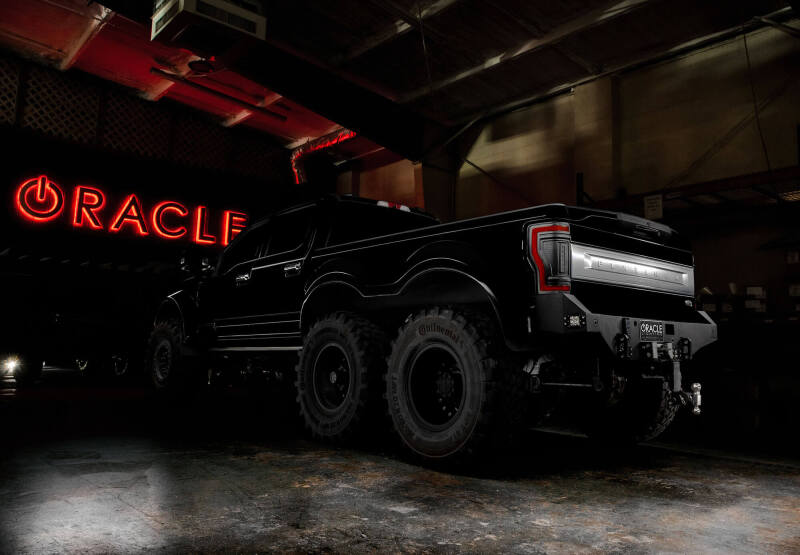

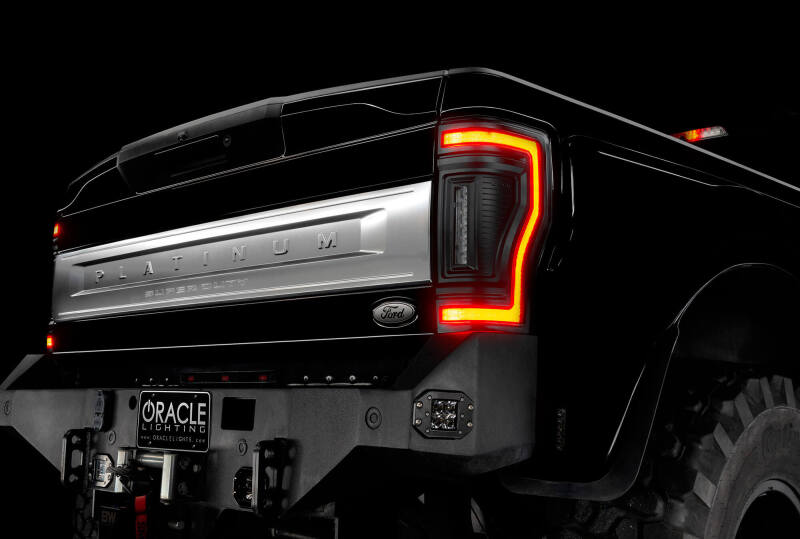

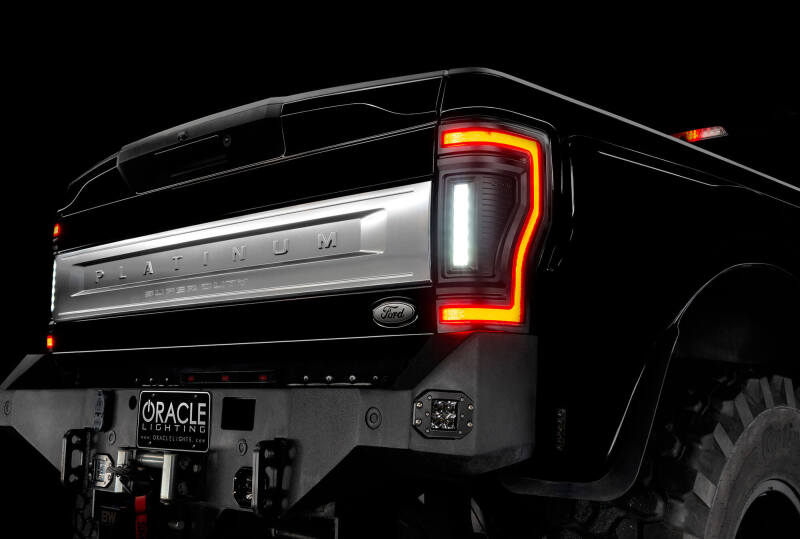

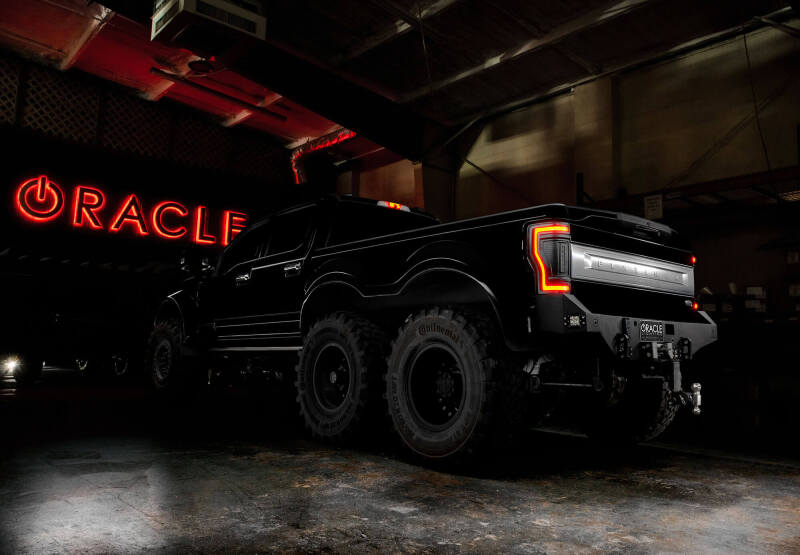

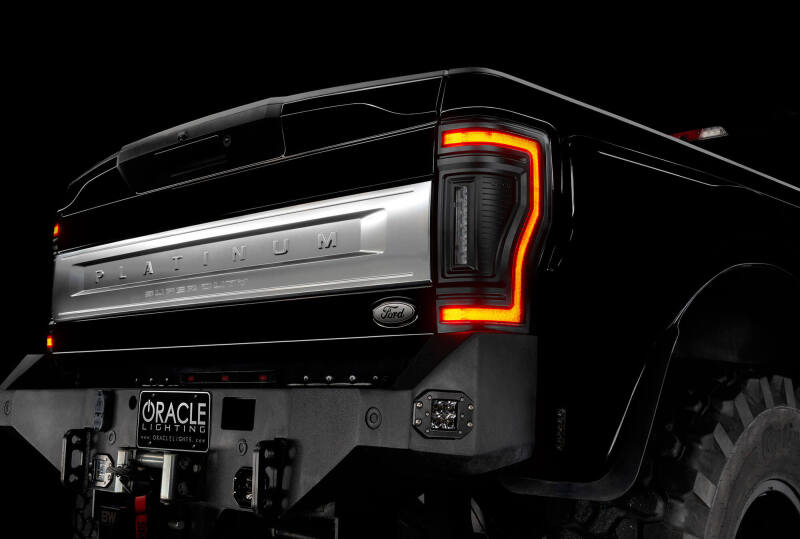

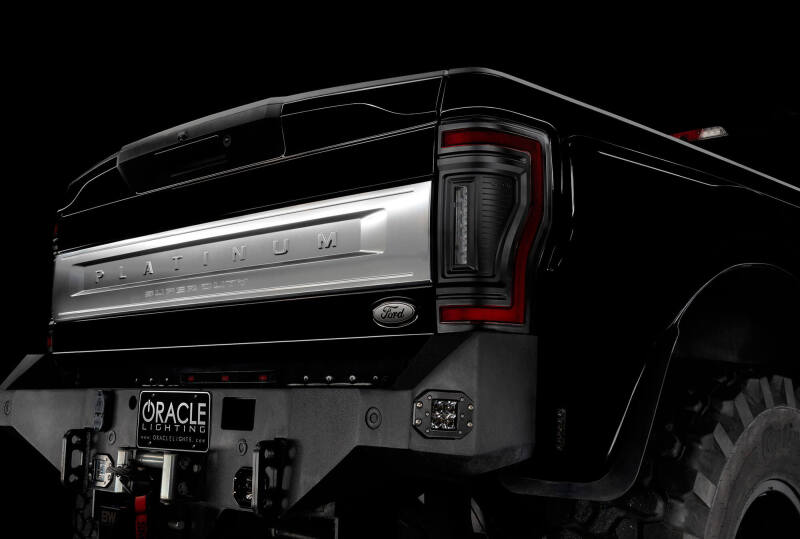

ORACLE Lighting is excited to reveal our new flush mount LED tail light design for the latest generation Ford Super Duty Trucks from 2017-2022. Protruding out significantly less than the factory tail lights, this low-profile design has a more streamlined appearance while also reducing risk of tail light damage. These flush tail lights feature a unique modular design and functional LED lighting elements including high-powered reverse lights, unique signature perimeter lighting, and an animated turn signal sequence. The new modular design allows the light to be quickly disassembled for custom painting. The Reverse Light module and Stop/Tail/Turn module can be easily removed from the black housing which can then be painted to match the body color of the vehicle to provide a more customized appearance which more seamlessly blends with the truck. No more problems backing up at night and no longer do you need to install additional reversing lamps onto the back of your truck to get the brightness you desire. Thats because these LED reverse lights are basically a pair of LED light bars mounted into the tail light which will provide over 4,400 Lumens of rear-facing illumination! In addition of the attractive "signature style" LED lighting band and the high-output reverse light this design also features a "dynamic" turn signal effect. This "motion" or "sequential effect" is a fluid LED motion from the inside portion of the light to the outside potion of the light signifying the direction of the turn signal with a fluid animated LED sequence.
Features and Benefits
- 1 year warranty
Product Details
| Add-On: | N/A |
|---|---|
| Adjusting Screw Included: | Yes |
| Background Color: | Black |
| Bulb Quantity: | 12 |
| Bulb Technology: | LED |
| Bulb Type: | 3157 |
| Bulbs Included: | Yes |
| Color: | Standard Lens |
| Compatibility: | Works with base and LED packages |
| Connector Quantity: | 4 |
| DOT Approved: | No |
| Description: | Oracle 17-22 Ford F-250/350 Superduty Flush Mount LED Tail Lights |
| Details: | Signature perimeter lighting |
| Housing Color: | Black |
| Housing Material: | ABS |
| Install Type: | Simple plug-and-play install with factory sensor compatibility |
| Length: | 23 |
| Lens Color: | Red |
| Lens Material: | Polycarbonate |
| Light Count: | 12 high-powered LED reverse lights |
| Maximum Diameter: | 23 |
| Maximum Width: | 5 |
| Mounting Hardware Included: | Yes |
| Part Number: | orl5896-504 |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Long Label: | Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 - Warning: | Warning - Both Cancer and Reproduction.JPG |
| Prop 65 Yes/No: | Yes |
| Street Legal: | Yes |
| Style Purpose: | Sleek styling and flush fit to avoid damage to light |
| Title: | 5896-504 - Tail light Assembly |
| Turn Signal Style: | Sequential effect turn signals |
| Warranty Time Period: | 1 year warranty |
| Wire Colors: | Black |
| Wire Gauge Measurement: | 18 |
| Wiring Harness Included: | Yes |
| Wiring Harness Length: | 8 |
Features
- 2 year warranty
- Animated / sequential turn signal sequence (see notes for model limitations)
- BLIS / cross-traffic compatible using factory sensor swap-over
- High-powered LED reverse lights providing 4,400+ lumens of rear illumination
- Modern sleek styling with a flush-mounted, low-profile design
- Reduced protrusion helps reduce risk of tail light damage
- Signature perimeter lighting for a distinct OEM-plus look
- True plug-and-play installation with included adapters
Specifications
- Add-On:
- N/A
- Adjusting Screw Included:
- Yes
- Background Color:
- Black
- Bulb Quantity:
- 12
- Bulb Technology:
- LED
- Bulb Type:
- 3157
- Bulbs Included:
- Yes
- Color:
- Standard Lens
- Compatibility:
- Works with base and LED packages
- Connector Quantity:
- 4
- DOT Approved:
- No
- Description:
- Oracle 17-22 Ford F-250/350 Superduty Flush Mount LED Tail Lights
- Details:
- Signature perimeter lighting
- Housing Color:
- Black
- Housing Material:
- ABS
- Install Type:
- Simple plug-and-play install with factory sensor compatibility
- Length:
- 23
- Lens Color:
- Red
- Lens Material:
- Polycarbonate
- Light Count:
- 12 high-powered LED reverse lights
- Maximum Diameter:
- 23
- Maximum Width:
- 5
- Mounting Hardware Included:
- Yes
- Part Number:
- orl5896-504
- Prop 65 (C, R or CR):
- CR
- Prop 65 - Long Label:
- Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
- Prop 65 - Short Label:
- WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Prop 65 - Warning:
- Warning - Both Cancer and Reproduction.JPG
- Prop 65 Yes/No:
- Yes
- Street Legal:
- Yes
- Style Purpose:
- Sleek styling and flush fit to avoid damage to light
- Title:
- 5896-504 - Tail light Assembly
- Turn Signal Style:
- Sequential effect turn signals
- Warranty Time Period:
- 1 year warranty
- Wire Colors:
- Black
- Wire Gauge Measurement:
- 18
- Wiring Harness Included:
- Yes
- Wiring Harness Length:
- 8
Reference Information
| Brand Name/s | Oracle Lighting |
|---|---|
| StreetFX SKU | orl5896-504 |
| SFX Item ID | 4581427 |
| Supplier Item Code | 4581427 |
| Manufacturer SKU | 5896-504 |
| Manufacturer UPC | 810030398295 |
| Alternative References | OCL5896-504, F-250/350 |
